BJ75LV-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

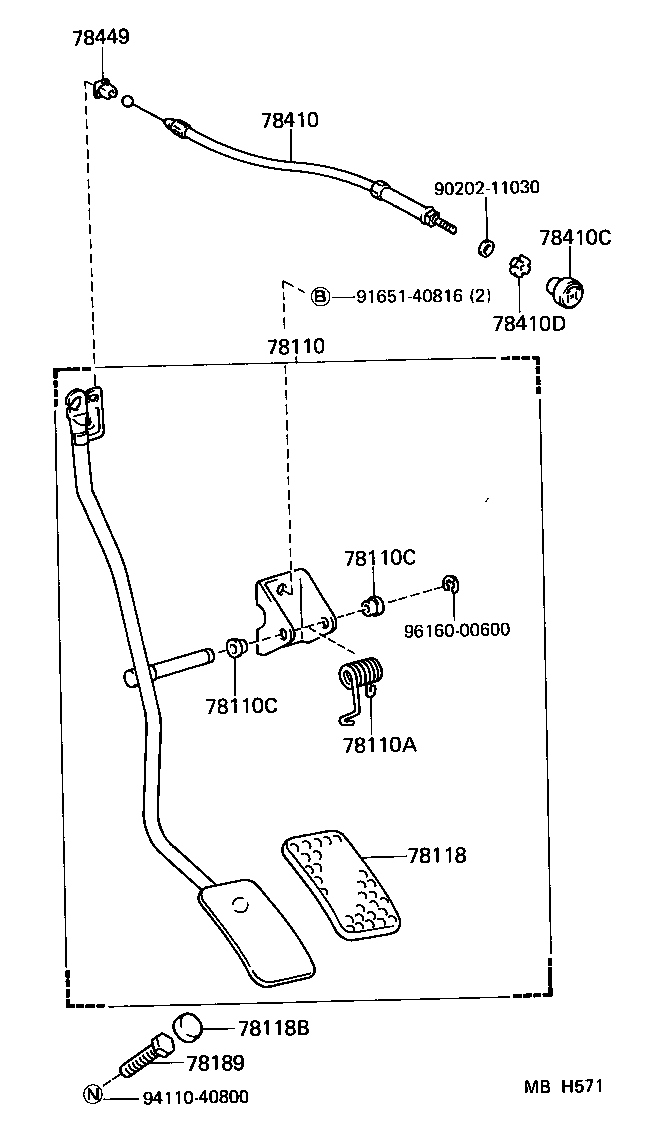

ILLUST NO. 2 OF 2(8411- )

Click highlighted areas on diagram

diagram 78110 78110A 78110C 78110C 78118 78118B 78189 78410 78410C 78410D 78449 9020211030 9165140816 9411040800 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90K02

BJ7#,LJ7#..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29017

BJ7#,LJ7#,RJ7#..CBR,DSL,TD

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08155

BJ7#,LJ7#,RJ7#

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08155

BJ7#,LJ7#,RJ7#

 2
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ7#,LJ7#,RJ7#

 1
78118B - STOPPER, ACCELERATOR PEDAL
78118-90K00

BJ7#,LJ7#,RJ7#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
91131-50835

BJ7#,LJ7#,RJ7#..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90K06

BJ71,73,75,LJ70..HT,PIC

PUSH PULL TYPE

 1
78410-90K06

BJ7#,LJ70

PUSH PULL TYPE

 1
78410-90K01

BJ7#,LJ7#,RJ7#..LHD

 1
78410-90K06

BJ73,75,LJ70..LHD..(HT,PIC)

PUSH PULL TYPE

 1
78410C - KNOB, THROTTLE CABLE
78402-90K00

BJ73,75,LJ70..LHD..(HT,PIC)

PUSH PULL TYPE

 1
78402-90K00

BJ71,73,75,LJ70..HT,PIC

PUSH PULL TYPE

 1
78411-90K00

BJ7#,LJ7#,RJ7#

 1
78402-90K00

BJ7#,LJ70

PUSH PULL TYPE

 1
78410D - NUT, THROTTLE
90179-11007

BJ7#,LJ7#,RJ7#

 1
78449 - GUIDE, THROTTLE CABLE
78449-90300

BJ7#,LJ70,RJ70

 1
Common parts
90202-11030
91651-40816
94110-40800
96160-00600

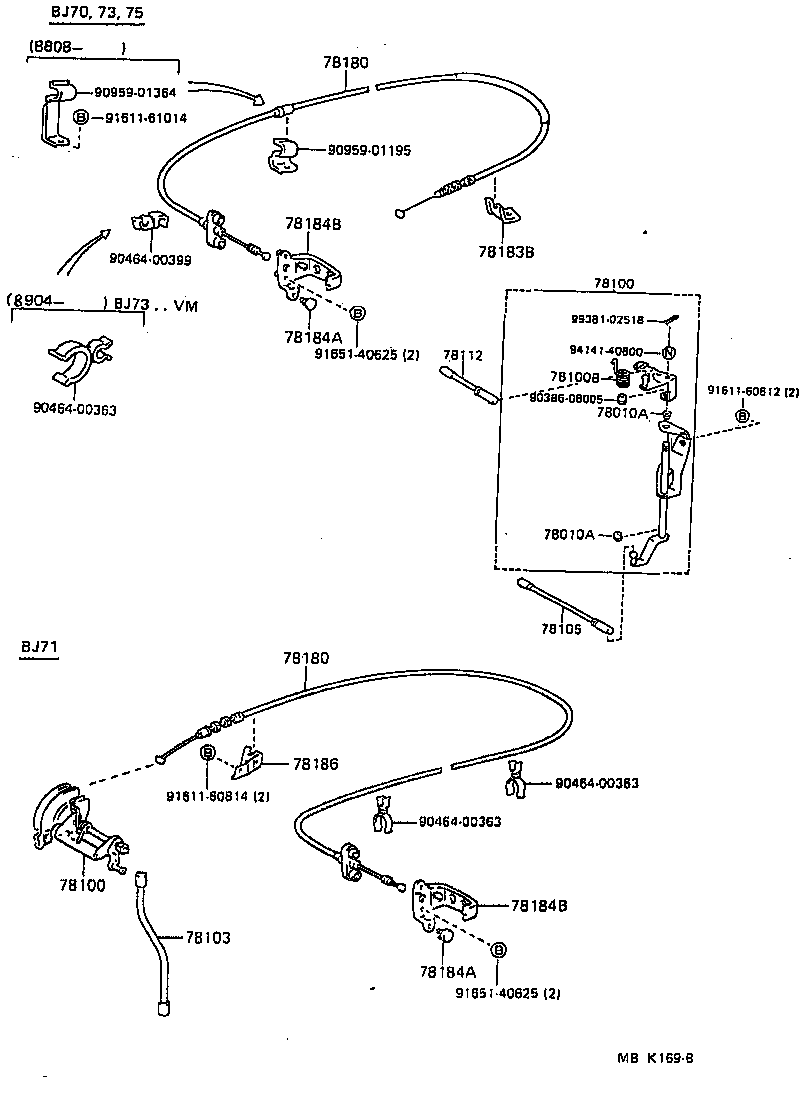

ILLUST NO. 1 OF 2(8411- )BJ7#..LHD

Click highlighted areas on diagram

diagram 78010A 78010A 78100 78100 78100B 78103 78105 78112 78180 78180 78183B 78184A 78184A 78184B 78184B 78186 9038608005 9046400363 9046400363 9046400363 9046400399 9095901195 9095901364 9161160812 9161160814 9161161014 9165140625 9165140625 9414140800 9538102518
Part # Description Qty Price
78180 - WIRE ASSY, ACCELERATOR
78180-90K10

BJ7#

 1
78180-90K10

BJ70,73,75..LHD..(LX,STD)

 1
78180-90K17

BJ70,73,75..LX,STD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90K10

BJ7#

 1
78180-90K10

BJ70,73,75..LHD..(LX,STD)

 1
78180-90K17

BJ70,73,75..LX,STD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-90A00

BJ70,73,75..LX,STD

 1
78183-90A00

BJ7#

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

BJ7#,LJ7#,RJ7#

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

BJ7#,LJ7#,RJ7#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-90K01

BJ7#..LHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-90K01

BJ7#..LHD

 1
Common parts
90386-08005
90464-00363
90464-00399
90959-01195
90959-01364
91611-60812
91611-60814
91611-61014
91651-40625
94141-40800
95381-02518
