BJ75LV-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

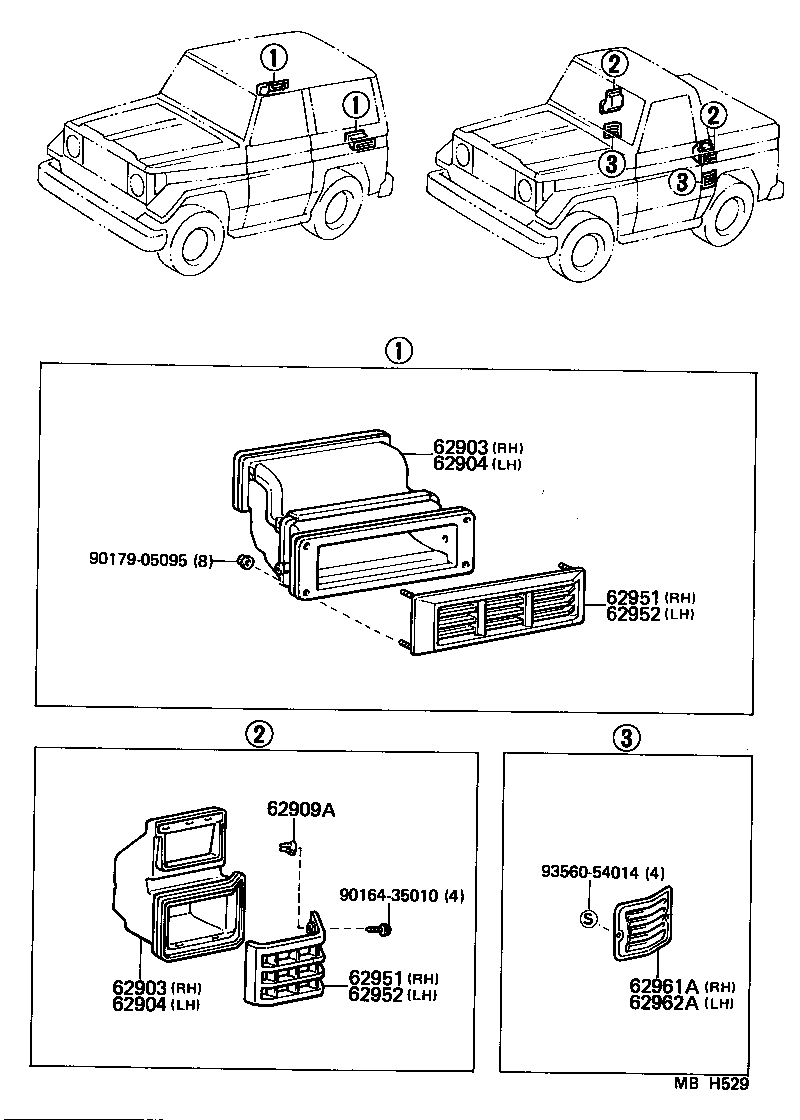

Click highlighted areas on diagram

diagram 62903 62903 62904 62904 62909A 62951 62951 62952 62952 62961A 62962A 9016435010 9017905095 9356054014
Part # Description Qty Price
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62903-90K00

BJ7#,LJ7#,RJ7#..HT

 1
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62903-90K00

BJ7#,LJ7#,RJ7#..HT

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62903-90K00

BJ7#,LJ7#,RJ7#..HT

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62903-90K00

BJ7#,LJ7#,RJ7#..HT

 1
62951 - LOUVER, VENT, INNER RH
62951-90K00

BJ7#,LJ7#,RJ7#..HT

 1
62951 - LOUVER, VENT, INNER RH
62951-90K00

BJ7#,LJ7#,RJ7#..HT

 1
62952 - LOUVER, VENT, INNER LH
62951-90K00

BJ7#,LJ7#,RJ7#..HT

 1
62952 - LOUVER, VENT, INNER LH
62951-90K00

BJ7#,LJ7#,RJ7#..HT

 1
Common parts
90164-35010
90179-05095
93560-54014
