BJ75LP-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

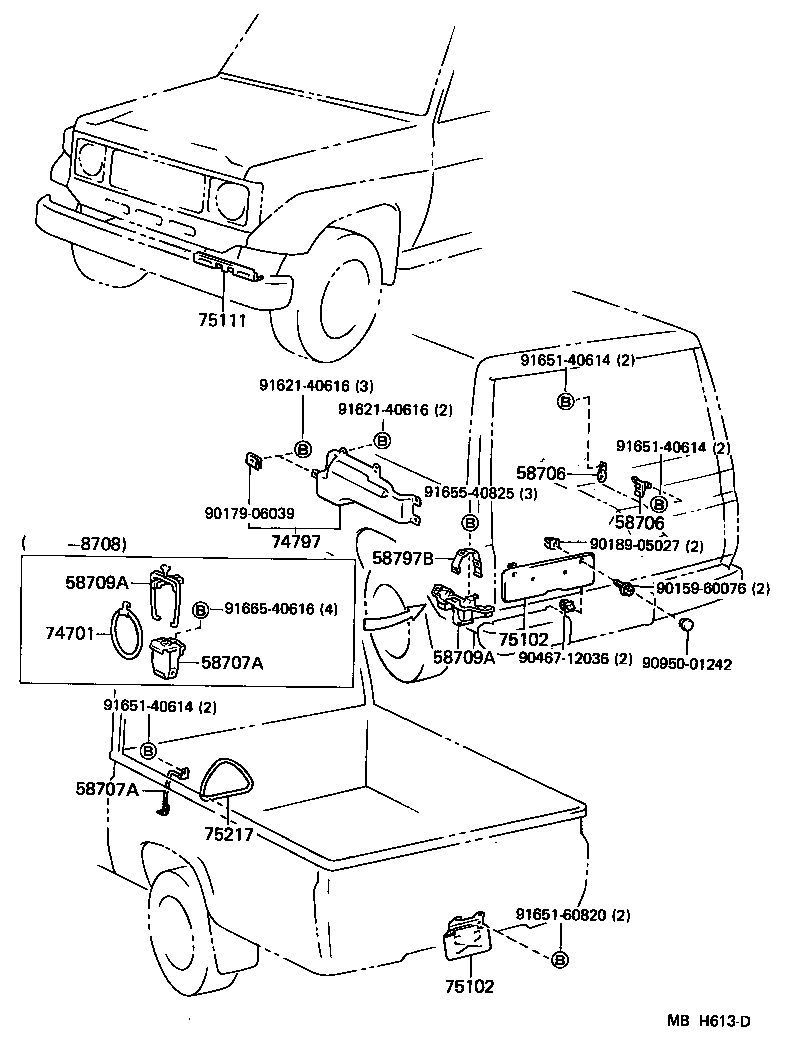

Click highlighted areas on diagram

diagram 58706 58706 58707A 58707A 58709A 58709A 58797B 74701 74797 75102 75102 75111 75217 9015960076 9017906039 9018905027 9046712036 9095001242 9162140616 9162140616 9165140614 9165140614 9165140614 9165160820 9165540825 9166540616
Part # Description Qty Price
58707A - HOLDER SUB-ASSY, JACK
58707-90K01

BJ75..PIC

 1
58707A - HOLDER SUB-ASSY, JACK
58707-90K01

BJ75..PIC

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75122-60040

BJ75..PIC

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75122-60040

BJ75..PIC

 1
75111 - BRACKET, FRONT LICENSE PLATE
75111-60050

BJ7#,LJ7#,RJ7#..LX,STD

 1
75111-60030

BJ7#,LJ7#,RJ70..(LX,STD)..(CBR,DSL,TD)

 1
75111-60030

BJ7#,LJ7#,RJ7#..LX,STD

 1
75111-60030

BJ7#,LJ7#,RJ7#

 1
75217 - BAND, TOOL BAG
75217-90300

BJ75..PIC

 1
Common parts
90159-60076
90179-06039
90189-05027
90467-12036
90950-01242
91621-40616
91651-40614
91651-60820
91655-40825
91665-40616
