BJ75LP-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )PIC

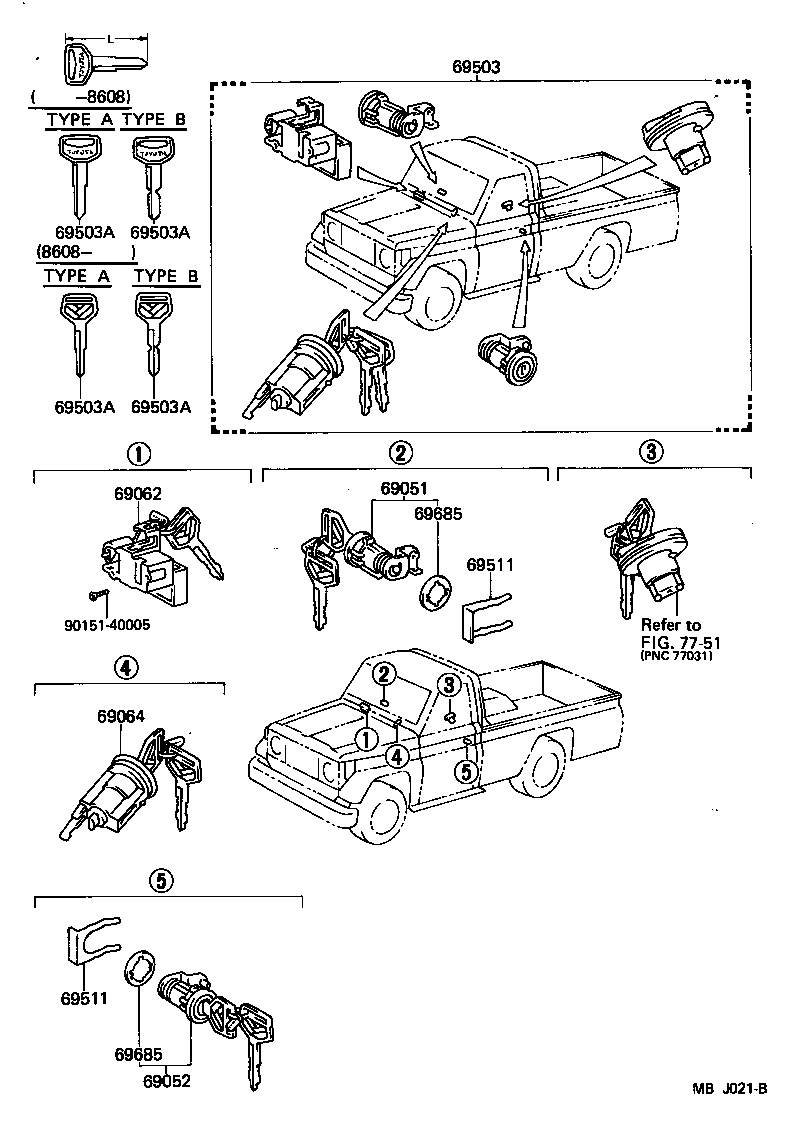

Click highlighted areas on diagram

diagram 69051 69052 69062 69064 69503 69503A 69503A 69503A 69503A 69511 69511 69685 69685 7751 9015140005
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-90K01

BJ75..PIC

 1
69051-10170

BJ7#,LJ7#,RJ7#

 1
69051-32020

BJ7#,LJ7#,RJ70

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-32020

BJ7#,LJ7#,RJ70

 1
69052-10170

BJ7#,LJ7#,RJ7#

 1
69052-90K01

BJ75..PIC

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-90K0101

BJ75..PIC

BLACK,BLACK

 1
69056-90K0501

BJ7#,LJ7#,RJ7#

BLACK,BLACK

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-90K01

BJ75..PIC

 1
69057-90K13

BJ7#,LJ7#,RJ70..(HT,PIC)..(LX,STD,VX)

 1
69503 - CYLINDER SET, LOCK
69005-90K22

BJ75..PIC

 1
69005-90L5601

BJ75..PIC

W/GLOVE BOX KEY,BLACK,BLACK

 1
69005-90K4301

BJ75..PIC

W/GLOVE BOX KEY,BLACK,BLACK

 1
69005-90L63

BJ75..PIC

 1
69503A - KEY, BLANK
90999-00126

BJ7#,LJ7#,RJ7#

TYPE B,L=69

 1
90999-00125

BJ7#,LJ7#,RJ7#

MASTER KEY,W(*68),TYPE A,L=69

 1
90999-00086

BJ75..PIC

MASTER KEY,TYPE A

 1
90999-00091

BJ75..PIC

MASTER KEY,W(*70),TYPE B

 1
69503A - KEY, BLANK
90999-00126

BJ7#,LJ7#,RJ7#

TYPE B,L=69

 1
90999-00125

BJ7#,LJ7#,RJ7#

MASTER KEY,W(*68),TYPE A,L=69

 1
90999-00086

BJ75..PIC

MASTER KEY,TYPE A

 1
90999-00091

BJ75..PIC

MASTER KEY,W(*70),TYPE B

 1
69503A - KEY, BLANK
90999-00126

BJ7#,LJ7#,RJ7#

TYPE B,L=69

 1
90999-00125

BJ7#,LJ7#,RJ7#

MASTER KEY,W(*68),TYPE A,L=69

 1
90999-00086

BJ75..PIC

MASTER KEY,TYPE A

 1
90999-00091

BJ75..PIC

MASTER KEY,W(*70),TYPE B

 1
69503A - KEY, BLANK
90999-00126

BJ7#,LJ7#,RJ7#

TYPE B,L=69

 1
90999-00125

BJ7#,LJ7#,RJ7#

MASTER KEY,W(*68),TYPE A,L=69

 1
90999-00086

BJ75..PIC

MASTER KEY,TYPE A

 1
90999-00091

BJ75..PIC

MASTER KEY,W(*70),TYPE B

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

BJ7#,LJ7#,RJ7#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

BJ7#,LJ7#,RJ7#

 2
69685 - PAD, LOCK CYLINDER
69513-32010

BJ75..PIC

 2
69685 - PAD, LOCK CYLINDER
69513-32010

BJ75..PIC

 2
Common parts
90151-40005
Linked diagrams
7751
