BJ75LP-MRW (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

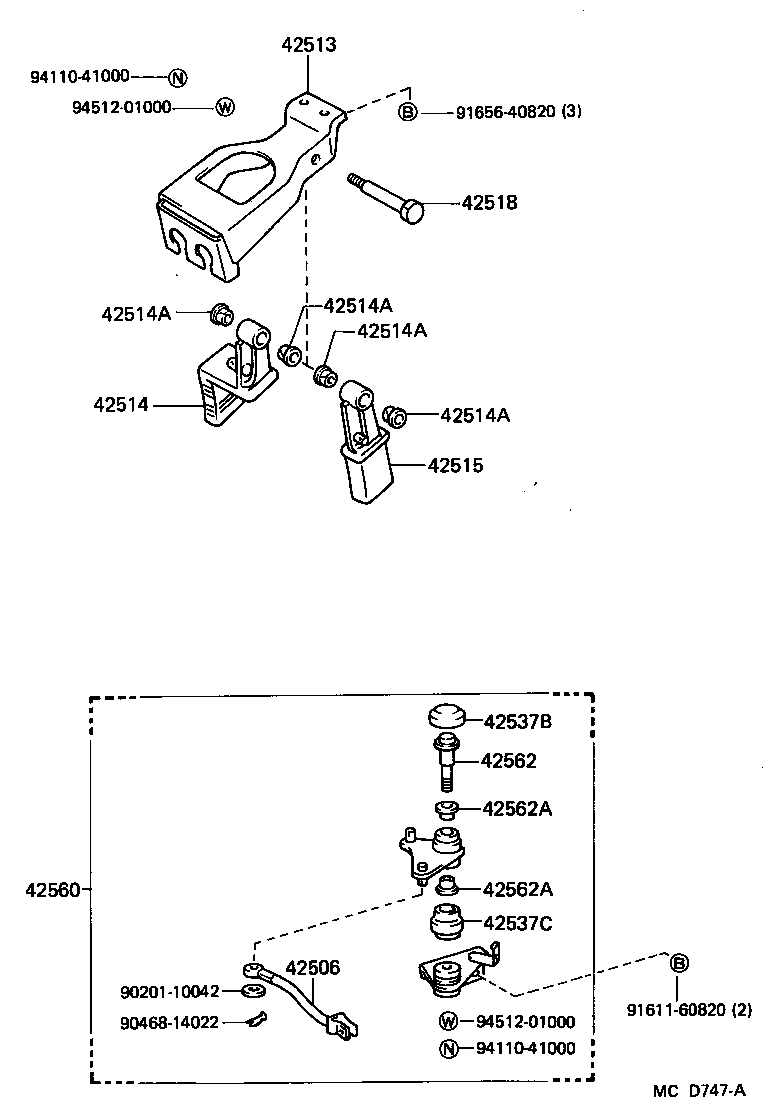

ILLUST NO. 1 OF 2(8608- )BJ75 ; (8708- )BJ70,71,73..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42506 - ROD SUB-ASSY, DIFFERENTIAL LOCK CABLE LINK | ||||
| 42506-60010 |
BJ75 |
2 | ||
| 42513 - BRACKET, DIFFERENTIAL LOCK | ||||
| 42513-60030 |
BJ75 |
1 | ||
| 42514 - KNOB, DIFFERENTIAL LOCK, FRONT | ||||
| 42514-60030 |
BJ75 |
1 | ||
| 42514A - BUSH (FOR DIFFERENTIAL LOCK KNOB) | ||||
| 90386-13014 |
BJ75 |
4 | ||
| 42514A - BUSH (FOR DIFFERENTIAL LOCK KNOB) | ||||
| 90386-13014 |
BJ75 |
4 | ||
| 42514A - BUSH (FOR DIFFERENTIAL LOCK KNOB) | ||||
| 90386-13014 |
BJ75 |
4 | ||
| 42514A - BUSH (FOR DIFFERENTIAL LOCK KNOB) | ||||
| 90386-13014 |
BJ75 |
4 | ||
| 42515 - KNOB, DIFFERENTIAL LOCK, REAR | ||||
| 42515-60030 |
BJ75 |
1 | ||
| 42518 - SHAFT, DIFFERENTIAL LOCK LINK | ||||
| 42518-60010 |
BJ75 |
1 | ||
| 42537B - COVER, CONTROL SHAFT DUST, NO.3 | ||||
| 42537-60010 |
BJ75 |
2 | ||
| 42537C - COVER, CONTROL SHAFT DUST, NO.4 | ||||
| 33789-36010 |
BJ75 |
2 | ||
| 42560 - LINK ASSY, DIFFERENTIAL LOCK CABLE | ||||
| 42560-60011 |
BJ75 |
1 | ||
| 42562 - SHAFT, DIFFERENTIAL LOCK CABLE LINK | ||||
| 42562-60010 |
BJ75 |
2 | ||
| 42562A - BUSH (FOR DIFFERENTIAL LOCK CABLE LINK SHAFT) | ||||
| 90386-13014 |
BJ75 |
4 | ||
| 42562A - BUSH (FOR DIFFERENTIAL LOCK CABLE LINK SHAFT) | ||||
| 90386-13014 |
BJ75 |
4 | ||
| Common parts | ||||
| 90201-10042 | ||||
| 90468-14022 | ||||
| 91611-60820 | ||||
| 91656-40820 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||

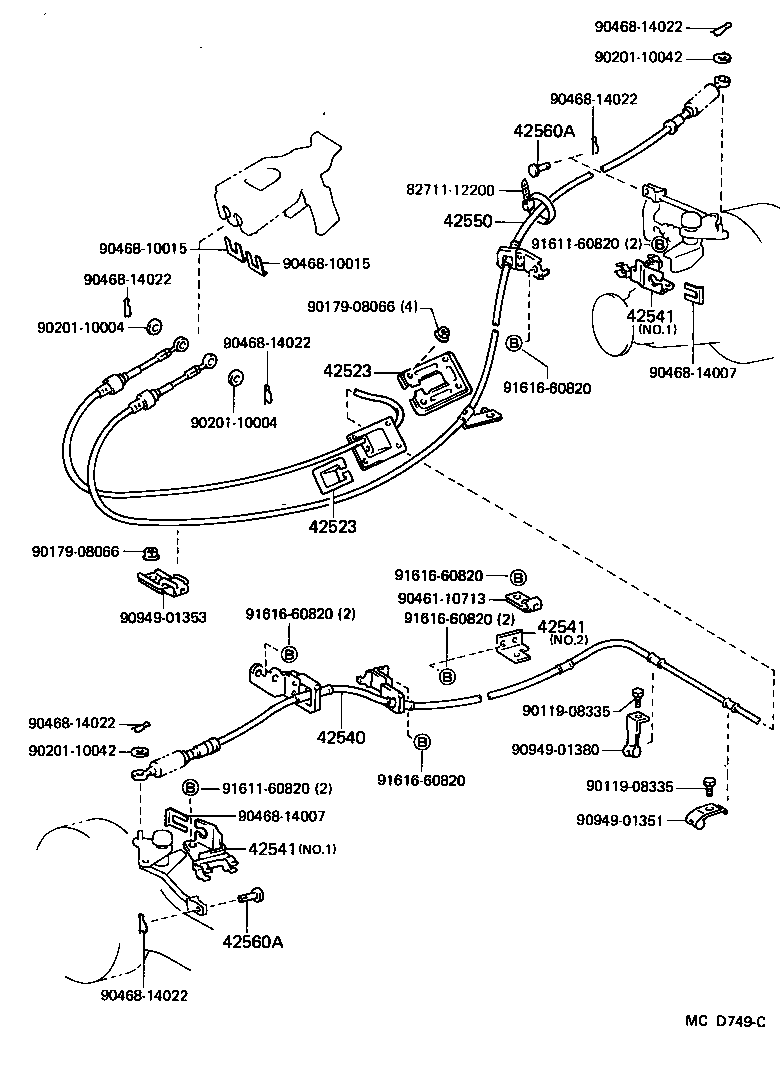

ILLUST NO. 2 OF 2(8608- )BJ75
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42523 - COVER, DIFFERENTIAL LOCK GROMMET | ||||
| 42523-60020 |
BJ75 UPR |
1 | ||
| 42523-60030 |
BJ75 LWR |
1 | ||
| 42523 - COVER, DIFFERENTIAL LOCK GROMMET | ||||
| 42523-60020 |
BJ75 UPR |
1 | ||
| 42523-60030 |
BJ75 LWR |
1 | ||
| 42540 - CABLE ASSY, DIFFERENTIAL LOCK, FRONT | ||||
| 42540-60050 |
BJ75 |
1 | ||
| 42541 - BRACKET, DIFFERENTIAL LOCK CABLE | ||||
| 42541-60010 |
BJ75 NO.1 |
1 | ||
| 42541-60020 |
BJ75 NO.2 |
1 | ||
| 42541 - BRACKET, DIFFERENTIAL LOCK CABLE | ||||
| 42541-60010 |
BJ75 NO.1 |
1 | ||
| 42541-60020 |
BJ75 NO.2 |
1 | ||
| 42541 - BRACKET, DIFFERENTIAL LOCK CABLE | ||||
| 42541-60010 |
BJ75 NO.1 |
1 | ||
| 42541-60020 |
BJ75 NO.2 |
1 | ||
| 42550 - CABLE ASSY, DIFFERENTIAL LOCK, REAR | ||||
| 42550-60080 |
BJ75 |
1 | ||
| 42560A - PIN, W/HOLE (FOR DIFFERENTIAL LOCK CABLE LINK) | ||||
| 90240-09001 |
BJ75 |
2 | ||
| 42560A - PIN, W/HOLE (FOR DIFFERENTIAL LOCK CABLE LINK) | ||||
| 90240-09001 |
BJ75 |
2 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08335 | ||||
| 90179-08066 | ||||
| 90201-10004 | ||||
| 90201-10042 | ||||
| 90461-10713 | ||||
| 90468-10015 | ||||
| 90468-14007 | ||||
| 90468-14022 | ||||
| 90949-01351 | ||||
| 90949-01353 | ||||
| 90949-01380 | ||||
| 91611-60820 | ||||
| 91616-60820 | ||||
