BJ75LP-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8712)LJ7#,RJ7#..LHD ; (8411- )BJ7# ; (8712- )RJ7#

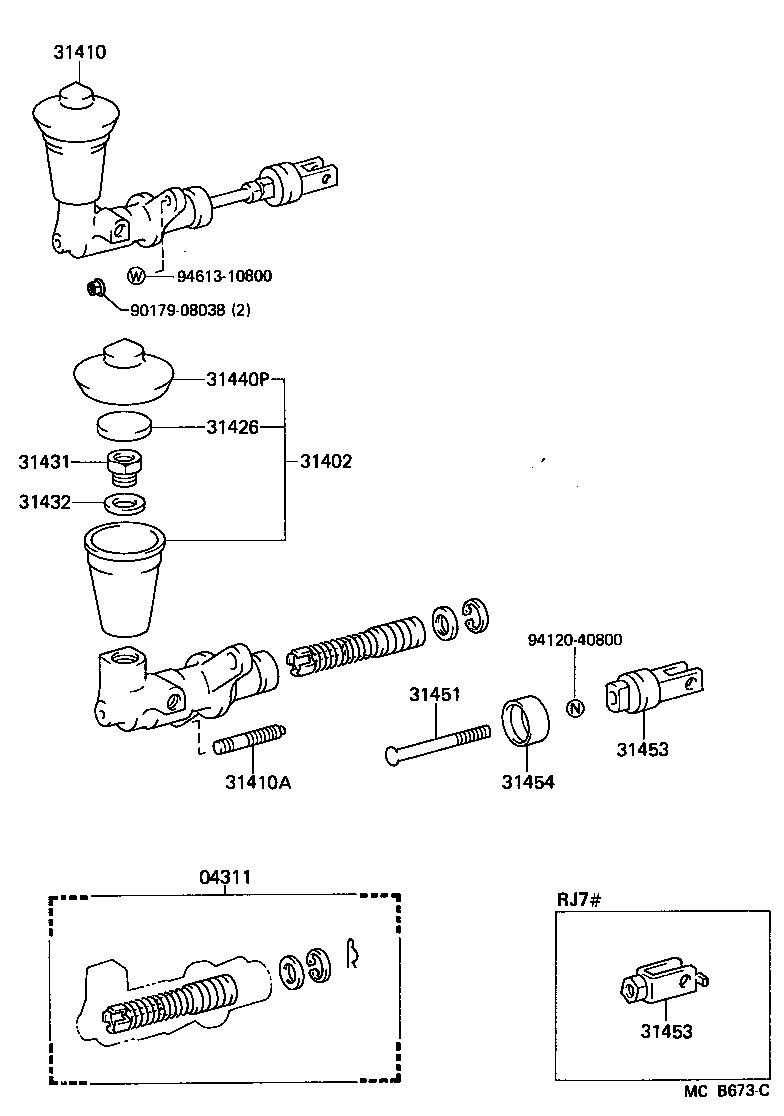

Click highlighted areas on diagram

diagram 04311 31402 31410 31410A 31426 31431 31432 31440P 31451 31453 31453 31454 9017908038 9412040800 9461310800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60050

BJ7#

 1
04311-60051

BJ7#

 1
04311-60040

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
04311-60041

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
04311-60042

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-30030

BJ7#

 1
31402-20010

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-60291

BJ7#

 1
31410-60292

BJ7#

 1
31401-60020

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31401-60021

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31401-60022

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31410-60290

BJ7#

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
90116-08146

BJ7#,LJ7#,RJ7#

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

BJ7#,LJ7#,RJ7#

 1
31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-20010

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
47231-30010

BJ7#

 1
31432 - WASHER, CLUTCH RESERVOIR SET BOLT
47232-30010

BJ7#

 1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

BJ7#,LJ7#,RJ7#

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-60070

BJ7#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31453-35010

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31404-36020

BJ7#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31453-35010

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31404-36020

BJ7#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-30030

BJ7#

 1
47265-20050

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
Common parts
90179-08038
94120-40800
94613-10800

(8411- )BJ7#..LHD..LX,STD

Click highlighted areas on diagram

diagram 04311 31402 31402E 31410 31415 31426 31431 31440P 31453 31454 31459 9017908038 9017908146 9161160825 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60050

BJ7#

 1
04311-60051

BJ7#

 1
04311-60040

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
04311-60041

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
04311-60042

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-30030

BJ7#

 1
31402-20010

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
31402E - RING(FOR CLUTCH MASTER CYLINDER RESERVOIR)
90562-18151

BJ7#..LX,STD

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-60291

BJ7#

 1
31410-60292

BJ7#

 1
31401-60020

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31401-60021

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31401-60022

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31410-60290

BJ7#

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
47275-14010

BJ7#..LHD..(LX,STD)

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

BJ7#,LJ7#,RJ7#

 1
31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-20010

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
47231-30010

BJ7#

 1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

BJ7#,LJ7#,RJ7#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31453-35010

BJ7#..LHD..(LX,STD)

W/CLUTCH BOOSTER

 1
31404-36020

BJ7#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-30030

BJ7#

 1
47265-20050

BJ7#..LX,STD

W/CLUTCH BOOSTER

 1
31459 - BRACKET, CLUTCH MASTER CYLINDER
31459-60070

BJ7#..LHD..(LX,STD)

 1
Common parts
90179-08038
90179-08146
91611-60825
94120-40800
