BJ73LV-MRW (1984)
Toyota Land Cruiser
ILLUST NO. 2 OF 2(8411- )BJ70,71,73,LJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-90K04 |
BJ70,71,73..LX,STD 24V |
1 | ||
| 87104-90K01 |
BJ73,LJ70,RJ70 12V |
1 | ||
| 87104-90K02 |
BJ70,73 24V |
1 | ||
| 87104-90K03 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 87104-90K05 |
BJ70,71,73..LX,STD 12V |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-87002 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-90K02 |
BJ70,73,LJ7#,RJ7# |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-90K01 |
BJ70,71,73..LX,STD 24V |
1 | ||
| 87110-90K00 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 87123 - KNOB, HEATER | ||||
| 55905-12070 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-90K03 |
BJ7#..LX,STD 24V |
1 | ||
| 87138-90K02 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 87212A - DUCT, AIR, REAR NO.1 | ||||
| 87212-90K00 |
BJ70,73,LJ7#,RJ7# |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-90K05 |
BJ70,73,LJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 91651-40616 | ||||

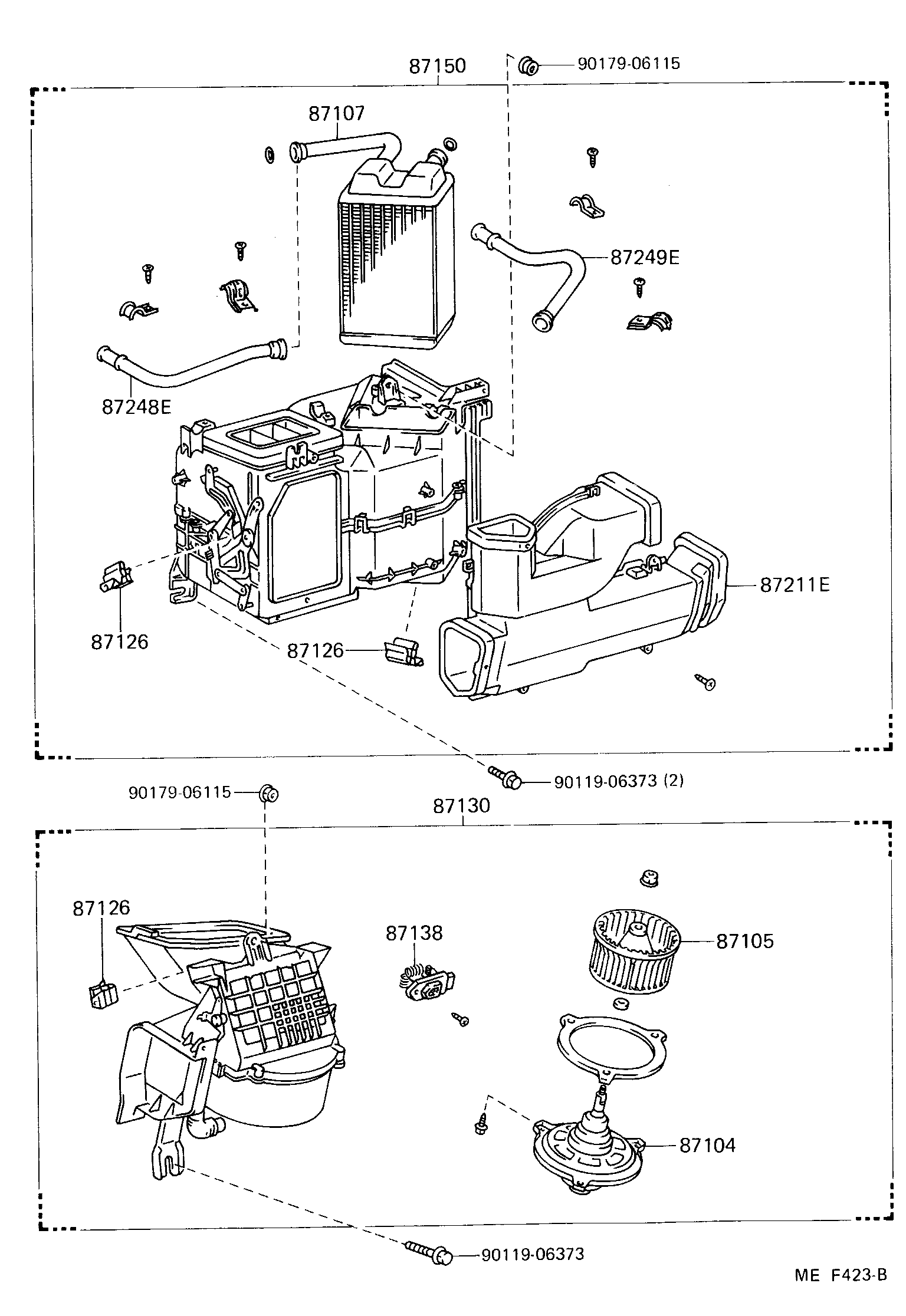

ILLUST NO. 1 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-90K00 |
BJ7#..LX,STD 24V |
1 | ||
| 87104-89110 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
BJ7#,LJ7#,RJ7#..LHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-90K01 |
BJ7#,LJ7#,RJ7#..LHD |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
BJ7#,LJ7#,RJ7# HEATER RADIATOR |
2 | ||
| 87126-90K00 |
BJ7#,LJ7#,RJ7# BLOWER |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
BJ7#,LJ7#,RJ7# HEATER RADIATOR |
2 | ||
| 87126-90K00 |
BJ7#,LJ7#,RJ7# BLOWER |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
BJ7#,LJ7#,RJ7# HEATER RADIATOR |
2 | ||
| 87126-90K00 |
BJ7#,LJ7#,RJ7# BLOWER |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-60290 |
BJ73,LJ7#,RJ70 12V |
1 | ||
| 87130-90K03 |
BJ7#..LX,STD 24V |
1 | ||
| 87130-60300 |
BJ7#..LX,STD 24V |
1 | ||
| 87130-90K02 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-90K00 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 87138-90K01 |
BJ7#..LX,STD 24V |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-60250 |
BJ7# |
1 | ||
| 87150-90K05 |
BJ7#..LHD |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87201-90K05 |
BJ7#,LJ7#,RJ7#..LHD |
1 | ||
| 87201-60030 |
BJ7#,LJ7#,RJ70..LHD |
1 | ||
| 87248E - PIPE, HEATER WATER INLET, E | ||||
| 87248-90K02 |
BJ7#,LJ7#,RJ7#..LHD |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87248-90K05 |
BJ7#..LHD |
1 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 90179-06115 | ||||
