BJ73LV-MRW (1984)
Toyota Land Cruiser

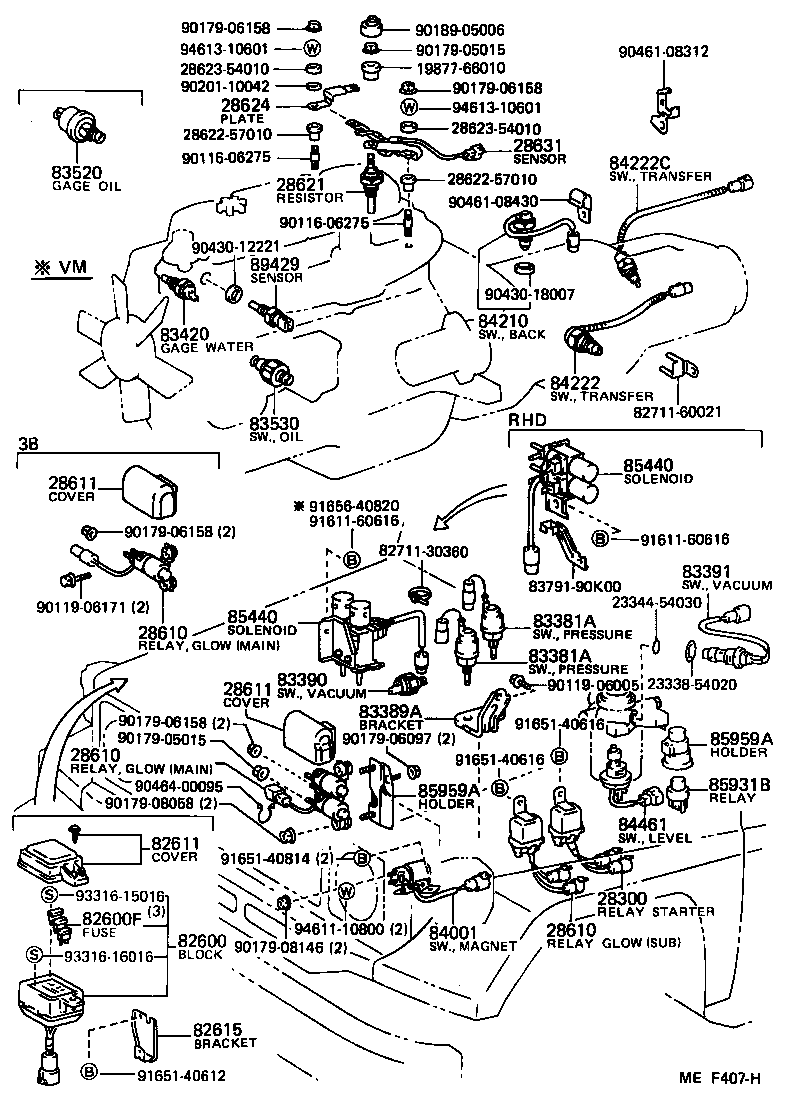

ILLUST NO. 1 OF 5(8411- )BJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54070 |
3B,2L#..BJ73,LJ7# 12V |
1 | ||
| 28300-56020 |
13BT,3B..BJ7#..LX,STD 24V |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64020 |
3B..BJ73..STD 12V MAIN |
1 | ||
| 28610-57090 |
3B..BJ70,73,75..LX,STD 24V MAIN |
1 | ||
| 28610-58020 |
3B..BJ70,73,75..LX,STD 24V MAIN |
1 | ||
| 28610-57100 |
3B..BJ73 12V MAIN |
1 | ||
| 28610-54180 |
3B..BJ70,73,75..LX,STD 24V SUB |
1 | ||
| 28610-64020 |
3B..BJ73 12V MAIN |
1 | ||
| 28610-58070 |
3B..BJ70,73,75..LX,STD 24V MAIN |
1 | ||
| 28610-54090 |
3B,2L#..BJ73,LJ7# 12V SUB |
1 | ||
| 28610-54300 |
3B..BJ73..LX,STD 12V SUB |
1 | ||
| 28610-58080 |
3B..BJ70,73,75..LX,STD 24V SUB |
1 | ||
| 28610-58090 |
3B..BJ73..LX,STD 12V MAIN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64020 |
3B..BJ73..STD 12V MAIN |
1 | ||
| 28610-57090 |
3B..BJ70,73,75..LX,STD 24V MAIN |
1 | ||
| 28610-58020 |
3B..BJ70,73,75..LX,STD 24V MAIN |
1 | ||
| 28610-57100 |
3B..BJ73 12V MAIN |
1 | ||
| 28610-54180 |
3B..BJ70,73,75..LX,STD 24V SUB |
1 | ||
| 28610-64020 |
3B..BJ73 12V MAIN |
1 | ||
| 28610-58070 |
3B..BJ70,73,75..LX,STD 24V MAIN |
1 | ||
| 28610-54090 |
3B,2L#..BJ73,LJ7# 12V SUB |
1 | ||
| 28610-54300 |
3B..BJ73..LX,STD 12V SUB |
1 | ||
| 28610-58080 |
3B..BJ70,73,75..LX,STD 24V SUB |
1 | ||
| 28610-58090 |
3B..BJ73..LX,STD 12V MAIN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64020 |
3B..BJ73..STD 12V MAIN |
1 | ||
| 28610-57090 |
3B..BJ70,73,75..LX,STD 24V MAIN |
1 | ||
| 28610-58020 |
3B..BJ70,73,75..LX,STD 24V MAIN |
1 | ||
| 28610-57100 |
3B..BJ73 12V MAIN |
1 | ||
| 28610-54180 |
3B..BJ70,73,75..LX,STD 24V SUB |
1 | ||
| 28610-64020 |
3B..BJ73 12V MAIN |
1 | ||
| 28610-58070 |
3B..BJ70,73,75..LX,STD 24V MAIN |
1 | ||
| 28610-54090 |
3B,2L#..BJ73,LJ7# 12V SUB |
1 | ||
| 28610-54300 |
3B..BJ73..LX,STD 12V SUB |
1 | ||
| 28610-58080 |
3B..BJ70,73,75..LX,STD 24V SUB |
1 | ||
| 28610-58090 |
3B..BJ73..LX,STD 12V MAIN |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
3B,2LT..BJ70,73,75,LJ7# |
1 | ||
| 28611-64010 |
3B..BJ70,73,75 |
1 | ||
| 28611-64010 |
3B..BJ70,73,75..STD |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
3B,2LT..BJ70,73,75,LJ7# |
1 | ||
| 28611-64010 |
3B..BJ70,73,75..STD |
1 | ||
| 28611-64010 |
3B..BJ70,73,75 |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-57021 |
3B..BJ73..STD 12V |
1 | ||
| 28621-57021 |
3B..BJ73 12V |
1 | ||
| 28621-57011 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-57010 |
3B..BJ70,73,75 |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-57010 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 28631-57020 |
3B..BJ73 12V |
1 | ||
| 28631-57020 |
3B..BJ73..STD 12V |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82610-90K03 |
BJ7#..LX,STD |
1 | ||
| 82610-90K02 |
BJ73 PORTUGAL SPEC |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
BJ7#,LJ7#,RJ7# 15A,15A |
5 | ||
| 90982-09004 |
BJ7#,LJ7#,RJ7# 20A,YELLOW,20A |
3 | ||
| 90982-09002 |
BJ7#,LJ7#,RJ7# 10A,10A |
8 | ||
| 90982-09005 |
BJ7#,LJ7#,RJ7# 7.5A,7.5A |
4 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90K00 |
BJ73 PORTUGAL SPEC |
1 | ||
| 82611-90K01 |
BJ7#..LX,STD |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90K01 |
BJ7# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
BJ7#,LJ7# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-32020 |
BJ70,73,75,LJ7#..LX,STD,VX |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60020 |
BJ7#..STD |
1 | ||
| 83520-60020 |
BJ7# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
BJ7#,LJ70 |
1 | ||
| 83530-30060 |
BJ70,73,75..STD |
1 | ||
| 83530-30060 |
BJ7#,LJ70 |
1 | ||
| 84001 - SWITCH ASSY, MAGNET | ||||
| 38630-60090 |
BJ7#..LX,STD |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-60040 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-60020 |
BJ7#..LX,STD |
1 | ||
| 84461-30040 |
BJ7# |
1 | ||
| 85440 - SOLENOID ASSY, FRONT DRIVE | ||||
| 85440-60060 |
BJ73..STD 12V |
1 | ||
| 85440-60070 |
BJ7#..LHD..STD 24V |
1 | ||
| 85440-60060 |
BJ73 12V |
1 | ||
| 85440-60170 |
BJ73..STD 12V |
1 | ||
| 85440 - SOLENOID ASSY, FRONT DRIVE | ||||
| 85440-60060 |
BJ73..STD 12V |
1 | ||
| 85440-60070 |
BJ7#..LHD..STD 24V |
1 | ||
| 85440-60060 |
BJ73 12V |
1 | ||
| 85440-60170 |
BJ73..STD 12V |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
BJ73..LX,STD 12V |
1 | ||
| 90987-02005 |
BJ70,73,75..LX,STD 24V |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-60010 |
BJ70,73,75,LJ7#..LX,STD,VX FUEL HEATER |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-60010 |
BJ70,73,75,LJ7#..LX,STD,VX FUEL HEATER |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
BJ7#,LJ7#..LX,STD,VX |
1 | ||
| 89422-20010 |
BJ70,73,75..LX,STD |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-30360 | ||||
| 82711-60021 | ||||
| 83791-90K00 | ||||
| 90116-06275 | ||||
| 90119-06005 | ||||
| 90119-06171 | ||||
| 90179-05015 | ||||
| 90179-06097 | ||||
| 90179-06158 | ||||
| 90179-08058 | ||||
| 90179-08146 | ||||
| 90189-05006 | ||||
| 90201-10042 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-08430 | ||||
| 90464-00095 | ||||
| 91611-60616 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91656-40820 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||
| 94611-10800 | ||||
| 94613-10601 | ||||
ILLUST NO. 2 OF 5(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69355 |
BJ7#,LJ7#,RJ7#..LHD..(HT,PIC)..(LX,STD,VX) |
1 | ||
| 84112-69375 |
LJ70..SOT;BJ73,LJ73,RJ73 WATER PROOF |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69105 |
BJ7#,LJ7#,RJ7#..LHD |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-90K00 |
BJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX) |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84160-90K02 |
BJ73,LJ7#,RJ7#..LHD 12V |
1 | ||
| 84160-90K03 |
BJ7#..LHD..(LX,STD)..CBU 24V |
1 | ||
| 84160-12030 |
BJ73,LJ7#,RJ7#..LHD 12V |
1 | ||
| 84160-90K00 |
BJ7#..LHD..(LX,STD)..CBU 24V |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10110 |
BJ73,LJ7#,RJ7#..LHD 12V 1.12W,12V |
1 | ||
| 84999-10100 |
BJ7#..LHD..(LX,STD)..CBU 24V 1.12W,24V |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60520 |
LJ70..SOT;BJ73,LJ73,RJ73 WATER PROOF |
1 | ||
| 84310-60570 |
BJ7#,LJ7#,RJ7#..LHD..(HT,PIC)..(LX,STD,VX) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-60010 |
LJ70..SOT;BJ73,LJ73,RJ73 WATER PROOF |
1 | ||
| 84312-32010 |
BJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69115 |
BJ7#,LJ7#,RJ7#..LHD..(HT,PIC)..(LX,STD,VX) |
1 | ||
| 84332-69135 |
LJ70..SOT;BJ73,LJ73,RJ73 WATER PROOF |
1 | ||
| 84330C - COVER, HAZARD WARNING SIGNAL SWITCH | ||||
| 84333-60010 |
LJ70..SOT;BJ73,LJ73,RJ73 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60120 |
BJ7#,LJ7#,RJ7#..CBR,DSL,TD W/TILT STEERING |
1 | ||
| 84450-60140 |
BJ7#,LJ7#,RJ7#..STD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69445 |
BJ7#,LJ7#,RJ7#..LHD..(HT,PIC)..(LX,STD,VX) |
1 | ||
| 84652-69485 |
LJ70..SOT;BJ73,LJ73,RJ73 WATER RROOF |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-90K00 |
BJ7#,LJ7#,RJ7#..HT |
1 | ||
| 84653-22010 |
BJ7#,LJ7#,RJ70..HT |
1 | ||
| 84653-22010 |
BJ70,73,LJ70,RJ70..HT |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60060 |
BJ7#..LX,STD 24V |
1 | ||
| 84722-60050 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 84722H - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 84999-10170 |
BJ73,LJ7#,RJ7# 12V 1.12W,12V |
1 | ||
| 84999-10100 |
BJ7#..LX,STD 24V 1.12W,24V |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-90K01 |
BJ73..LX,STD W/COOLER |
1 | ||
| 84732-90K03 |
BJ7# 24V |
1 | ||
| 84732-90K01 |
BJ73,LJ70,RJ70 12V |
1 | ||
| 84732-90K01 |
BJ7#,LJ7#,RJ7#..LHD |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 84731-12032 |
BJ73..LX,STD W/COOLER,COOLER CONTROL |
1 | ||
| 84731-20030 |
BJ73..LX,STD W/COOLER,HEATER BLOWER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 84731-12032 |
BJ73..LX,STD W/COOLER,COOLER CONTROL |
1 | ||
| 84731-20030 |
BJ73..LX,STD W/COOLER,HEATER BLOWER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12120 |
BJ73,LJ7#,RJ7#..HT..STD 12V |
1 | ||
| 84790-90K00 |
BJ7#..HT..(LX,STD) 24V |
1 | ||
| 84790-12120 |
BJ73,LJ7#,RJ7#..HT 12V |
1 | ||
| 84790-90K00 |
BJ70,73 24V |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10100 |
BJ70,73 24V 1.12W,24V |
1 | ||
| 84999-10110 |
BJ73,LJ7#,RJ7#..HT..STD 12V 1.12W,12V |
1 | ||
| 84999-10100 |
BJ7#..HT..(LX,STD) 24V 1.12W,24V |
1 | ||
| 84999-10110 |
BJ73,LJ7#,RJ7#..HT 12V 1.12W,12V |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30360 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 85500-90K00 |
BJ7#..LX,STD 24V |
1 | ||
| 85500E - PLATE, VOLTAGE CAUTION | ||||
| 74534-90K00 |
BJ7#..LX,STD |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
ILLUST NO. 3 OF 5(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-57050 |
3B..BJ7# 24V |
1 | ||
| 28521-57060 |
3B..BJ73 12V |
1 | ||
| 28521-57061 |
3B..BJ73..STD 12V |
1 | ||
| 28521-57080 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 28521-57051 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 28521-57062 |
3B..BJ73 12V |
1 | ||
| 28521-58070 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 28521-58080 |
3B..BJ73..LX,STD V |
12 | ||
| 28521-57063 |
3B..BJ73 12V |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-57050 |
3B..BJ7# 24V |
1 | ||
| 28521-57060 |
3B..BJ73 12V |
1 | ||
| 28521-57061 |
3B..BJ73..STD 12V |
1 | ||
| 28521-57080 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 28521-57051 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 28521-57062 |
3B..BJ73 12V |
1 | ||
| 28521-58070 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 28521-58080 |
3B..BJ73..LX,STD V |
12 | ||
| 28521-57063 |
3B..BJ73 12V |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 81980-16010 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 81980-36060 |
BJ7#..LX,STD 24V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
BJ7#,LJ7#,RJ7# 15A,15A |
5 | ||
| 90982-09004 |
BJ7#,LJ7#,RJ7# 20A,YELLOW,20A |
3 | ||
| 90982-09002 |
BJ7#,LJ7#,RJ7# 10A,10A |
8 | ||
| 90982-09005 |
BJ7#,LJ7#,RJ7# 7.5A,7.5A |
4 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-90K05 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 82683-90K01 |
BJ7#,LJ70,RJ70 |
1 | ||
| 82683-90K11 |
BJ7#,LJ7#,RJ70..CBR,DSL,TD |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
BJ7#,LJ7#,RJ7#..LX,STD,VX |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-90K01 |
BJ73;BJ75..PIC |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
LJ70;BJ7#,LJ73,RJ7#..LHD..(LX,STD) 20A,20A |
2 | ||
| 82650-20011 |
BJ7#,LJ7#,RJ7#..LX,STD,VX 30A,30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
BJ73,LJ7#,RJ7# 12V,FR HEATER |
1 | ||
| 90987-02004 |
BJ73,LJ7#,RJ7# 12V,RR HEATER |
1 | ||
| 90987-04002 |
BJ73,LJ7#,RJ70 12V,FR HEATER |
1 | ||
| 90987-02005 |
BJ7#..HT..(LX,STD) 24V,RR HEATER |
1 | ||
| 85913-90K00 |
BJ7#..LX,STD 24V,FR HEATER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
BJ73,LJ7#,RJ7# 12V,FR HEATER |
1 | ||
| 90987-02004 |
BJ73,LJ7#,RJ7# 12V,RR HEATER |
1 | ||
| 90987-04002 |
BJ73,LJ7#,RJ70 12V,FR HEATER |
1 | ||
| 90987-02005 |
BJ7#..HT..(LX,STD) 24V,RR HEATER |
1 | ||
| 85913-90K00 |
BJ7#..LX,STD 24V,FR HEATER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
BJ73,LJ7#,RJ7# 12V,TAIL |
1 | ||
| 90987-02006 |
BJ73,LJ7#,RJ7# 12V,HEAD |
1 | ||
| 90987-02007 |
BJ7#..LX,STD 24V,HEAD |
1 | ||
| 90987-01004 |
BJ7#..LX,STD 24V,TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
BJ73,LJ7#,RJ7# 12V,TAIL |
1 | ||
| 90987-02006 |
BJ73,LJ7#,RJ7# 12V,HEAD |
1 | ||
| 90987-02007 |
BJ7#..LX,STD 24V,HEAD |
1 | ||
| 90987-01004 |
BJ7#..LX,STD 24V,TAIL |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
BJ73,LJ7#,RJ7#..LHD 12V |
1 | ||
| 90987-02005 |
BJ7#..LHD..(LX,STD)..CBU 24V |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03001 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 90987-03002 |
BJ7#..LX,STD 24V |
1 | ||
| 85925A - RELAY, RED INDICATOR | ||||
| 90987-03001 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 90987-03002 |
BJ7# 24V |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 85926-90K00 |
BJ7#..LX,STD 24V |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90K02 |
BJ73,LJ7#,RJ7# 12V |
1 | ||
| 85940-90K01 |
BJ73,LJ70,RJ70 12V |
1 | ||
| 85940-90K00 |
BJ7# 24V |
1 | ||
| 85940-90K03 |
BJ7#..LX,STD 24V |
1 | ||
| 85940A - RELAY, WINDSHIELD WIPER SWITCH | ||||
| 28380-20010 |
LJ70..SOT;BJ73,LJ73,RJ73 12V |
1 | ||
| 85940-26010 |
BJ73..STD 24V |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-90K01 |
BJ7# |
1 | ||
| 85969-90K00 |
BJ73 PORTUGAL SPEC |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-12050 |
BJ7#,LJ7#,RJ7#..LHD..CBU |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-12050 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 85999R - BRACKET, RELAY, NO.6 | ||||
| 85999-12050 |
BJ7#..LX,STD |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01004 |
BJ7#..LX,STD |
1 | ||
| Common parts | ||||
| 90167-50027 | ||||
| 91511-40614 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 93319-15010 | ||||
| 93568-55014 | ||||
| 94332-15000 | ||||
ILLUST NO. 4 OF 5(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69025 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BJ7#,LJ70,RJ70 |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-90K01 |
BJ7#,LJ7#,RJ7# W/WINCH |
1 | ||
| 83482-90K04 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ70..LX,STD,VM |
1 | ||
| 83482-90K01 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ7#..LX,STD W/WINCH |
1 | ||
| 83482-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 83482-90K04 |
BJ70,71,73,LJ7#,RJ7#..HT |
1 | ||
| 83482-90K01 |
BJ70,71,73,LJ7#,RJ7#..HT..(LX,STD,VX) W/WINCH |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 84231-28010 |
BJ7#,LJ7#,RJ70 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 84231-28010 |
BJ7#,LJ7#,RJ70 |
2 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84650-90K00 |
LJ70..SOT;BJ73,LJ73,RJ73 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 84340-30030 |
BJ7#,LJ7#,RJ70 MATSUSHITA |
1 | ||
| 84340-32010 |
BJ7#,LJ7#,RJ70 TOKAIRIKA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-90K04 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-90K0003 |
BJ70,71,73,LJ7#,RJ7#..HT..STD GRAY,SHADOW GRAY |
1 | ||
| 84810-90K0006 |
BJ70,71,73,LJ7#,RJ7#..HT..STD BROWN,SEPIA BROWN |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-90K0106 |
BJ70,73,LJ70,RJ70..HT BROWN,SEPIA BROWN |
1 | ||
| 84820-90K0406 |
BJ70,71,73,LJ7#,RJ7#..HT..STD BROWN,SEPIA BROWN |
1 | ||
| 84820-90K0103 |
BJ70,73,LJ70,RJ70..HT GRAY,SHADOW GRAY |
1 | ||
| 84820-90K0403 |
BJ70,71,73,LJ7#,RJ7#..HT..STD GRAY,SHADOW GRAY |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-90K0003 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,SHADOW GRAY |
1 | ||
| 84930-90K0006 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-90K02 |
BJ73,LJ7#,RJ7#..HT..STD 12V |
1 | ||
| 85930-90K03 |
BJ70,71,73..STD 24V |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-90K04 |
BJ73 PORTUGAL SPEC |
1 | ||
| 85940-90K05 |
BJ7#..HT |
1 | ||
| Common parts | ||||
| 82711-90K05 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90467-13030 | ||||
| 91651-40616 | ||||
| 93315-14010 | ||||
| 93315-14014 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 8511 | ||||
ILLUST NO. 5 OF 5(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K01 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ70..LX,STD,VM NO.1 |
1 | ||
| 83481-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 83481-90K01 |
BJ70,71,73,LJ7#,RJ7#..HT NO.1 |
1 | ||
| 83481-90K04 |
BJ73,LJ73 NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K01 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ70..LX,STD,VM NO.1 |
1 | ||
| 83481-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 83481-90K01 |
BJ70,71,73,LJ7#,RJ7#..HT NO.1 |
1 | ||
| 83481-90K04 |
BJ73,LJ73 NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K01 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ70..LX,STD,VM NO.1 |
1 | ||
| 83481-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 83481-90K01 |
BJ70,71,73,LJ7#,RJ7#..HT NO.1 |
1 | ||
| 83481-90K04 |
BJ73,LJ73 NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K01 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ70..LX,STD,VM NO.1 |
1 | ||
| 83481-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 83481-90K01 |
BJ70,71,73,LJ7#,RJ7#..HT NO.1 |
1 | ||
| 83481-90K04 |
BJ73,LJ73 NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K01 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ70..LX,STD,VM NO.1 |
1 | ||
| 83481-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 83481-90K01 |
BJ70,71,73,LJ7#,RJ7#..HT NO.1 |
1 | ||
| 83481-90K04 |
BJ73,LJ73 NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K01 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ70..LX,STD,VM NO.1 |
1 | ||
| 83481-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 83481-90K01 |
BJ70,71,73,LJ7#,RJ7#..HT NO.1 |
1 | ||
| 83481-90K04 |
BJ73,LJ73 NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K01 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ70..LX,STD,VM NO.1 |
1 | ||
| 83481-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 83481-90K01 |
BJ70,71,73,LJ7#,RJ7#..HT NO.1 |
1 | ||
| 83481-90K04 |
BJ73,LJ73 NO.2 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-90A00 |
LJ70..LHD..VX;BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) NO.1 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
