BJ73LV-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8808)13BT,3B ; (8808- )13BT

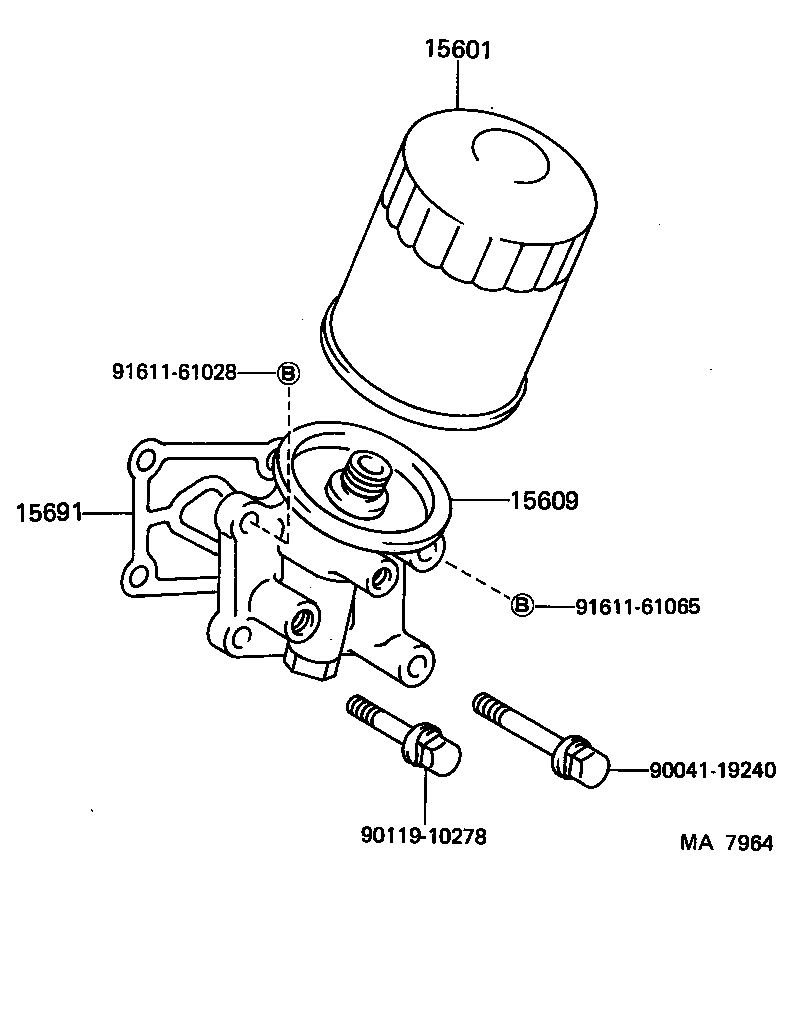

Click highlighted areas on diagram

diagram 15601 15609 15691 9004119240 9011910278 9161161028 9161161065
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

13BT,3B..BJ7#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-58020

3B..BJ70,73,75

 1
15609-58010

3B..BJ70,73,75

 1
15691 - GASKET, OIL FILTER
15691-56040

3B..BJ70,73,75

 1
15691-56030

13BT,3B..BJ7#

 1
Common parts
90041-19240
90119-10278
91611-61028
91611-61065

(8808- )3B

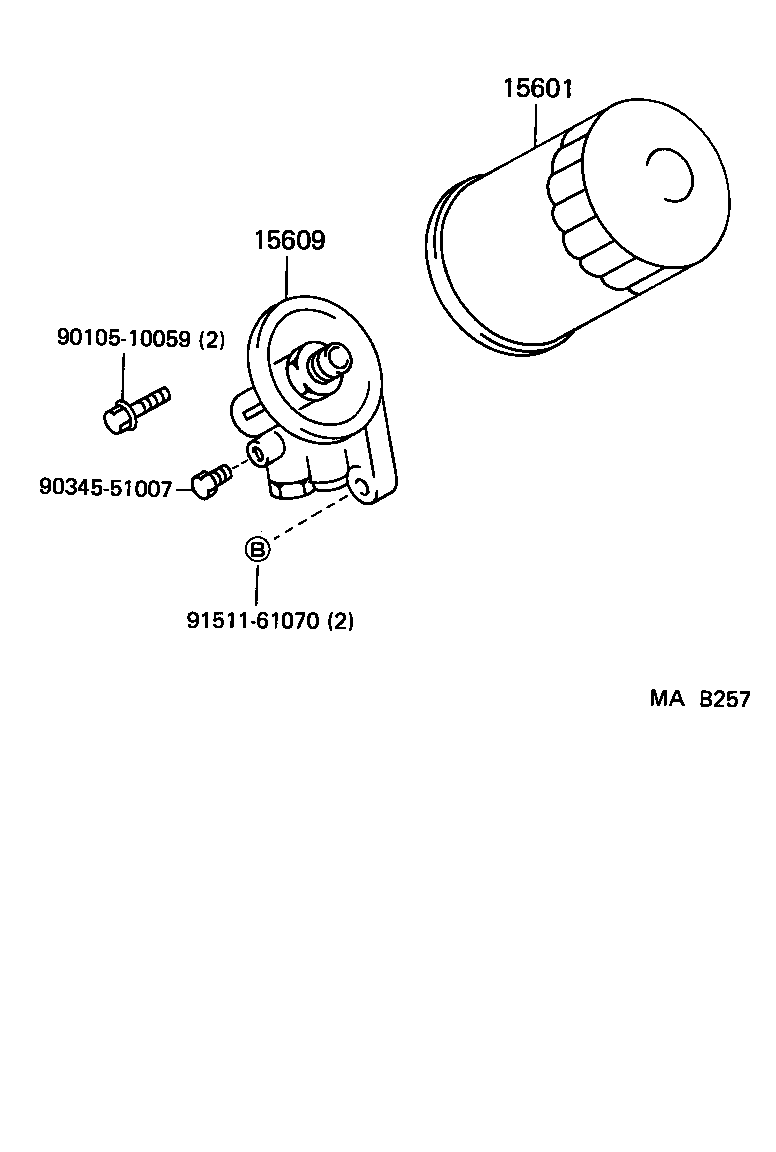

Click highlighted areas on diagram

diagram 15601 15609 9010510059 9034551007 9151161070
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

13BT,3B..BJ7#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-58020

3B..BJ70,73,75

 1
15609-58010

3B..BJ70,73,75

 1
Common parts
90105-10059
90345-51007
91511-61070
