BJ73LV-MPW (1990)

Toyota Land Cruiser

Production Jan 1990 - Feb 1994
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )BJ73,HZJ70,71,73,74,75,78,KZJ7#,LJ70,73,PZJ7#,RJ7#..HT

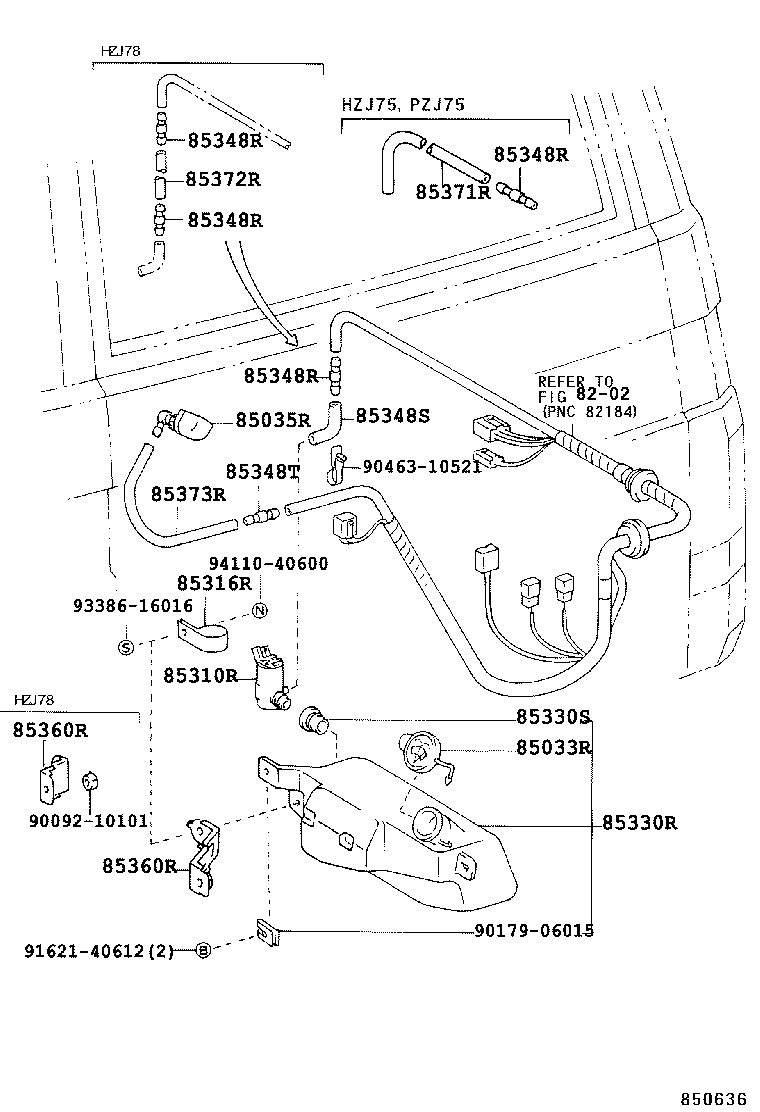

Click highlighted areas on diagram

diagram 8202 85033R 85035R 85310R 85316R 85330R 85330S 85348R 85348R 85348R 85348R 85348S 85348T 85360R 85360R 85371R 85372R 85373R 9009210101 9017906015 9046310521 9162140612 9338616016 9411040600
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-36120

BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85035-90K02

BJ73,HZJ7#,LJ70,73,PZJ7#,RJ7#..HT

 1
85310R - MOTOR ASSY, REAR WASHER
85310-22080

BJ73,HZJ71,74,78,LJ7#,RJ7#..HT

 1
85316R - SUPPORT, REAR WASHER MOTOR
85316-23010

BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT

 1
85330R - JAR ASSY, REAR WASHER
85330-90K03

BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#..HT

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT

 1
90099-32089

BJ73

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#..HT

 1
85349-89122

BJ73

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#..HT

 1
85349-89122

BJ73

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#..HT

 1
85349-89122

BJ73

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#..HT

 1
85349-89122

BJ73

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

BJ73,HZJ70,71,73,74,75,78,LJ70,73,PZJ7#,RJ7#..HT

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-06013

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT

*H,L=230

 1
90099-33299

BJ73,HZJ7#,LJ7#,PZJ75,RJ7#..HT

*H,L=230

 1
Common parts
90092-10101
90179-06015
90463-10521
91621-40612
93386-16016
94110-40600
Linked diagrams
8202
