BJ71LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

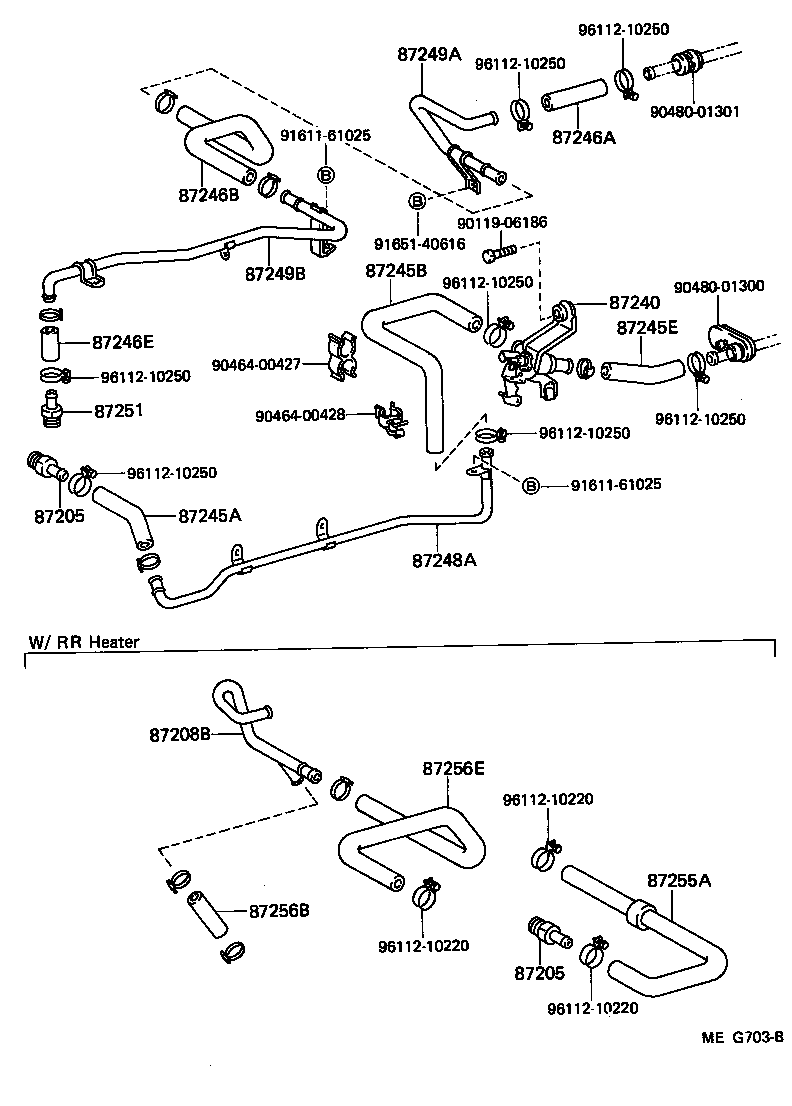

ILLUST NO. 1 OF 2(8510- )BJ71

Click highlighted areas on diagram

diagram 87205 87205 87208B 87240 87245A 87245B 87245E 87246A 87246B 87246E 87248A 87249A 87249B 87251 87255A 87256B 87256E 9011906186 9046400427 9046400428 9048001300 9048001301 9161161025 9161161025 9165140616 9611210220 9611210220 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

BJ7#,LJ7#

FR HEATER

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

BJ7#,LJ7#

FR HEATER

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1B060

BJ7#,LJ7#,RJ7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30320

BJ7#

*H,L=320

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30055

BJ7#

*H,L=55

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BJ7#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20055

BJ7#..HT

*H,L=55

 1
Common parts
90119-06186
90464-00427
90464-00428
90480-01300
90480-01301
91611-61025
91651-40616
96112-10220
96112-10250
