BJ71LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

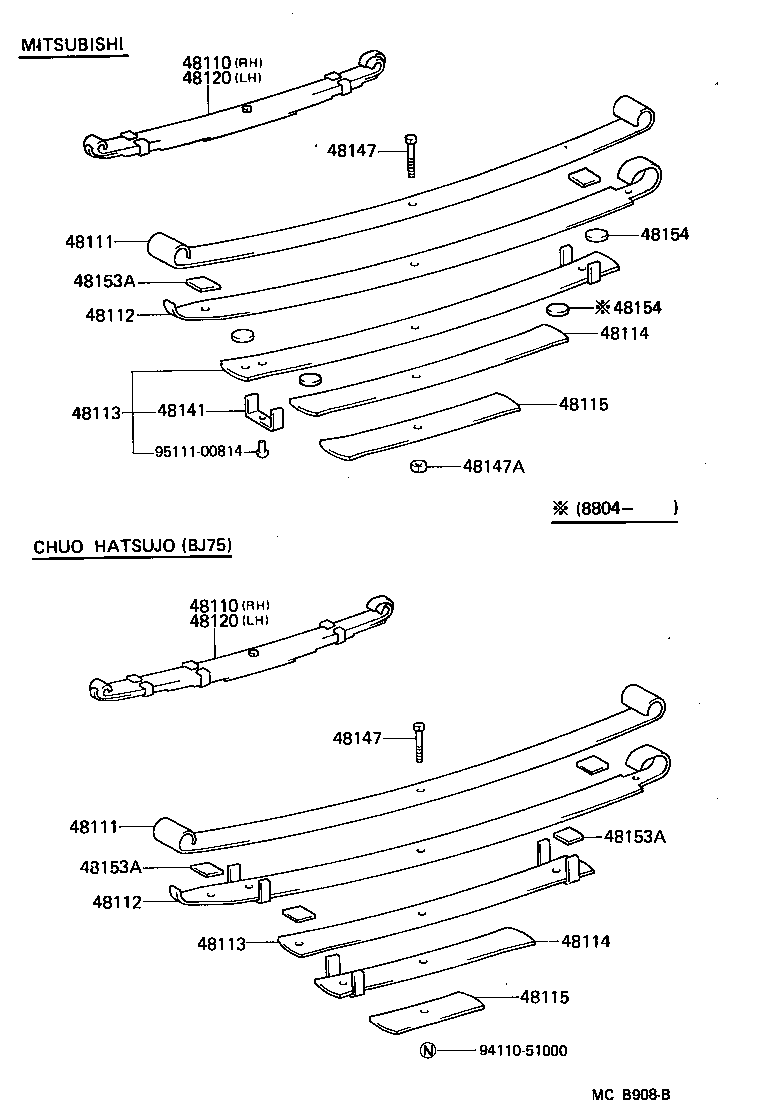

ILLUST NO. 3 OF 3(8411-8808)BJ75 ; (8411- )BJ70,71,73

Click highlighted areas on diagram

diagram 48110 48110 48111 48111 48112 48112 48113 48113 48114 48114 48115 48115 48120 48120 48141 48147 48147 48147A 48153A 48153A 48153A 48154 48154 9411051000 9511100814
Part # Description Qty Price
48113 - LEAF, FRONT SPRING, NO.3
48102-60230

BJ70,71,73..LX,STD

 2
48113 - LEAF, FRONT SPRING, NO.3
48102-60230

BJ70,71,73..LX,STD

 2
48114 - LEAF, FRONT SPRING, NO.4
48114-60230

BJ70,71,73..LX,STD

 2
48114 - LEAF, FRONT SPRING, NO.4
48114-60230

BJ70,71,73..LX,STD

 2
48115 - LEAF, FRONT SPRING, NO.5
48115-60230

BJ70,71,73..LX,STD

 2
48115 - LEAF, FRONT SPRING, NO.5
48115-60230

BJ70,71,73..LX,STD

 2
48141 - CLIP, FRONT SPRING, NO.1
48141-60062

BJ7#..LX,STD

 4
48147 - BOLT, FRONT SPRING, CENTER
48289-60010

BJ7#..LX,STD

MITSUBISHI

 2
48147 - BOLT, FRONT SPRING, CENTER
48289-60010

BJ7#..LX,STD

MITSUBISHI

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-60062

BJ7#..LX,STD

 2
48153A - SILENCER, FRONT SPRING, NO.1
48153-60230

BJ7#

MITSUBISHI

 4
48153A - SILENCER, FRONT SPRING, NO.1
48153-60230

BJ7#

MITSUBISHI

 4
48153A - SILENCER, FRONT SPRING, NO.1
48153-60230

BJ7#

MITSUBISHI

 4
48154 - SILENCER, FRONT SPRING, NO.2
48154-60230

BJ7#

 8
48154 - SILENCER, FRONT SPRING, NO.2
48154-60230

BJ7#

 8
Common parts
94110-51000
95111-00814
