BJ71LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8808)13BT,3B ; (8808- )13BT

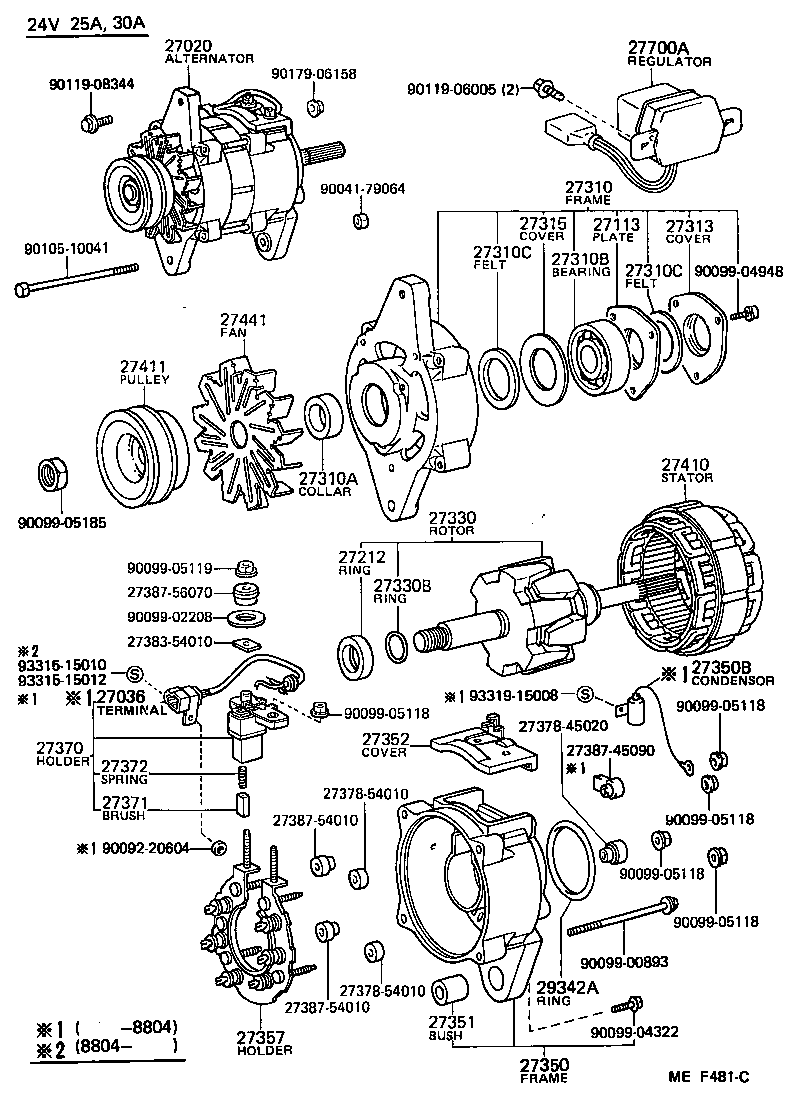

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 29342A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9010510041 9011906005 9011908344 9017906158 9331515010 9331515012 9331915008
Part # Description Qty Price
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-57080

13BT,3B..BJ7#..LX,STD

24V 25A,30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56180

13BT,3B..BJ7#

12V 55A,24V 25A,30A,W/PS

 1
27310-56110

13BT,3B..BJ7#..LX,STD

24V 25A,30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56110

13BT,3B..BJ7#..LX,STD

24V 25A,30A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56110

13BT,3B..BJ7#

12V 55A,24V 25A,30A

 1
27350B - CONDENSER, ALTERNATOR
90099-52066

13BT,3B..BJ7#

12V 55A,24V 25A,30A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
27352 - COVER, FRAME BRUSH
27388-57060

13BT,3B..BJ7#..LX,STD

12V 45A,24V 25A,30A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-57080

13BT,3B..BJ7#..LX,STD

24V 25A,30A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 2
27411 - PULLEY, ALTERNATOR
27411-57060

13BT,3B..BJ7#

12V 45A,55A,24V 25A,30A

 1
27441 - FAN, ALTERNATOR
27441-56090

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-57080

13BT,3B..BJ7#..LX,STD

24V

 1
29342A - PACKING, VACUUM PUMP
90099-14055

13BT,3B,2L#..BJ7#,LJ7#

12V40A,45A,50A,55A,24V25A,30A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90105-10041
90119-06005
90119-08344
90179-06158
93315-15010
93315-15012
93319-15008

(8411-8808)3B

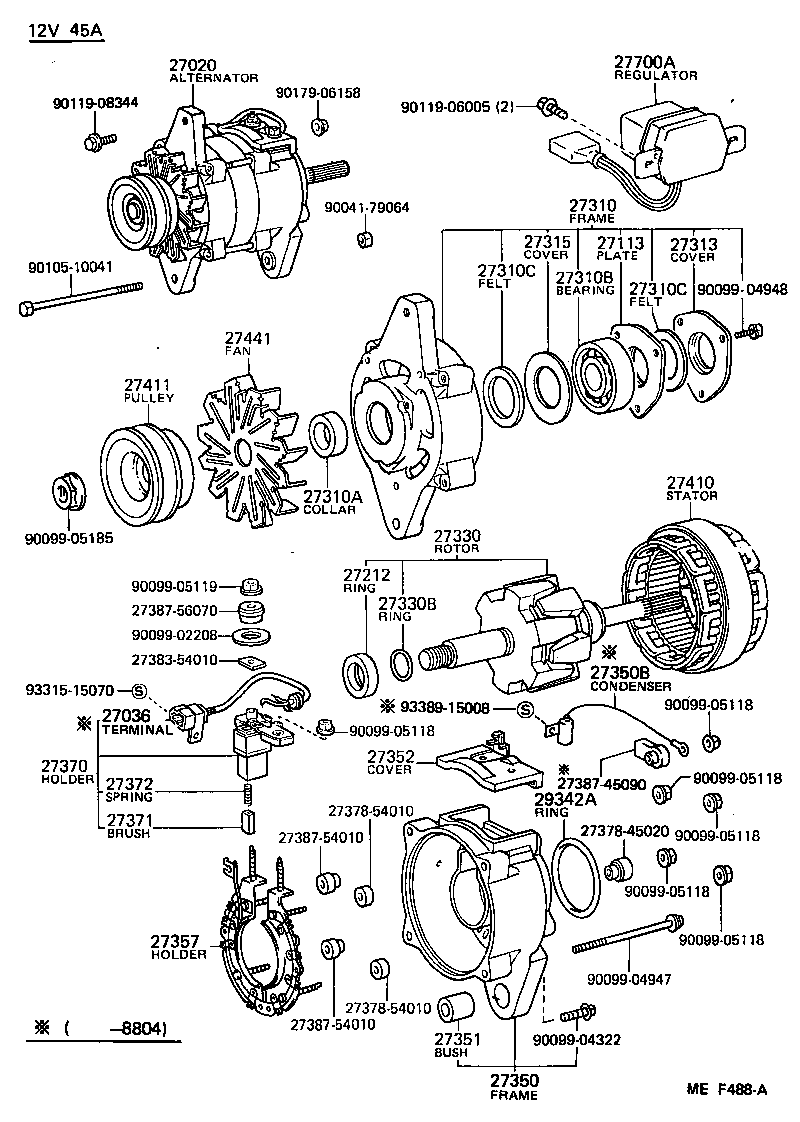

Click highlighted areas on diagram
