BJ71LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

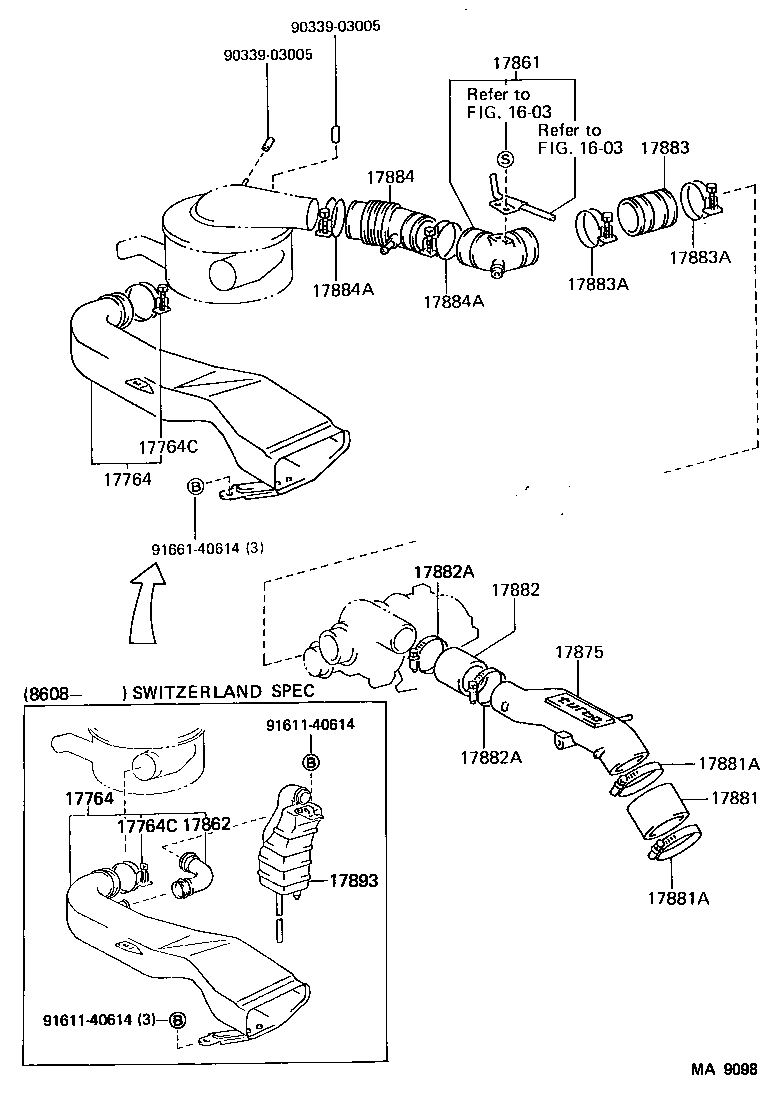

ILLUST NO. 2 OF 2(8510- )13BT

Click highlighted areas on diagram

diagram 1603 1603 17764 17764 17764C 17764C 17861 17862 17875 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 17883A 17884 17884A 17884A 17893 9033903005 9033903005 9161140614 9161140614 9166140614
Part # Description Qty Price
17764 - DUCT, AIR CLEANER
53299-90K05

3B..BJ7#

 1
17764 - DUCT, AIR CLEANER
53299-90K05

3B..BJ7#

 1
17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT)
96111-10800

13BT,3B..BJ7#

 1
17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT)
96111-10800

13BT,3B..BJ7#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10830

13BT..BJ71

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10830

13BT..BJ71

 2
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10830

13BT..BJ71

 2
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10830

13BT..BJ71

 2
Common parts
90339-03005
91611-40614
91661-40614
Linked diagrams
1603
