BJ71LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

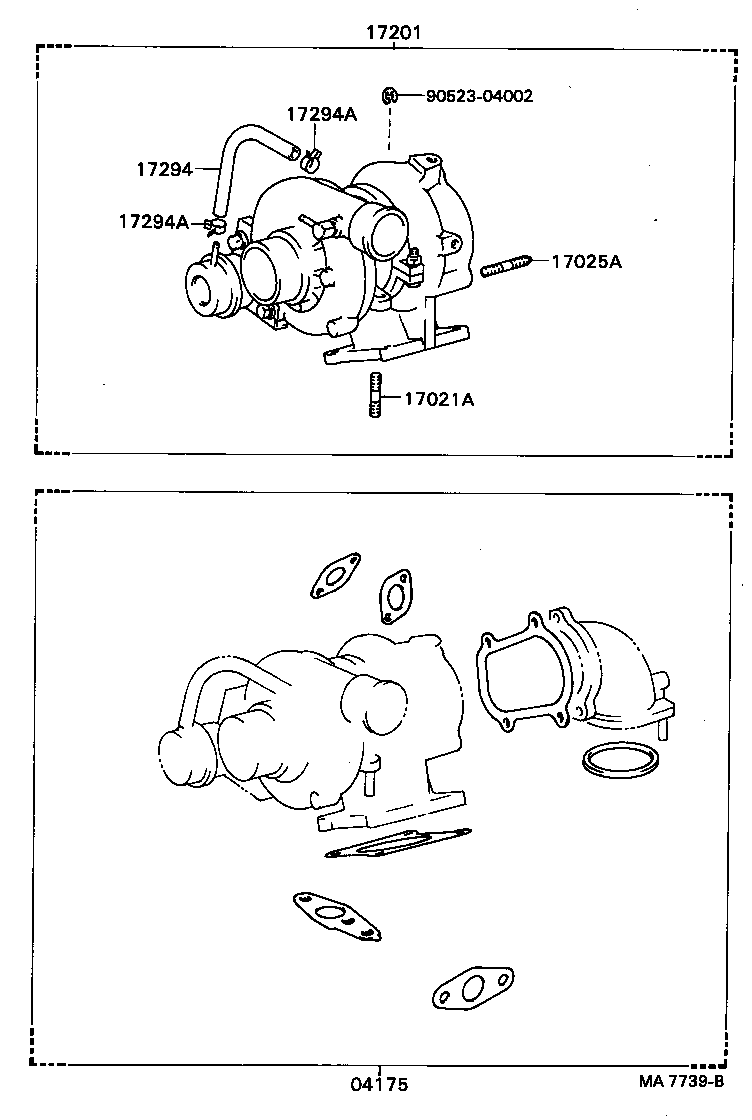

ILLUST NO. 2 OF 2(8510- )13BT

Click highlighted areas on diagram

diagram 04175 17021A 17025A 17201 17294 17294A 17294A 9052304002
Part # Description Qty Price
Common parts
90523-04002

(8411-8808)3B

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17172 17173 9011910346 9017908088 9161160825 9165160816 9165161016 9418461000
Part # Description Qty Price
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10056

13BT,3B..BJ7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10098

13BT,3B..BJ7#

EXHAUST MANIFOLD

 2
92132-60825

13BT,3B..BJ7#

INTAKE MANIFOLD

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10098

13BT,3B..BJ7#

EXHAUST MANIFOLD

 2
92132-60825

13BT,3B..BJ7#

INTAKE MANIFOLD

 5
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56022

13BT,3B..BJ7#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-58010

13BT,3B..BJ7#

 1
Common parts
90119-10346
90179-08088
91611-60825
91651-60816
91651-61016
94184-61000

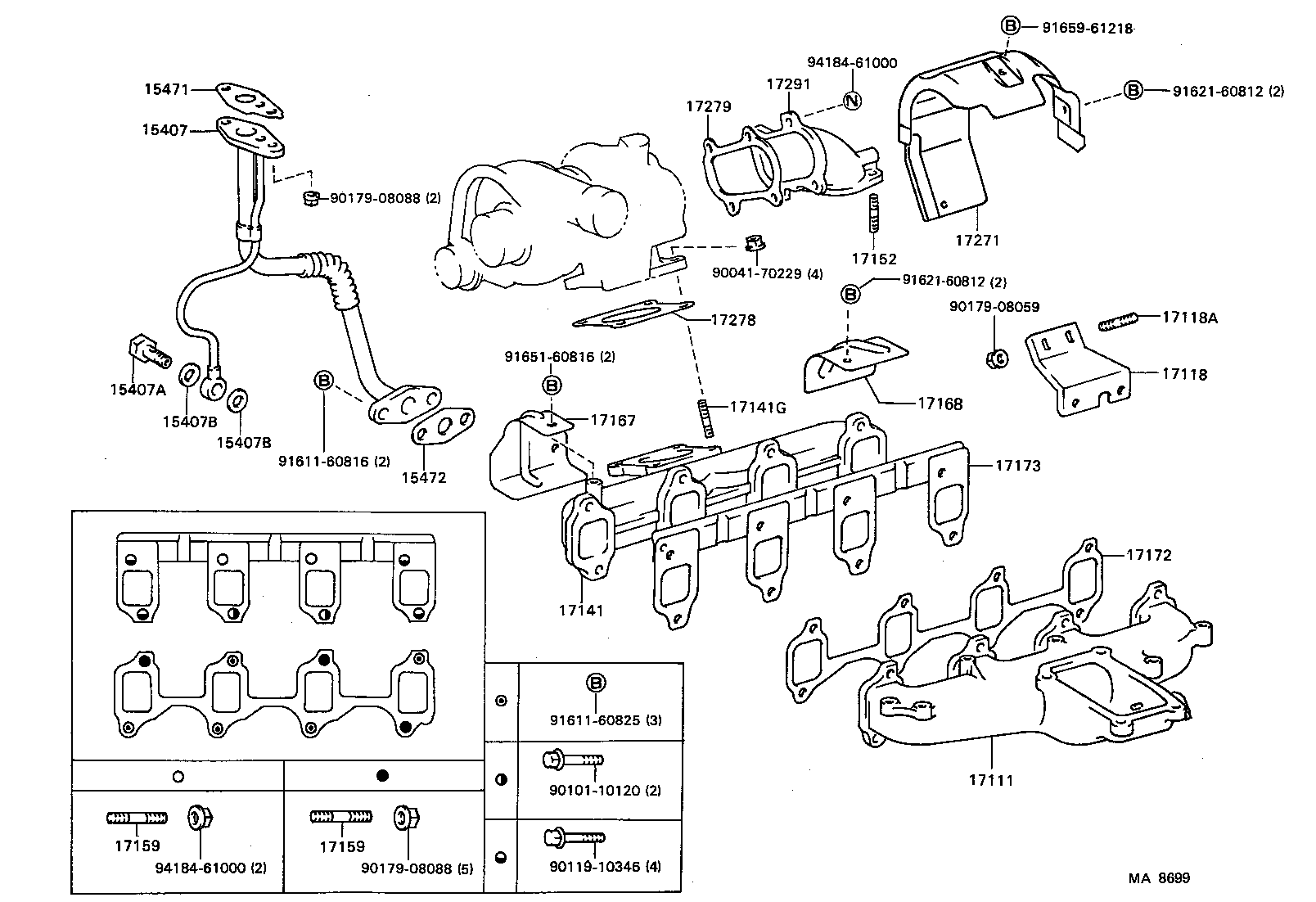

ILLUST NO. 1 OF 2(8510- )13BT

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15407B 15471 15472 17111 17118 17118A 17141 17141G 17152 17159 17159 17167 17168 17172 17173 17271 17278 17279 17291 9004170229 9010110120 9011910346 9017908059 9017908088 9017908088 9161160816 9161160825 9162160812 9162160812 9165160816 9165961218 9418461000 9418461000
Part # Description Qty Price
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10056

13BT,3B..BJ7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10098

13BT,3B..BJ7#

EXHAUST MANIFOLD

 2
92132-60825

13BT,3B..BJ7#

INTAKE MANIFOLD

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10098

13BT,3B..BJ7#

EXHAUST MANIFOLD

 2
92132-60825

13BT,3B..BJ7#

INTAKE MANIFOLD

 5
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56022

13BT,3B..BJ7#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-58010

13BT,3B..BJ7#

 1
Common parts
90041-70229
90101-10120
90119-10346
90179-08059
90179-08088
91611-60816
91611-60825
91621-60812
91651-60816
91659-61218
94184-61000
