BJ71LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

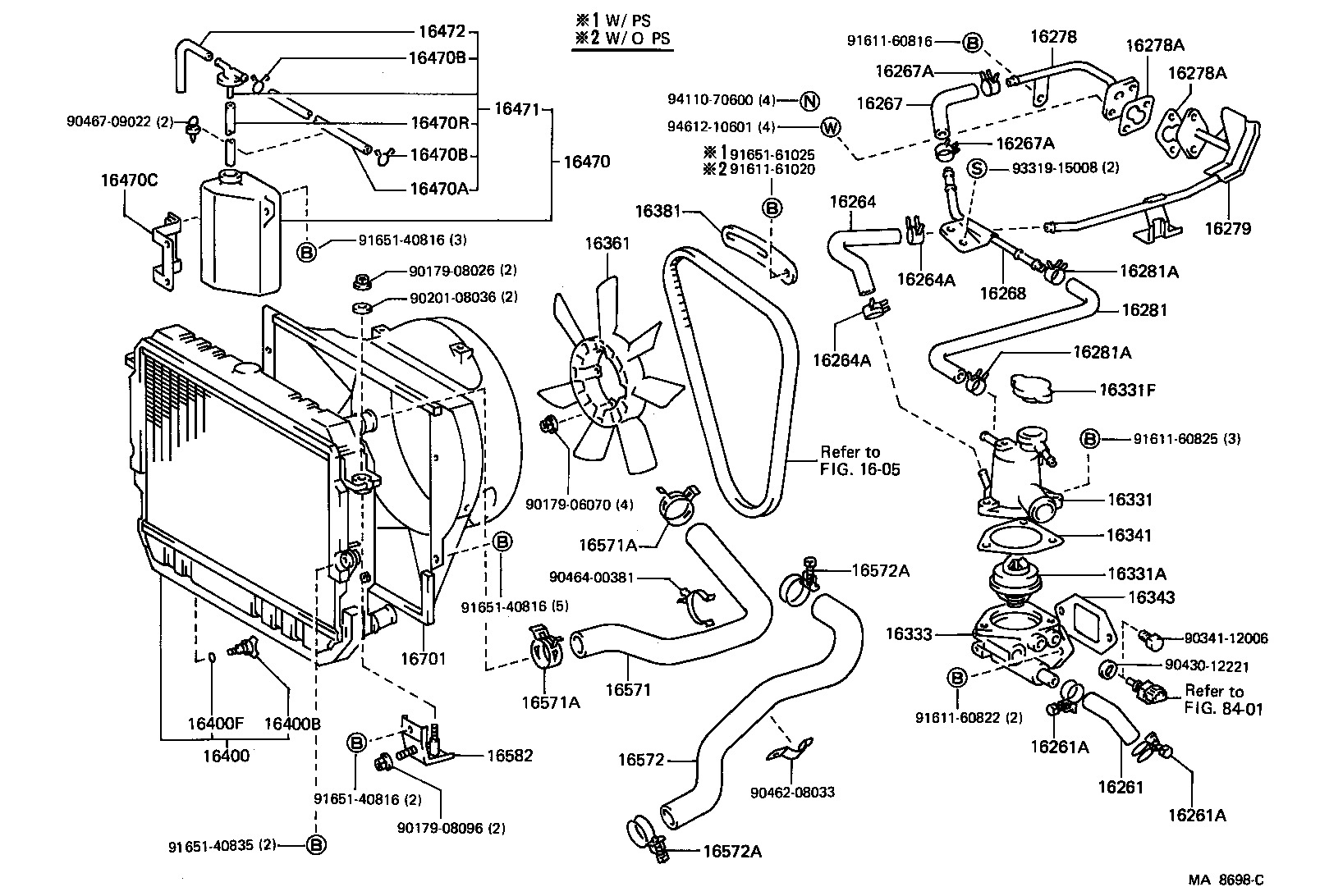

ILLUST NO. 1 OF 2(8510- )13BT

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16268 16278 16278A 16278A 16279 16281 16281A 16281A 16331 16331A 16331F 16333 16341 16343 16361 16381 16400 16400B 16400F 16470 16470A 16470B 16470B 16470C 16470R 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16582 16701 8401 9017906070 9017908026 9017908096 9020108036 9034112006 9043012221 9046208033 9046400381 9046709022 9161160816 9161160822 9161160825 9161161020 9165140816 9165140816 9165140816 9165140835 9165161025 9331915008 9411070600 9461210601
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-56012

13BT,3B..BJ7#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

13BT,3B..BJ7#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

13BT,3B..BJ7#

 2
16331A - THERMOSTAT
90916-03059

13BT,3B..BJ7#

*WAX 88-100

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-71010

13BT,3B..BJ7#..LX,STD

 1
16333 - HOUSING, WATER OUTLET
16333-56060

13BT,3B..BJ7#

 1
16341 - GASKET, WATER OUTLET
16341-56020

13BT,3B..BJ7#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-56020

13BT,3B..BJ7#

 1
16361 - FAN
16361-38010

13BT,3B..BJ7#..LX,STD

7BLADES OD=380

 1
16381 - BAR, FAN BELT ADJUSTING
16381-58020

13BT,3B..BJ7#..LX,STD

W/PS

 1
16381-56030

13BT,3B..BJ7#

 1
16400 - RADIATOR ASSY
16400-58160

13BT,3B..BJ7#..LX,STD

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

13BT,3B..BJ7#..LX,STD

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

13BT,3B..BJ7#..LX,STD

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58040

13BT,3B..BJ7#..LX,STD

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

13BT,3B..BJ7#..LX,STD

*H,L=960

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13BT,3B..BJ7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13BT,3B..BJ7#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-68020

13BT,3B..BJ7#

 1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

13BT,3B..BJ7#

*H,L=220

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-58020

13BT,3B..BJ7#..LX,STD

 1
16472 - HOSE, BREATHER
85338-30010

13BT,3B..BJ7#

 1
16571 - HOSE, RADIATOR, INLET
16571-58040

13BT,3B..BJ7#..LX,STD

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

13BT,3B..BJ7#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

13BT,3B..BJ7#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-58040

13BT,3B..BJ7#..LX,STD

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

13BT,3B..BJ7#..LX,STD

RADIATOR SIDE

 1
96111-10560

13BT,3B..BJ7#..LX,STD

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

13BT,3B..BJ7#..LX,STD

RADIATOR SIDE

 1
96111-10560

13BT,3B..BJ7#..LX,STD

WATER PUMP SIDE

 1
16582 - BRACKET, RADIATOR, NO.1
16582-68010

13BT,3B..BJ7#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-58020

13BT,3B..BJ7#..LX,STD

 1
