BJ71LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8808)13BT,3B ; (8808- )13BT

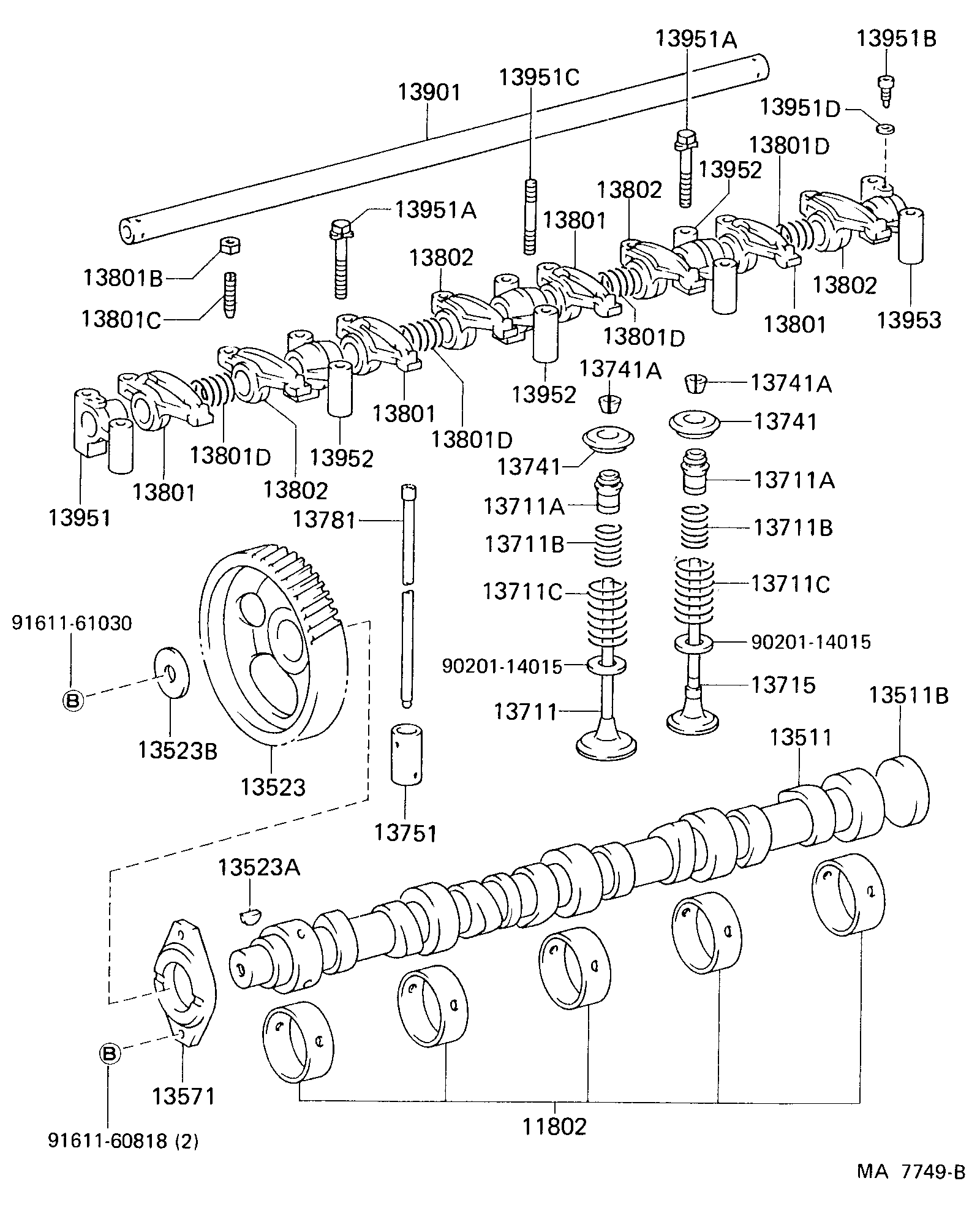

Click highlighted areas on diagram

diagram 11802 13511 13511B 13523 13523A 13523B 13571 13711 13711A 13711A 13711B 13711B 13711C 13711C 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13951 13951A 13951A 13951B 13951C 13951D 13952 13952 13952 13953 9020114015 9020114015 9161160818 9161161030
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11802-56020

13BT,3B..BJ7#

STD

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90331-56001

13BT,3B..BJ7#

OD=56

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-56040

13BT,3B..BJ7#

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
95161-10519

13BT,3B..BJ7#

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10227

13BT,3B..BJ7#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-56020

13BT,3B..BJ7#

 1
13711 - VALVE, INTAKE
13711-58010

13BT,3B..BJ7#

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02051

13BT,3B..BJ7#

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02051

13BT,3B..BJ7#

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03019

13BT,3B..BJ7#

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03019

13BT,3B..BJ7#

 16
13751 - LIFTER, VALVE
13751-56020

13BT,3B..BJ7#

 8
13781 - ROD, VALVE PUSH
13781-56010

13BT,3B..BJ7#

 8
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90041-70001

13BT,3B..BJ7#

 8
13801C - SCREW, VALVE ADJUSTING
90913-05021

13BT,3B..BJ7#

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

13BT,3B..BJ7#

WD=1.6,CW=7.5

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

13BT,3B..BJ7#

WD=1.6,CW=7.5

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

13BT,3B..BJ7#

WD=1.6,CW=7.5

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

13BT,3B..BJ7#

WD=1.6,CW=7.5

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-56020

13BT,3B..BJ7#

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
91611-60865

13BT,3B..BJ7#

*8-1.25PX65-30

 5
91611-60855

13BT,3B..BJ7#

*8-1.25PX55-30

 5
13951A - BOLT(FOR ROCKER SUPPORT SET)
91611-60865

13BT,3B..BJ7#

*8-1.25PX65-30

 5
91611-60855

13BT,3B..BJ7#

*8-1.25PX55-30

 5
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13958-56010

13BT,3B..BJ7#

 2
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08123

13BT,3B..BJ7#

 4
13951D - WASHER, SEAL(FOR HEAD COVER SET)
90201-06177

13BT,3B..BJ7#

 2
Common parts
90201-14015
91611-60818
91611-61030
