BJ71LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8808)13BT,3B ; (8808- )13BT

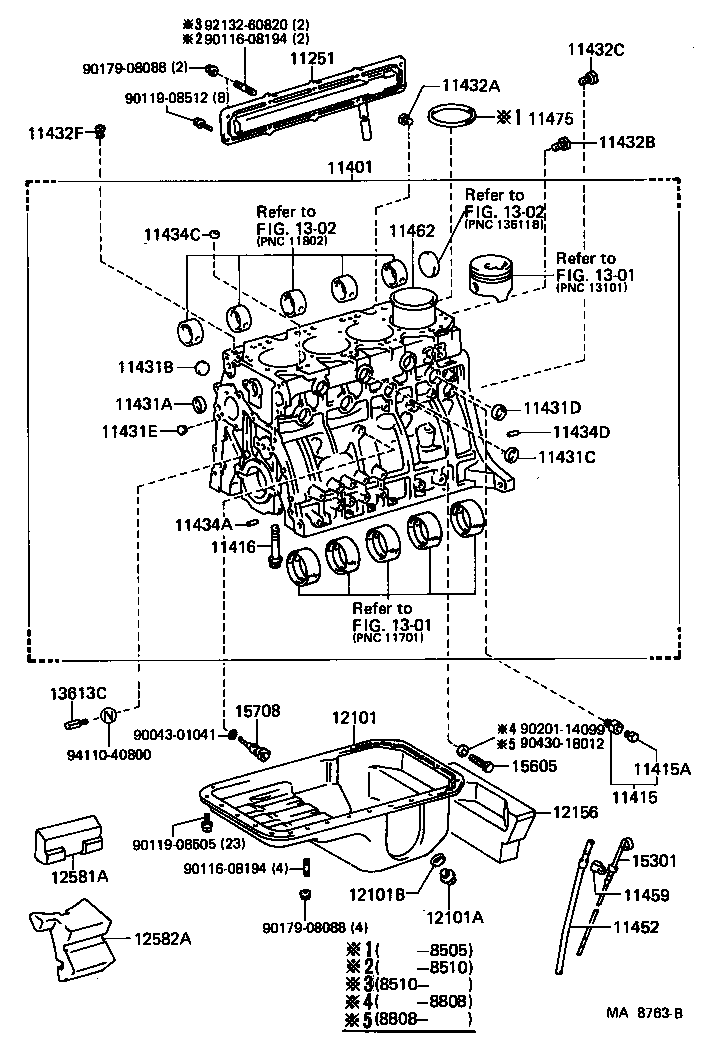

Click highlighted areas on diagram

diagram 11251 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11432C 11432F 11434A 11434C 11434D 11452 11459 11462 11475 12101 12101A 12101B 12156 12581A 12582A 1301 1301 1302 1302 13613C 15301 15605 15708 9004301041 9011608194 9011608194 9011908505 9011908512 9017908088 9017908088 9020114099 9043018012 9213260820 9411040800
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11203-56040

3B..BJ7#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

3B..BJ7#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

3B..BJ7#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90109-16001

13BT,3B..BJ7#

*16-2PX88.5-32

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-51032

13BT,3B..BJ7#

OD=51

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-12800

3B..BJ7#

OD=28

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-13000

3B..BJ7#

OD=30

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-13500

3B..BJ7#

OD=35

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-11400

3B..BJ7#

OD=14

 3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90043-45027

13BT,3B..BJ7#

 3
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53001

13BT,3B..BJ7#

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001

13BT,3B..BJ7#

 1
11432F - PLUG, W/HEAD TAPER SCREW, NO.4
90043-45010

13BT..BJ71

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

13BT,3B..BJ7#

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

13BT,3B..BJ7#

L=7,OD=14.5,L=7,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

13BT,3B..BJ7#

L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-56050

13BT,3B..BJ7#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040

13BT,3B..BJ7#

 1
11462 - LINER, CYLINDER
11461-58020

13BT,3B..BJ7#

 4
11475 - SHIM, CYLINDER LINER
11476-58010

3B..BJ7#

T=0.10

 1
11475-58010

3B..BJ7#

T=0.05

 1
12101 - PAN SUB-ASSY, OIL
12101-56070

3B..BJ7#

SWITZERLAND SPEC

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

13BT,3B..BJ7#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

13BT,3B..BJ7#

 1
12156 - INSULATOR, OIL PAN
12156-58010

13BT..BJ71

 1
13613C - NOZZLE, OIL
90915-01015

13BT,3B..BJ7#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56040

13BT,3B..BJ7#

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-58010

13BT,3B..BJ7#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-58020

13BT,3B..BJ7#

 4
Common parts
90043-01041
90116-08194
90119-08505
90119-08512
90179-08088
90201-14099
90430-18012
92132-60820
94110-40800
