BJ70RV-MRW (1986)
Toyota Land Cruiser
Production
Aug 1986
-
Aug 1988
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8411-8904)BJ7#

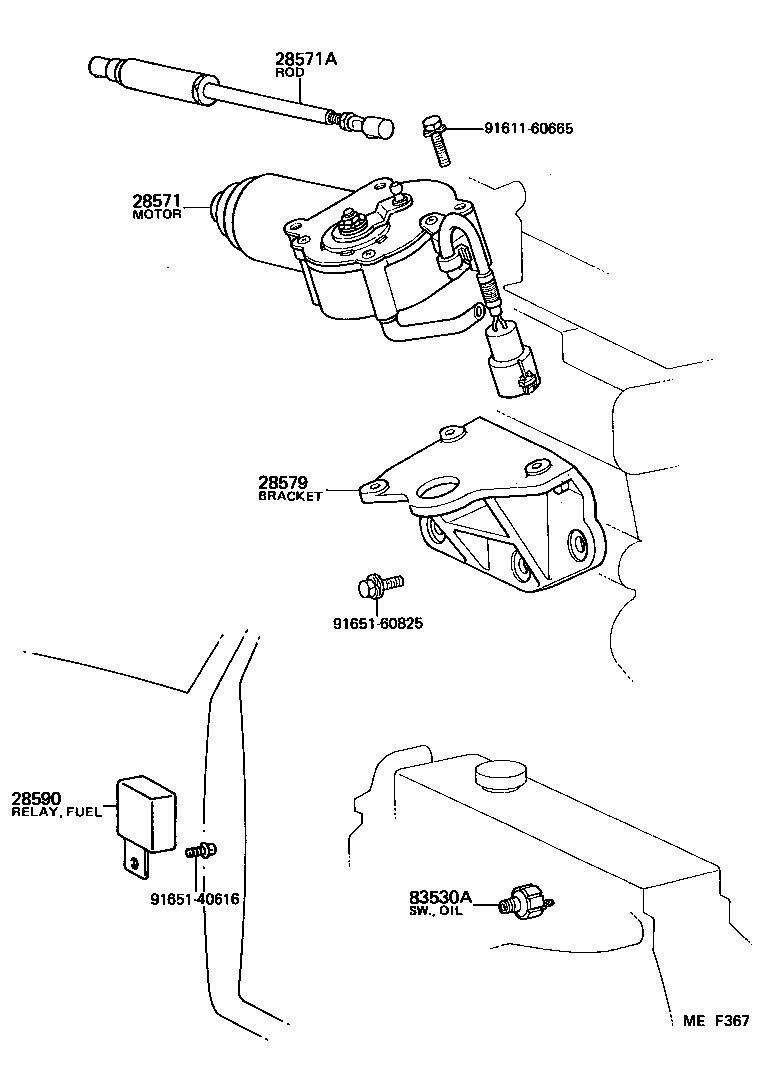

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28571 - MOTOR, FUEL CONTROL | ||||
| 28571-56130 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 28571A - ROD, FUEL CONTROL MOTOR | ||||
| 84580-36021 |
3B..BJ70,73,75..STD |
1 | ||
| 84580-36021 |
3B..BJ70,73,75 |
1 | ||
| 28579 - BRACKET, FUEL CONTROL MOTOR | ||||
| 28579-56030 |
3B..BJ70,73,75 |
1 | ||
| 28579-56030 |
3B..BJ70,73,75..STD |
1 | ||
| 28590 - RELAY ASSY, FUEL CONTROL | ||||
| 28590-56100 |
3B..BJ70,73,75..LX,STD 24V |
1 | ||
| 83530A - SWITCH ASSY, OIL PRESSURE | ||||
| 83530-14010 |
BJ70,73,75..STD |
1 | ||
| 83530-14030 |
BJ70,73,75 |
1 | ||
| Common parts | ||||
| 91611-60665 | ||||
| 91651-40616 | ||||
| 91651-60825 | ||||
