BJ70LV-MRW (1984)
Toyota Land Cruiser

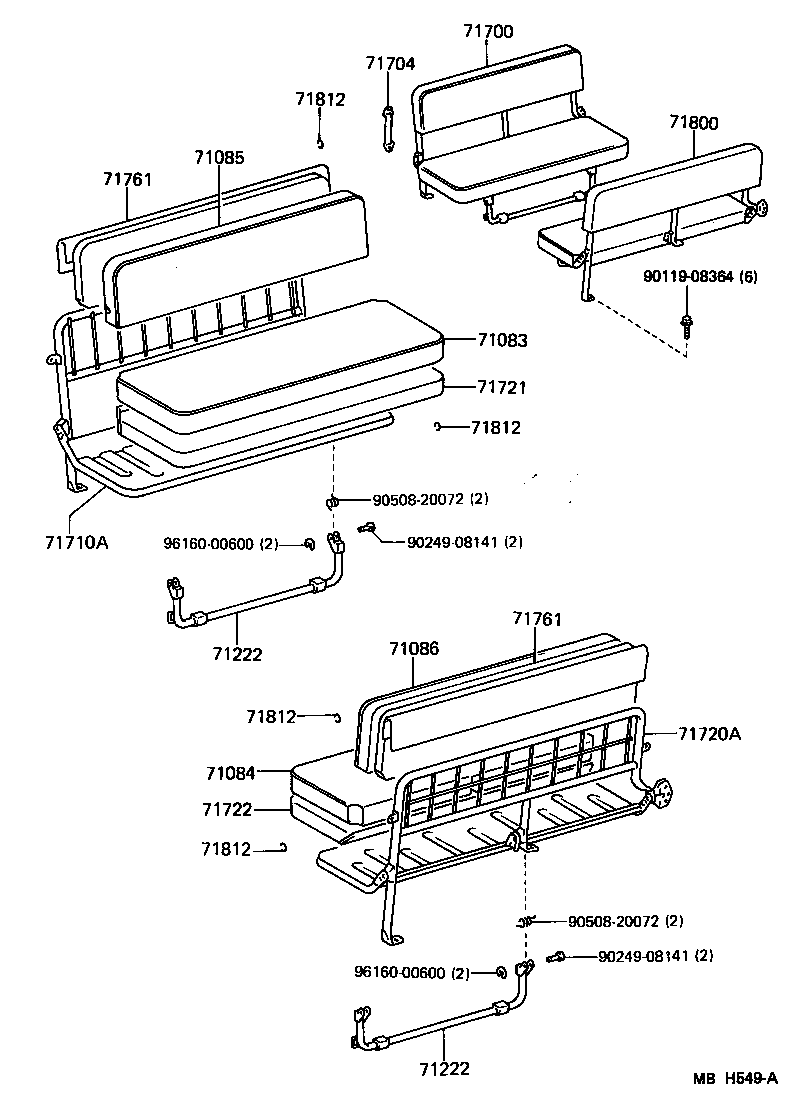

ILLUST NO. 2 OF 2(8608-8808)BJ70,73..LHD..LX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71085 - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-90K0003 |
BJ70..LHD..STD *SWZ,VL,GRAY,GRAY |
1 | ||
| 71088-90K0005 |
BJ70..LHD..STD *SWZ,VL,BEIGE,BEIGE |
1 | ||
| 71086 - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-90K0405 |
BJ70..LHD..STD *SWZ,VL,BEIGE,BEIGE |
1 | ||
| 71089-90K0403 |
BJ70..LHD..STD *SWZ,VL,GRAY,GRAY |
1 | ||
| 71222 - LEG, REAR SEAT | ||||
| 71034-90K0803 |
BJ70..LHD *SWZ,LH,GRAY,SHADOW GRAY |
1 | ||
| 71033-90K2206 |
BJ70..LHD *SWZ,RH,BROWN,SEPIA BROWN |
1 | ||
| 71033-90K0201 |
BJ70,71,73,LJ7#,RJ7# W/*FFRS,BLACK |
1 | ||
| 71033-90K2203 |
BJ70..LHD *SWZ,RH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K0806 |
BJ70..LHD *SWZ,LH,BROWN,SEPIA BROWN |
1 | ||
| 71222 - LEG, REAR SEAT | ||||
| 71034-90K0803 |
BJ70..LHD *SWZ,LH,GRAY,SHADOW GRAY |
1 | ||
| 71033-90K2206 |
BJ70..LHD *SWZ,RH,BROWN,SEPIA BROWN |
1 | ||
| 71033-90K0201 |
BJ70,71,73,LJ7#,RJ7# W/*FFRS,BLACK |
1 | ||
| 71033-90K2203 |
BJ70..LHD *SWZ,RH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K0806 |
BJ70..LHD *SWZ,LH,BROWN,SEPIA BROWN |
1 | ||
| 71700 - SEAT ASSY, REAR SIDE, RH | ||||
| 71700-90K1805 |
BJ70..LHD..STD *SWZ,VL,BEIGE,BEIGE |
1 | ||
| 71700-90K1803 |
BJ70..LHD..STD *SWZ,VL,GRAY,GRAY |
1 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71710-90K0003 |
BJ70..LHD *SWZ,GRAY,SHADOW GRAY |
1 | ||
| 71710-90K0006 |
BJ70..LHD *SWZ,BROWN,SEPIA BROWN |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71720-90K0003 |
BJ70..LHD *SWZ,GRAY,SHADOW GRAY |
1 | ||
| 71720-90K0006 |
BJ70..LHD *SWZ,BROWN,BROWN |
1 | ||
| 71721 - PAD, REAR SIDE SEAT CUSHION, RH | ||||
| 71721-90K02 |
BJ70,73..LHD..(LX,STD) *SWZ |
1 | ||
| 71722 - PAD, REAR SIDE SEAT CUSHION, LH | ||||
| 71721-90K02 |
BJ70,73..LHD..(LX,STD) *SWZ |
1 | ||
| 71761 - PAD, REAR SIDE SEAT BACK | ||||
| 71761-90K02 |
BJ70,73..LHD..(LX,STD) *SWZ |
2 | ||
| 71761 - PAD, REAR SIDE SEAT BACK | ||||
| 71761-90K02 |
BJ70,73..LHD..(LX,STD) *SWZ |
2 | ||
| 71800 - SEAT ASSY, REAR SIDE, LH | ||||
| 71800-90K1803 |
BJ70..LHD..STD *SWZ,VL,GRAY,GRAY |
1 | ||
| 71800-90K1805 |
BJ70..LHD..STD *SWZ,VL,BEIGE,BEIGE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 90119-08364 | ||||
| 90249-08141 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||

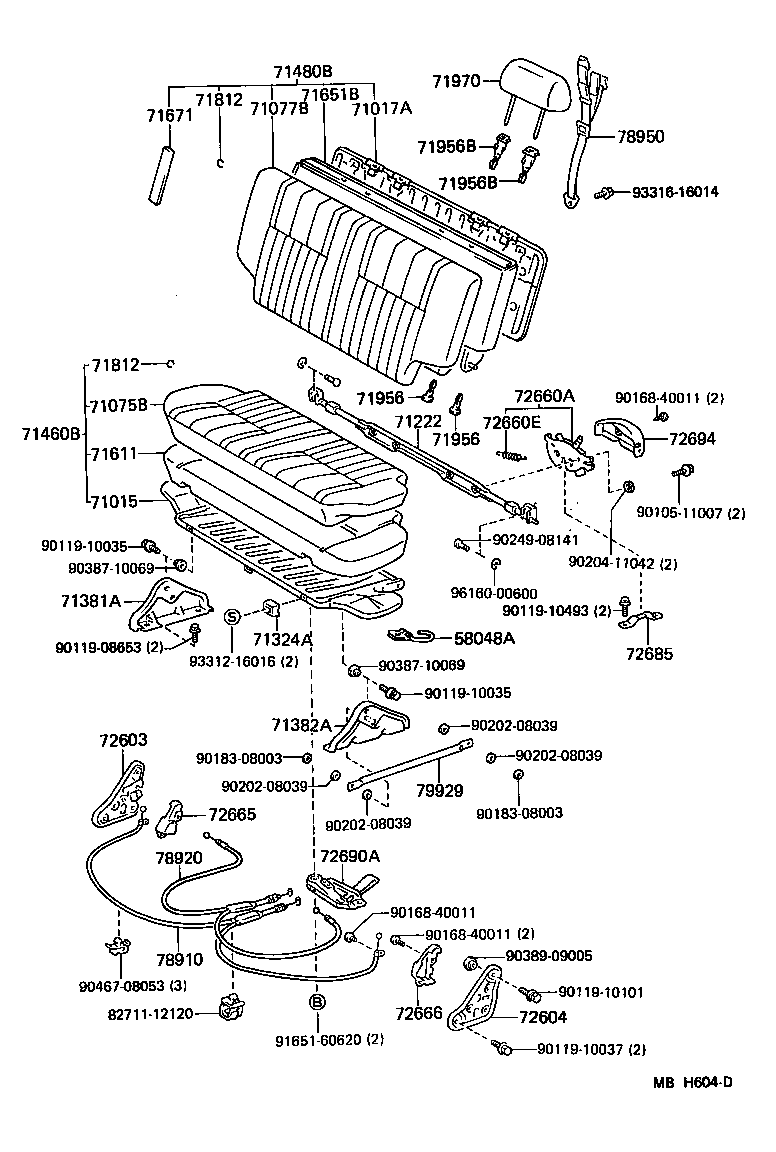

ILLUST NO. 2 OF 2(8411- )BJ70,71,73,LJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58048A - HOOK SUB-ASSY, ROPE, NO.1 | ||||
| 58048-90K00 |
BJ70,71,73,LJ7#,RJ7# |
2 | ||
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-90K00 |
BJ70,71,LJ70,RJ70 |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-90K00 |
BJ70,73,LJ70,RJ70 |
1 | ||
| 71017-90K08 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-90K0603 |
BJ70,71,LJ70,RJ70 VL,GRAY,GRAY |
1 | ||
| 71075-90K0605 |
BJ70,71,LJ70,RJ70 VL,BEIGE,BEIGE |
1 | ||
| 71075-90K0703 |
BJ70,71,LJ70,RJ70 FB,GRAY,GRAY |
1 | ||
| 71075-90K0705 |
BJ70,71,LJ70,RJ70 FB,BEIGE,BEIGE |
1 | ||
| 71075-90K0605 |
BJ70,LJ70,RJ70..STD VL,BEIGE,BEIGE |
1 | ||
| 71075-90K0603 |
BJ70,LJ70,RJ70..STD VL,GRAY,GRAY |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-90K1403 |
BJ70,71,73,LJ7#,RJ7# VL,GRAY,GRAY |
1 | ||
| 71077-90K1505 |
BJ70,71,73,LJ7#,RJ7#..HT FB,BEIGE,BEIGE |
1 | ||
| 71077-90K1405 |
BJ70,71,73,LJ7#,RJ7# VL,BEIGE,BEIGE |
1 | ||
| 71077-90K1405 |
BJ70,73,LJ70,RJ70..STD VL,BEIGE,BEIGE |
1 | ||
| 71077-90K1403 |
BJ70,73,LJ70,RJ70..STD VL,GRAY,GRAY |
1 | ||
| 71077-90K1503 |
BJ70,71,73,LJ7#,RJ7#..HT FB,GRAY,GRAY |
1 | ||
| 71222 - LEG, REAR SEAT | ||||
| 71034-90K0803 |
BJ70..LHD *SWZ,LH,GRAY,SHADOW GRAY |
1 | ||
| 71033-90K2206 |
BJ70..LHD *SWZ,RH,BROWN,SEPIA BROWN |
1 | ||
| 71033-90K0201 |
BJ70,71,73,LJ7#,RJ7# W/*FFRS,BLACK |
1 | ||
| 71033-90K2203 |
BJ70..LHD *SWZ,RH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K0806 |
BJ70..LHD *SWZ,LH,BROWN,SEPIA BROWN |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-90K00 |
BJ70,71,73,LJ7#,RJ7# |
2 | ||
| 71381A - BRACKET, REAR SEAT CUSHION SET, RH | ||||
| 71381-90K02 |
BJ70,71,LJ70,RJ70 |
1 | ||
| 71382A - BRACKET, REAR SEAT CUSHION SET, LH | ||||
| 71308-90K00 |
BJ70,71,LJ70,RJ70 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-90K0603 |
BJ70,71,LJ70,RJ70 VL,GRAY,GRAY |
1 | ||
| 71460-90K0703 |
BJ70,71,LJ70,RJ70 FB,GRAY,GRAY |
1 | ||
| 71460-90K0605 |
BJ70,71,LJ70,RJ70 VL,BEIGE,BEIGE |
1 | ||
| 71460-90K0705 |
BJ70,71,LJ70,RJ70 FB,BEIGE,BEIGE |
1 | ||
| 71460-90K0605 |
BJ70,LJ70,RJ70..STD VL,BEIGE,BEIGE |
1 | ||
| 71460-90K0603 |
BJ70,LJ70,RJ70..STD VL,GRAY,GRAY |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-90K1205 |
BJ70,73,LJ70,RJ70 VL,BEIGE,BEIGE |
1 | ||
| 71480-90K1203 |
BJ70,73,LJ70,RJ70 VL,GRAY,GRAY |
1 | ||
| 71480-90K1305 |
BJ70,73,LJ70,RJ70..HT FB,BEIGE,BEIGE |
1 | ||
| 71480-90K2003 |
BJ70,71,73,LJ7#,RJ7# VL,GRAY,GRAY |
1 | ||
| 71480-90K2103 |
BJ70,71,73,LJ7#,RJ7#..HT FB,GRAY,GRAY |
1 | ||
| 71480-90K2005 |
BJ70,71,73,LJ7#,RJ7# VL,BEIGE,BEIGE |
1 | ||
| 71480-90K2105 |
BJ70,71,73,LJ7#,RJ7#..HT FB,BEIGE,BEIGE |
1 | ||
| 71480-90K1303 |
BJ70,73,LJ70,RJ70..HT FB,GRAY,GRAY |
1 | ||
| 71480-90K2003 |
BJ70,73,LJ70,RJ70..STD VL,GRAY,GRAY |
1 | ||
| 71480-90K2005 |
BJ70,73,LJ70,RJ70..STD VL,BEIGE,BEIGE |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-90K03 |
BJ70,71,LJ70,RJ70 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-90K10 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 71507-90K02 |
BJ70,73,LJ70,RJ70 |
1 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
4 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71955-90K0001 |
BJ7#,LJ7#,RJ7#..HT,SOT BLACK,BLACK |
4 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71955-90K0001 |
BJ7#,LJ7#,RJ7#..HT,SOT BLACK,BLACK |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006033 |
BJ7#,LJ7#,RJ7#..HT,SOT W(LOCK),W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001036 |
BJ7#,LJ7#,RJ7#..HT,SOT W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006036 |
BJ7#,LJ7#,RJ7#..HT,SOT W(LOCK),W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71931-1001033 |
BJ7#,LJ7#,RJ7#..HT,SOT W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006033 |
BJ7#,LJ7#,RJ7#..HT,SOT W(LOCK),W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001036 |
BJ7#,LJ7#,RJ7#..HT,SOT W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006036 |
BJ7#,LJ7#,RJ7#..HT,SOT W(LOCK),W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71931-1001033 |
BJ7#,LJ7#,RJ7#..HT,SOT W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-90K0106 |
BJ7#,LJ7#,RJ7#..LHD..(HT,SOT)..(LX,STD,VM) BROWN,SEPIA BROWN |
2 | ||
| 71910-90K0103 |
BJ7#,LJ7#,RJ7#..LHD..(HT,SOT)..(LX,STD,VM) GRAY,SHADOW GRAY |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-90K0106 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
1 | ||
| 72603-90K0103 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,SHADOW GRAY |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-90K0103 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,SHADOW GRAY |
1 | ||
| 72604-90K0106 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
2 | ||
| 72660E - SPRING(FOR REAR SEAT CUSHION SUPPORT) | ||||
| 90506-09035 |
BJ7#,LJ7#,RJ7#..HT,SOT |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 72685 - STRIKER, REAR NO.1 SEAT LOCK | ||||
| 72607-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
2 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-90K0003 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,GRAY |
1 | ||
| 72690-90K0006 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
1 | ||
| 72690-90K0103 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,GRAY |
1 | ||
| 72690-90K0106 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-90K00 |
BJ70,71,73,LJ7#,RJ7# |
2 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-90K00 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-90K00 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-90K0003 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,GRAY |
1 | ||
| 78950-90K0006 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
1 | ||
| 79929 - FRAME, FOLD SEAT LEG STOPPER | ||||
| 79929-90K03 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90105-11007 | ||||
| 90119-08653 | ||||
| 90119-10035 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10493 | ||||
| 90168-40011 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90249-08141 | ||||
| 90387-10069 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 91651-60620 | ||||
| 93312-16016 | ||||
| 93316-16014 | ||||
| 96160-00600 | ||||
| 98168-40011 | ||||

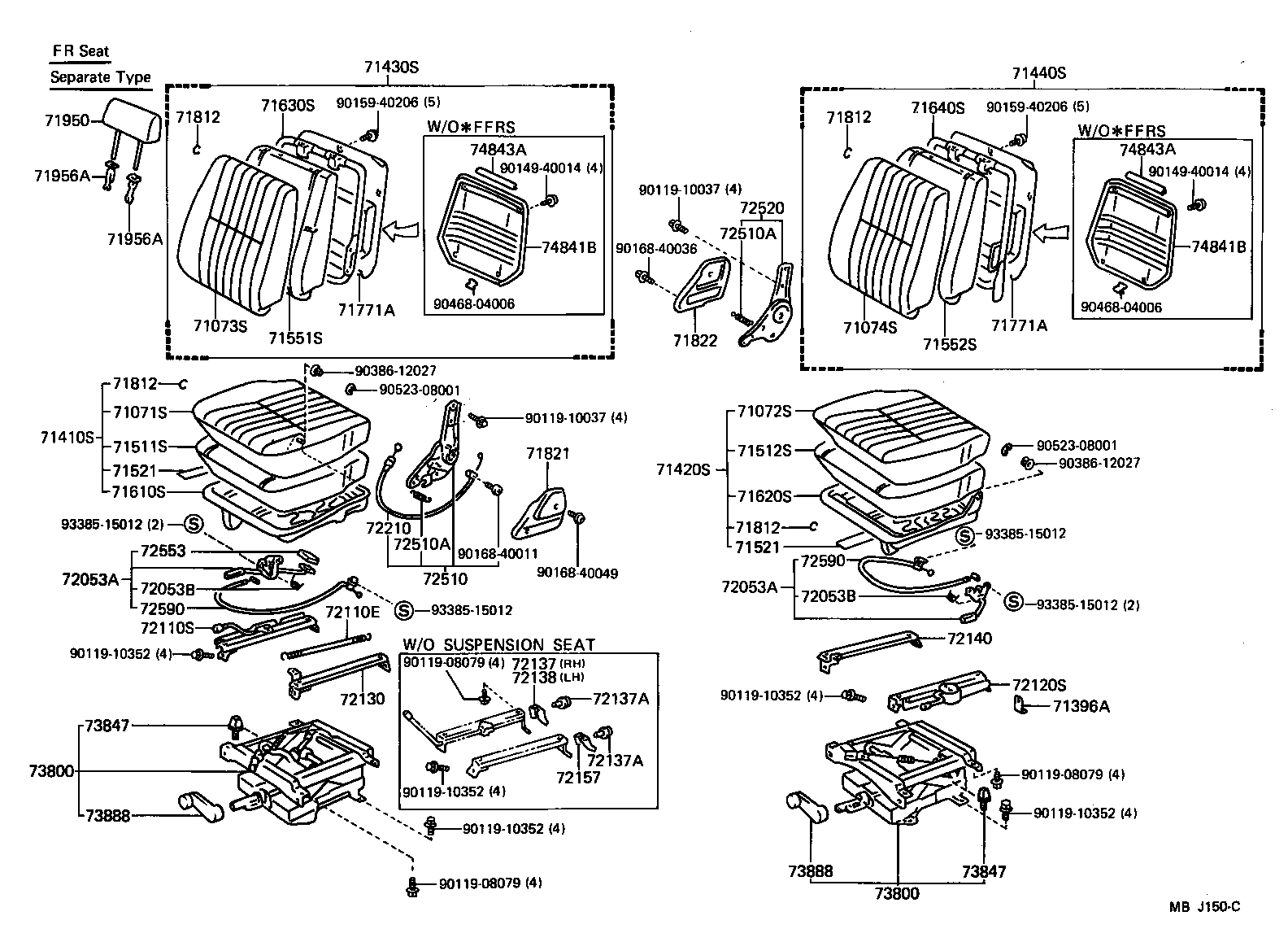

ILLUST NO. 1 OF 2(8411- )LHD..HT,SOT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-90K1405 |
BJ70,71,73,LJ7#,RJ7#..HT FB,BEIGE,BEIGE |
1 | ||
| 71071-90K0805 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,BEIGE,BEIGE |
1 | ||
| 71071-90K0803 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,GRAY,GRAY |
1 | ||
| 71071-90K1403 |
BJ70,71,73,LJ7#,RJ7#..HT FB,GRAY,GRAY |
1 | ||
| 71071-90K0803 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,GRAY,GRAY |
1 | ||
| 71071-90K0805 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,BEIGE,BEIGE |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-90K1505 |
BJ70,71,73,LJ7#,RJ7#..HT FB,BEIGE,BEIGE |
1 | ||
| 71072-90K0503 |
BJ7#,LJ7#,RJ7# VL,GRAY,GRAY |
1 | ||
| 71072-90K1503 |
BJ70,71,73,LJ7#,RJ7#..HT FB,GRAY,GRAY |
1 | ||
| 71072-90K0505 |
BJ7#,LJ7#,RJ7# VL,BEIGE,BEIGE |
1 | ||
| 71072-90K0503 |
BJ70,73,75,LJ70,RJ70..STD VL,GRAY,GRAY |
1 | ||
| 71072-90K0505 |
BJ70,73,75,LJ70,RJ70..STD VL,BEIGE,BEIGE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-90K1703 |
BJ70,73,LJ70,RJ70..HT FB,W/*FFRS,GRAY,GRAY |
1 | ||
| 71073-90K2203 |
BJ70,73,LJ70,RJ70..HT FB,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71073-90K2205 |
BJ70,73,LJ70,RJ70..HT FB,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71073-90K1705 |
BJ70,73,RJ7# FB,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71073-90K0505 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71073-90K1703 |
BJ70,73,RJ7# FB,W/*FFRS,GRAY,GRAY |
1 | ||
| 71073-90K1603 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/*FFRS,GRAY,GRAY |
1 | ||
| 71073-90K1605 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71073-90K0503 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71073-90K2203 |
BJ70,73,RJ7# FB,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71073-90K1705 |
BJ70,73,LJ70,RJ70..HT FB,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71073-90K2205 |
BJ70,73,RJ7# FB,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71073-90K1605 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71073-90K0505 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71073-90K1603 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/*FFRS,GRAY,GRAY |
1 | ||
| 71073-90K0503 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-90K1303 |
BJ70,73,LJ70,RJ70..HT FB,W/*FFRS,GRAY,GRAY |
1 | ||
| 71074-90K1805 |
BJ70,73,LJ70,RJ70..HT FB,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71074-90K1803 |
BJ70,73,LJ70,RJ70..HT FB,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71074-90K1305 |
BJ70,73,LJ70,RJ70..HT FB,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71074-90K1305 |
BJ70,73,RJ7# FB,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71074-90K0203 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71074-90K1205 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71074-90K1303 |
BJ70,73,RJ7# FB,W/*FFRS,GRAY,GRAY |
1 | ||
| 71074-90K0205 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71074-90K1803 |
BJ70,73,RJ7# FB,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71074-90K1203 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/*FFRS,GRAY,GRAY |
1 | ||
| 71074-90K1805 |
BJ70,73,RJ7# FB,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71074-90K1205 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71074-90K1203 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/*FFRS,GRAY,GRAY |
1 | ||
| 71074-90K0205 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71074-90K0203 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-90K1303 |
BJ70,71,73,LJ7#,RJ7#..HT FB,W/*SUS,GRAY,GRAY |
1 | ||
| 71410-90K3303 |
BJ70,71,73,LJ7#,RJ7# VL,GRAY,GRAY |
1 | ||
| 71410-90K1405 |
BJ70,71,73,LJ7#,RJ7#..HT FB,BEIGE,BEIGE |
1 | ||
| 71410-90K1305 |
BJ70,71,73,LJ7#,RJ7#..HT..STD FB,W/*SUS,BEIGE,BEIGE |
1 | ||
| 71410-90K1403 |
BJ70,71,73,LJ7#,RJ7#..HT FB,GRAY,GRAY |
1 | ||
| 71410-90K1305 |
BJ70,71,73,LJ7#,RJ7#..HT FB,W/*SUS,BEIGE,BEIGE |
1 | ||
| 71410-90K1303 |
BJ70,71,73,LJ7#,RJ7#..HT..STD FB,W/*SUS,GRAY,GRAY |
1 | ||
| 71410-90K3305 |
BJ70,71,73,LJ7#,RJ7# VL,BEIGE,BEIGE |
1 | ||
| 71410-90K3305 |
BJ70,73,LJ70,RJ70..STD VL,BEIGE,BEIGE |
1 | ||
| 71410-90K3303 |
BJ70,73,LJ70,RJ70..STD VL,GRAY,GRAY |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-90K1503 |
BJ70,71,73,LJ7#,RJ7#..HT FB,W/*SUS,GRAY,GRAY |
1 | ||
| 71420-90K1705 |
BJ70,71,73,LJ7#,RJ7#..HT FB,BEIGE,BEIGE |
1 | ||
| 71420-90K1205 |
BJ70,71,73,LJ7#,RJ7# VL,BEIGE,BEIGE |
1 | ||
| 71420-90K1703 |
BJ70,71,73,LJ7#,RJ7#..HT FB,GRAY,GRAY |
1 | ||
| 71420-90K1203 |
BJ70,71,73,LJ7#,RJ7# VL,GRAY,GRAY |
1 | ||
| 71420-90K1505 |
BJ70,71,73,LJ7#,RJ7#..HT..STD FB,W/*SUS,BEIGE,BEIGE |
1 | ||
| 71420-90K1505 |
BJ70,71,73,LJ7#,RJ7#..HT FB,W/*SUS,BEIGE,BEIGE |
1 | ||
| 71420-90K1503 |
BJ70,71,73,LJ7#,RJ7#..HT..STD FB,W/*SUS,GRAY,GRAY |
1 | ||
| 71420-90K1205 |
BJ70,73,LJ70,RJ70..STD VL,BEIGE,BEIGE |
1 | ||
| 71420-90K1203 |
BJ70,73,LJ70,RJ70..STD VL,GRAY,GRAY |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-90K1805 |
BJ70,73,LJ70,RJ70..HT FB,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71430-90K0303 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71430-90K0305 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71430-90K3505 |
BJ70,73,LJ70,RJ70..HT FB,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71430-90K3503 |
BJ70,73,LJ70,RJ70..HT FB,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71430-90K1803 |
BJ70,73,LJ70,RJ70..HT FB,W/*FFRS,GRAY,GRAY |
1 | ||
| 71430-90K1705 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71430-90K1703 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/*FFRS,GRAY,GRAY |
1 | ||
| 71430-90K1803 |
BJ70,73,RJ7# FB,W/*FFRS,GRAY,GRAY |
1 | ||
| 71430-90K3503 |
BJ70,73,RJ7# FB,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71430-90K1805 |
BJ70,73,RJ7# FB,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71430-90K3505 |
BJ70,73,RJ7# FB,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71430-90K1705 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71430-90K0305 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71430-90K1703 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/*FFRS,GRAY,GRAY |
1 | ||
| 71430-90K0303 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-90K1805 |
BJ70,73,LJ70,RJ70..HT FB,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71440-90K0303 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71440-90K3503 |
BJ70,73,LJ70,RJ70..HT FB,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71440-90K3505 |
BJ70,73,RJ7# FB,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71440-90K3505 |
BJ70,73,LJ70,RJ70..HT FB,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71440-90K3503 |
BJ70,73,RJ7# FB,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71440-90K1705 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71440-90K0305 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71440-90K1805 |
BJ70,73,RJ7# FB,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71440-90K1803 |
BJ70,73,RJ7# FB,W/*FFRS,GRAY,GRAY |
1 | ||
| 71440-90K1703 |
BJ7#,LJ7#,RJ7#..HT,SOT VL,W/*FFRS,GRAY,GRAY |
1 | ||
| 71440-90K1803 |
BJ70,73,LJ70,RJ70..HT FB,W/*FFRS,GRAY,GRAY |
1 | ||
| 71440-90K1703 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/*FFRS,GRAY,GRAY |
1 | ||
| 71440-90K0305 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/O *FFRS,BEIGE,BEIGE |
1 | ||
| 71440-90K0303 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/O *FFRS,GRAY,GRAY |
1 | ||
| 71440-90K1705 |
BJ70,73,75,LJ70,RJ70..(HT,SOT)..STD VL,W/*FFRS,BEIGE,BEIGE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-90K02 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-90K02 |
BJ7#,LJ7#,RJ7#..LX,STD,VM |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-90K00 |
BJ7#,LJ7#,RJ7# |
4 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-90K00 |
BJ7#,LJ7#,RJ7# |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-90K02 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-90K02 |
BJ7#,LJ7#,RJ7#..LX,STD,VM |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-90K01 |
BJ70,71,73,LJ7#,RJ7#..STD W/*SUS |
1 | ||
| 71610-90K01 |
BJ70,71,73,LJ7#,RJ7# W/*SUS |
1 | ||
| 71610-90K00 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-90K01 |
BJ70,71,73,LJ7#,RJ7#..STD W/*SUS |
1 | ||
| 71620-90K00 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 71620-90K01 |
BJ70,71,73,LJ7#,RJ7# W/*SUS |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-90K03 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-90K03 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
2 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 71821 - SHIELD, FRONT SEAT SIDE, RH | ||||
| 71811-90K0103 |
BJ70,71,73,LJ7#,RJ7# GRAY,SHADOW GRAY |
1 | ||
| 71811-90K0106 |
BJ70,71,73,LJ7#,RJ7# BROWN,SEPIA BROWN |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-90K0103 |
BJ7#,LJ7#,RJ7#..LHD GRAY,SHADOW GRAY |
1 | ||
| 71812-90K0106 |
BJ7#,LJ7#,RJ7#..LHD BROWN,SEPIA BROWN |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90K0106 |
BJ7#,LJ7#,RJ7#..LHD..(HT,SOT)..(LX,STD,VM) BROWN,SEPIA BROWN |
2 | ||
| 71910-90K0103 |
BJ7#,LJ7#,RJ7#..LHD..(HT,SOT)..(LX,STD,VM) GRAY,SHADOW GRAY |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001036 |
BJ7#,LJ7#,RJ7# W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006036 |
BJ7#,LJ7#,RJ7# W(LOCK),W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006033 |
BJ7#,LJ7#,RJ7# W(LOCK),W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001033 |
BJ7#,LJ7#,RJ7# W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001036 |
BJ7#,LJ7#,RJ7# W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006036 |
BJ7#,LJ7#,RJ7# W(LOCK),W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006033 |
BJ7#,LJ7#,RJ7# W(LOCK),W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001033 |
BJ7#,LJ7#,RJ7# W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 72053A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL | ||||
| 72054-90K0006 |
BJ7#,LJ7#,RJ7#..LX,STD,VM LH,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0003 |
BJ7#,LJ7#,RJ7#..LX,STD,VM LH,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0206 |
BJ70,71,73,LJ7#,RJ7#..LHD RH,BROWN,SEPIA BROWN |
1 | ||
| 72053-90K0203 |
BJ70,71,73,LJ7#,RJ7#..LHD RH,GRAY,SHADOW GRAY |
1 | ||
| 72053A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL | ||||
| 72054-90K0006 |
BJ7#,LJ7#,RJ7#..LX,STD,VM LH,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0003 |
BJ7#,LJ7#,RJ7#..LX,STD,VM LH,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0206 |
BJ70,71,73,LJ7#,RJ7#..LHD RH,BROWN,SEPIA BROWN |
1 | ||
| 72053-90K0203 |
BJ70,71,73,LJ7#,RJ7#..LHD RH,GRAY,SHADOW GRAY |
1 | ||
| 72053B - SPRING(FOR RECLINING REMOTE CONTROL LEVER) | ||||
| 90508-16079 |
BJ7#,LJ7#,RJ7# RH |
1 | ||
| 90508-16080 |
BJ7#,LJ7#,RJ7# LH |
1 | ||
| 72053B - SPRING(FOR RECLINING REMOTE CONTROL LEVER) | ||||
| 90508-16079 |
BJ7#,LJ7#,RJ7# RH |
1 | ||
| 90508-16080 |
BJ7#,LJ7#,RJ7# LH |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-16053 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-90K05 |
BJ70,71,73,LJ7#,RJ7#..STD W/*SUS |
1 | ||
| 72110-90K01 |
BJ70,71,73,LJ7#,RJ7#..LHD |
1 | ||
| 72110-90K05 |
BJ70,71,73,LJ7#,RJ7# W/*SUS |
1 | ||
| 72110-90K22 |
BJ70,71,73,LJ7#,RJ7#..LHD |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-90K03 |
BJ70,71,73,LJ7#,RJ7# W/*SUS |
1 | ||
| 72120-90K00 |
BJ70,71,73,LJ7#,RJ7#..LHD |
1 | ||
| 72120-90K03 |
BJ70,71,73,LJ7#,RJ7#..STD W/*SUS |
1 | ||
| 72120-90K14 |
BJ70,71,73,LJ7#,RJ7#..LHD |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-90K02 |
BJ70,71,73,LJ7#,RJ7# W/*SUS |
1 | ||
| 72130-90K02 |
BJ70,71,73,LJ7#,RJ7#..STD W/*SUS |
1 | ||
| 72130-90K00 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-90K0203 |
BJ70,71,73,LJ7#,RJ7# GRAY,SHADOW GRAY |
1 | ||
| 72137-90K0206 |
BJ70,71,73,LJ7#,RJ7# BROWN,SEPIA BROWN |
1 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-0503113 |
BJ70,71,73,LJ7#,RJ7# GRAY,SHADOW GRAY |
4 | ||
| 90467-0503106 |
BJ70,71,73,LJ7#,RJ7# BROWN,SEPIA BROWN |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-0503113 |
BJ70,71,73,LJ7#,RJ7# GRAY,SHADOW GRAY |
4 | ||
| 90467-0503106 |
BJ70,71,73,LJ7#,RJ7# BROWN,SEPIA BROWN |
4 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-90K0206 |
BJ70,71,73,LJ7#,RJ7# BROWN,SEPIA BROWN |
1 | ||
| 72137-90K0203 |
BJ70,71,73,LJ7#,RJ7# GRAY,SHADOW GRAY |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-90K00 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 72140-90K03 |
BJ70,71,73,LJ7#,RJ7# W/*SUS |
1 | ||
| 72140-90K03 |
BJ70,71,73,LJ7#,RJ7#..STD W/*SUS |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-90K0003 |
BJ70,71,73,LJ7#,RJ7# GRAY,SHADOW GRAY |
2 | ||
| 72157-90K0006 |
BJ70,71,73,LJ7#,RJ7# BROWN,SEPIA BROWN |
2 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-90K00 |
BJ7#,LJ7#,RJ7#..LHD..(HT,SOT) |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-90K07 |
BJ70,71,73,LJ7#,RJ7#..LHD |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ7#,LJ7#,RJ7# |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-90K00 |
BJ7#,LJ7#,RJ7#..LHD..(HT,SOT) |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12020 |
BJ70,71,73,LJ7#,RJ7#..LHD |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72580-90K00 |
BJ7#,LJ7#,RJ7# LH |
1 | ||
| 72570-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT RH |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72580-90K00 |
BJ7#,LJ7#,RJ7# LH |
1 | ||
| 72570-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT RH |
1 | ||
| 73800 - SUSPENSION ASSY, SEAT, RH | ||||
| 73800-90K01 |
BJ70,71,73,LJ7#,RJ7# RH |
1 | ||
| 73810-90K01 |
BJ70,71,73,LJ7#,RJ7# LH |
1 | ||
| 73810-90K01 |
BJ70,71,73,LJ7#,RJ7#..STD LH |
1 | ||
| 73800-90K01 |
BJ70,71,73,LJ7#,RJ7#..STD RH |
1 | ||
| 73800 - SUSPENSION ASSY, SEAT, RH | ||||
| 73800-90K01 |
BJ70,71,73,LJ7#,RJ7# RH |
1 | ||
| 73810-90K01 |
BJ70,71,73,LJ7#,RJ7# LH |
1 | ||
| 73810-90K01 |
BJ70,71,73,LJ7#,RJ7#..STD LH |
1 | ||
| 73800-90K01 |
BJ70,71,73,LJ7#,RJ7#..STD RH |
1 | ||
| 73847 - CUSHION, SEAT SUSPENSION STOPPER | ||||
| 73847-90K00 |
BJ70,71,73,LJ7#,RJ7# |
4 | ||
| 73847-90K00 |
BJ70,71,73,LJ7#,RJ7#..STD |
4 | ||
| 73847 - CUSHION, SEAT SUSPENSION STOPPER | ||||
| 73847-90K00 |
BJ70,71,73,LJ7#,RJ7# |
4 | ||
| 73847-90K00 |
BJ70,71,73,LJ7#,RJ7#..STD |
4 | ||
| 73888 - HANDLE, SEAT SUSPENSION CONTROL | ||||
| 73080-90K00 |
BJ70,71,73,LJ7#,RJ7# |
2 | ||
| 73080-90K00 |
BJ70,71,73,LJ7#,RJ7#..STD |
2 | ||
| 73888 - HANDLE, SEAT SUSPENSION CONTROL | ||||
| 73080-90K00 |
BJ70,71,73,LJ7#,RJ7# |
2 | ||
| 73080-90K00 |
BJ70,71,73,LJ7#,RJ7#..STD |
2 | ||
| 74841B - PANEL, FRONT SEAT BACK | ||||
| 74841-90K0003 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,SHADOW GRAY |
2 | ||
| 74841-90K0003 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD) GRAY,SHADOW GRAY |
2 | ||
| 74841-90K0006 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
2 | ||
| 74841-90K0006 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD) BROWN,SEPIA BROWN |
2 | ||
| 74841B - PANEL, FRONT SEAT BACK | ||||
| 74841-90K0003 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,SHADOW GRAY |
2 | ||
| 74841-90K0003 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD) GRAY,SHADOW GRAY |
2 | ||
| 74841-90K0006 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
2 | ||
| 74841-90K0006 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD) BROWN,SEPIA BROWN |
2 | ||
| 74843A - ORNAMENT, FRONT SEAT BACK PANEL | ||||
| 74844-90K0003 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,SHADOW GRAY |
2 | ||
| 74844-90K0006 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
2 | ||
| 74844-90K0003 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD) GRAY,SHADOW GRAY |
2 | ||
| 74844-90K0006 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD) BROWN,SEPIA BROWN |
2 | ||
| 74843A - ORNAMENT, FRONT SEAT BACK PANEL | ||||
| 74844-90K0003 |
BJ7#,LJ7#,RJ7#..HT,SOT GRAY,SHADOW GRAY |
2 | ||
| 74844-90K0006 |
BJ7#,LJ7#,RJ7#..HT,SOT BROWN,SEPIA BROWN |
2 | ||
| 74844-90K0003 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD) GRAY,SHADOW GRAY |
2 | ||
| 74844-90K0006 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD) BROWN,SEPIA BROWN |
2 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10037 | ||||
| 90119-10352 | ||||
| 90149-40014 | ||||
| 90159-40206 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90386-12027 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 93385-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
