BJ70LV-MRW (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

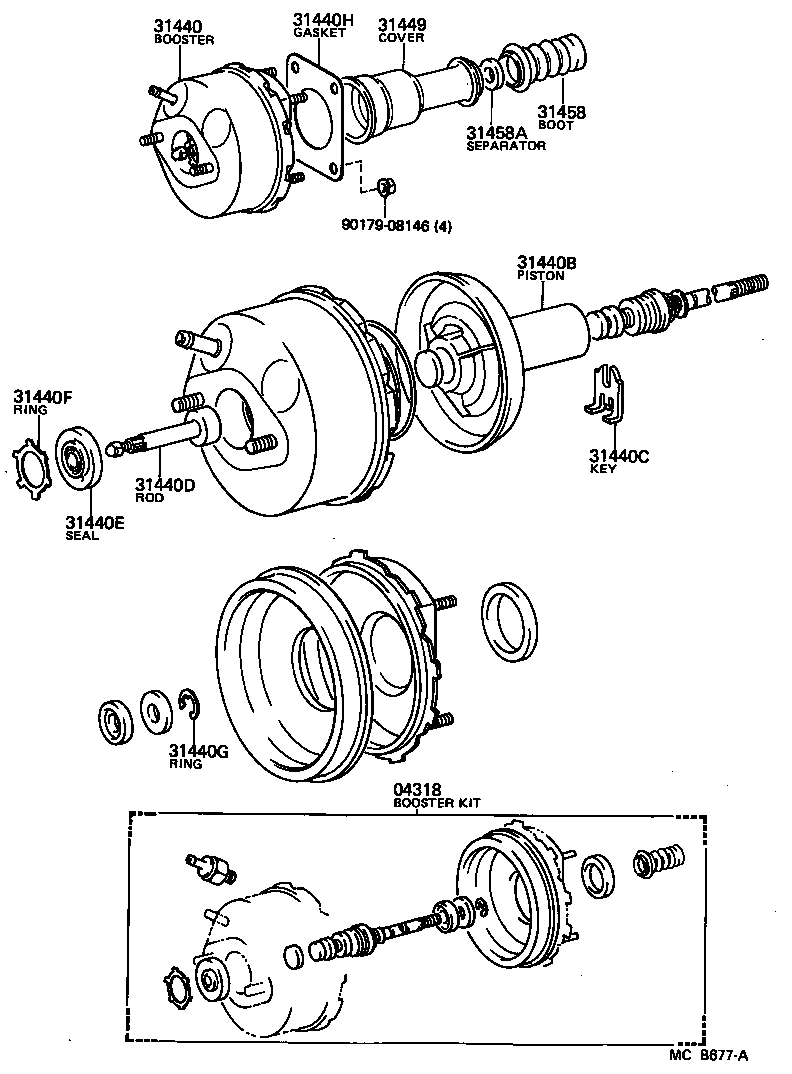

ILLUST NO. 1 OF 2(8411- )BJ7#..LHD..LX,STD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04318 - BOOSTER KIT, CLUTCH | ||||
| 04318-60020 |
BJ7#..LHD..(LX,STD) |
1 | ||
| 31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER | ||||
| 31440-60040 |
BJ7#..LHD..(LX,STD) |
1 | ||
| 31440B - PISTON, BOOSTER(FOR CLUTCH BOOSTER) | ||||
| 44642-87502 |
BJ7#..LX,STD |
1 | ||
| 31440C - KEY, VALVE STOPPER(FOR CLUTCH BOOSTER) | ||||
| 44635-12480 |
BJ7#..LX,STD |
1 | ||
| 31440D - ROD SUB-ASSY, BOOSTER PISTON(FOR CLUTCH BOOSTER) | ||||
| 44606-12520 |
BJ7#..LX,STD |
1 | ||
| 31440E - SEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER) | ||||
| 44621-28120 |
BJ7#..LX,STD |
1 | ||
| 31440F - RING, CIRCULAR INTERNAL(FOR CLUTCH BOOSTER) | ||||
| 44628-28120 |
BJ7#..LX,STD |
1 | ||
| 31440G - RING, E(FOR CLUTCH BOOSTER AIR VALVE) | ||||
| 96160-01000 |
BJ7#..LHD..(LX,STD) |
1 | ||
| 31440H - GASKET, CLUTCH BOOSTER BRACKET | ||||
| 44785-14010 |
BJ7#..LHD..(LX,STD) |
1 | ||
| 31449 - COVER, CLUTCH BOOSTER PISTON | ||||
| 31449-60010 |
BJ7#..LHD..(LX,STD) |
1 | ||
| 31458 - BOOT, CLUTCH BOOSTER PISTON COVER | ||||
| 31458-60010 |
BJ7#..LHD..(LX,STD) |
1 | ||
| 31458A - SEPARATOR, AIR CLEANER(FOR CLUTCH BOOSTER) | ||||
| 44672-22120 |
BJ7#..LHD..(LX,STD) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||

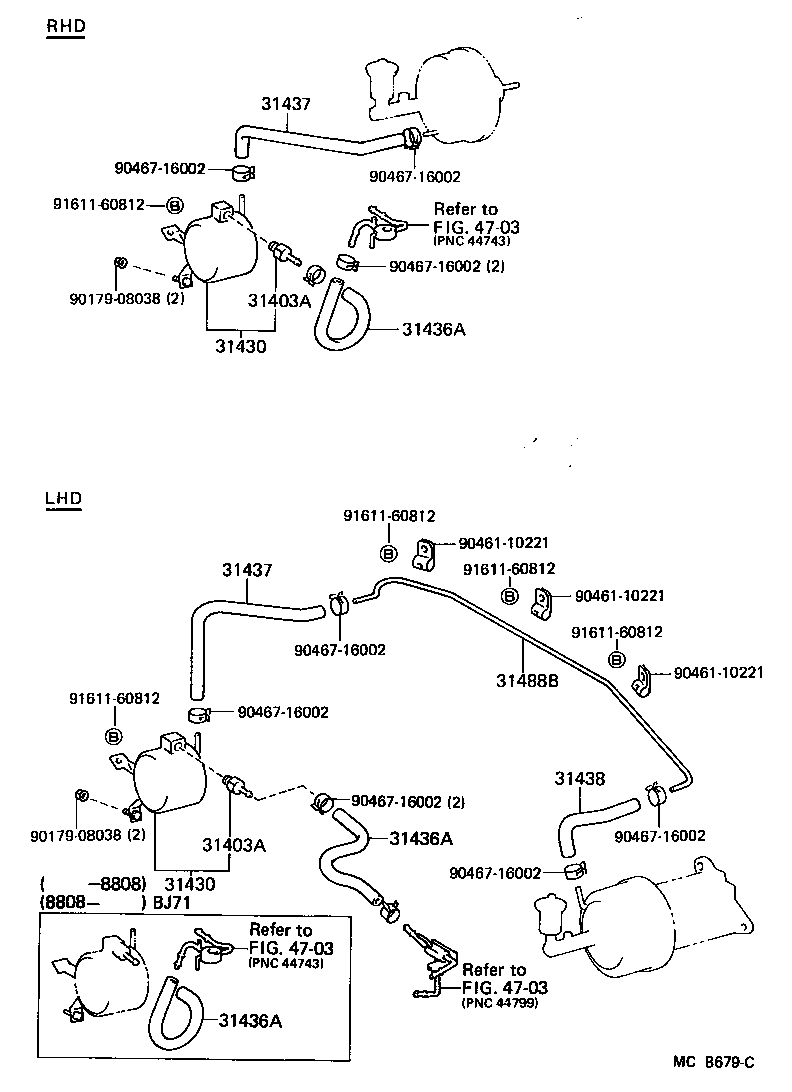

ILLUST NO. 2 OF 2(8411- )BJ7#..LX,STD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31403A - VALVE ASSY, VACUUM CHECK(FOR CLUTCH VACUUM) | ||||
| 44730-60040 |
BJ7#..LX,STD |
1 | ||
| 31403A - VALVE ASSY, VACUUM CHECK(FOR CLUTCH VACUUM) | ||||
| 44730-60040 |
BJ7#..LX,STD |
1 | ||
| 31430 - RESERVOIR ASSY, CLUTCH VACUUM | ||||
| 31430-60030 |
BJ7#..LX,STD |
1 | ||
| 31430 - RESERVOIR ASSY, CLUTCH VACUUM | ||||
| 31430-60030 |
BJ7#..LX,STD |
1 | ||
| 31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31437-60110 |
BJ70,73,75..LX,STD |
1 | ||
| 31437-60060 |
BJ7#..LX,STD |
1 | ||
| 31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31437-60110 |
BJ70,73,75..LX,STD |
1 | ||
| 31437-60060 |
BJ7#..LX,STD |
1 | ||
| 31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31437-60110 |
BJ70,73,75..LX,STD |
1 | ||
| 31437-60060 |
BJ7#..LX,STD |
1 | ||
| 31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM) | ||||
| 95441-09420 |
BJ70,73,75..LHD..(LX,STD) |
1 | ||
| 31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM) | ||||
| 95441-09420 |
BJ70,73,75..LHD..(LX,STD) |
1 | ||
| 31438 - HOSE, NO.3(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31436-60040 |
BJ7#..LHD..(LX,STD) |
1 | ||
| 31488B - TUBE, VACUUM HOSE TO VACUUM HOSE | ||||
| 31488-60070 |
BJ7#..LHD..(LX,STD) |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90461-10221 | ||||
| 90467-16002 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 4703 | ||||
