BJ70LV-MNW (1986)

Toyota Land Cruiser

Production Aug 1986 - Aug 1988
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8608- )BJ75 ; (8608- )BJ75 ; (8708- )BJ70,71,73..LHD ; (8708- )BJ70,71

Click highlighted areas on diagram

diagram 41451 41453 41456 41460 41460B 41460D 41460F 41463B 41464 41464B 41464B 41464B 41465 41465B 41465D 41465F 41466 9020109018 9020109018 9046814011 9165160820 9538102525
Part # Description Qty Price
Common parts
90201-09018
90468-14011
91651-60820
95381-02525

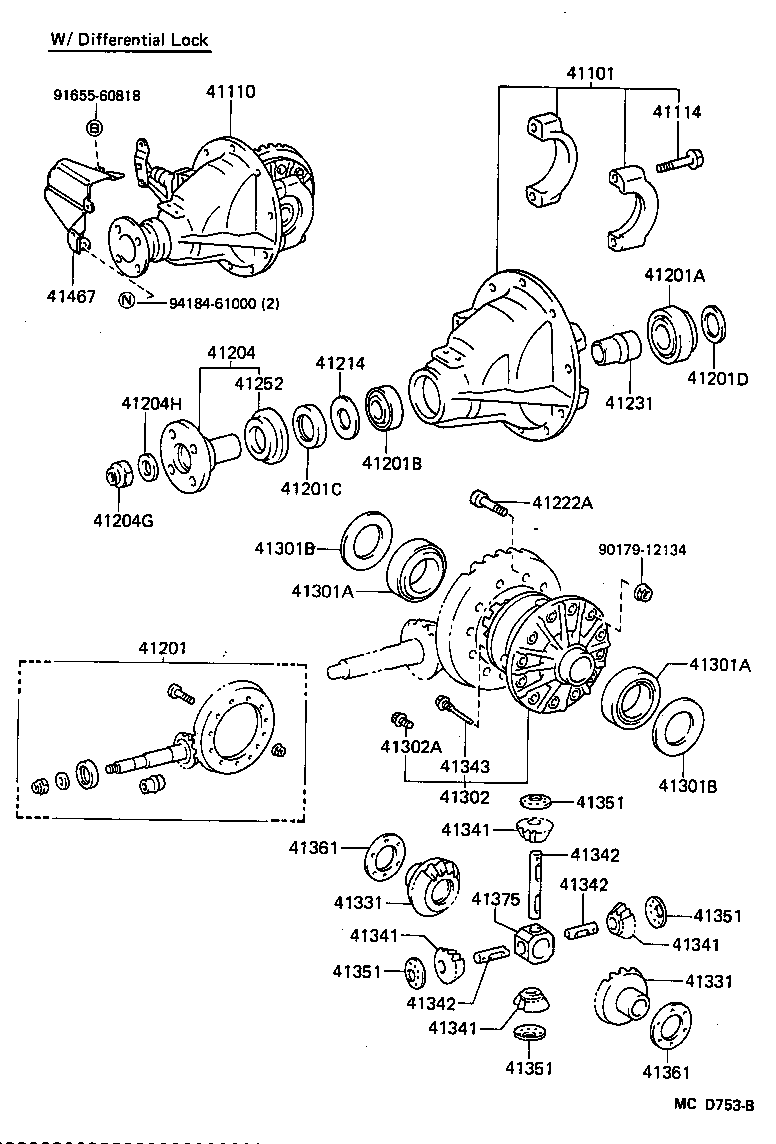

ILLUST NO. 2 OF 3(8608- )BJ75 ; (8608- )BJ75 ; (8708- )BJ70,71,73..LHD ; (8708- )BJ70,71

Click highlighted areas on diagram

diagram 41101 41110 41114 41201 41201A 41201B 41201C 41201D 41204 41204G 41204H 41214 41222A 41231 41252 41301A 41301A 41301B 41301B 41302 41302A 41331 41331 41341 41341 41341 41341 41342 41342 41342 41343 41351 41351 41351 41351 41361 41361 41375 41467 9017912134 9165560818 9418461000
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-60040

BJ7#..LX,STD

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-60130

BJ7#..LX,STD

*FGR=37:9=4.111,*AXC=K085,*FGR=37:9

 1
41110-60110

BJ7#..LX,STD

*FGR=37:9=4.111,*AXC=K082,*FGR=37:9

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90105-12053

BJ7#,LJ7#,RJ7#

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-69165

BJ7#

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90366-40004

BJ7#

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-30011

BJ7#

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-38134

BJ7#

 1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90201-40551

BJ7#

T=1.05,T=1.05

 1
90201-40558

BJ7#

T=1.40,T=1.40

 1
90201-40553

BJ7#

T=1.15,T=1.15

 1
90201-40555

BJ7#

T=1.25,T=1.25

 1
90201-40559

BJ7#

T=1.45,T=1.45

 1
90201-40556

BJ7#

T=1.30,T=1.30

 1
90201-40554

BJ7#

T=1.20,T=1.20

 1
90201-40557

BJ7#

T=1.35,T=1.35

 1
90201-40561

BJ7#

T=1.55,T=1.55

 1
90201-40552

BJ7#

T=1.10,T=1.10

 1
90201-40560

BJ7#

T=1.50,T=1.50

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-60030

BJ7#

 1
41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
90179-22011

BJ7#

 1
41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)
90201-22007

BJ7#

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-26010

BJ7#,LJ7#,RJ7#

 1
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41226-35010

BJ7#

 12
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-60020

BJ7#

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-35010

BJ7#,LJ7#,RJ7#

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45066

BJ7#,LJ70,RJ70

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45066

BJ7#,LJ70,RJ70

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41301-60011

BJ7#

 1
41302A - BOLT(FOR REAR DIFFERENTIAL CASE)
90105-10021

BJ7#

 8
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-35020

BJ7#..LX,STD

 2
41331-60010

BJ7#

W/LSD

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-35020

BJ7#..LX,STD

 2
41331-60010

BJ7#

W/LSD

 2
41341 - PINION, REAR DIFFERENTIAL
41341-55012

BJ7#..LX,STD

 4
41341-60010

BJ7#

W/LSD

 4
41341 - PINION, REAR DIFFERENTIAL
41341-55012

BJ7#..LX,STD

 4
41341-60010

BJ7#

W/LSD

 4
41341 - PINION, REAR DIFFERENTIAL
41341-55012

BJ7#..LX,STD

 4
41341-60010

BJ7#

W/LSD

 4
41341 - PINION, REAR DIFFERENTIAL
41341-55012

BJ7#..LX,STD

 4
41341-60010

BJ7#

W/LSD

 4
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-55010

BJ7#..LX,STD

 1
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-55010

BJ7#..LX,STD

 1
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-55010

BJ7#..LX,STD

 1
41343 - PIN, REAR DIFFERENTIAL PINION SHAFT
41343-55010

BJ7#..LX,STD

 1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-35011

BJ7#..LX,STD

 4
41351-60010

BJ7#

W/LSD

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-35011

BJ7#..LX,STD

 4
41351-60010

BJ7#

W/LSD

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-35011

BJ7#..LX,STD

 4
41351-60010

BJ7#

W/LSD

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-35011

BJ7#..LX,STD

 4
41351-60010

BJ7#

W/LSD

 4
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-60020

BJ7#..LX,STD

T=1.75,T=1.70-1.80

 2
41361-60040

BJ7#..LX,STD

T=2.05,T=2.00-2.10

 2
41361-60030

BJ7#..LX,STD

T=1.90,T=1.85-1.95

 2
41361-60010

BJ7#..LX,STD

T=1.60,T=1.55-1.65

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-60020

BJ7#..LX,STD

T=1.75,T=1.70-1.80

 2
41361-60040

BJ7#..LX,STD

T=2.05,T=2.00-2.10

 2
41361-60030

BJ7#..LX,STD

T=1.90,T=1.85-1.95

 2
41361-60010

BJ7#..LX,STD

T=1.60,T=1.55-1.65

 2
Common parts
90179-12134
91655-60818
94184-61000
