8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

BJ60RV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Aug 1987

Engine 3B

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8008- )

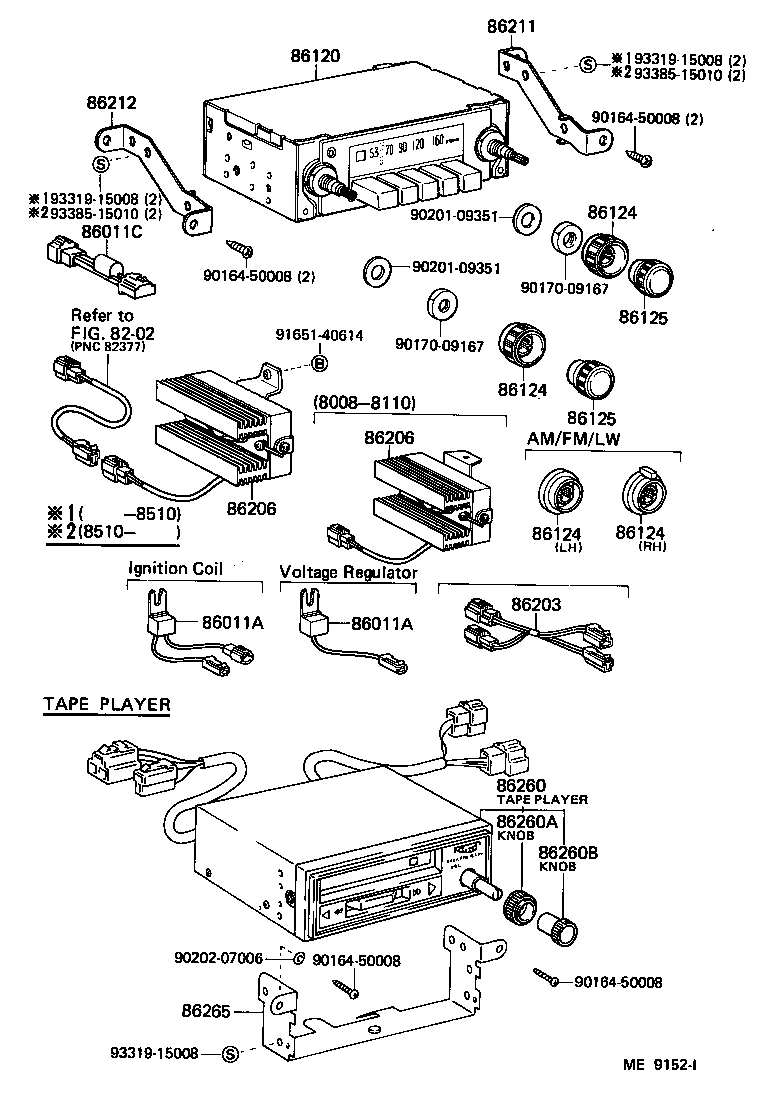

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04040	BJ60,FJ6#,HJ60 GENERATOR REGULATOR	08/1980 - 10/1985	1
90980-04040	BJ60,FJ62,HJ6#..EUR,GEN,ME GENERATOR REGULATOR	10/1985 - 08/1987	1
86011A - CONDENSER, RADIO SETTING
90980-04040	BJ60,FJ6#,HJ60 GENERATOR REGULATOR	08/1980 - 10/1985	1
90980-04040	BJ60,FJ62,HJ6#..EUR,GEN,ME GENERATOR REGULATOR	10/1985 - 08/1987	1
86011C - FILTER, NOISE
90980-05050	BJ60,FJ6#,HJ6#..ARL,GEN,ME	05/1982 - 08/1987	1
86120 - RECEIVER ASSY, RADIO
86120-90A02	BJ60,FJ60,HJ60..GEN AM/SW	08/1980 - 03/1981	1
86120-95A08	BJ60,FJ6#,HJ60..GEN,ME AM/SW	03/1981 - 02/1987	1
86120-90A03	BJ60,FJ6#,HJ6#..ARL,GEN,ME AM/FM MONAURAL	08/1980 - 08/1987	1
86120-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME AM	08/1980 - 08/1987	1
86120-95A08	BJ60..GEN AM/SW	02/1987 - 08/1987	1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86203 - WIRE, RADIO
82133-90A00	BJ60,FJ62,HJ60..GEN	11/1984 - 10/1985	1
82133-90A05	BJ60,FJ62,HJ60..GEN W/NON REVERSE STEREO	10/1985 - 08/1987	1
86203-90A00	BJ60,FJ60,HJ60..GEN W/NON REVERSE STEREO	09/1980 - 11/1984	1
86206 - CONVERTER SUB-ASSY, VOLTAGE
86206-90A01	BJ60..GEN 24V	10/1981 - 10/1985	1
86206-90A00	BJ60,HJ60..EUR,GEN 24V	08/1980 - 10/1981	1
86206 - CONVERTER SUB-ASSY, VOLTAGE
86206-90A01	BJ60..GEN 24V	10/1981 - 10/1985	1
86206-90A00	BJ60,HJ60..EUR,GEN 24V	08/1980 - 10/1981	1
86211 - BRACKET, RADIO, NO.1
86211-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	1
86212 - BRACKET, RADIO, NO.2
86212-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	1
86260 - TAPE PLAYER ASSY
86260-22080	BJ60,FJ60,HJ60..ARL,GEN NON REVERSE	08/1980 - 09/1981	1
86260-22081	BJ60,FJ60,HJ60..ARL,GEN NON REVERSE	09/1981 - 10/1982	1
86260-22081	BJ60,FJ6#,HJ60..GEN NON REVERSE	10/1982 - 08/1987	1
86260-90A00	BJ60,FJ62,HJ60..GEN,ME AUTO REVERSE	10/1985 - 08/1987	1
86260A - KNOB, TAPE PLAYER VOLUME
86128-20070	BJ60,FJ62,HJ60..GEN,ME AUTO REVERSE	10/1985 - 08/1987	1
86260B - KNOB, TAPE PLAYER TONE
86128-20090	BJ60,FJ62,HJ60..GEN,ME AUTO REVERSE	10/1985 - 08/1987	1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-90A00	BJ60,FJ6#,HJ60..GEN,ME	10/1982 - 08/1987	1
86265-90A00	BJ60,FJ60,HJ60..RHD..(ARL,GEN)	08/1980 - 02/1982	1
86265-90A00	BJ60,FJ60,HJ60..ARL,GEN	02/1982 - 10/1982	1
Common parts
90164-50008
90170-09167
90201-09351
90202-07006
91651-40614
93319-15008
93385-15010
Linked diagrams
8202

(8008- )

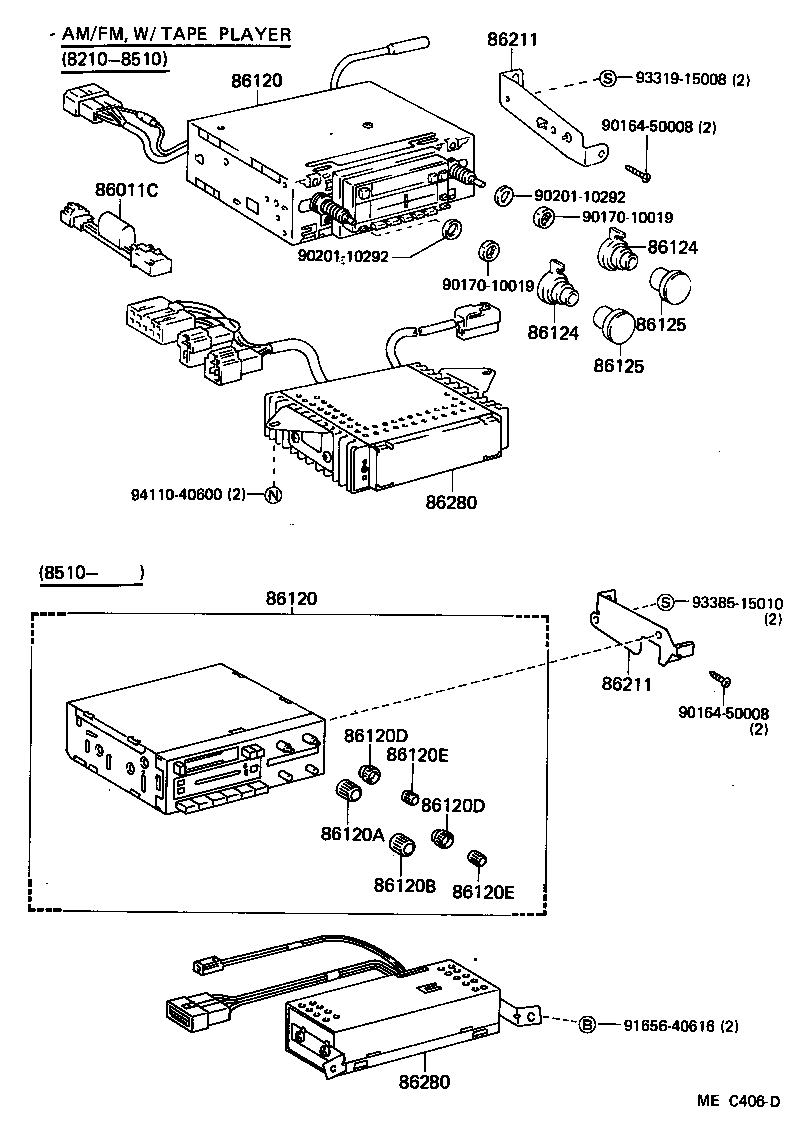

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011C - FILTER, NOISE
90980-05050	BJ60,FJ6#,HJ6#..ARL,GEN,ME	05/1982 - 08/1987	1
86120 - RECEIVER ASSY, RADIO
86120-90A02	BJ60,FJ60,HJ60..GEN AM/SW	08/1980 - 03/1981	1
86120-95A08	BJ60,FJ6#,HJ60..GEN,ME AM/SW	03/1981 - 02/1987	1
86120-90A03	BJ60,FJ6#,HJ6#..ARL,GEN,ME AM/FM MONAURAL	08/1980 - 08/1987	1
86120-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME AM	08/1980 - 08/1987	1
86120-95A08	BJ60..GEN AM/SW	02/1987 - 08/1987	1
86120 - RECEIVER ASSY, RADIO
86120-90A02	BJ60,FJ60,HJ60..GEN AM/SW	08/1980 - 03/1981	1
86120-95A08	BJ60,FJ6#,HJ60..GEN,ME AM/SW	03/1981 - 02/1987	1
86120-90A03	BJ60,FJ6#,HJ6#..ARL,GEN,ME AM/FM MONAURAL	08/1980 - 08/1987	1
86120-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME AM	08/1980 - 08/1987	1
86120-95A08	BJ60..GEN AM/SW	02/1987 - 08/1987	1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	2
86211 - BRACKET, RADIO, NO.1
86211-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	1
86211 - BRACKET, RADIO, NO.1
86211-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	1
Common parts
90164-50008
90170-10019
90201-10292
91656-40616
93319-15008
93385-15010
94110-40600

BJ60RV-KC (1980)

(8008- )

(8008- )
