BJ60LV-MCV (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

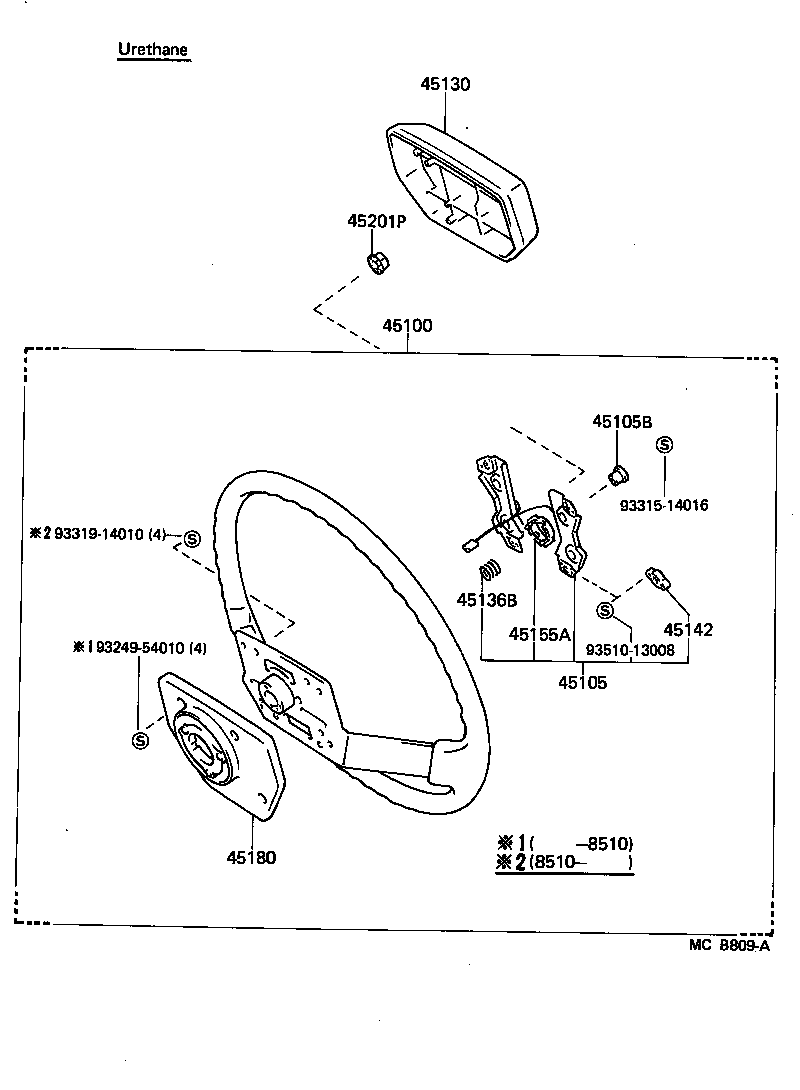

Click highlighted areas on diagram

diagram 45100 45105 45105B 45130 45136B 45142 45155A 45180 45201P 9324954010 9331514016 9331914010 9351013008
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60070

BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR

 1
45100-6007003

BJ60,FJ62,HJ6#..ARL,GEN,ME

SHADOW GRAY,GRAY,TRIM1#

 1
45100-6014003

BJ60,FJ62,HJ60..SOB..(EUR,ME)

URETHANE,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
45100-6007016

BJ60,FJ62,HJ6#..ARL,GEN,ME

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
45100-6014006

BJ60,FJ62,HJ60..SOB..(EUR,ME)

URETHANE,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
45100-6007003

BJ60,FJ62;HJ60..MTM..(ARL,GEN)

SHADOW GRAY,GRAY,TRIM1#

 1
45100-6015016

BJ60,FJ62,HJ6#..EUR,GEN,ME

SEPIA BROWN,W/POWER STEERING,BROWN,TRIM4#

 1
45100-6007016

BJ60,FJ62;HJ60..MTM..(ARL,GEN)

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
45100-6015003

BJ60,FJ62,HJ6#..EUR,GEN,ME

SHADOW GRAY,W/POWER STEERING,SHADOW GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-60010

BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR

 3
45105-60010

BJ60,FJ62,HJ6#..ARL,GEN,ME

 3
45105-60010

BJ60,FJ62;HJ60..MTM..(ARL,GEN)

 3
45105-60040

BJ60,FJ62,HJ60..SOB..(EUR,ME)

URETHANE

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-04010

BJ60,FJ62,HJ60..SOB..(EUR,ME)

URETHANE

 4
45130 - BUTTON ASSY, HORN
45130-60030

BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR

 1
45130-6003003

BJ60,FJ62,HJ6#..ARL,GEN,ME

SHADOW GRAY,GRAY,TRIM1#

 1
45130-6009006

BJ60,FJ62,HJ6#..EUR,GEN,ME

SEPIA BROWN,W/POWER STEERING,SEPIA BROWN,TRIM4#

 1
45130-6003006

BJ60,FJ62,HJ6#..ARL,GEN,ME

SEPIA BROWN,BROWN,TRIM4#

 1
45130-6008006

BJ60,FJ62,HJ60..SOB..(EUR,ME)

URETHANE,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
45130-6009003

BJ60,FJ62,HJ6#..EUR,GEN,ME

SHADOW GRAY,W/POWER STEERING,SHADOW GRAY,TRIM1#

 1
45130-6008003

BJ60,FJ62,HJ60..SOB..(EUR,ME)

URETHANE,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
45130-6003006

BJ60,FJ62;HJ60..MTM..(ARL,GEN)

SEPIA BROWN,BROWN,TRIM4#

 1
45130-6003003

BJ60,FJ62;HJ60..MTM..(ARL,GEN)

SHADOW GRAY,GRAY,TRIM1#

 1
45136B - SPRING, COMPRESSION(FOR HORN BUTTON CONTACT PLATE)
90501-12099

BJ60,FJ62,HJ60..SOB..(EUR,ME)

 4
90501-10083

BJ60,FJ62,HJ60..SOB..(EUR,ME)

 4
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-12050

BJ60,FJ62,HJ60..SOB..(EUR,ME)

 4
45155A - SPACER, HORN CONTACT
45155-12030

BJ60,FJ62,HJ60..SOB..(EUR,ME)

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-6002001

BJ60,FJ62,HJ60..SOB..(EUR,ME)

URETHANE,BLACK,BLACK

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

BJ60,FJ6#,HJ6#

 1
Common parts
93249-54010
93315-14016
93319-14010
93510-13008
