BJ60LV-MCV (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

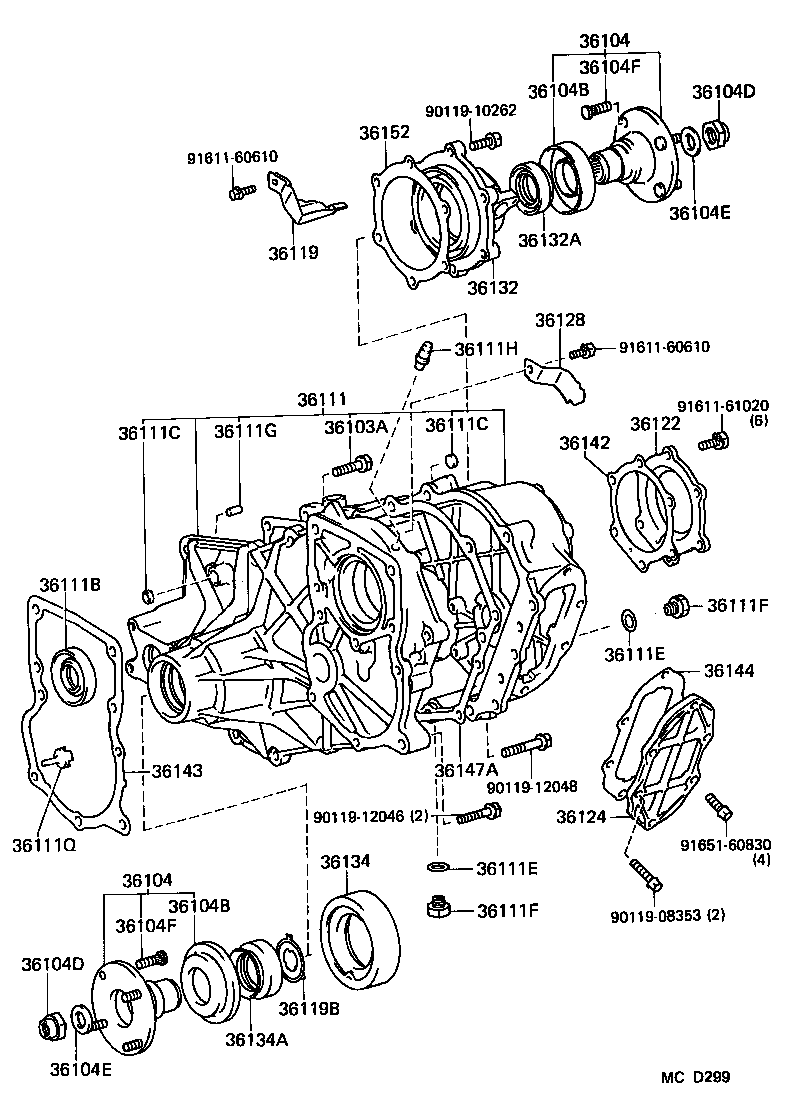

Click highlighted areas on diagram

diagram 36103A 36104 36104 36104B 36104B 36104D 36104D 36104E 36104E 36104F 36104F 36111 36111B 36111C 36111C 36111E 36111E 36111F 36111F 36111G 36111H 36111Q 36119 36119B 36122 36124 36128 36132 36132A 36134 36134A 36142 36143 36144 36147A 36152 9011908353 9011910262 9011912046 9011912048 9161160610 9161160610 9161161020 9165160830
Part # Description Qty Price
36103A - BOLT (FOR TRANSFER CASE)
91651-61040

BJ60,FJ6#,HJ6#

*10-1.25PX40-30,*10-1.25PX40-30

 8
91651-61030

BJ60,FJ6#,HJ6#

*10-1.25PX30-30,*10-1.25PX30-30

 3
36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)
33309-60041

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

RR DRIVE

 1
33309-60020

BJ60,FJ60,HJ60

RR DRIVE

 1
33309-60010

BJ60,FJ60,HJ60

FR DRIVE

 1
33309-60070

BJ60,FJ62,HJ6#

FR DRIVE

 1
36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)
33309-60041

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

RR DRIVE

 1
33309-60020

BJ60,FJ60,HJ60

RR DRIVE

 1
33309-60010

BJ60,FJ60,HJ60

FR DRIVE

 1
33309-60070

BJ60,FJ62,HJ6#

FR DRIVE

 1
36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
33325-60010

BJ60,FJ6#,HJ6#

FR DRIVE

 1
33325-60020

BJ60,FJ6#,HJ6#

RR DRIVE

 1
36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
33325-60010

BJ60,FJ6#,HJ6#

FR DRIVE

 1
33325-60020

BJ60,FJ6#,HJ6#

RR DRIVE

 1
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22005

BJ60,FJ6#,HJ6#

 2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22005

BJ60,FJ6#,HJ6#

 2
36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)
90201-22005

BJ60,FJ6#,HJ6#

 2
36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)
90201-22005

BJ60,FJ6#,HJ6#

 2
36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90114-11124

BJ60,FJ6#,HJ6#

 4
36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90114-11124

BJ60,FJ6#,HJ6#

 4
36111 - CASE, TRANSFER
36103-60010

BJ60,FJ60,HJ60

 1
36103-60070

BJ60,FJ62,HJ60..5F

*MCT

 1
36103-60080

BJ60,FJ62,HJ60..5F

*ELC

 1
36103-60140

BJ60,FJ62,HJ6#..5F

*MCT

 1
36103-60150

BJ60,FJ62,HJ6#..5F

*ELC

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-48002

BJ60,FJ60,HJ60

 1
90311-48008

BJ60,FJ62,HJ6#..MTM

 1
90311-48012

BJ60,FJ62,HJ6#..MTM

 1
36111C - PLUG (FOR TRANSFER CASE)
90331-16050

BJ60,FJ6#,HJ6#

 2
96411-11600

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 2
36111C - PLUG (FOR TRANSFER CASE)
90331-16050

BJ60,FJ6#,HJ6#

 2
96411-11600

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 2
36111E - GASKET (FOR TRANSFER CASE)
12157-10010

BJ60,FJ60,HJ60

 2
36111E - GASKET (FOR TRANSFER CASE)
12157-10010

BJ60,FJ60,HJ60

 2
36111F - PLUG (FOR TRANSFER CASE)
90341-18002

BJ60,FJ60,HJ60

FILLER PLUG

 1
90341-18057

BJ60,FJ6#,HJ6#

DRAIN PLUG

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18002

BJ60,FJ60,HJ60

FILLER PLUG

 1
90341-18057

BJ60,FJ6#,HJ6#

DRAIN PLUG

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10006

BJ60,FJ6#,HJ6#

L=24,0D=10

 2
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03075

BJ60,FJ6#,HJ6#

 1
36119 - RECEIVER, TRANSFER OIL, NO.1
36119-60010

BJ60,FJ6#,HJ6#

 1
36119B - RECEIVER, TRANSFER OIL, NO.2
36119-60030

BJ60,FJ62,HJ6#

 1
36122 - COVER, TRANSFER CASE, NO.2
36122-60040

BJ60,FJ6#,HJ6#

 1
36124 - COVER, TRANSFER POWER TAKE-OFF
36124-60020

BJ60,FJ6#,HJ6#

 1
36128 - DEFLECTOR, BREATHER OIL
36128-60020

BJ60,FJ60,HJ60

 1
36132 - RETAINER, OUTPUT SHAFT BEARING, REAR NO.1
36132-60020

BJ60,FJ6#,HJ6#

 1
36132A - SEAL, OIL (FOR OUTPUT SHAFT RETAINER)
90311-48010

BJ60,FJ62,HJ6#

 1
90311-48003

BJ60,FJ60,HJ60

 1
36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT
36134-60020

BJ60,FJ6#,HJ6#

 1
36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
90311-48002

BJ60,FJ60,HJ60

 1
90311-48009

BJ60,FJ62,HJ6#

 1
36142 - GASKET, TRANSFER COVER
36142-60030

BJ60,FJ6#,HJ6#

 1
36144 - GASKET, TRANSFER POWER TAKE-OFF COVER
36144-60020

BJ60,FJ6#,HJ6#

 1
36147A - GASKET, TRANSFER CASE
36143-60020

BJ60,FJ6#,HJ6#

 1
36152 - GASKET, OUTPUT SHAFT BEARING RETAINER
36152-60030

BJ60,FJ6#,HJ6#

 1
Common parts
90119-08353
90119-10262
90119-12046
90119-12048
91611-60610
91611-61020
91651-60830
