BJ60LV-MC (1984)
Toyota Land Cruiser
(8008-8510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60050 |
BJ60,FJ6#,HJ6# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-60040 |
BJ60,FJ6#,HJ6# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60040 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
1 | ||
| 48046-60041 |
BJ60,FJ62,HJ6#..WGV |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14190 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV L=190,L=190,W/DISTANCE PLATE |
2 | ||
| 90118-14160 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV L=180 |
4 | ||
| 90118-14190 |
BJ60,FJ62,HJ6#..WGV L=190,L=190 |
4 | ||
| 90118-14108 |
BJ60,FJ62,HJ6#..WGV L=185 |
4 | ||
| 90117-14178 |
BJ60,FJ62,HJ6#..WGV L=185,L=185 |
4 | ||
| 90118-14109 |
BJ60,FJ62,HJ6#..WGV L=195,W/DISTANCE PLATE |
2 | ||
| 90117-14179 |
BJ60,FJ62,HJ6#..WGV L=195,L=195,W/DISTANCE PLATE |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60040 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
1 | ||
| 48047-60041 |
BJ60,FJ62,HJ6#..WGV |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60030 |
BJ60,FJ6#,HJ6# |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-60041 |
BJ60,FJ62,HJ60 |
1 | ||
| 48414-60040 |
BJ60,FJ60,HJ60 |
1 | ||
| 48414-60042 |
BJ60,FJ62,HJ6# |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48415-60040 |
BJ60,FJ60,HJ60 |
1 | ||
| 48415-60041 |
BJ60,FJ62,HJ60 |
1 | ||
| 48415-60042 |
BJ60,FJ62,HJ6# |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| 48531-60081 |
BJ60,FJ62,HJ60 |
1 | ||
| 48531-60160 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 48531-60160 |
BJ60,FJ62,HJ6# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| 48531-60081 |
BJ60,FJ62,HJ60 |
1 | ||
| 48531-60160 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 48531-60160 |
BJ60,FJ62,HJ6# |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ60,FJ62,HJ60 |
8 | ||
| 90385-19003 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
8 | ||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 90385-19057 |
BJ60,FJ62,HJ6# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ60,FJ62,HJ60 |
8 | ||
| 90385-19003 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
8 | ||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 90385-19057 |
BJ60,FJ62,HJ6# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ60,FJ62,HJ60 |
8 | ||
| 90385-19003 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
8 | ||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 90385-19057 |
BJ60,FJ62,HJ6# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ60,FJ62,HJ60 |
8 | ||
| 90385-19003 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
8 | ||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 90385-19057 |
BJ60,FJ62,HJ6# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ60,FJ62,HJ60 |
8 | ||
| 90385-19003 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
8 | ||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 90385-19057 |
BJ60,FJ62,HJ6# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BJ60,FJ62,HJ6# |
2 | ||
| 90948-03007 |
BJ60,FJ6#,HJ60 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BJ60,FJ6#,HJ60 |
2 | ||
| 90948-03011 |
BJ60,FJ62,HJ6# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BJ60,FJ6#,HJ60 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BJ60,FJ6#,HJ60 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-60020 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 48531-60081 |
BJ60,FJ62,HJ60 |
1 | ||
| 48541-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-60020 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 48531-60081 |
BJ60,FJ62,HJ60 |
1 | ||
| 48541-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| Common parts | ||||
| 90170-14187 | ||||
| 90179-08146 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 91121-41050 | ||||
| 91611-40822 | ||||
| 91611-61020 | ||||
| 91615-40825 | ||||
| 91651-40825 | ||||
| 94115-41400 | ||||
| 94180-41000 | ||||
| 94512-01400 | ||||
| Linked diagrams | ||||
| 5151 | ||||
(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60050 |
BJ60,FJ6#,HJ6# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-60040 |
BJ60,FJ6#,HJ6# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60040 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
1 | ||
| 48046-60041 |
BJ60,FJ62,HJ6#..WGV |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14190 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV L=190,L=190,W/DISTANCE PLATE |
2 | ||
| 90118-14160 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV L=180 |
4 | ||
| 90118-14190 |
BJ60,FJ62,HJ6#..WGV L=190,L=190 |
4 | ||
| 90118-14108 |
BJ60,FJ62,HJ6#..WGV L=185 |
4 | ||
| 90117-14178 |
BJ60,FJ62,HJ6#..WGV L=185,L=185 |
4 | ||
| 90118-14109 |
BJ60,FJ62,HJ6#..WGV L=195,W/DISTANCE PLATE |
2 | ||
| 90117-14179 |
BJ60,FJ62,HJ6#..WGV L=195,L=195,W/DISTANCE PLATE |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14190 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV L=190,L=190,W/DISTANCE PLATE |
2 | ||
| 90118-14160 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV L=180 |
4 | ||
| 90118-14190 |
BJ60,FJ62,HJ6#..WGV L=190,L=190 |
4 | ||
| 90118-14108 |
BJ60,FJ62,HJ6#..WGV L=185 |
4 | ||
| 90117-14178 |
BJ60,FJ62,HJ6#..WGV L=185,L=185 |
4 | ||
| 90118-14109 |
BJ60,FJ62,HJ6#..WGV L=195,W/DISTANCE PLATE |
2 | ||
| 90117-14179 |
BJ60,FJ62,HJ6#..WGV L=195,L=195,W/DISTANCE PLATE |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60040 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
1 | ||
| 48047-60041 |
BJ60,FJ62,HJ6#..WGV |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60030 |
BJ60,FJ6#,HJ6# |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-60041 |
BJ60,FJ62,HJ60 |
1 | ||
| 48414-60040 |
BJ60,FJ60,HJ60 |
1 | ||
| 48414-60042 |
BJ60,FJ62,HJ6# |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48415-60040 |
BJ60,FJ60,HJ60 |
1 | ||
| 48415-60041 |
BJ60,FJ62,HJ60 |
1 | ||
| 48415-60042 |
BJ60,FJ62,HJ6# |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| 48531-60081 |
BJ60,FJ62,HJ60 |
1 | ||
| 48531-60160 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 48531-60160 |
BJ60,FJ62,HJ6# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| 48531-60081 |
BJ60,FJ62,HJ60 |
1 | ||
| 48531-60160 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 48531-60160 |
BJ60,FJ62,HJ6# |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ60,FJ62,HJ60 |
8 | ||
| 90385-19003 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
8 | ||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 90385-19057 |
BJ60,FJ62,HJ6# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ60,FJ62,HJ60 |
8 | ||
| 90385-19003 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
8 | ||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 90385-19057 |
BJ60,FJ62,HJ6# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ60,FJ62,HJ60 |
8 | ||
| 90385-19003 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
8 | ||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 90385-19057 |
BJ60,FJ62,HJ6# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BJ60,FJ62,HJ60 |
8 | ||
| 90385-19003 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
8 | ||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 90385-19057 |
BJ60,FJ62,HJ6# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BJ60,FJ62,HJ6# |
2 | ||
| 90948-03007 |
BJ60,FJ6#,HJ60 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BJ60,FJ6#,HJ60 |
2 | ||
| 90948-03011 |
BJ60,FJ62,HJ6# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-60020 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 48531-60081 |
BJ60,FJ62,HJ60 |
1 | ||
| 48541-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-60020 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 48531-60081 |
BJ60,FJ62,HJ60 |
1 | ||
| 48541-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| Common parts | ||||
| 90119-12088 | ||||
| 90170-14011 | ||||
| 90179-14023 | ||||
| 90201-15012 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 91121-41050 | ||||
| 91611-40822 | ||||
| 91615-40825 | ||||
| 91651-40825 | ||||
| 94180-41000 | ||||
| 94183-60800 | ||||
| Linked diagrams | ||||
| 5151 | ||||

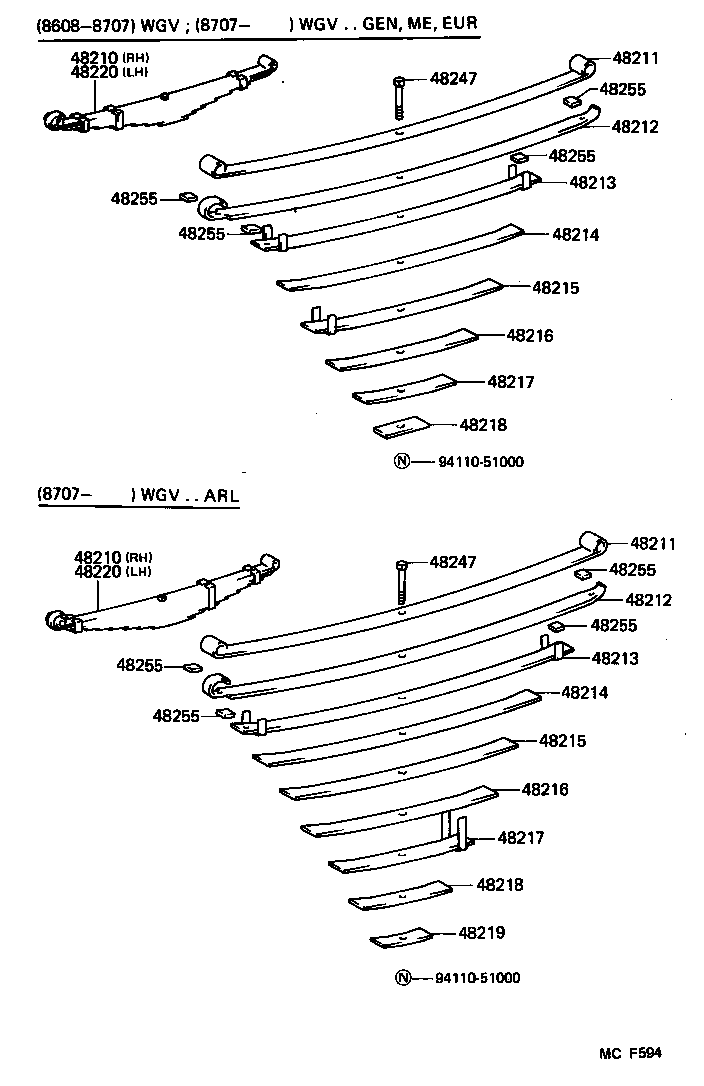

(8608- )WGV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60270 |
FJ60..4F..HRF;BJ60,FJ60,HJ60..LHD..SOB |
1 | ||
| 48210-60620 |
BJ60,FJ62,HJ6#..LHD..WGV |
1 | ||
| 48210-60270 |
BJ60,FJ62,HJ6#..LHD..WGV VAN TYPE |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60270 |
FJ60..4F..HRF;BJ60,FJ60,HJ60..LHD..SOB |
1 | ||
| 48210-60620 |
BJ60,FJ62,HJ6#..LHD..WGV |
1 | ||
| 48210-60270 |
BJ60,FJ62,HJ6#..LHD..WGV VAN TYPE |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48211-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48211-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48211-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48211-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48211-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48211-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48211-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48211-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48211-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48211-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48212-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48212-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48212-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48212-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48212-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48212-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48212-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48212-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48212-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48212-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48213-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48202-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48202-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48213-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48213-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48213-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48202-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48202-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48213-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48213-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48202-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48202-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48214-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48214-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48202-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48202-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48202-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48214-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48214-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48202-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48215-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48215-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48203-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48203-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48215-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48215-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48215-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48203-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48203-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48215-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48216-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48216-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48216-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48216-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48216-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60240 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV DRIVERS SEAT SIDE |
1 | ||
| 48216-60270 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV PASSENGER SEAT SIDE |
1 | ||
| 48216-60240 |
BJ60,FJ62,HJ6#..WGV DRIVERS SEAT SIDE,VAN TYPE |
1 | ||
| 48216-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48216-60270 |
BJ60,FJ62,HJ6#..WGV PASSENGER SEAT SIDE,VAN TYPE |
1 | ||
| 48216-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48217-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48217-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48218-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-60620 |
BJ60,FJ62,HJ6#..LHD..WGV PASSENGER SEAT SIDE |
1 | ||
| 48218-60610 |
BJ60,FJ62,HJ6#..LHD..WGV DRIVERS SEAT SIDE |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60240 |
FJ60..4F..HRF;BJ60,FJ60,HJ60..LHD..SOB |
1 | ||
| 48210-60610 |
BJ60,FJ62,HJ6#..LHD..WGV |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60240 |
FJ60..4F..HRF;BJ60,FJ60,HJ60..LHD..SOB |
1 | ||
| 48210-60610 |
BJ60,FJ62,HJ6#..LHD..WGV |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-29210 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
2 | ||
| 48247-35170 |
BJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME) |
2 | ||
| 48247-29210 |
BJ60,FJ62,HJ6#..WGV VAN TYPE |
2 | ||
| 48247-35170 |
BJ60,FJ62,HJ6#..WGV |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-29210 |
FJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV |
2 | ||
| 48247-35170 |
BJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME) |
2 | ||
| 48247-29210 |
BJ60,FJ62,HJ6#..WGV VAN TYPE |
2 | ||
| 48247-35170 |
BJ60,FJ62,HJ6#..WGV |
2 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..WGV |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..WGV |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..WGV |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..WGV |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..WGV |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..WGV |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..WGV |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..WGV |
8 | ||
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
