BJ60LV-KC (1980)
Toyota Land Cruiser

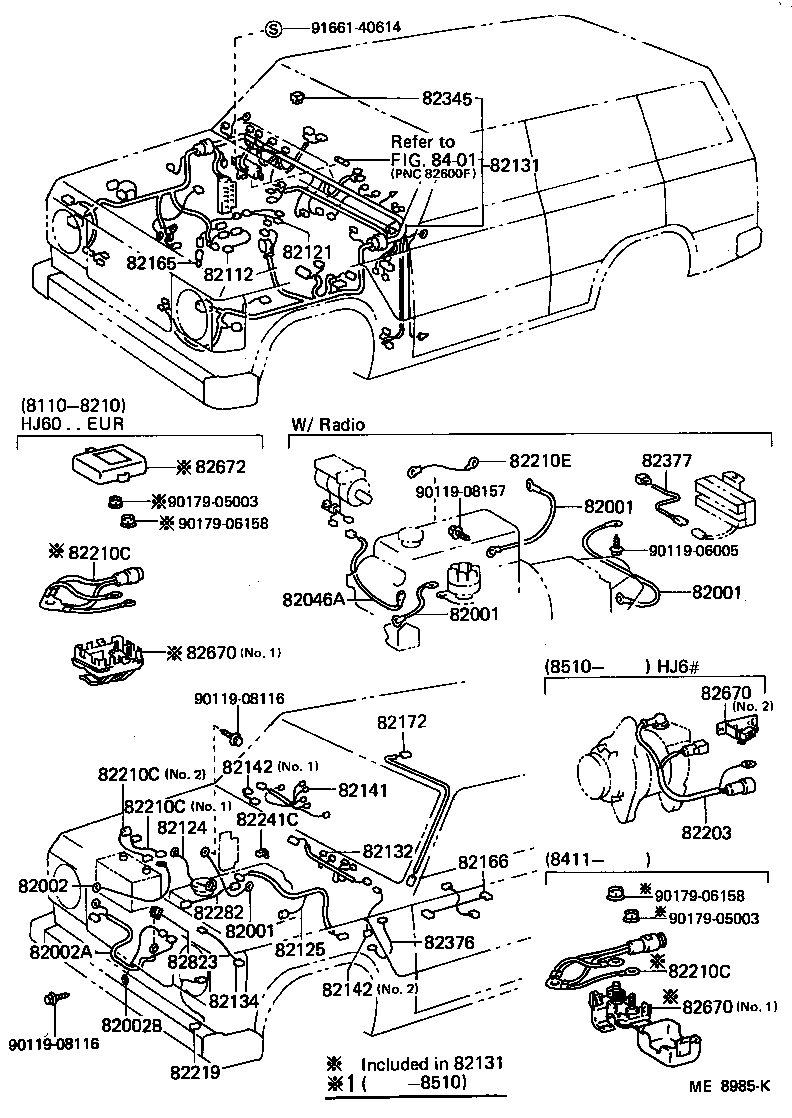

(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07056 |
BJ60 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07056 |
BJ60 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07056 |
BJ60 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07056 |
BJ60 |
1 | ||
| 82002 - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 38655-90A00 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82275-90A00 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 82275-90A00 |
BJ60..GEN |
1 | ||
| 82002A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 38656-90A01 |
BJ60 |
1 | ||
| 82276-90A01 |
BJ60 |
1 | ||
| 38656-90A00 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82276-90A01 |
BJ60..GEN |
1 | ||
| 82002B - CABLE, WINCH TO GROUND | ||||
| 90980-07175 |
BJ60..GEN |
1 | ||
| 90980-07175 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 90980-07175 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82310-90A06 |
BJ60,HJ60 |
1 | ||
| 82310-90A10 |
BJ60,HJ60 |
1 | ||
| 82310-90A03 |
BJ60,HJ60 |
1 | ||
| 82125-90A03 |
BJ60,HJ6#..MTM |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82210-90A50 |
BJ60..LHD 12V |
1 | ||
| 82210-90A26 |
BJ60..LHD 24V,W/EDIC |
1 | ||
| 82210-90A24 |
BJ60..LHD 12V |
1 | ||
| 82210-90A27 |
BJ60..LHD 24V |
1 | ||
| 82210-90A51 |
BJ60..LHD 24V |
1 | ||
| 82210-90A49 |
BJ60..LHD 12V,W/EDIC |
1 | ||
| 82210-90A79 |
BJ60..LHD 24V |
1 | ||
| 82210-90A77 |
BJ60..LHD 12V,W/EDIC |
1 | ||
| 82210-90A89 |
BJ60..LHD 24V |
1 | ||
| 82210-90A78 |
BJ60..LHD 12V |
1 | ||
| 82210-90A99 |
BJ60..LHD OMAN SPEC,W/EDIC |
1 | ||
| 82210-90G00 |
BJ60..LHD OMAN SPEC |
1 | ||
| 82131-90A24 |
BJ60..LHD..GEN 12V |
1 | ||
| 82131-90A25 |
BJ60..LHD..GEN 24V |
1 | ||
| 82131-90A83 |
BJ60..LHD 12V |
1 | ||
| 82131-90G32 |
BJ60..LHD..GEN 12V |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82210-90A79 |
BJ60..LHD 24V |
1 | ||
| 82210-90A50 |
BJ60..LHD 12V |
1 | ||
| 82210-90A26 |
BJ60..LHD 24V,W/EDIC |
1 | ||
| 82210-90A24 |
BJ60..LHD 12V |
1 | ||
| 82210-90A27 |
BJ60..LHD 24V |
1 | ||
| 82210-90A51 |
BJ60..LHD 24V |
1 | ||
| 82210-90A49 |
BJ60..LHD 12V,W/EDIC |
1 | ||
| 82210-90A77 |
BJ60..LHD 12V,W/EDIC |
1 | ||
| 82210-90A89 |
BJ60..LHD 24V |
1 | ||
| 82210-90A78 |
BJ60..LHD 12V |
1 | ||
| 82210-90A99 |
BJ60..LHD OMAN SPEC,W/EDIC |
1 | ||
| 82210-90G00 |
BJ60..LHD OMAN SPEC |
1 | ||
| 82131-90A24 |
BJ60..LHD..GEN 12V |
1 | ||
| 82131-90A25 |
BJ60..LHD..GEN 24V |
1 | ||
| 82131-90A83 |
BJ60..LHD 12V |
1 | ||
| 82131-90G32 |
BJ60..LHD..GEN 12V |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82028-90A00 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 82028-90A02 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR W/*REH,*RW OR *MDA |
1 | ||
| 82028-90A08 |
HJ60..5F;BJ60,FJ60;HJ60..LHD..4F..EUR;HJ60..4F..(ARL,GEN) W/*REH,*RW OR *MDA |
1 | ||
| 82028-90A04 |
BJ60,FJ60,HJ60..LHD..GEN W/CLOCK |
1 | ||
| 82028-90A06 |
HJ60..5F;BJ60,FJ60;HJ60..LHD..4F..EUR;HJ60..4F..(ARL,GEN) |
1 | ||
| 82132-90A04 |
BJ60,FJ62,HJ60..LHD..MTM..(GEN,ME) W/CLOCK,FR DRIVE SW OR *MDA |
1 | ||
| 82132-90A04 |
BJ60,FJ62,HJ60..LHD..MTM..(GEN,ME) W/CLOCK,*ELC OR *MDA |
1 | ||
| 82132-90A03 |
BJ60,FJ62,HJ60..LHD..MTM..(GEN,ME) |
1 | ||
| 82132-90A03 |
BJ60..LHD..GEN |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82232-90A07 |
BJ60,HJ60..EUR,GEN |
1 | ||
| 82232-90A06 |
BJ60,HJ60..EUR,GEN W/FUEL SEDIMENTER |
1 | ||
| 82232-90A09 |
BJ60 W/FUEL SEDIMENTER |
1 | ||
| 82232-90A10 |
BJ60,FJ60,HJ60..EUR,GEN |
1 | ||
| 82232-90A09 |
FJ60..5F..HRF..GEN;BJ60,FJ60..LHD..4F..SOB;FJ60..LHD..SRF..LUB..GEN OMAN SPEC OR *SAA |
1 | ||
| 82141-90A00 |
BJ60,FJ62,HJ60..LHD..(EUR,GEN) |
1 | ||
| 82141-90A01 |
BJ60,FJ62,HJ60..LHD..GEN W/*ACW |
1 | ||
| 82141-90A00 |
BJ60,FJ62,HJ60..LHD..GEN |
1 | ||
| 82141-90A05 |
BJ60,FJ62,HJ60..LHD..GEN |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-90A00 |
BJ60,FJ62,HJ6#..EUR,GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08136 |
BJ60,FJ60,HJ60 L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08138 |
BJ60,HJ60 L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..GEN L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..ARL,GEN L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..GEN,ME L=130,B,NO.2,GLOW |
1 | ||
| 90982-08136 |
BJ60,FJ60;HJ60..ARL,GEN L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ62,HJ60..GEN,ME L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ62;HJ60..GEN L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ60;HJ60..GEN L=130,GX2,Y,NO.1 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08136 |
BJ60,FJ60,HJ60 L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08138 |
BJ60,HJ60 L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..GEN L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..ARL,GEN L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..GEN,ME L=130,B,NO.2,GLOW |
1 | ||
| 90982-08136 |
BJ60,FJ60;HJ60..ARL,GEN L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ62,HJ60..GEN,ME L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ62;HJ60..GEN L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ60;HJ60..GEN L=130,GX2,Y,NO.1 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08136 |
BJ60,FJ60,HJ60 L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08138 |
BJ60,HJ60 L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..GEN L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..ARL,GEN L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..GEN,ME L=130,B,NO.2,GLOW |
1 | ||
| 90982-08136 |
BJ60,FJ60;HJ60..ARL,GEN L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ62,HJ60..GEN,ME L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ62;HJ60..GEN L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ60;HJ60..GEN L=130,GX2,Y,NO.1 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08136 |
BJ60,FJ60,HJ60 L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08138 |
BJ60,HJ60 L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..GEN L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..ARL,GEN L=130,B,NO.2,GLOW |
1 | ||
| 90982-08138 |
BJ60,HJ60..GEN,ME L=130,B,NO.2,GLOW |
1 | ||
| 90982-08136 |
BJ60,FJ60;HJ60..ARL,GEN L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ62,HJ60..GEN,ME L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ62;HJ60..GEN L=130,GX2,Y,NO.1 |
1 | ||
| 90982-08136 |
BJ60,FJ60;HJ60..GEN L=130,GX2,Y,NO.1 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-90A03 |
BJ60,FJ62,HJ60..SOB CONNECTOR=2POLE |
1 | ||
| 82241-90A03 |
BJ60,FJ62,HJ60..GEN CONNECTOR=2POLE |
1 | ||
| 82241-22060 |
BJ60,FJ6#,HJ60..WGV CONNECTOR=2POLE |
1 | ||
| 82345 - DIODE | ||||
| 82345-12010 |
BJ60,FJ60,HJ60 CONNECTOR=2POLE |
2 | ||
| 82345-12050 |
BJ60,HJ60 CONNECTOR=2POLE |
2 | ||
| 82376 - WIRE, MOTOR ANTENNA | ||||
| 82113-90A00 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 82377-90A00 |
BJ60,FJ60,HJ60..GEN |
1 | ||
| 82377 - WIRE, VOLTAGE CONVERTER | ||||
| 82372-90A01 |
BJ60;HJ60..EUR 24V |
1 | ||
| 82377-90A00 |
BJ60,HJ60..EUR,GEN 24V |
1 | ||
| 82114-90A00 |
BJ60..GEN |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-90300 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82823-90300 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 82823-90300 |
BJ60..GEN |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08116 | ||||
| 90119-08157 | ||||
| 90179-05003 | ||||
| 90179-06158 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

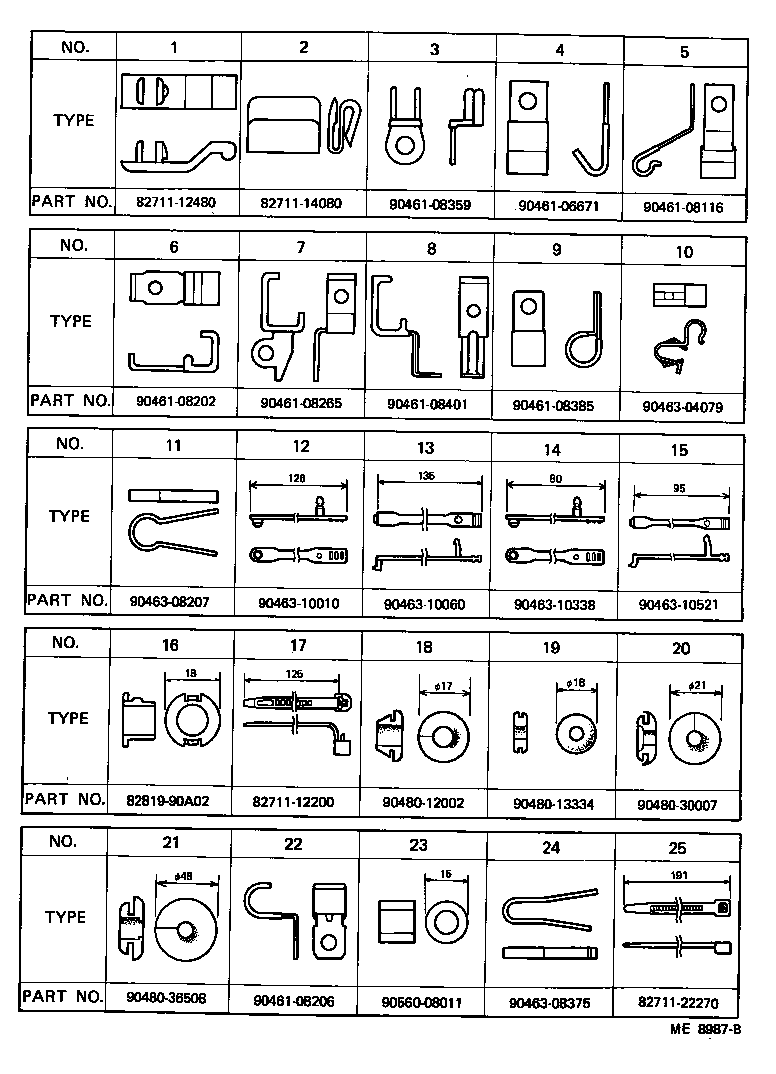

(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12480 | ||||
| 82711-14080 | ||||
| 82711-22270 | ||||
| 82819-90A02 | ||||
| 90461-06671 | ||||
| 90461-08116 | ||||
| 90461-08202 | ||||
| 90461-08206 | ||||
| 90461-08265 | ||||
| 90461-08359 | ||||
| 90461-08385 | ||||
| 90461-08401 | ||||
| 90463-04079 | ||||
| 90463-08207 | ||||
| 90463-08375 | ||||
| 90463-10010 | ||||
| 90463-10060 | ||||
| 90463-10338 | ||||
| 90463-10521 | ||||
| 90480-12002 | ||||
| 90480-13334 | ||||
| 90480-30007 | ||||
| 90480-36508 | ||||
| 90560-08011 | ||||

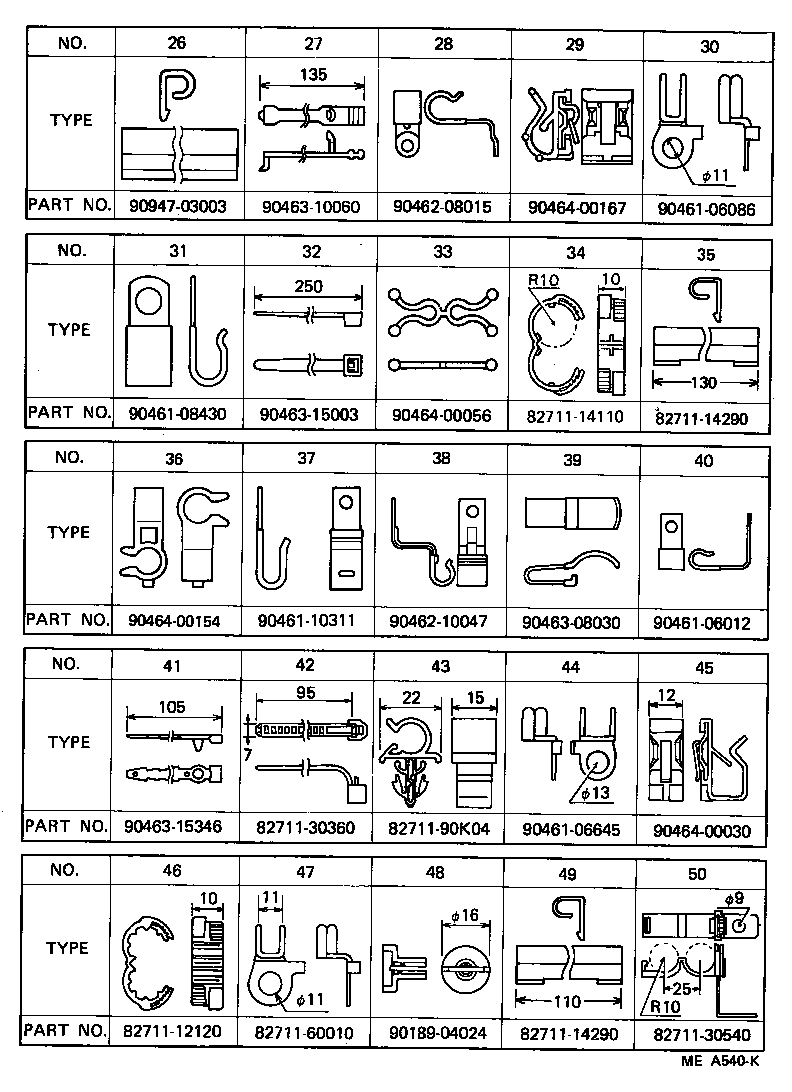

(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-14110 | ||||
| 82711-14290 | ||||
| 82711-30360 | ||||
| 82711-30540 | ||||
| 82711-60010 | ||||
| 82711-90K04 | ||||
| 90189-04024 | ||||
| 90461-06012 | ||||
| 90461-06086 | ||||
| 90461-06645 | ||||
| 90461-08430 | ||||
| 90461-10311 | ||||
| 90462-08015 | ||||
| 90462-10047 | ||||
| 90463-08030 | ||||
| 90463-10060 | ||||
| 90463-15003 | ||||
| 90463-15346 | ||||
| 90464-00030 | ||||
| 90464-00056 | ||||
| 90464-00154 | ||||
| 90464-00167 | ||||
| 90947-03003 | ||||

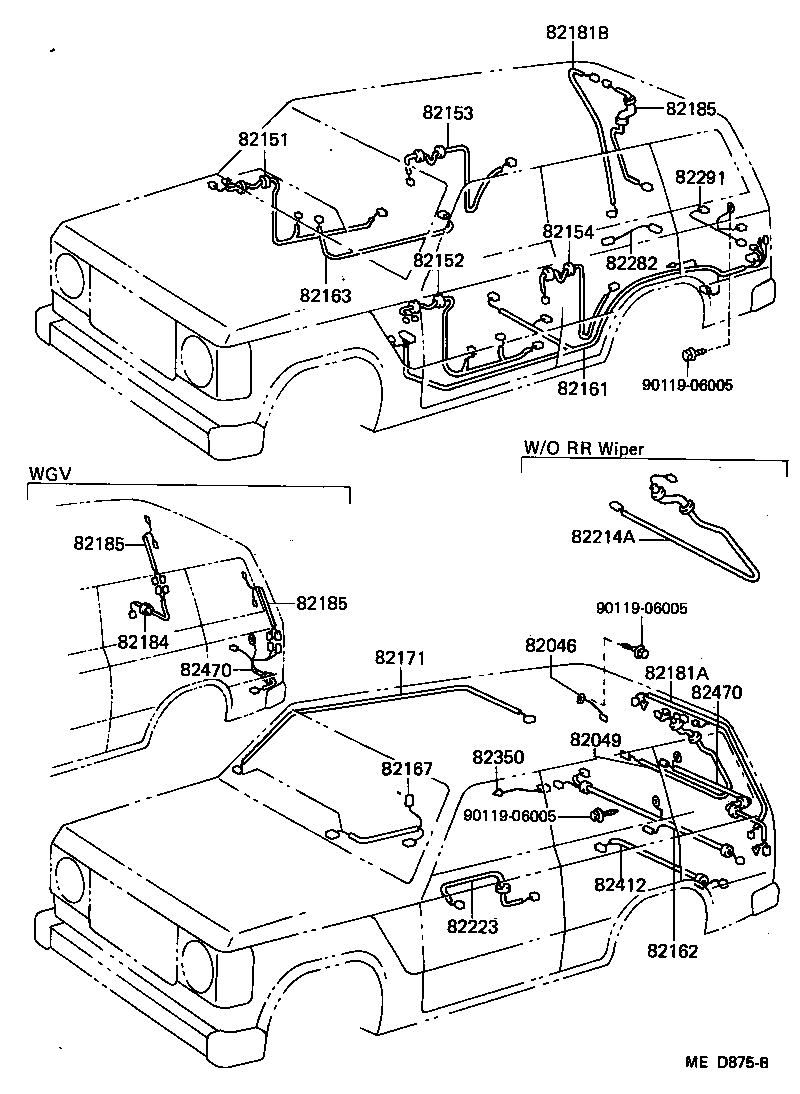

(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82372-90A00 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82151-90A01 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 82372-90A03 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82151-90A05 |
BJ60,FJ62,HJ60..GEN |
1 | ||
| 82152-90A04 |
BJ60,FJ62,HJ60..LHD..GEN W/*EL(W/O *PW,*VW & *RCM) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82372-90A03 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82151-90A01 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 82151-90A05 |
BJ60,FJ62,HJ60..GEN |
1 | ||
| 82372-90A00 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82151-90A06 |
BJ60,FJ62,HJ60..LHD..GEN W/*EL(W/O *PW,*VW & *RCM) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82154-90A01 |
BJ60,FJ62,HJ6#..ARL,GEN W/*EL |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-90A01 |
BJ60,FJ62,HJ6#..ARL,GEN W/*EL |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82420-90A07 |
BJ60,FJ60,HJ60..ARL,GEN 12V |
1 | ||
| 82420-90A26 |
FJ60..5F..HRF..GEN;BJ60,FJ60..LHD..4F..SOB;FJ60..LHD..SRF..LUB..GEN OMAN SPEC OR *SAA |
1 | ||
| 82161-90A01 |
BJ60,FJ62,HJ60..MTM..(ARL,GEN,ME) |
1 | ||
| 82161-90A19 |
BJ60,FJ62,HJ6#..ARL,GEN |
1 | ||
| 82161-90A21 |
BJ60,FJ62,HJ6#..ARL,GEN W/*EL(W/O *36 OR *SNR) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82410-90A03 |
BJ60,FJ60,HJ60 W/TRAILER SOCKET |
1 | ||
| 82410-90A07 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82410-90A00 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 82410-90A10 |
BJ60;FJ60..RHD..SOB;FJ60..LHD..4F..SOB;HJ60..LHD..SRF..GEN;HJ60..RHD..(ARL,GEN);FJ60..LUB..(ARL,GEN) W/TRAILER SOCKET |
1 | ||
| 82410-90A10 |
FJ60..RHD;BJ60,HJ60..ARL,GEN;FJ60..LHD..SOB..GEN W/TRAILER SOCKET |
1 | ||
| 82410-90A06 |
BJ60,FJ60,HJ60..ARL,GEN W/TRAILER SOCKET |
1 | ||
| 82162-90A01 |
BJ60,FJ62,HJ60..SOB..(ARL,GEN,ME) 12V,W/*RWD OR W/TRAILER SOCKET |
1 | ||
| 82162-90A02 |
BJ60..GEN 24V,W/*RWD OR W/TRAILER SOCKET |
1 | ||
| 82162-90A00 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 82162-90A12 |
BJ60,FJ62,HJ6#..ARL,GEN |
1 | ||
| 82162-90A23 |
BJ60..GEN 24V,W/*RWD OR W/TRAILER SOCKET |
1 | ||
| 82162-90A22 |
BJ60,FJ62,HJ60..SOB..(ARL,GEN,ME) 12V,W/*RWD OR W/TRAILER SOCKET |
1 | ||
| 82162-90A21 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 82162-90A13 |
BJ60,FJ62,HJ6#..ARL,GEN,ME W/*EL,*36 OR TRAILER SOCKET;12V,W/*RWD |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-90A04 |
BJ60,FJ62,HJ6#..MTM..(ARL,GEN,ME) W/*EL OR *SPS(W/O *ODAC) |
1 | ||
| 82163-90A03 |
FJ62..WGV;BJ60,HJ6#..MTM;FJ62..5F..WGG..SRF..SOB;FJ62..MTM..LUB..(ARL,GEN) |
1 | ||
| 82163-90A04 |
BJ60..GEN W/*EL OR *SPS(W/O *ODAC) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82520-90A01 |
BJ60,FJ60,HJ60..SRF |
1 | ||
| 82171-90A05 |
BJ60,FJ62,HJ6#..SRF |
1 | ||
| 82520-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| 82181A - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82048-90A03 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 82048-90A01 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 82048-90A03 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..SRF..EUR |
1 | ||
| 82182-90A00 |
BJ60,FJ62,HJ60..GEN |
1 | ||
| 82182-90A00 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-90A06 |
BJ60,FJ62,HJ6#..SOB W/*EL(W/O *RWD) |
1 | ||
| 82184-90A07 |
BJ60..GEN W/*EL & *RWD |
1 | ||
| 82184-90A07 |
BJ60,FJ62,HJ60..SOB..(GEN,ME) W/*EL,*RWD & STEP BUMPER |
1 | ||
| 82184-90A06 |
BJ60..GEN W/*EL(W/O *RWD) |
1 | ||
| 82184-90A07 |
BJ60,FJ62,HJ6#..SOB W/*EL & *RWD |
1 | ||
| 82184-90A05 |
FJ62..WGV;BJ60,HJ6#..SOB;FJ62..WGG..SRF..SOB W/*RWD |
1 | ||
| 82184-90A05 |
BJ60,FJ62,HJ60..SOB..(GEN,ME) W/*RWD & STEP BUMPER |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A02 |
BJ60,FJ62,HJ6#..SOB W/*RWD |
2 | ||
| 82184-90A05 |
BJ60,FJ62,HJ60..SOB..(GEN,ME) W/*EL,*RWD & STEP BUMPER;W/*RWD & STEP BUMPER |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A02 |
BJ60,FJ62,HJ6#..SOB W/*RWD |
2 | ||
| 82184-90A05 |
BJ60,FJ62,HJ60..SOB..(GEN,ME) W/*EL,*RWD & STEP BUMPER;W/*RWD & STEP BUMPER |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A02 |
BJ60,FJ62,HJ6#..SOB W/*RWD |
2 | ||
| 82184-90A05 |
BJ60,FJ62,HJ60..SOB..(GEN,ME) W/*EL,*RWD & STEP BUMPER;W/*RWD & STEP BUMPER |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-90A00 |
BJ60,HJ60 |
1 | ||
| 82164-90A00 |
BJ60,HJ60 |
1 | ||
| 82164-90A02 |
BJ60..GEN |
1 | ||
| 82164-90A02 |
BJ60,HJ6# |
1 | ||
| 82164-90A02 |
BJ60,HJ6#..EUR,GEN W/SEDIMENTER |
1 | ||
| 82291 - WIRING, TO SOLENOID | ||||
| 82291-90A02 |
BJ60..GEN |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82153-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 82350-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82155-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 82412-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-90A01 |
BJ60,FJ60,HJ60..SOB..(EUR,GEN) |
1 | ||
| 82181-90A01 |
BJ60,FJ62,HJ6#..SOB |
1 | ||
| 82181-90A03 |
BJ60,FJ62,HJ6#..SOB W/*RWD(W/O STEP BAMPER) |
1 | ||
| 82181-90A02 |
BJ60,FJ62,HJ60..SOB..(GEN,ME) W/STEP BAMPER |
1 | ||
| 82470-90A04 |
BJ60,FJ60,HJ60..SOB..(EUR,GEN) |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-90A01 |
BJ60,FJ60,HJ60..SOB..(EUR,GEN) |
1 | ||
| 82181-90A01 |
BJ60,FJ62,HJ6#..SOB |
1 | ||
| 82181-90A03 |
BJ60,FJ62,HJ6#..SOB W/*RWD(W/O STEP BAMPER) |
1 | ||
| 82181-90A02 |
BJ60,FJ62,HJ60..SOB..(GEN,ME) W/STEP BAMPER |
1 | ||
| 82470-90A04 |
BJ60,FJ60,HJ60..SOB..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
