BJ60LV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Aug 1987
Engine 3B
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )ARL,GEN,ME

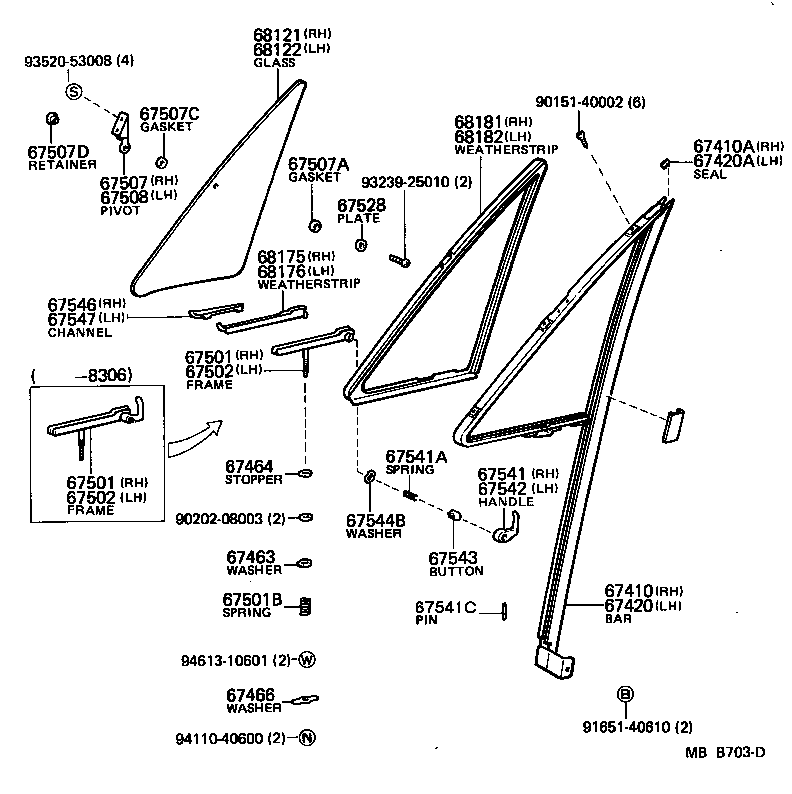

Click highlighted areas on diagram

diagram 67410 67410A 67420 67420A 67463 67464 67466 67501 67501 67501B 67502 67502 67507 67507A 67507C 67507D 67508 67528 67541 67541A 67541C 67542 67543 67544B 67546 67547 68121 68122 68175 68176 68181 68182 9015140002 9020208003 9165140610 9323925010 9352053008 9411040600 9461310601
Part # Description Qty Price
67410 - BAR ASSY, FRONT DOOR WINDOW DIVISION, RH
67503-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67410A - SEAL, FRONT DOOR DIVISION BAR, RH NO.1
67533-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67420 - BAR ASSY, FRONT DOOR WINDOW DIVISION, LH
67504-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67420A - SEAL, FRONT DOOR DIVISION BAR, LH NO.1
67534-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67463 - WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT
67463-20011

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67464 - STOPPER, FRONT DOOR VENTILATING WINDOW OPENING
67577-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67466 - WASHER, LOCK(FOR VENT WINDOW GLASS FRAME)
67466-89101

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67501 - FRAME SUB-ASSY, VENT WINDOW GLASS, RH
67505-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67501 - FRAME SUB-ASSY, VENT WINDOW GLASS, RH
67505-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67501B - SPRING, COMPRESSION(FOR VENT WINDOW GLASS FRAME)
90501-40205

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67502 - FRAME SUB-ASSY, VENT WINDOW GLASS, LH
67506-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67502 - FRAME SUB-ASSY, VENT WINDOW GLASS, LH
67506-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67507 - PIVOT SUB-ASSY, VENT WINDOW, UPPER RH
67507-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67507A - GASKET, VENT WINDOW PIVOT, UPPER NO.1
90430-07001

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67507C - GASKET, VENT WINDOW PIVOT, UPPER NO.2
90430-04003

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67507D - RETAINER, VENT WINDOW PIVOT, UPPER
62735-89101

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67508 - PIVOT SUB-ASSY, VENT WINDOW, UPPER LH
67508-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67528 - PLATE, VENT WINDOW UPPER PIVOT
67528-89101

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67541 - HANDLE, VENTILATING WINDOW LOCK, RH
67551-89104

BJ60,FJ6#,HJ60..ARL,GEN,ME

 2
67541A - SPRING, COMPRESSION(FOR VENTILATING WINDOW LOCK HANDLE)
90501-05014

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67541C - PIN, VENTILATING WINDOW LOCK HANDLE
90245-02001

BJ60,FJ6#,HJ60..ARL,GEN,ME

 2
67542 - HANDLE, VENTILATING WINDOW LOCK, LH
67552-89104

BJ60,FJ6#,HJ60..ARL,GEN,ME

 2
67543 - BUTTON, VENTILATING WINDOW LOCK HANDLE PUSH
67543-12010

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67544B - WASHER, PLATE
90206-11029

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 2
67546 - CHANNEL, VENT WINDOW DRIP, RH
67553-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
67547 - CHANNEL, VENT WINDOW DRIP, LH
67554-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
68121 - GLASS, VENT WINDOW, RH
68121-90A00

BJ60,FJ6#,HJ60..WGV..(GEN,ME)

*TEM,T=4.0,*TEM,T=4.0

 1
68121-90A01

BJ60,FJ6#,HJ60..GEN,ME

*TT,T=4.0,*TT,T=4.0

 1
68122 - GLASS, VENT WINDOW, LH
68122-90A01

BJ60,FJ6#,HJ60..GEN,ME

*TT,T=4.0,*TT,T=4.0

 1
68122-90A00

BJ60,FJ6#,HJ60..WGV..(GEN,ME)

*TEM,T=4.0,*TEM,T=4.0

 1
68175 - WEATHERSTRIP, VENT WINDOW FRAME, RH
68175-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
68176 - WEATHERSTRIP, VENT WINDOW FRAME, LH
68176-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
68181 - WEATHERSTRIP, VENT WINDOW, NO.1 RH
68181-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
68182 - WEATHERSTRIP, VENT WINDOW, NO.1 LH
68182-90A00

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
Common parts
90151-40002
90202-08003
91651-40610
93239-25010
93520-53008
94110-40600
94613-10601
