BJ60LV-KC (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Aug 1987
Engine
3B
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8401- )BJ60..LHD

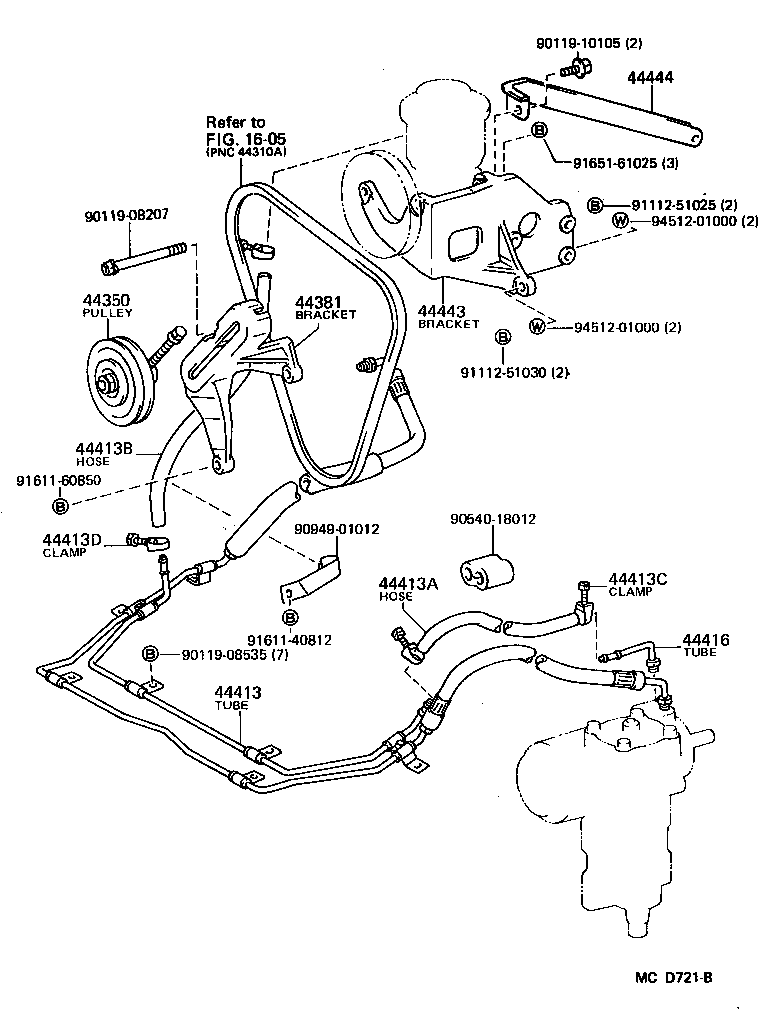

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-60010 |
BJ60 |
1 | ||
| 44381 - BRACKET, POWER STEERING IDLE PULLEY | ||||
| 44381-60020 |
BJ60 |
1 | ||
| 44381-60011 |
BJ60 |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44410-60160 |
BJ60..LHD |
1 | ||
| 44410-60070 |
BJ60..LHD |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 90445-18089 |
BJ60,FJ6#,HJ6#..LHD |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 90445-18090 |
BJ60..LHD |
1 | ||
| 90445-18008 |
BJ60..LHD |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
BJ60,FJ6#,HJ6#..LHD |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
BJ60,FJ6#,HJ6#..LHD |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60061 |
BJ60,FJ62,HJ6# |
1 | ||
| 44416-60060 |
BJ60,FJ6#,HJ60 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-60040 |
BJ60 |
1 | ||
| 44443-60060 |
BJ60 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-60010 |
BJ60 |
1 | ||
| Common parts | ||||
| 90119-08207 | ||||
| 90119-08535 | ||||
| 90119-10105 | ||||
| 90540-18012 | ||||
| 90949-01012 | ||||
| 91112-51025 | ||||
| 91112-51030 | ||||
| 91611-40812 | ||||
| 91611-60850 | ||||
| 91651-61025 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 1605 | ||||
