BJ46L-MCW (1982)
Toyota Land Cruiser
Production
Oct 1982
-
Oct 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8410)5F

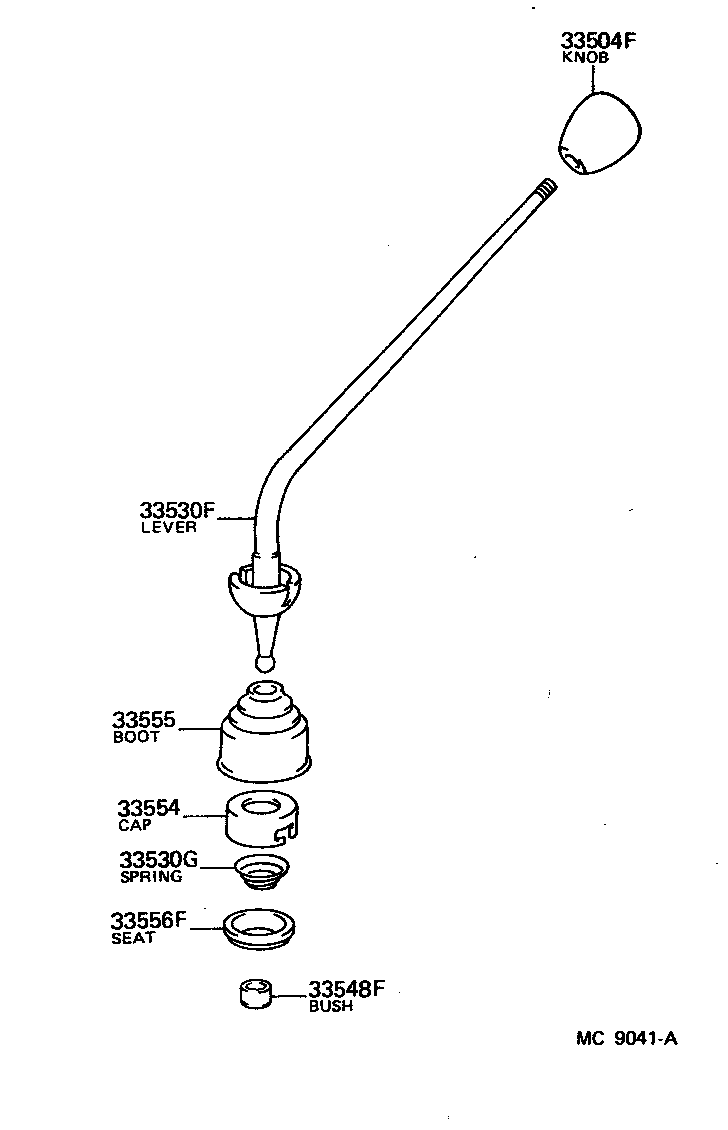

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-22111 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33504-60030 |
BJ46;BJ40,42,43,45,FJ4#,HJ47..4F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33541-60160 |
FJ40..LHD..VKC..5F;BJ42,46,FJ43..LHD..5F |
1 | ||
| 33541-60081 |
BJ42,FJ40,43..LHD..4F;BJ40,43,45,46,FJ45,HJ47..LHD..(4F,5F) |
1 | ||
| 33530G - SPRING, CONICAL (FOR SHIFT LEVER) | ||||
| 90502-29001 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-60020 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-60021 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33554-60010 |
BJ46;BJ40,42,43,45,FJ4#,HJ47..3F,4F |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-55011 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33505-60010 |
BJ42,46,FJ40,43..5F |
1 | ||
