BJ46L-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B

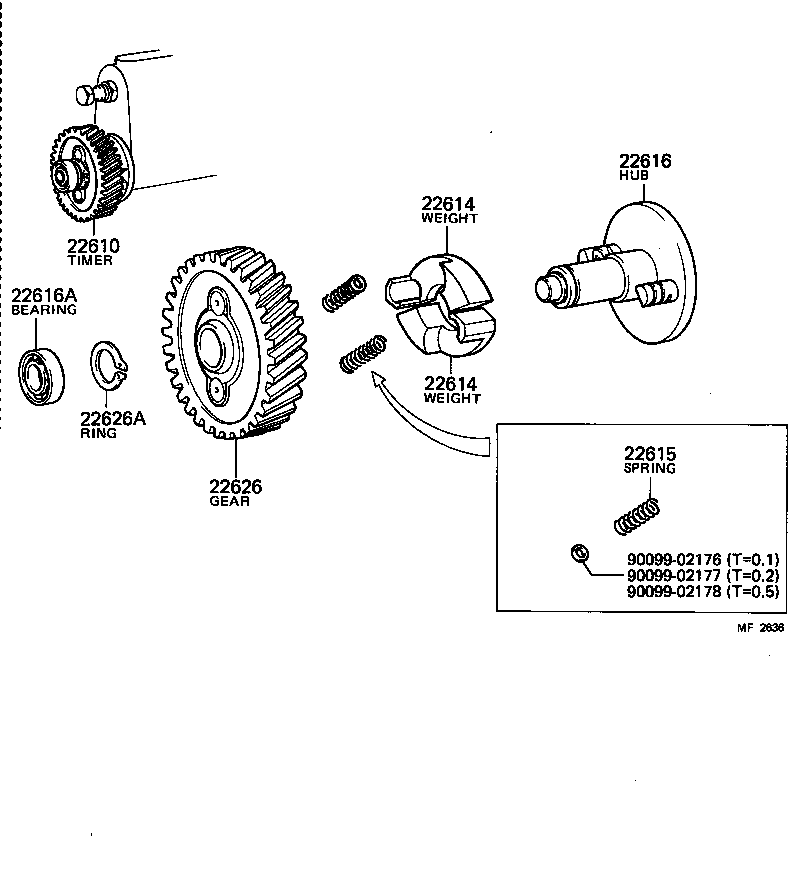

Click highlighted areas on diagram

diagram 22610 22614 22614 22615 22616 22616A 22626 22626A 22628 22629 22629 9009902176 9009902176 9009902177 9009902177 9009902178 9009902178 9009902179 9009902179 9009902180 9009902180 9009902311 9009902311
Part # Description Qty Price
22610 - TIMER ASSY, AUTOMATIC
22610-56040

3B..BJ42,45,46

 1
22614 - WEIGHT, TIMER
22614-56020

B,3B..BJ4#

 2
22614 - WEIGHT, TIMER
22614-56020

B,3B..BJ4#

 2
22615 - SPRING, TIMER
22615-56040

3B..BJ42,45,46

 2
22616 - HUB, TIMER
22616-56030

B,3B..BJ4#

 1
22616A - BEARING(FOR TIMER HUB)
90099-10018

B,3B..BJ4#

 1
22626 - GEAR, DRIVE
22626-56030

B,3B..BJ4#

 1
22626A - RING, CLAMP(FOR DRIVE GEAR)
90096-90001

B,3B..BJ4#

 1
Common parts
90099-02176
90099-02177
90099-02178
90099-02179
90099-02180
90099-02311

(8008-8410)3B

Click highlighted areas on diagram

diagram 22610 22614 22614 22615 22616 22616A 22626 22626A 9009902176 9009902177 9009902178
Part # Description Qty Price
22610 - TIMER ASSY, AUTOMATIC
22610-56040

3B..BJ42,45,46

 1
22614 - WEIGHT, TIMER
22614-56020

B,3B..BJ4#

 2
22614 - WEIGHT, TIMER
22614-56020

B,3B..BJ4#

 2
22615 - SPRING, TIMER
22615-56040

3B..BJ42,45,46

 2
22616 - HUB, TIMER
22616-56030

B,3B..BJ4#

 1
22616A - BEARING(FOR TIMER HUB)
90099-10018

B,3B..BJ4#

 1
22626 - GEAR, DRIVE
22626-56030

B,3B..BJ4#

 1
22626A - RING, CLAMP(FOR DRIVE GEAR)
90096-90001

B,3B..BJ4#

 1
Common parts
90099-02176
90099-02177
90099-02178
