BJ46L-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )BJ4#

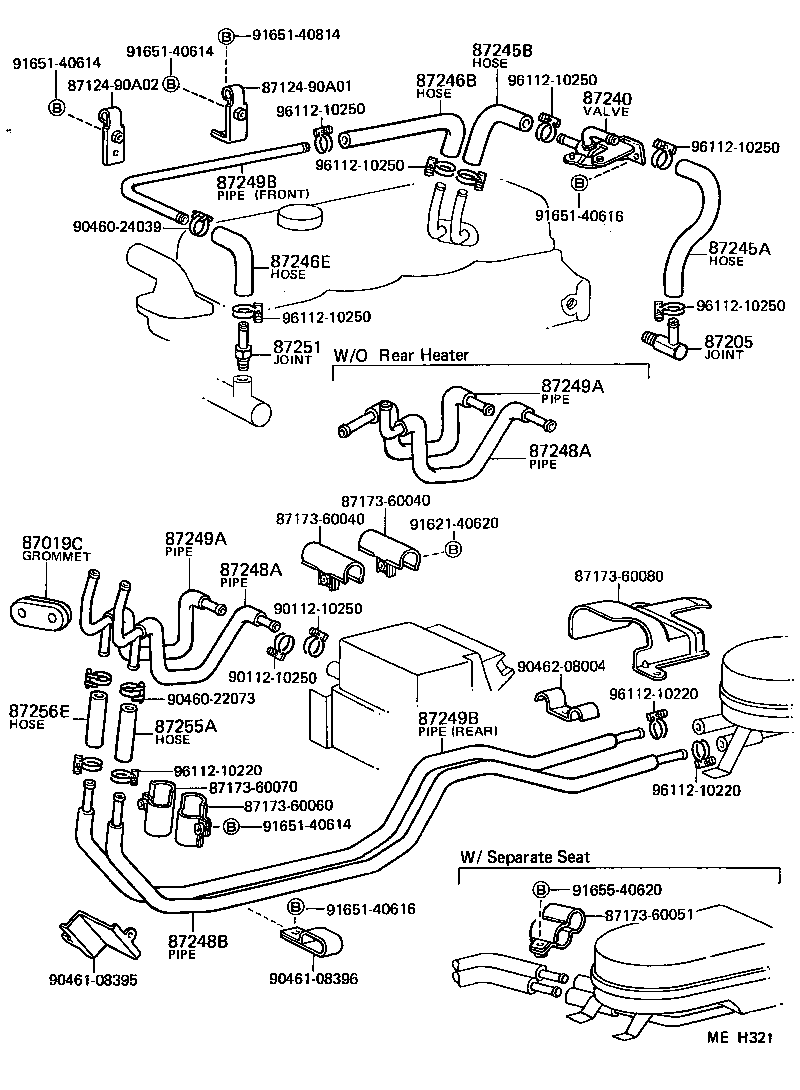

Click highlighted areas on diagram

diagram 87019C 8712490A01 8712490A02 8717360040 8717360040 8717360051 8717360060 8717360070 8717360080 87205 87240 87245A 87245B 87246B 87246E 87248A 87248A 87248B 87249A 87249A 87249B 87249B 87251 87255A 87256E 9011210250 9011210250 9046022073 9046024039 9046108395 9046108396 9046208004 9162140620 9165140614 9165140614 9165140614 9165140616 9165140616 9165140814 9165540620 9611210220 9611210220 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01167

BJ4#,FJ4#,HJ47

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30190

BJ4#,FJ4#

 1
87240 - VALVE ASSY, HEATER WATER
87240-60031

BJ4#,HJ47

FR HEATER

 1
87245A - HOSE, HEATER WATER, INLET A
99552-30500

BJ4#

*H,L=310

 1
87245B - HOSE, HEATER WATER, INLET B
99552-30300

BJ4#

*H,L=230

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-60040

BJ4#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87247-20051

BJ4#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-60252

BJ4#..TP,V

RR HEATER

 1
87248-60240

BJ4#

FR HEATER

 1
87248-60251

BJ4#..TP,V

RR HEATER

 1
87248A - PIPE, HEATER WATER INLET, A
87248-60252

BJ4#..TP,V

RR HEATER

 1
87248-60240

BJ4#

FR HEATER

 1
87248-60251

BJ4#..TP,V

RR HEATER

 1
87248B - PIPE, HEATER WATER INLET, B
87248-60370

BJ4#,FJ4#,HJ47..TP,V

W/BENCH SEAT

 1
87248-60390

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

W/SEPARATE SEAT

 1
87249A - PIPE, HEATER WATER OUTLET, A
87249-60110

BJ4#

FR HEATER

 1
87249-60121

BJ4#..TP,V

RR HEATER

 1
87249-60122

BJ4#..TP,V

RR HEATER

 1
87249A - PIPE, HEATER WATER OUTLET, A
87249-60110

BJ4#

FR HEATER

 1
87249-60121

BJ4#..TP,V

RR HEATER

 1
87249-60122

BJ4#..TP,V

RR HEATER

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-60400

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

RR HEATER,W/SEPARATE SEAT

 1
87248-60260

BJ4#

FR HEATER

 1
87248-60380

BJ4#,FJ4#,HJ47..TP,V

RR HEATER,W/BENCH SEAT

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-60400

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

RR HEATER,W/SEPARATE SEAT

 1
87248-60260

BJ4#

FR HEATER

 1
87248-60380

BJ4#,FJ4#,HJ47..TP,V

RR HEATER,W/BENCH SEAT

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BJ4#,HJ47

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-20100

BJ4#,FJ4#,HJ47..TP,V

*H,L=60

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-20100

BJ4#,FJ4#,HJ47..TP,V

*H,L=60

 1
Common parts
87124-90A01
87124-90A02
87173-60040
87173-60051
87173-60060
87173-60070
87173-60080
90112-10250
90460-22073
90460-24039
90461-08395
90461-08396
90462-08004
91621-40620
91651-40614
91651-40616
91651-40814
91655-40620
96112-10220
96112-10250
