BJ45RV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

Click highlighted areas on diagram

diagram 53410 53412 53412 53412 53412 53420 53451 53451A 53451B 53506 53550 9011906076 9011906115 9017906194 9017906194 9046812070 9165140616
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-90301

BJ4#,FJ4#,HJ47

 1
53412 - CUSHION, HOOD HINGE SHEET
53412-90300

BJ4#,FJ4#,HJ47

 4
53412 - CUSHION, HOOD HINGE SHEET
53412-90300

BJ4#,FJ4#,HJ47

 4
53412 - CUSHION, HOOD HINGE SHEET
53412-90300

BJ4#,FJ4#,HJ47

 4
53412 - CUSHION, HOOD HINGE SHEET
53412-90300

BJ4#,FJ4#,HJ47

 4
53420 - HINGE ASSY, HOOD, LH
53410-90301

BJ4#,FJ4#,HJ47

 1
53451 - ROD, HOOD SUPPORT
53403-90300

BJ42,43,45,46,FJ4#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-16060

BJ4#,FJ4#,HJ47

 1
53451B - PIN(FOR HOOD SUPPORT ROD)
90240-08007

BJ4#,FJ4#,HJ47

 1
53506 - CATCH SUB-ASSY, HOOD
53506-90300

BJ4#,FJ4#,HJ47

 2
53506-90304

BJ4#,FJ4#,HJ47..GEN

CHROME PLATED

 2
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53505-90303

BJ4#,FJ4#,HJ47..EUR,GEN

 1
53505-90303

BJ4#,FJ4#,HJ47..3F,4F

 1
Common parts
90119-06076
90119-06115
90179-06194
90468-12070
91651-40616

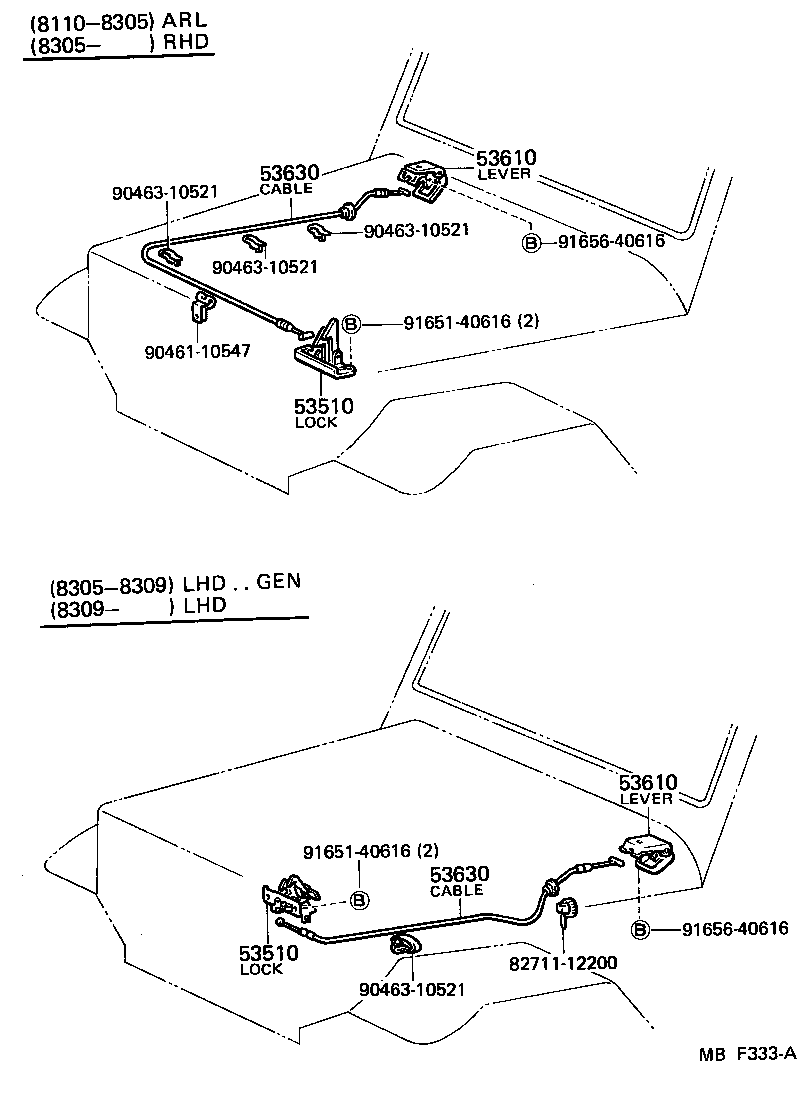

(8110-8305)ARL ; (8305- )ARL,GEN

Click highlighted areas on diagram

diagram 53510 53510 53610 53610 53630 53630 8271112200 9046110547 9046310521 9046310521 9046310521 9046310521 9165140616 9165140616 9165640616 9165640616
Part # Description Qty Price
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-2005001

BJ40,42,43,45,FJ4#,HJ47..ARL,GEN

BLACK

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-2005001

BJ40,42,43,45,FJ4#,HJ47..ARL,GEN

BLACK

 1
Common parts
82711-12200
90461-10547
90463-10521
91651-40616
91656-40616
