BJ45RP-K3 (1980)
Toyota Land Cruiser
(8008- )TP,V

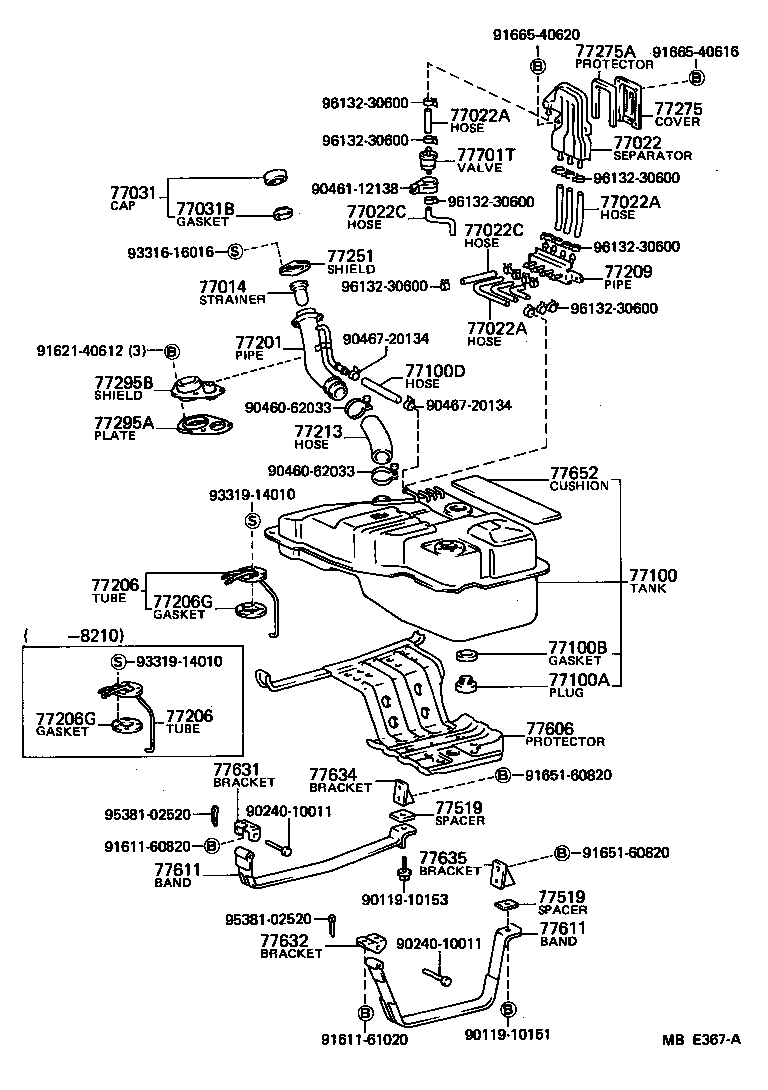

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77014 - STRAINER SUB-ASSY, FUEL | ||||
| 77014-60011 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77193-60013 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
BJ4#,FJ4#,HJ47..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=200 |
1 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47 *H,L=60 |
1 | ||
| 95332-06030 |
BJ45,FJ45,HJ47..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
BJ4#,FJ4#,HJ47..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=200 |
1 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47 *H,L=60 |
1 | ||
| 95332-06030 |
BJ45,FJ45,HJ47..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
BJ4#,FJ4#,HJ47..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=200 |
1 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47 *H,L=60 |
1 | ||
| 95332-06030 |
BJ45,FJ45,HJ47..PIC *H,L=220 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
BJ45,FJ45,HJ47..PIC L=100 |
1 | ||
| 95332-06040 |
BJ4#,FJ4#,HJ47..TP,V *H,L=360 |
1 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC L=200 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12090 |
BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F) |
1 | ||
| 77310-60051 |
BJ45,FJ45,HJ47..PIC W/O KEY |
1 | ||
| 77031-95700 |
BJ45,FJ45,HJ47..PIC W/KEY |
1 | ||
| 77310-12100 |
BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F) |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77316-12050 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60045 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22913 |
BJ45,FJ45,HJ47..PIC L=300 |
1 | ||
| 90445-22016 |
BJ4#,FJ4#,HJ47..TP,V L=220 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60052 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77201-60082 |
BJ45,FJ45,HJ47..PIC W/FUEL STRAINER |
1 | ||
| 77201-60072 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77201-60062 |
BJ4#,FJ4#,HJ47..TP,V W/FUEL STRAINER |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-60030 |
BJ4#,HJ47 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-60030 |
BJ4#,HJ47 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77209 - CONNECTOR SUB-ASSY, FUEL TUBE | ||||
| 77209-60020 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77209-60030 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77217-60015 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77217-60022 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 61802-90302 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-03078 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 61824-90302 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-60020 |
BJ4#,FJ4#,HJ47 T=4.5 |
1 | ||
| 77519-60010 |
BJ4#,FJ4#,HJ47 T=1.0 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60020 |
BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F) |
1 | ||
| 77606-60010 |
BJ45,FJ45,HJ47 |
1 | ||
| 77606-60010 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60041 |
BJ4#,FJ4#,HJ47..TP,V RH |
1 | ||
| 77601-60051 |
BJ45,FJ45,HJ47..PIC RH |
1 | ||
| 77602-60021 |
BJ4#,FJ4#,HJ47..TP,V LH |
1 | ||
| 77602-60031 |
BJ45,FJ45,HJ47..PIC LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60041 |
BJ4#,FJ4#,HJ47..TP,V RH |
1 | ||
| 77601-60051 |
BJ45,FJ45,HJ47..PIC RH |
1 | ||
| 77602-60021 |
BJ4#,FJ4#,HJ47..TP,V LH |
1 | ||
| 77602-60031 |
BJ45,FJ45,HJ47..PIC LH |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77654-60010 |
BJ4#,FJ4#,HJ47 100X100 |
4 | ||
| 77651-60020 |
BJ4#,FJ4#,HJ47 750X100 |
1 | ||
| 77652-60011 |
BJ4#,FJ4#,HJ47 230X80 |
2 | ||
| 77653-60010 |
BJ4#,FJ4#,HJ47 350X80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| Common parts | ||||
| 90119-10153 | ||||
| 90119-10155 | ||||
| 90240-10011 | ||||
| 90460-62033 | ||||
| 90461-12138 | ||||
| 90467-20134 | ||||
| 91611-40612 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91665-40616 | ||||
| 91665-40620 | ||||
| 93315-15012 | ||||
| 93316-16016 | ||||
| 93319-14010 | ||||
| 95381-02520 | ||||
| 96132-30600 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-60220 |
BJ45..RHD |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-60220 |
BJ45..RHD |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-60220 |
BJ45..RHD |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 95332-08030 |
BJ4# *H,L=280,ID=7.6,TUBE X SEDIMENTER |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 95332-08030 |
BJ4# *H,L=280,ID=7.6,TUBE X SEDIMENTER |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 95332-08030 |
BJ4# *H,L=280,ID=7.6,TUBE X SEDIMENTER |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 95332-08030 |
BJ4# *H,L=280,ID=7.6,TUBE X SEDIMENTER |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 95332-08030 |
BJ4# *H,L=280,ID=7.6,TUBE X SEDIMENTER |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 95332-08030 |
BJ4# *H,L=280,ID=7.6,TUBE X SEDIMENTER |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 95332-08030 |
BJ4# *H,L=280,ID=7.6,TUBE X SEDIMENTER |
1 | ||
| 95332-08030 |
BJ4#..RHD *H,L=280,ID=7.6,TUBE X ENGINE |
1 | ||
| 95332-08040 |
BJ4# *H,L=320,ID=7.6,SEGIMENTA X ENGINE |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=400,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ4# *H,L=340,ID=7.6 |
1 | ||
| 95332-08044 |
BJ4# *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ45 *H,L=400,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ45 *H,L=340,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=400,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ4# *H,L=340,ID=7.6 |
1 | ||
| 95332-08044 |
BJ4# *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ45 *H,L=400,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ45 *H,L=340,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ4# *H,L=400,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ4# *H,L=340,ID=7.6 |
1 | ||
| 95332-08044 |
BJ4# *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ45 *H,L=400,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ45 *H,L=340,ID=7.6 |
1 | ||
| Common parts | ||||
| 90461-08057 | ||||
| 90461-08422 | ||||
| 90461-10471 | ||||
| 90461-10498 | ||||
| 90461-10506 | ||||
| 90461-10530 | ||||
| 90461-10542 | ||||
| 90461-12148 | ||||
| 90461-12149 | ||||
| 90461-12244 | ||||
| 90461-16052 | ||||
| 90480-01004 | ||||
| 91611-40612 | ||||
| 91611-40816 | ||||
| 91656-40820 | ||||
| 96132-30800 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77244-60030 |
BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN) |
1 | ||
| 77244-60060 |
BJ45,FJ45,HJ47..PIC..(EUR,GEN) |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77244-60030 |
BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN) |
1 | ||
| 77244-60060 |
BJ45,FJ45,HJ47..PIC..(EUR,GEN) |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77244-60030 |
BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN) |
1 | ||
| 77244-60060 |
BJ45,FJ45,HJ47..PIC..(EUR,GEN) |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77244-60030 |
BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN) |
1 | ||
| 77244-60060 |
BJ45,FJ45,HJ47..PIC..(EUR,GEN) |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77244-60030 |
BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN) |
1 | ||
| 77244-60060 |
BJ45,FJ45,HJ47..PIC..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90464-00082 | ||||
| 90464-00233 | ||||
| 90467-12058 | ||||
| 90480-14003 | ||||
| 90480-14004 | ||||
| 91611-40612 | ||||
| 91611-40616 | ||||
| 91661-40616 | ||||
| 94613-10800 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-10908 | ||||
| 96221-20706 | ||||

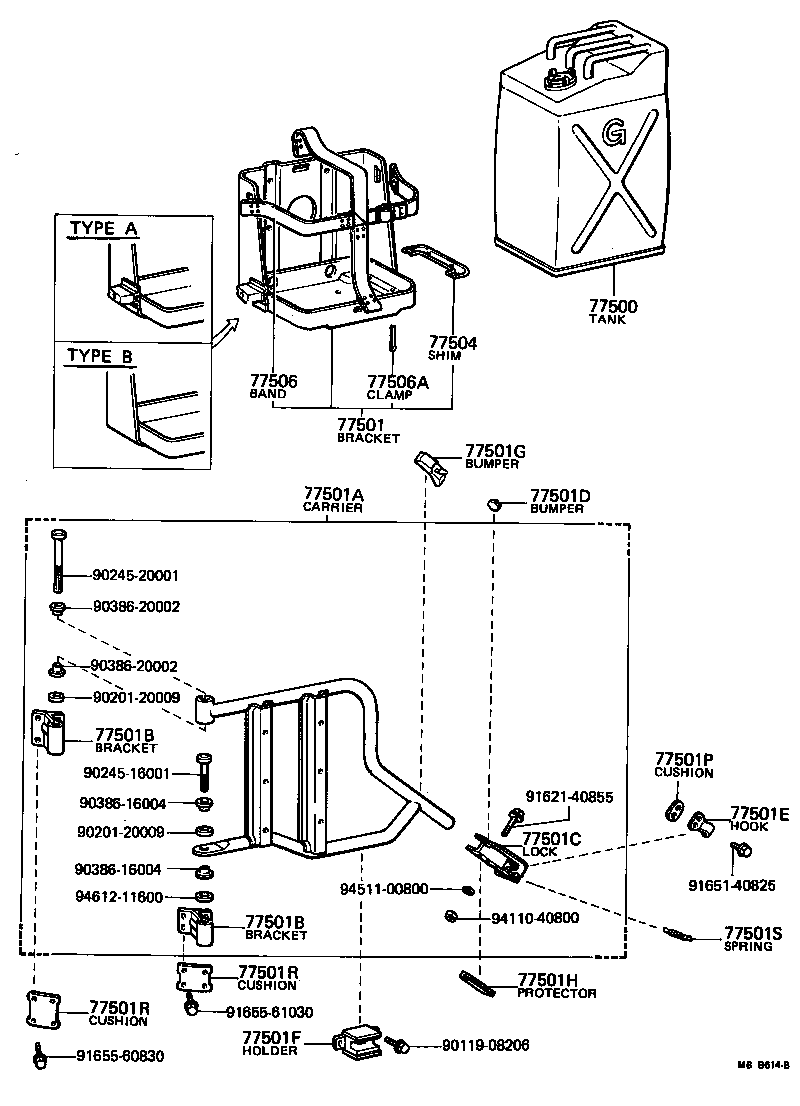

(8008- )BJ45,FJ45,HJ47..TP,V..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77500 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60010 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 77501 - BRACKET ASSY, AUXILIARY FUEL TANK | ||||
| 64910-69011 |
BJ4#,FJ4#,HJ47 TYPE A |
1 | ||
| 77130-60010 |
BJ4#,FJ4#,HJ47 TYPE B |
1 | ||
| 77501A - CARRIER ASSY, AUXILIARY FUEL TANK | ||||
| 51903-90802 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) |
1 | ||
| 77501B - BRACKET, AUXILIARY FUEL TANK CARRIER | ||||
| 51937-90302 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) LWR |
1 | ||
| 51955-90800 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) UPR |
1 | ||
| 77501B - BRACKET, AUXILIARY FUEL TANK CARRIER | ||||
| 51937-90302 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) LWR |
1 | ||
| 51955-90800 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) UPR |
1 | ||
| 77501C - LOCK ASSY, AUXILIARY FUEL TANK CARRIER | ||||
| 51930-90300 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) |
1 | ||
| 77501D - BUMPER, AUXILIARY FUEL TANK CARRIER | ||||
| 51928-90300 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) |
1 | ||
| 77501E - HOOK, AUXILIARY FUEL TANK CARRIER | ||||
| 51926-90301 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) |
1 | ||
| 77501F - HOLDER, AUXILIARY FUEL TANK CARRIER | ||||
| 51929-90300 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) |
1 | ||
| 77501G - BUMPER, AUXILIARY FUEL TANK CARRIER | ||||
| 51917-90301 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) |
1 | ||
| 77501H - PROTECTOR, AUXILIARY FUEL TANK CARRIER LOCK | ||||
| 51973-90300 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) |
1 | ||
| 77501P - CUSHION(FOR AUXILIARY FUEL CARRIER) | ||||
| 51941-90300 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) |
1 | ||
| 77501R - CUSHION(FOR AUXILIARY FUEL CARRIER) | ||||
| 51935-90800 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) UPR |
1 | ||
| 51954-90300 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) LWR |
1 | ||
| 77501R - CUSHION(FOR AUXILIARY FUEL CARRIER) | ||||
| 51935-90800 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) UPR |
1 | ||
| 51954-90300 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) LWR |
1 | ||
| 77501S - SPRING(FOR AUXILIARY FUEL CARRIER) | ||||
| 90506-12480 |
BJ45,FJ45,HJ47..(TP,V)..(ARL,GEN) |
1 | ||
| 77504 - SHIM, AUXILIARY FUEL TANK BRACKET | ||||
| 77184-69010 |
BJ4#,FJ4#,HJ47 |
4 | ||
| 77506 - BAND SUB-ASSY, AUXILIARY FUEL TANK | ||||
| 77601-60020 |
BJ4#,FJ4#,HJ47 |
4 | ||
| 77506A - CLAMP, FUEL TANK BAND SHIM | ||||
| 77653-35010 |
BJ4#,FJ4#,HJ47 |
16 | ||
| Common parts | ||||
| 90119-08206 | ||||
| 90201-20009 | ||||
| 90245-16001 | ||||
| 90245-20001 | ||||
| 90386-16004 | ||||
| 90386-20002 | ||||
| 91621-40855 | ||||
| 91651-40825 | ||||
| 91655-60830 | ||||
| 91655-61030 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94612-11600 | ||||
(8008- )PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77014 - STRAINER SUB-ASSY, FUEL | ||||
| 77014-60011 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77193-60013 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
BJ4#,FJ4#,HJ47..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=200 |
1 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47 *H,L=60 |
1 | ||
| 95332-06030 |
BJ45,FJ45,HJ47..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
BJ4#,FJ4#,HJ47..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=200 |
1 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47 *H,L=60 |
1 | ||
| 95332-06030 |
BJ45,FJ45,HJ47..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
BJ4#,FJ4#,HJ47..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=200 |
1 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ47 *H,L=60 |
1 | ||
| 95332-06030 |
BJ45,FJ45,HJ47..PIC *H,L=220 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
BJ45,FJ45,HJ47..PIC L=100 |
1 | ||
| 95332-06040 |
BJ4#,FJ4#,HJ47..TP,V *H,L=360 |
1 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC L=200 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
BJ45,FJ45,HJ47..PIC L=100 |
1 | ||
| 95332-06040 |
BJ4#,FJ4#,HJ47..TP,V *H,L=360 |
1 | ||
| 95332-06020 |
BJ45,FJ45,HJ47..PIC L=200 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12090 |
BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F) |
1 | ||
| 77310-60051 |
BJ45,FJ45,HJ47..PIC W/O KEY |
1 | ||
| 77031-95700 |
BJ45,FJ45,HJ47..PIC W/KEY |
1 | ||
| 77310-12100 |
BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F) |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77316-12050 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60045 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22913 |
BJ45,FJ45,HJ47..PIC L=300 |
1 | ||
| 90445-22016 |
BJ4#,FJ4#,HJ47..TP,V L=220 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60052 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77201-60082 |
BJ45,FJ45,HJ47..PIC W/FUEL STRAINER |
1 | ||
| 77201-60072 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77201-60062 |
BJ4#,FJ4#,HJ47..TP,V W/FUEL STRAINER |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-60030 |
BJ4#,HJ47 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-60030 |
BJ4#,HJ47 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77209 - CONNECTOR SUB-ASSY, FUEL TUBE | ||||
| 77209-60020 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77209-60030 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77217-60015 |
BJ4#,FJ4#,HJ47..TP,V |
1 | ||
| 77217-60022 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77275 - PROTECTOR, FUEL EVAPORATIVE SEPARATOR | ||||
| 64197-90300 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77275A - PACKING, FUEL EVAPORATIVE SEPARATOR | ||||
| 64198-90300 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77295A - PLATE, FUEL FILLER PIPE SHIELD SUPPORT | ||||
| 77294-90300 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77295B - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-90300 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-60020 |
BJ4#,FJ4#,HJ47 T=4.5 |
1 | ||
| 77519-60010 |
BJ4#,FJ4#,HJ47 T=1.0 |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-60020 |
BJ4#,FJ4#,HJ47 T=4.5 |
1 | ||
| 77519-60010 |
BJ4#,FJ4#,HJ47 T=1.0 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60020 |
BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F) |
1 | ||
| 77606-60010 |
BJ45,FJ45,HJ47 |
1 | ||
| 77606-60010 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60041 |
BJ4#,FJ4#,HJ47..TP,V RH |
1 | ||
| 77601-60051 |
BJ45,FJ45,HJ47..PIC RH |
1 | ||
| 77602-60021 |
BJ4#,FJ4#,HJ47..TP,V LH |
1 | ||
| 77602-60031 |
BJ45,FJ45,HJ47..PIC LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60041 |
BJ4#,FJ4#,HJ47..TP,V RH |
1 | ||
| 77601-60051 |
BJ45,FJ45,HJ47..PIC RH |
1 | ||
| 77602-60021 |
BJ4#,FJ4#,HJ47..TP,V LH |
1 | ||
| 77602-60031 |
BJ45,FJ45,HJ47..PIC LH |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 77634 - BRACKET, FUEL TANK BAND, NO.4 | ||||
| 77616-60030 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77635 - BRACKET, FUEL TANK BAND, NO.5 | ||||
| 77617-60020 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77654-60010 |
BJ4#,FJ4#,HJ47 100X100 |
4 | ||
| 77651-60020 |
BJ4#,FJ4#,HJ47 750X100 |
1 | ||
| 77652-60011 |
BJ4#,FJ4#,HJ47 230X80 |
2 | ||
| 77653-60010 |
BJ4#,FJ4#,HJ47 350X80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| Common parts | ||||
| 90119-10151 | ||||
| 90119-10153 | ||||
| 90240-10011 | ||||
| 90460-62033 | ||||
| 90461-12138 | ||||
| 90467-20134 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91621-40612 | ||||
| 91651-60820 | ||||
| 91665-40616 | ||||
| 91665-40620 | ||||
| 93316-16016 | ||||
| 93319-14010 | ||||
| 95381-02520 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
