BJ45RP-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)GEN

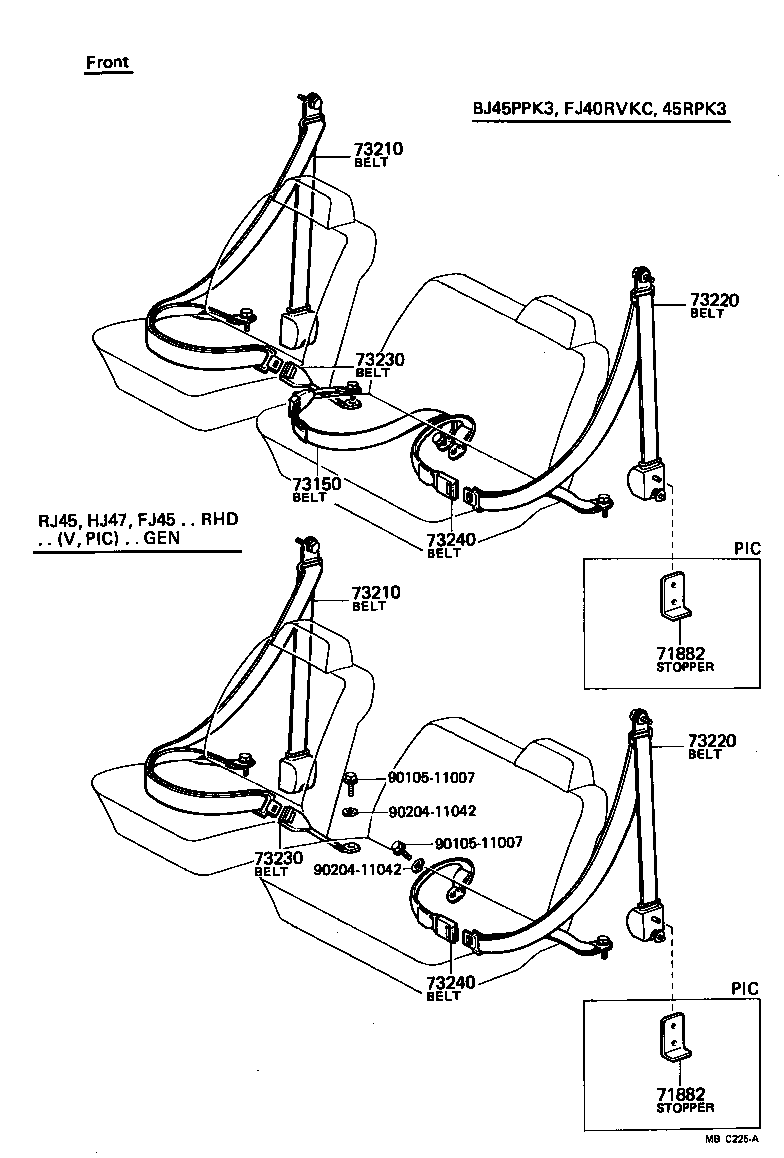

Click highlighted areas on diagram

diagram 73130 73140 73210 73210 73220 73220 73230 73230 73240 73240
Part # Description Qty Price
73140 - BELT ASSY, FRONT SEAT LAP TYPE, LH
71840-90331

BJ4#,FJ4#,HJ47..RHD..GEN

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90335

BJ4#,FJ4#,HJ47..RHD..GEN

LAP TYPE,BENCH SEAT

 1
73210-90802

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90335

BJ4#,FJ4#,HJ47..RHD..GEN

LAP TYPE,BENCH SEAT

 1
73210-90802

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90801

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90801

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
71802-90327

BJ4#,FJ4#,HJ47..RHD..GEN

BENCH SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
71802-90327

BJ4#,FJ4#,HJ47..RHD..GEN

BENCH SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1

(8210- )GEN

Click highlighted areas on diagram

diagram 73130 73130 73130 73140 73140 73140
Part # Description Qty Price
73140 - BELT ASSY, FRONT SEAT LAP TYPE, LH
71840-90331

BJ4#,FJ4#,HJ47..RHD..GEN

 1
73140 - BELT ASSY, FRONT SEAT LAP TYPE, LH
71840-90331

BJ4#,FJ4#,HJ47..RHD..GEN

 1
73140 - BELT ASSY, FRONT SEAT LAP TYPE, LH
71840-90331

BJ4#,FJ4#,HJ47..RHD..GEN

 1

(8008- )FJ40..RHD..VKC..4F ; (8008- )BJ45,FJ45,HJ47..RHD..PIC,V..GEN

Click highlighted areas on diagram

diagram 71882 71882 73150 73210 73210 73220 73220 73230 73230 73240 73240 9010511007 9010511007 9020411042 9020411042
Part # Description Qty Price
71882 - STOPPER, SEAT BELT RETRACTOR
71882-90302

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
71882 - STOPPER, SEAT BELT RETRACTOR
71882-90302

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90335

BJ4#,FJ4#,HJ47..RHD..GEN

LAP TYPE,BENCH SEAT

 1
73210-90802

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90335

BJ4#,FJ4#,HJ47..RHD..GEN

LAP TYPE,BENCH SEAT

 1
73210-90802

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90801

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90801

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
71802-90327

BJ4#,FJ4#,HJ47..RHD..GEN

BENCH SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
71802-90327

BJ4#,FJ4#,HJ47..RHD..GEN

BENCH SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
Common parts
90105-11007
90204-11042

(8008- )EUR,GEN

Click highlighted areas on diagram

diagram 5827690300 73210 73210 73210 73220 73220 73220 73230 73230 73230 73240 73240 73240
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90335

BJ4#,FJ4#,HJ47..RHD..GEN

LAP TYPE,BENCH SEAT

 1
73210-90802

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90335

BJ4#,FJ4#,HJ47..RHD..GEN

LAP TYPE,BENCH SEAT

 1
73210-90802

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90335

BJ4#,FJ4#,HJ47..RHD..GEN

LAP TYPE,BENCH SEAT

 1
73210-90802

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90801

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90801

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90801

BJ45,FJ45,HJ47..RHD..PIC..GEN

W/*ELR,BENCH SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
71802-90327

BJ4#,FJ4#,HJ47..RHD..GEN

BENCH SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
71802-90327

BJ4#,FJ4#,HJ47..RHD..GEN

BENCH SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
71802-90327

BJ4#,FJ4#,HJ47..RHD..GEN

BENCH SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90800

BJ45,FJ45,HJ47..RHD..(PIC,V)..GEN

W/*ELR,BENCH SEAT

 1
Common parts
58276-90300
