BJ45RP-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )FJ40..LHD..4F ; (8008- )BJ45,FJ45,HJ47

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46243 46410 46443 46451 46550C 46550D 9011908146 9412040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-60031

BJ4#,FJ4#,HJ47..RHD

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-10020

BJ4#,FJ4#,HJ47

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

BJ4#,FJ4#,HJ47

 1
46243 - COVER, PARKING BRAKE LEVER
46243-60020

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60014

BJ45,FJ45,HJ47..RHD

 1
46443 - CAP, CABLE ADJUSTING
46443-12020

BJ4#,FJ4#,HJ47

 1
46451 - BRACKET, CABLE SUPPORT
46451-60021

BJ4#,FJ4#,HJ47..RHD

 1
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013

BJ45,FJ45,HJ47

ID=6

 2
90213-09005

BJ45,FJ45,HJ47

ID=9.5

 1
90213-07006

BJ45,FJ45,HJ47

ID=7.5

 1
46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE)
90206-08024

BJ45,FJ45,HJ47

 1
Common parts
90119-08146
94120-40600

(8008- )FJ40..LHD..4F ; (8008- )BJ45,FJ45,HJ47

Click highlighted areas on diagram

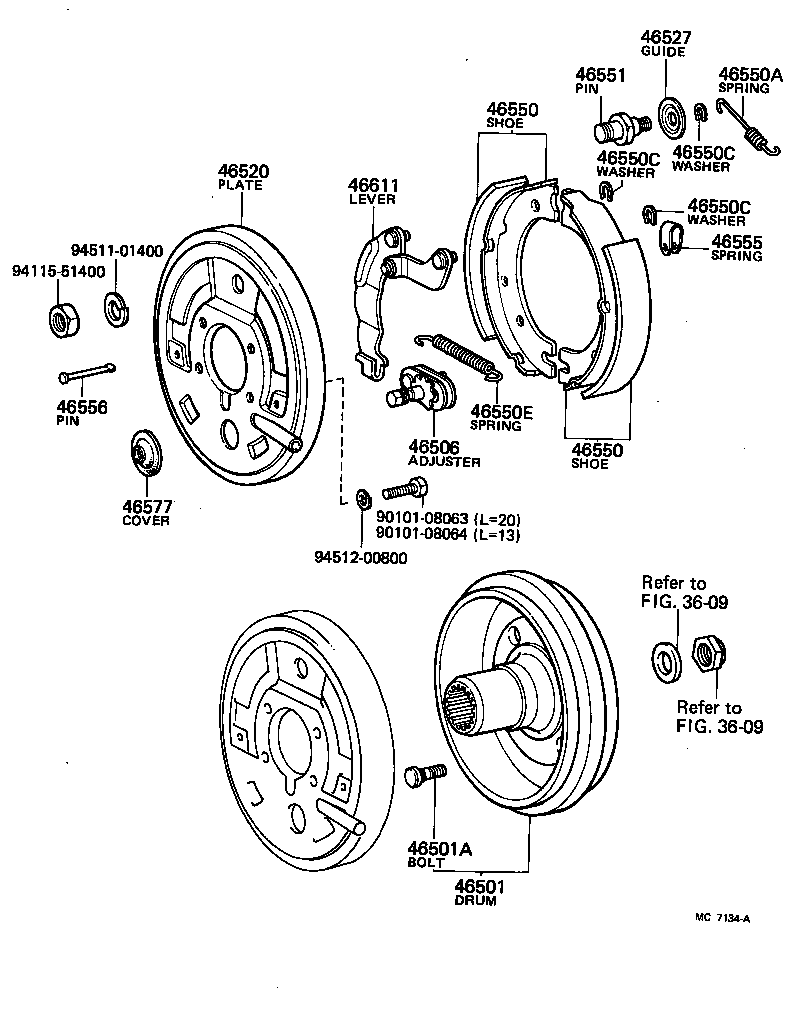

diagram 3609 3609 46501 46501A 46506 46520 46527 46550 46550 46550A 46550C 46550C 46550C 46550E 46551 46555 46556 46577 46611 9010108063 9010108064 9411551400 9451101400 9451200800
Part # Description Qty Price
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-60030

BJ45,FJ45,HJ47..4F

 1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-11124

BJ45,FJ45,HJ47

 4
46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER
46506-35011

BJ45,FJ45,HJ47

 1
46520 - PLATE SUB-ASSY, PARKING BRAKE
46503-60020

BJ45,FJ45,HJ47

 1
46527 - GUIDE, SHOE(FOR PARKING BRAKE)
46527-35010

BJ45,FJ45,HJ47

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-60011

BJ45,FJ45,HJ47

 2
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-60011

BJ45,FJ45,HJ47

 2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-16052

BJ45,FJ45,HJ47

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013

BJ45,FJ45,HJ47

ID=6

 2
90213-09005

BJ45,FJ45,HJ47

ID=9.5

 1
90213-07006

BJ45,FJ45,HJ47

ID=7.5

 1
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013

BJ45,FJ45,HJ47

ID=6

 2
90213-09005

BJ45,FJ45,HJ47

ID=9.5

 1
90213-07006

BJ45,FJ45,HJ47

ID=7.5

 1
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013

BJ45,FJ45,HJ47

ID=6

 2
90213-09005

BJ45,FJ45,HJ47

ID=9.5

 1
90213-07006

BJ45,FJ45,HJ47

ID=7.5

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14048

BJ45,FJ45,HJ47

 1
46551 - PIN, ANCHOR(FOR PARKING BRAKE)
46551-35010

BJ45,FJ45,HJ47

 1
46555 - SPRING, BRAKE SHOE HOLD DOWN
46555-35010

BJ45,FJ45,HJ47

 2
46556 - PIN, SHOE HOLD DOWN SPRING
46556-35010

BJ45,FJ45,HJ47

 2
46577 - COVER, ADJUSTING CAM HOLE
46577-35010

BJ45,FJ45,HJ47

 1
46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER
46601-36040

BJ45,FJ45,HJ47

 1
Common parts
90101-08063
90101-08064
94115-51400
94511-01400
94512-00800
Linked diagrams
3609
