BJ45LV-KCW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )VKC

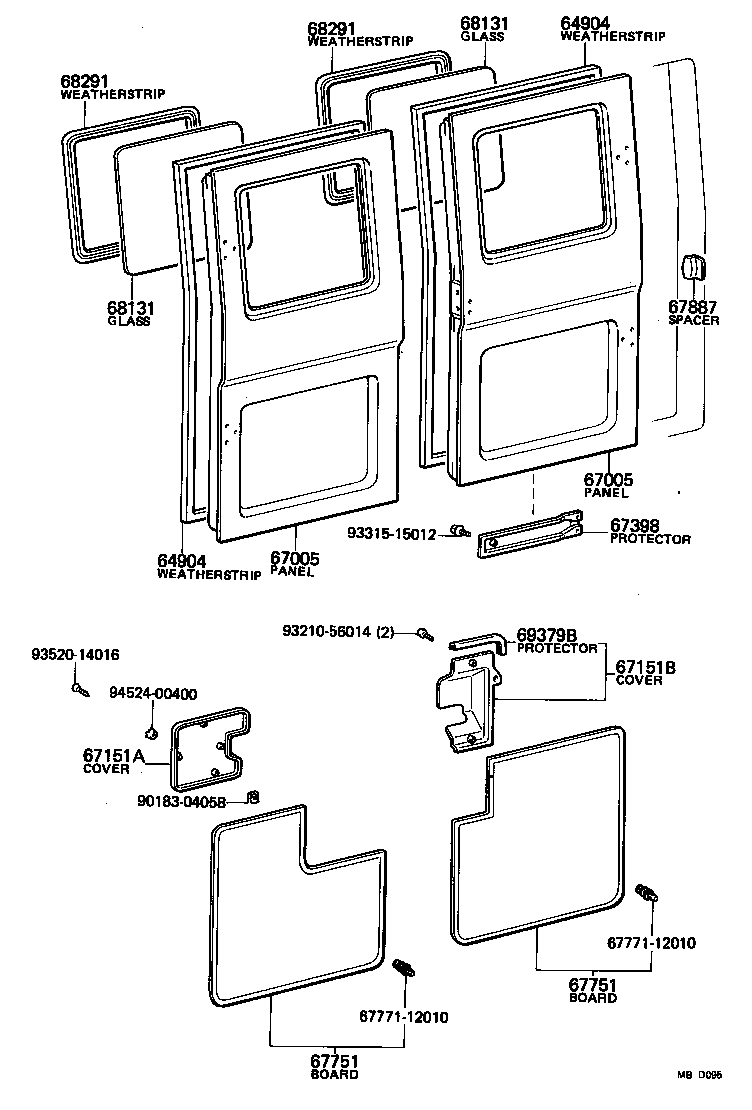

Click highlighted areas on diagram

diagram 64904 64904 67005 67005 67151A 67151B 67398 67751 67751 6777112010 6777112010 67887 68131 68131 68291 68291 69379B 9018304058 9321056014 9331515012 9352014016 9452400400
Part # Description Qty Price
64904 - WEATHERSTRIP SUB-ASSY, BACK DOOR
68291-90302

BJ40,42,45,FJ40,45,HJ47..VKC

RH

 1
68292-90302

BJ40,42,45,FJ40,45,HJ47..VKC

LH

 1
64904 - WEATHERSTRIP SUB-ASSY, BACK DOOR
68291-90302

BJ40,42,45,FJ40,45,HJ47..VKC

RH

 1
68292-90302

BJ40,42,45,FJ40,45,HJ47..VKC

LH

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-90805

BJ45,FJ45,HJ47..LHD..VKC

LH,LICENSE PLATE LEFT

 1
64901-90321

BJ45,FJ45,HJ47..LHD..VKC

RH,LICENSE PLATE LEFT

 1
67006-90811

BJ45,FJ45,HJ47..LHD..VKC

LH,LICENSE PLATE LEFT

 1
67006-90806

BJ45,FJ45..VKC..EUR

LH,LARGE LICENSE PLATE

 1
67006-90812

BJ45,FJ45..VKC..EUR

LH,LARGE LICENSE PLATE

 1
67005-90814

BJ45,FJ45,HJ47..LHD..VKC

RH,LICENSE PLATE LEFT

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-90805

BJ45,FJ45,HJ47..LHD..VKC

LH,LICENSE PLATE LEFT

 1
64901-90321

BJ45,FJ45,HJ47..LHD..VKC

RH,LICENSE PLATE LEFT

 1
67006-90811

BJ45,FJ45,HJ47..LHD..VKC

LH,LICENSE PLATE LEFT

 1
67006-90806

BJ45,FJ45..VKC..EUR

LH,LARGE LICENSE PLATE

 1
67006-90812

BJ45,FJ45..VKC..EUR

LH,LARGE LICENSE PLATE

 1
67005-90814

BJ45,FJ45,HJ47..LHD..VKC

RH,LICENSE PLATE LEFT

 1
67151A - COVER, BACK DOOR SERVICE HOLE, NO.1
67129-90301

BJ40,42,45,FJ40,45,HJ47..VKC..(3F,4F)

 1
67398 - PROTECTOR, BACK DOOR HARNESS
67398-90802

BJ45,FJ45..LHD..VKC

POSITION OF LICENSE PLATE LH

 1
67887 - SPACER, BACK DOOR WEATHERSTRIP
68296-90300

BJ40,42,45,FJ40,45,HJ47..VKC

LH

 1
68295-90300

BJ40,42,45,FJ40,45,HJ47..VKC

RH

 1
68131 - GLASS, BACK DOOR
68131-90304

BJ40,42,45,FJ40,45,HJ47..VKC..(EUR,GEN)

*TT,T=4.0

 2
68131-90303

BJ40,42,45,FJ40,45,HJ47..VKC

*TEM,T=4.0

 2
68131 - GLASS, BACK DOOR
68131-90304

BJ40,42,45,FJ40,45,HJ47..VKC..(EUR,GEN)

*TT,T=4.0

 2
68131-90303

BJ40,42,45,FJ40,45,HJ47..VKC

*TEM,T=4.0

 2
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-60030

BJ40,42,45,FJ40,45,HJ47..VKC

 2
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-60030

BJ40,42,45,FJ40,45,HJ47..VKC

 2
Common parts
67771-12010
90183-04058
93210-56014
93315-15012
93520-14016
94524-00400
