Toyota Land cruiser BJ45 ROOF PANEL & BACK PANEL

Manufacturers Home
Toyota
EU
LAND CRUISER
BJ45LP-KW3 (1980)
6153 - ROOF PANEL & BACK PANEL

BJ45LP-KW3 (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982

Engine 3B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008- )V

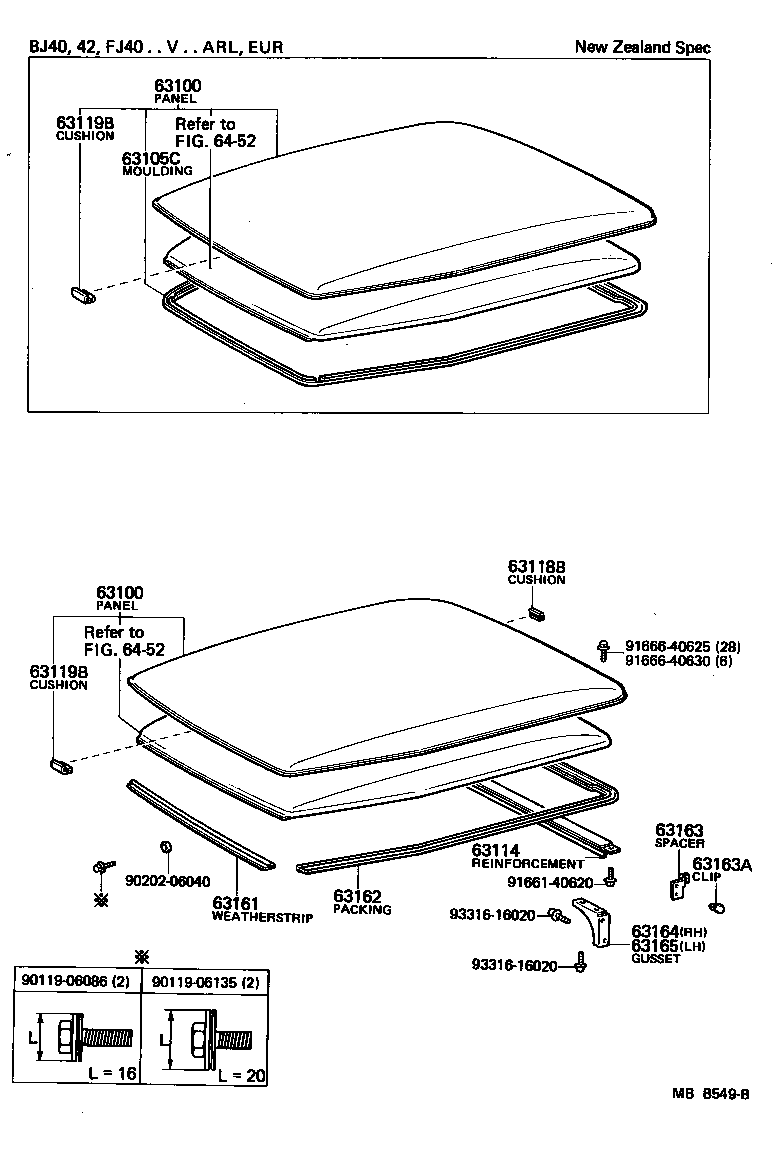

Click highlighted areas on diagram

Part #	Description	Period	Qty
63100 - PANEL ASSY, ROOF
63100-90316	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
63100 - PANEL ASSY, ROOF
63100-90316	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
63119B - CUSHION, ROOF DRIP MOULDING, FRONT
63119-90300	BJ40,42,45,FJ40,45,HJ47..PIC,V	08/1980 - 04/1986	1
63119B - CUSHION, ROOF DRIP MOULDING, FRONT
63119-90300	BJ40,42,45,FJ40,45,HJ47..PIC,V	08/1980 - 04/1986	1
63161 - WEATHERSTRIP, ROOF
63161-60011	BJ40,42,45,FJ40,45,HJ47..PIC,V	08/1980 - 04/1986	1
63162 - PACKING, ROOF DRIP MOULDING
63313-90303	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
63163 - SPACER, ROOF DRIP MOULDING STRENGTH
63167-90302	BJ40,42,45,FJ40,45,HJ47..V RH	08/1980 - 10/1985	1
63168-90302	BJ40,42,45,FJ40,45,HJ47..V LH	08/1980 - 10/1985	1
63163A - CLIP, SPRING(FOR ROOF DRIP MOULDING STRENGTH SPACER SET
90467-04100	BJ40,42,45,FJ40,45,HJ47..V	08/1980 - 10/1985	6
63164 - GUSSET, ROOF DRIP MOULDING, RH
63165-60010	BJ40,42,45,FJ40,45,HJ47..V	08/1980 - 10/1985	1
63165 - GUSSET, ROOF DRIP MOULDING, LH
63166-60010	BJ40,42,45,FJ40,45,HJ47..V	08/1980 - 10/1985	1
Common parts
90119-06086
90119-06135
90202-06040
91661-40620
91666-40625
91666-40630
93316-16020
Linked diagrams
6452

(8008- )PIC

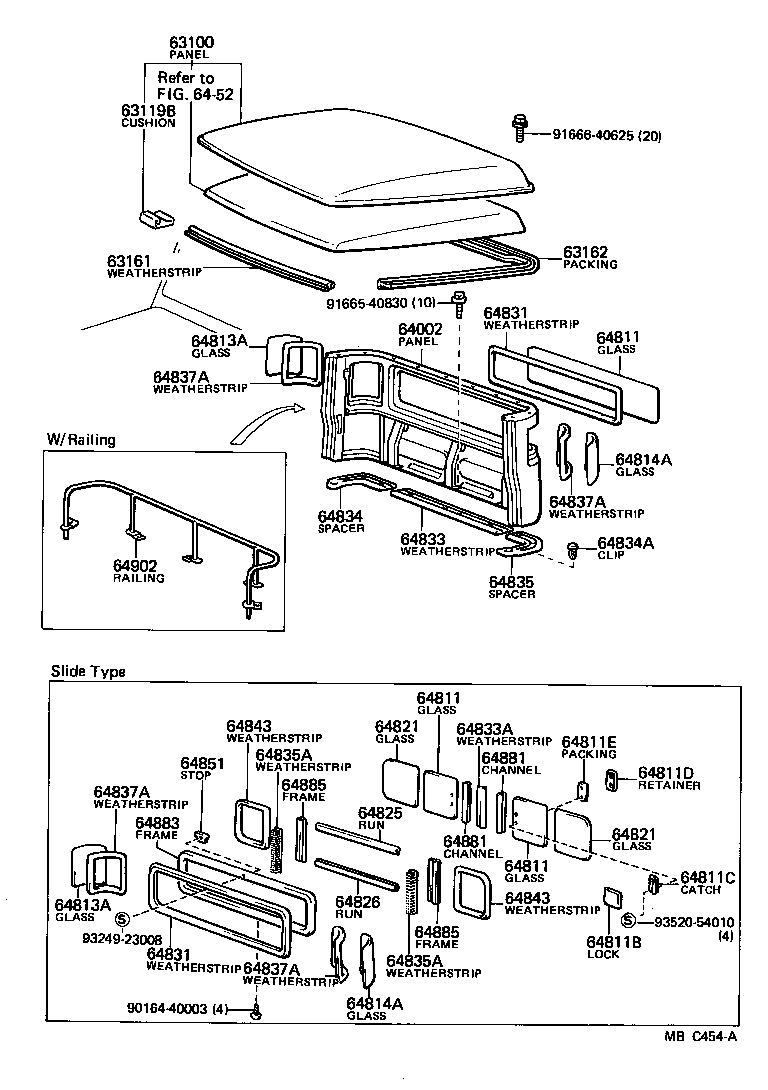

Click highlighted areas on diagram

Part #	Description	Period	Qty
63100 - PANEL ASSY, ROOF
63100-90316	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
63119B - CUSHION, ROOF DRIP MOULDING, FRONT
63119-90300	BJ40,42,45,FJ40,45,HJ47..PIC,V	08/1980 - 04/1986	1
63161 - WEATHERSTRIP, ROOF
63161-60011	BJ40,42,45,FJ40,45,HJ47..PIC,V	08/1980 - 04/1986	1
63162 - PACKING, ROOF DRIP MOULDING
63313-90303	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
64002 - PANEL SUB-ASSY, CAB REAR, UPPER
64002-90321	BJ45,FJ45,HJ47..PIC..(ARL,EUR) *ELR,W/BENCH SEAT	08/1980 - 10/1984	1
64811 - GLASS, BACK WINDOW
64811-90335	BJ45,FJ45,HJ47..PIC FIXED TYPE,*TEM,T=4.0	08/1980 - 04/1986	1
64811-90336	BJ45,FJ45,HJ47..PIC..(EUR,GEN) FIXED TYPE,*TT,T=4.0	08/1980 - 04/1986	1
64811 - GLASS, BACK WINDOW
64811-90335	BJ45,FJ45,HJ47..PIC FIXED TYPE,*TEM,T=4.0	08/1980 - 04/1986	1
64811-90336	BJ45,FJ45,HJ47..PIC..(EUR,GEN) FIXED TYPE,*TT,T=4.0	08/1980 - 04/1986	1
64811 - GLASS, BACK WINDOW
64811-90335	BJ45,FJ45,HJ47..PIC FIXED TYPE,*TEM,T=4.0	08/1980 - 04/1986	1
64811-90336	BJ45,FJ45,HJ47..PIC..(EUR,GEN) FIXED TYPE,*TT,T=4.0	08/1980 - 04/1986	1
64813A - GLASS, BACK WINDOW CORNER, RH
64812-90333	BJ45,FJ45,HJ47..PIC *TEM,T=5.0	08/1980 - 04/1986	1
64812-90334	BJ45,FJ45,HJ47..PIC..(EUR,GEN) *TT,T=5.0	08/1980 - 04/1986	1
64813A - GLASS, BACK WINDOW CORNER, RH
64812-90333	BJ45,FJ45,HJ47..PIC *TEM,T=5.0	08/1980 - 04/1986	1
64812-90334	BJ45,FJ45,HJ47..PIC..(EUR,GEN) *TT,T=5.0	08/1980 - 04/1986	1
64814A - GLASS, BACK WINDOW CORNER, LH
64813-90334	BJ45,FJ45,HJ47..PIC..(EUR,GEN) *TT,T=5.0	08/1980 - 04/1986	1
64813-90333	BJ45,FJ45,HJ47..PIC *TEM,T=5.0	08/1980 - 04/1986	1
64814A - GLASS, BACK WINDOW CORNER, LH
64813-90334	BJ45,FJ45,HJ47..PIC..(EUR,GEN) *TT,T=5.0	08/1980 - 04/1986	1
64813-90333	BJ45,FJ45,HJ47..PIC *TEM,T=5.0	08/1980 - 04/1986	1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-90332	BJ45,FJ45,HJ47..PIC FIXED TYPE	08/1980 - 04/1986	1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-90332	BJ45,FJ45,HJ47..PIC FIXED TYPE	08/1980 - 04/1986	1
64833 - WEATHERSTRIP, BACK WINDOW CHANNEL
64833-90300	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
64834 - SPACER, CAB REAR PANEL, RH
64834-90301	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
64834A - CLIP(FOR CAB REAR PANEL SPACER)
90467-07001	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	4
64835 - SPACER, CAB REAR PANEL, LH
64835-90301	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
64837A - WEATHERSTRIP, BACK WINDOW CORNER
64832-90332	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	2
64837A - WEATHERSTRIP, BACK WINDOW CORNER
64832-90332	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	2
64837A - WEATHERSTRIP, BACK WINDOW CORNER
64832-90332	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	2
64837A - WEATHERSTRIP, BACK WINDOW CORNER
64832-90332	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	2
Common parts
90164-40003
91665-40830
91666-40625
93249-23008
93520-54010
Linked diagrams
6452

BJ45LP-KW3 (1980)

(8008- )V

(8008- )PIC
