BJ45LP-KW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8110) ; (8110-8210)LHD

Click highlighted areas on diagram

diagram 8281790300 86011 86011A 86011A 86012 8602 8602 86120 9015950009 9015950009 9017905095 9017905095 9048016008 9098004021
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-60031

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86011-69015

BJ4#..LHD

24V,AM

 1
86011-69015

BJ4#..EUR,GEN

24V,AM

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

BJ4#,FJ4#,HJ47

VOLTAGE REGULATOR

 2
90980-04021

BJ4#,FJ4#,HJ47

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

BJ4#,FJ4#,HJ47

VOLTAGE REGULATOR

 2
90980-04021

BJ4#,FJ4#,HJ47

IGNITION COIL

 1
86012 - PARTS SET, RADIO SETTING
86012-69018

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM OR AM/SW

 1
86120 - RECEIVER ASSY, RADIO
86120-35025

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-60021

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-25020

BJ4#..EUR,GEN

24V,AM

 1
86120-60030

BJ4#..LHD

24V,AM

 1
86120-60041

BJ45..EUR;BJ40,42,43,46..LHD

24V,AM

 1
Common parts
82817-90300
90159-50009
90179-05095
90480-16008
90980-04021
Linked diagrams
8602

(8110- )RHD ; (8210- )LHD

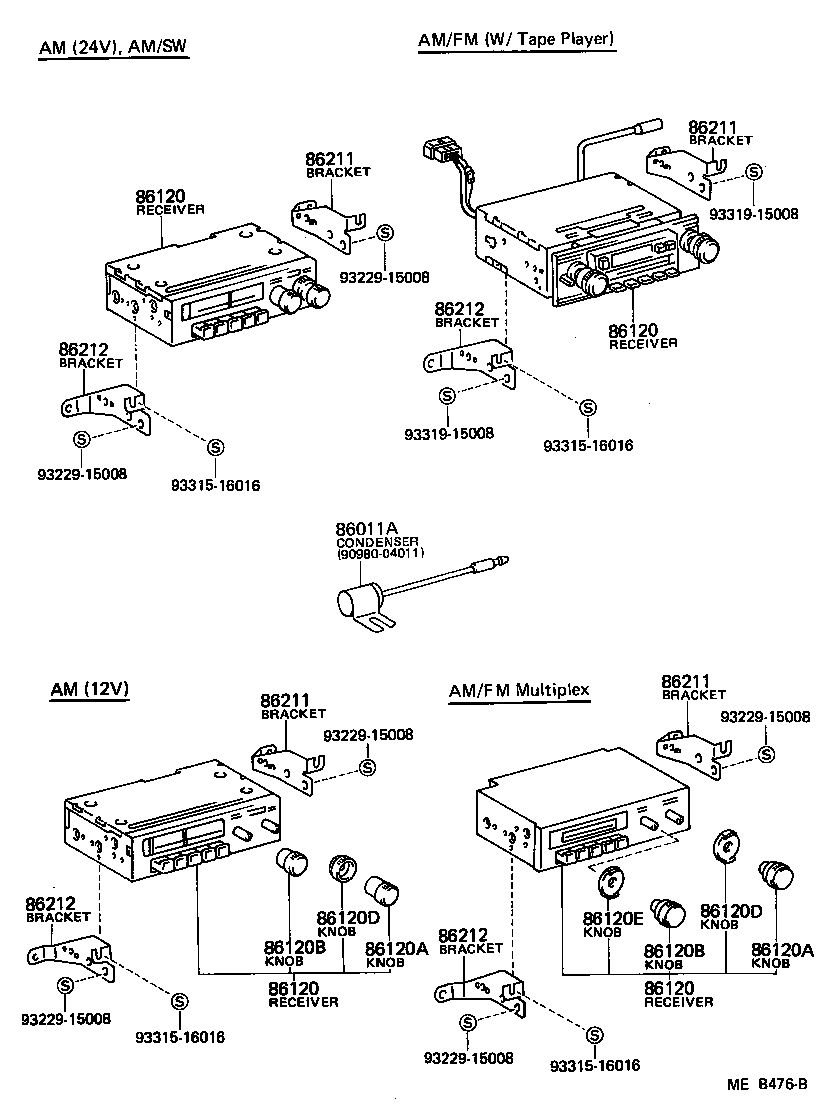

Click highlighted areas on diagram

diagram 86011A 86120 86120 86120 86120 86120A 86120A 86120B 86120B 86120D 86120D 86120E 86211 86211 86211 86211 86212 86212 86212 86212 9098004011 9322915008 9322915008 9322915008 9322915008 9322915008 9322915008 9331516016 9331516016 9331516016 9331516016 9331915008 9331915008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04011

BJ4#,FJ4#,HJ47

VOLTAGE REGULATOR

 2
90980-04021

BJ4#,FJ4#,HJ47

IGNITION COIL

 1
86120 - RECEIVER ASSY, RADIO
86120-35025

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-60021

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-25020

BJ4#..EUR,GEN

24V,AM

 1
86120-60030

BJ4#..LHD

24V,AM

 1
86120-60041

BJ45..EUR;BJ40,42,43,46..LHD

24V,AM

 1
86120 - RECEIVER ASSY, RADIO
86120-35025

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-60021

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-25020

BJ4#..EUR,GEN

24V,AM

 1
86120-60030

BJ4#..LHD

24V,AM

 1
86120-60041

BJ45..EUR;BJ40,42,43,46..LHD

24V,AM

 1
86120 - RECEIVER ASSY, RADIO
86120-35025

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-60021

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-25020

BJ4#..EUR,GEN

24V,AM

 1
86120-60030

BJ4#..LHD

24V,AM

 1
86120-60041

BJ45..EUR;BJ40,42,43,46..LHD

24V,AM

 1
86120 - RECEIVER ASSY, RADIO
86120-35025

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-60021

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86120-25020

BJ4#..EUR,GEN

24V,AM

 1
86120-60030

BJ4#..LHD

24V,AM

 1
86120-60041

BJ45..EUR;BJ40,42,43,46..LHD

24V,AM

 1
Common parts
90980-04011
93229-15008
93315-16016
93319-15008
