Toyota Land cruiser BJ45 FRONT FLOOR PANEL & FRONT FLOOR MEMBER

Manufacturers Home
Toyota
EU
LAND CRUISER
BJ45LP-KW (1980)
5851 - FRONT FLOOR PANEL & FRONT FLOOR MEMBER

BJ45LP-KW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984

Engine 3B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8210) ; (8210- )

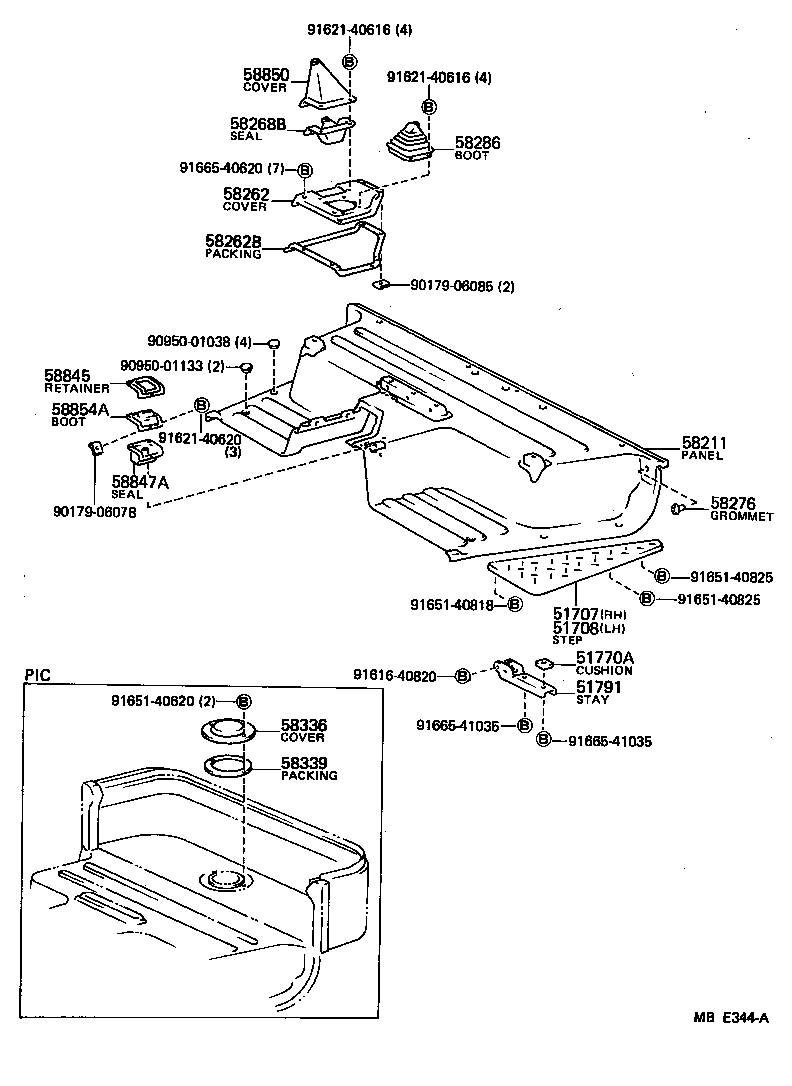

Click highlighted areas on diagram

(8210- )VENEZUELA SPEC

Part #	Description	Period	Qty
51707 - STEP SUB-ASSY, RH
51707-90304	BJ4#,FJ4#,HJ47 *GIS	08/1980 - 04/1986	1
51708 - STEP SUB-ASSY, LH
51708-90304	BJ4#,FJ4#,HJ47 *GIS	08/1980 - 04/1986	1
51770A - CUSHION(FOR STEP)
52232-90300	BJ4#,FJ4#,HJ47	08/1980 - 04/1986	2
51791 - STAY, STEP
51701-90300	BJ4#,FJ4#,HJ47	08/1980 - 04/1986	2
58211 - PANEL, FRONT FLOOR
58101-90808	BJ45..LHD..GEN;BJ45..PIC..EUR W/SLIDING SEAT	08/1980 - 10/1982	1
58101-90863	BJ45..LHD BENCH SEAT,W/O *MW	10/1982 - 11/1983	1
58101-90865	BJ45..LHD..GEN;BJ45..PIC..EUR BENCH SEAT,W/*MW	10/1982 - 11/1983	1
58101-90475	FJ45,HJ47..LHD;BJ45..LHD..GEN;BJ45..PIC..EUR BENCH SEAT,W/*MW	11/1983 - 10/1984	1
58101-90474	BJ45,FJ45,HJ47..LHD BENCH SEAT,W/O *MW	11/1983 - 10/1984	1
58262 - COVER, TRANSMISSION
58262-90084	BJ4#,FJ4#,HJ47..4F	08/1980 - 10/1982	1
58262-90086	BJ4#,FJ4#,HJ47..4F W/MECHANICAL WINCH	08/1980 - 10/1982	1
58262B - PACKING, TRANSMISSION COVER
58263-90300	BJ4#,FJ4#,HJ47	08/1980 - 10/1982	1
58280 - DUST PROOF ASSY, TRANSFER CONTROL LEVER
58280-90305	BJ4#,FJ4#,HJ47	08/1980 - 10/1982	1
58283 - COVER, FRONT DRIVE DUST
58288-90300	BJ4#,FJ4#,HJ47	08/1980 - 10/1982	1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58273-90300	BJ4#,FJ4#,HJ47..4F	08/1980 - 10/1982	1
58287 - RETAINER, SHIFT LEVER BOOT
58274-90300	BJ4#,FJ4#,HJ47..4F	08/1980 - 10/1982	1
58336 - COVER, INSPECTION HOLE
58372-90301	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
58339 - PACKING, INSPECTION HOLE
58373-90301	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
Common parts
90179-06085
90950-01006
90950-01038
90950-01110
90950-01133
91616-40820
91621-40616
91651-40612
91651-40620
91651-40818
91651-40825
91655-40825
91665-40620
91665-41035
Linked diagrams
3605

(8210- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
51707 - STEP SUB-ASSY, RH
51707-90304	BJ4#,FJ4#,HJ47 *GIS	08/1980 - 04/1986	1
51708 - STEP SUB-ASSY, LH
51708-90304	BJ4#,FJ4#,HJ47 *GIS	08/1980 - 04/1986	1
51770A - CUSHION(FOR STEP)
52232-90300	BJ4#,FJ4#,HJ47	08/1980 - 04/1986	2
51791 - STAY, STEP
51701-90300	BJ4#,FJ4#,HJ47	08/1980 - 04/1986	2
58211 - PANEL, FRONT FLOOR
58101-90808	BJ45..LHD..GEN;BJ45..PIC..EUR W/SLIDING SEAT	08/1980 - 10/1982	1
58101-90863	BJ45..LHD BENCH SEAT,W/O *MW	10/1982 - 11/1983	1
58101-90865	BJ45..LHD..GEN;BJ45..PIC..EUR BENCH SEAT,W/*MW	10/1982 - 11/1983	1
58101-90475	FJ45,HJ47..LHD;BJ45..LHD..GEN;BJ45..PIC..EUR BENCH SEAT,W/*MW	11/1983 - 10/1984	1
58101-90474	BJ45,FJ45,HJ47..LHD BENCH SEAT,W/O *MW	11/1983 - 10/1984	1
58262 - COVER, TRANSMISSION
58262-90084	BJ4#,FJ4#,HJ47..4F	08/1980 - 10/1982	1
58262-90086	BJ4#,FJ4#,HJ47..4F W/MECHANICAL WINCH	08/1980 - 10/1982	1
58262B - PACKING, TRANSMISSION COVER
58263-90300	BJ4#,FJ4#,HJ47	08/1980 - 10/1982	1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58273-90300	BJ4#,FJ4#,HJ47..4F	08/1980 - 10/1982	1
58336 - COVER, INSPECTION HOLE
58372-90301	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
58339 - PACKING, INSPECTION HOLE
58373-90301	BJ45,FJ45,HJ47..PIC	08/1980 - 04/1986	1
Common parts
90179-06078
90179-06085
90950-01038
90950-01133
91616-40820
91621-40616
91621-40620
91651-40620
91651-40818
91651-40825
91665-40620
91665-41035

BJ45LP-KW (1980)

(8008-8210) ; (8210- )

(8210- )
