BJ45LP-K3 (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )BJ40,42,FJ40,45..V

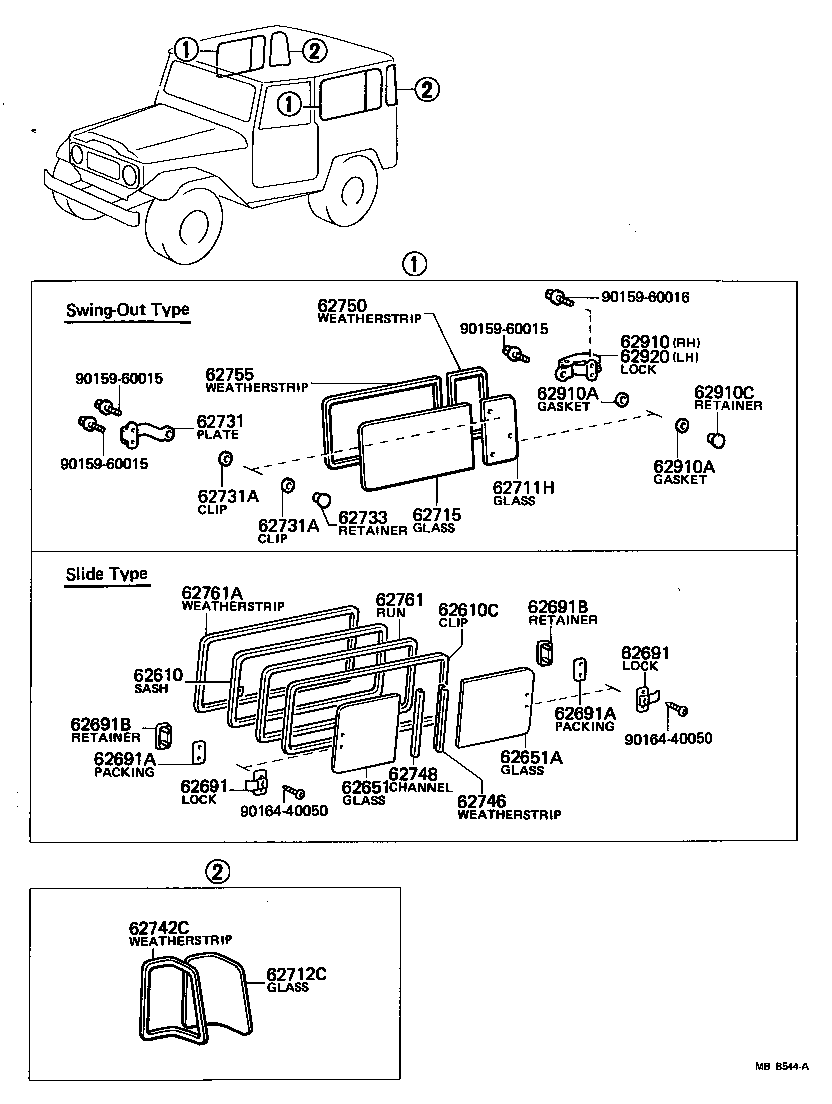

Click highlighted areas on diagram

diagram 62610 62610C 62651 62651A 62691 62691 62691A 62691A 62691B 62691B 62711H 62712C 62715 62731 62731A 62731A 62733 62742C 62746 62748 62750 62755 62761 62761A 62910 62910A 62910A 62910C 62920 9015960015 9015960015 9015960015 9015960016 9016440050 9016440050
Part # Description Qty Price
62711H - GLASS, SIDE WINDOW, NO.1(FOR HINGE TYPE)
62714-90301

BJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN)

*TT,T=4.0

 2
62714-90300

BJ40,42,45,FJ40,45,HJ47..V

*TEM,T=4.0

 2
62712C - GLASS, SIDE WINDOW CORNER
62712-90300

BJ40,42,45,FJ40,45,HJ47..V

RH,*TEM,T=5.0

 1
62713-90301

BJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN)

LH,*TT,T=5.0

 1
62712-90301

BJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN)

RH,*TT,T=5.0

 1
62713-90300

BJ40,42,45,FJ40,45,HJ47..V

LH,*TEM,T=5.0

 1
62715 - GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)
62711-90303

BJ40,42,45,FJ40,45,HJ47..V

*TEM,T=4.0

 2
62711-90304

BJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN)

*TT,T=4.0

 2
62742C - WEATHERSTRIP, SIDE WINDOW CORNER
62742-90300

BJ40,42,45,FJ40,45,HJ47..V

 2
62750 - WEATHERSTRIP, SIDE WINDOW, NO.1(FOR HINGE TYPE)
62744-90300

BJ40,42,45,FJ40,45,HJ47..V..(3F,4F)

RH

 1
62798-90800

BJ40,42,45,FJ40,45,HJ47..V..(3F,4F)

LH

 1
62744-90300

BJ40,42,45,FJ40,45,HJ47..V..(3F,4F)

 2
62755 - WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)
62741-90303

BJ40,42,45,FJ40,45,HJ47..V

 2
Common parts
90159-60015
90159-60016
90164-40050
