BJ45LP-K3 (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)B,3B

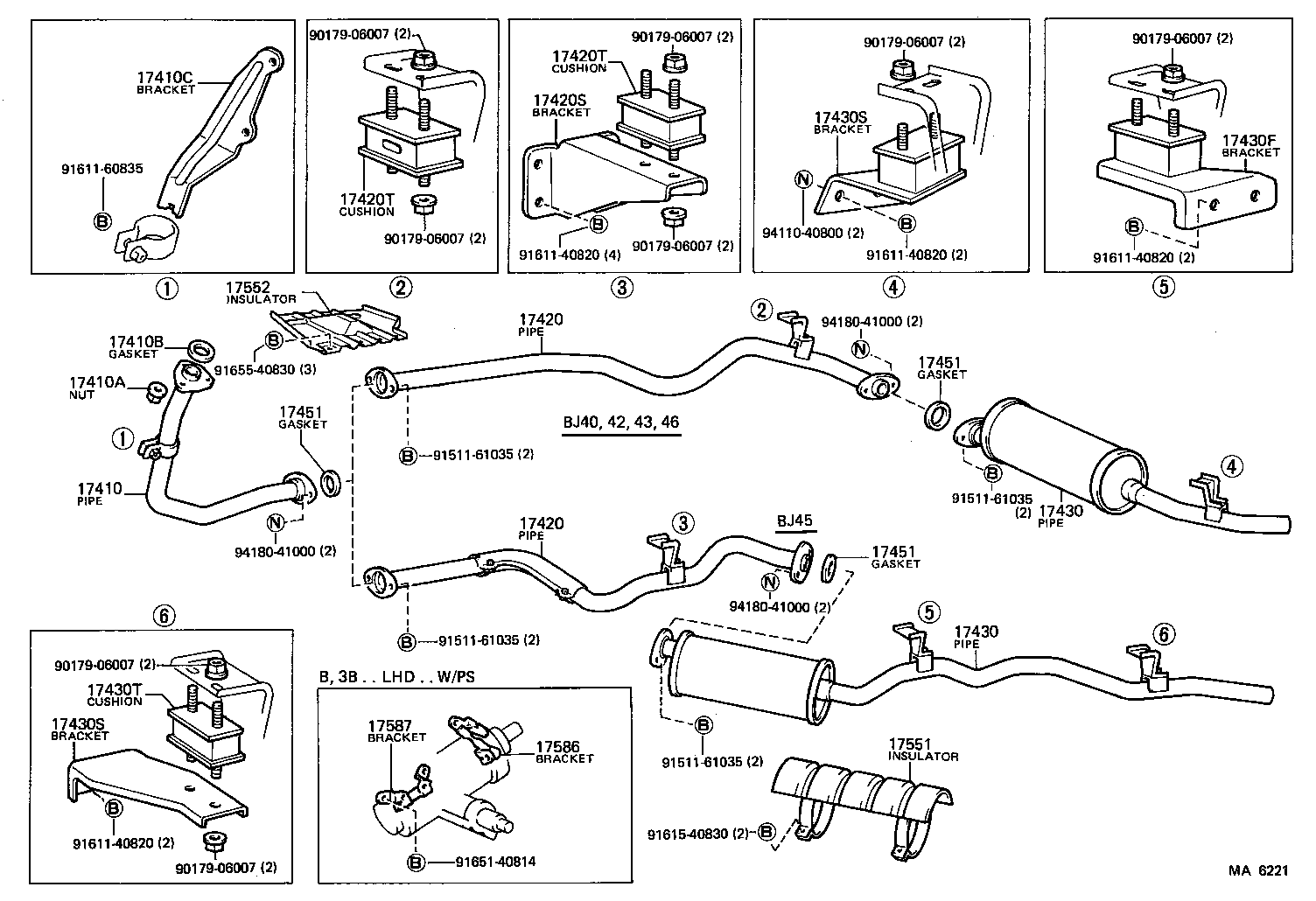

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420 17420 17420F 17420F 17420G 17420G 17420S 17420T 17420T 17430 17430 17430F 17430S 17430S 17430T 17451 17451 17451 17551 17551 17552 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9151161035 9151161035 9151161035 9151161035 9151161035 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161160835 9161540830 9161540830 9165540830 9411040800 9411040800 9418041000 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-56100

B,3B..BJ4#..ARL,GEN

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

B,3B..BJ4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56060

B,3B..BJ4#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56110

3B..BJ45

 1
17420-56111

3B..BJ45

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56110

3B..BJ45

 1
17420-56111

3B..BJ45

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56110

3B..BJ45

 1
17420-56111

3B..BJ45

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17572-60050

3B..BJ45

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-61030

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-61030

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56320

3B..BJ45

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56320

3B..BJ45

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17508-61020

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61040

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61040

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

3B,2F,2H..BJ45,FJ45,HJ47

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

B,3B..BJ4#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

B,3B..BJ4#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

B,3B..BJ4#

 2
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-61010

3B..BJ46..EUR;3B,2F,2H..BJ45,FJ43,45,HJ47

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-61010

3B..BJ46..EUR;3B,2F,2H..BJ45,FJ43,45,HJ47

 1
Common parts
90179-06007
91511-61035
91611-40820
91611-60835
91615-40830
91655-40830
94110-40800
94180-41000

(8210-8410)B,3B

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420 17420S 17420T 17420T 17430 17430 17430F 17430S 17430S 17430T 17451 17451 17451 17551 17552 17586 17587 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9151161035 9151161035 9151161035 9151161035 9161140820 9161140820 9161140820 9161140820 9161160835 9161540830 9165140814 9165540830 9411040800 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-56100

B,3B..BJ4#..ARL,GEN

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

B,3B..BJ4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56060

B,3B..BJ4#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56110

3B..BJ45

 1
17420-56111

3B..BJ45

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56110

3B..BJ45

 1
17420-56111

3B..BJ45

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17572-60050

3B..BJ45

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-61030

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-61030

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56320

3B..BJ45

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56320

3B..BJ45

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17508-61020

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61040

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61040

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

3B,2F,2H..BJ45,FJ45,HJ47

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

B,3B..BJ4#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

B,3B..BJ4#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

B,3B..BJ4#

 2
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-61010

3B..BJ46..EUR;3B,2F,2H..BJ45,FJ43,45,HJ47

 1
17586 - BRACKET, HEAT INSULATOR, NO.1
17586-61030

B,3B..BJ4#..LHD

W/POWER STEERING

 1
17587 - BRACKET, HEAT INSULATOR, NO.2
17587-61020

B,3B..BJ4#..LHD

W/POWER STEERING

 1
Common parts
90179-06007
91511-61035
91611-40820
91611-60835
91615-40830
91651-40814
91655-40830
94110-40800
94180-41000
