BJ45LP-K (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )PIC

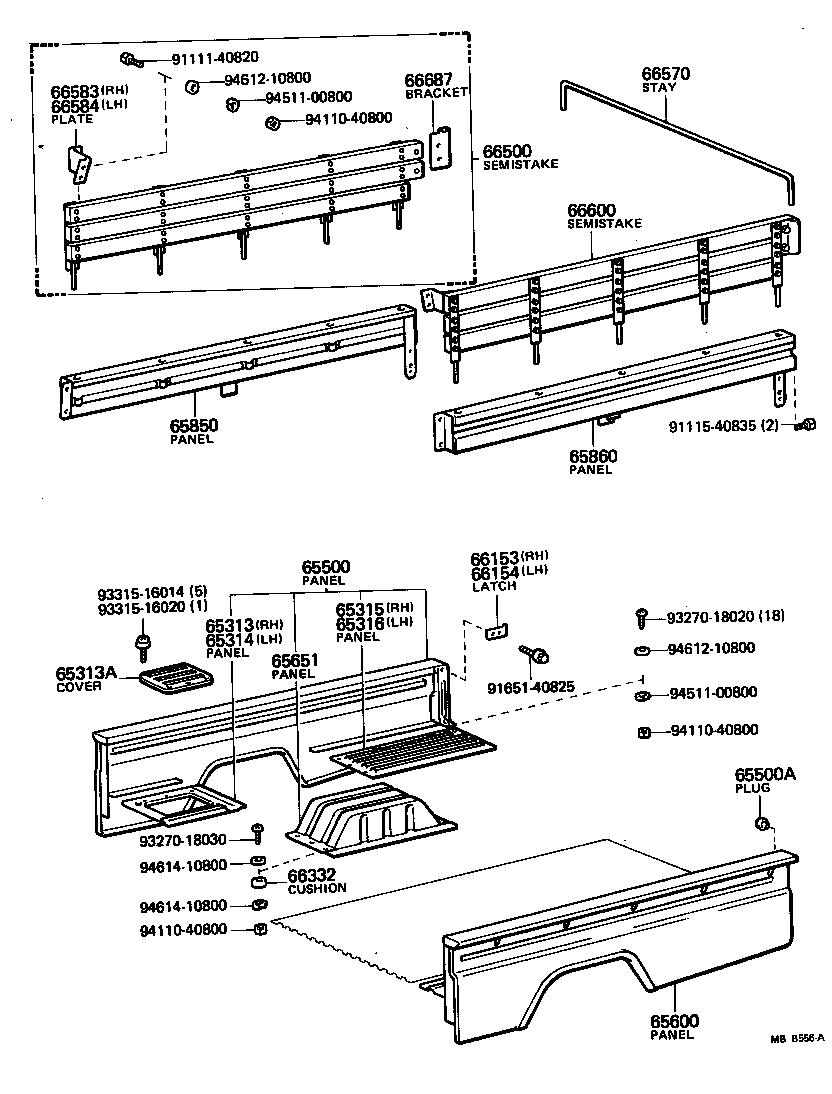

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65313 - PANEL, FLOOR FRONT CORNER, RH | ||||
| 65301-95011 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 65313A - COVER, FRONT FLOOR CORNER PANEL | ||||
| 65323-90300 |
BJ45,FJ45,HJ47..PIC |
2 | ||
| 65314 - PANEL, FLOOR FRONT CORNER, LH | ||||
| 65302-95010 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 65315 - PANEL, FLOOR REAR CORNER, RH | ||||
| 65315-95011 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 65316 - PANEL, FLOOR REAR CORNER, LH | ||||
| 65316-95011 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-95018 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 65500A - PLUG, HOLE(FOR REAR BODY SIDE PANEL) | ||||
| 90950-01072 |
BJ45,FJ45,HJ47..PIC LWR |
2 | ||
| 90950-01280 |
BJ45,FJ45,HJ47..PIC |
4 | ||
| 90950-01280 |
BJ45,FJ45,HJ47..PIC UPR |
2 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-95018 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 65651 - PANEL, WHEEL HOUSE | ||||
| 65651-95010 |
BJ45,FJ45,HJ47..PIC |
2 | ||
| 65850 - PANEL ASSY, REAR BODY SIDE, UPPER RH | ||||
| 65850-95010 |
BJ45,FJ45,HJ47..PIC..GEN |
1 | ||
| 65860 - PANEL ASSY, REAR BODY SIDE, UPPER LH | ||||
| 65860-95010 |
BJ45,FJ45,HJ47..PIC..GEN |
1 | ||
| 66153 - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-95010 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66153-95010 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 66332 - CUSHION, RUBBER | ||||
| 90540-09060 |
BJ45,FJ45,HJ47..PIC |
4 | ||
| 66500 - SEMISTAKE ASSY, SIDE, RH | ||||
| 66052-95010 |
BJ45,FJ45,HJ47..PIC..GEN |
1 | ||
| 66570 - STAY ASSY, STAKE, RH | ||||
| 65811-95011 |
BJ45,FJ45,HJ47..PIC..GEN |
1 | ||
| 66583 - PLATE, SIDE STAKE SETTING FRONT, RH | ||||
| 66583-95010 |
BJ45,FJ45,HJ47..PIC..GEN |
1 | ||
| 66584 - PLATE, SIDE STAKE SETTING FRONT, LH | ||||
| 66584-95010 |
BJ45,FJ45,HJ47..PIC..GEN |
1 | ||
| 66600 - SEMISTAKE ASSY, SIDE, LH | ||||
| 66053-95010 |
BJ45,FJ45,HJ47..PIC..GEN |
1 | ||
| 66687 - BRACKET, SAFETY STRAP | ||||
| 66687-95010 |
BJ45,FJ45,HJ47..PIC..GEN |
2 | ||
| Common parts | ||||
| 91111-40820 | ||||
| 91115-40835 | ||||
| 91651-40825 | ||||
| 93270-18020 | ||||
| 93270-18030 | ||||
| 93315-16014 | ||||
| 93315-16020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
| 94614-10800 | ||||
