BJ45LP-K (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8410)BJ4#

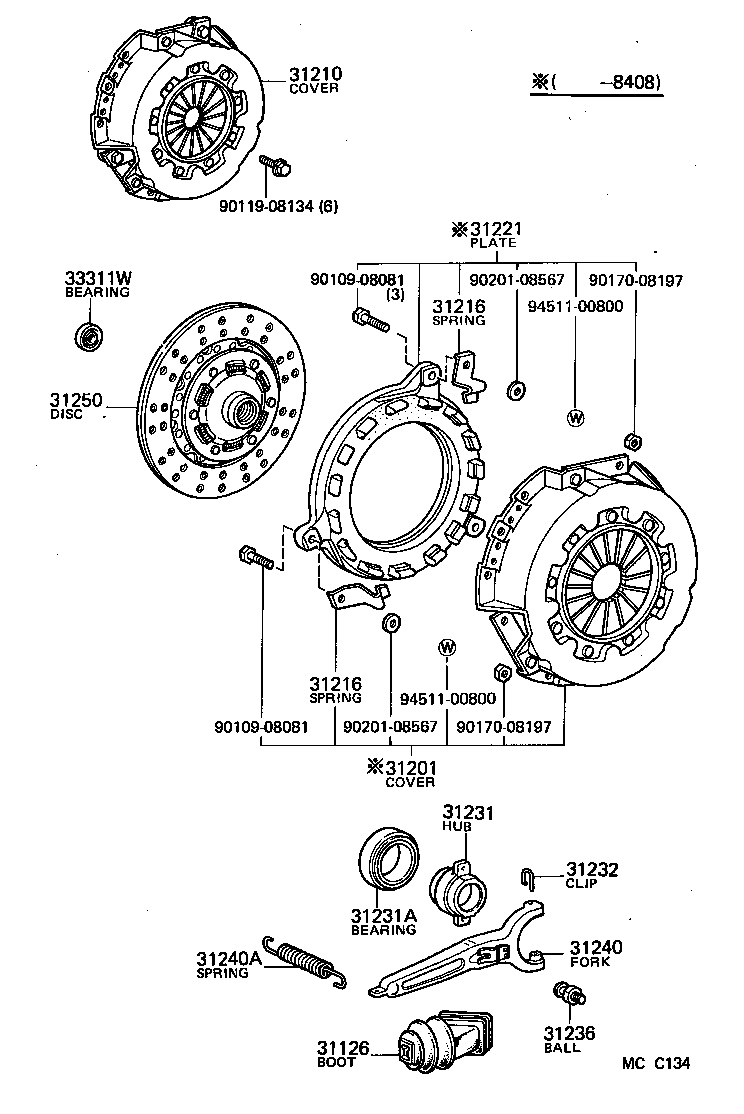

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-36030 |
BJ4# |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39115 |
BJ42,45,46 |
1 | ||
| 31201-39097 |
BJ4# |
1 | ||
| 31201-39115 |
BJ42..LHD..GEN;BJ45..VKC..GEN;BJ45..LHD..PIC..GEN |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-36072 |
BJ4# |
1 | ||
| 31210-36090 |
BJ42,45,46 |
1 | ||
| 31210-36090 |
BJ42..LHD..GEN;BJ45..VKC..GEN;BJ45..LHD..PIC..GEN |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-36010 |
BJ4# |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-36010 |
BJ4# |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39085 |
BJ4# |
1 | ||
| 31221-39125 |
BJ42,45,46 |
1 | ||
| 31221-39125 |
BJ42..LHD..GEN;BJ45..VKC..GEN;BJ45..LHD..PIC..GEN |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-60060 |
BJ4# |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-45002 |
BJ4# |
1 | ||
| 90363-45001 |
BJ4# |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-60020 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-36010 |
BJ4# |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-60050 |
BJ4# |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16297 |
BJ4# |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-36113 |
BJ4# |
1 | ||
| 31250-60090 |
BJ4# |
1 | ||
| 31250-60040 |
BJ4# |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
BJ4# |
1 | ||
| Common parts | ||||
| 90109-08081 | ||||
| 90119-08134 | ||||
| 90170-08197 | ||||
| 90201-08567 | ||||
| 94511-00800 | ||||
