BJ43R-KJ (1975)
Toyota Land Cruiser

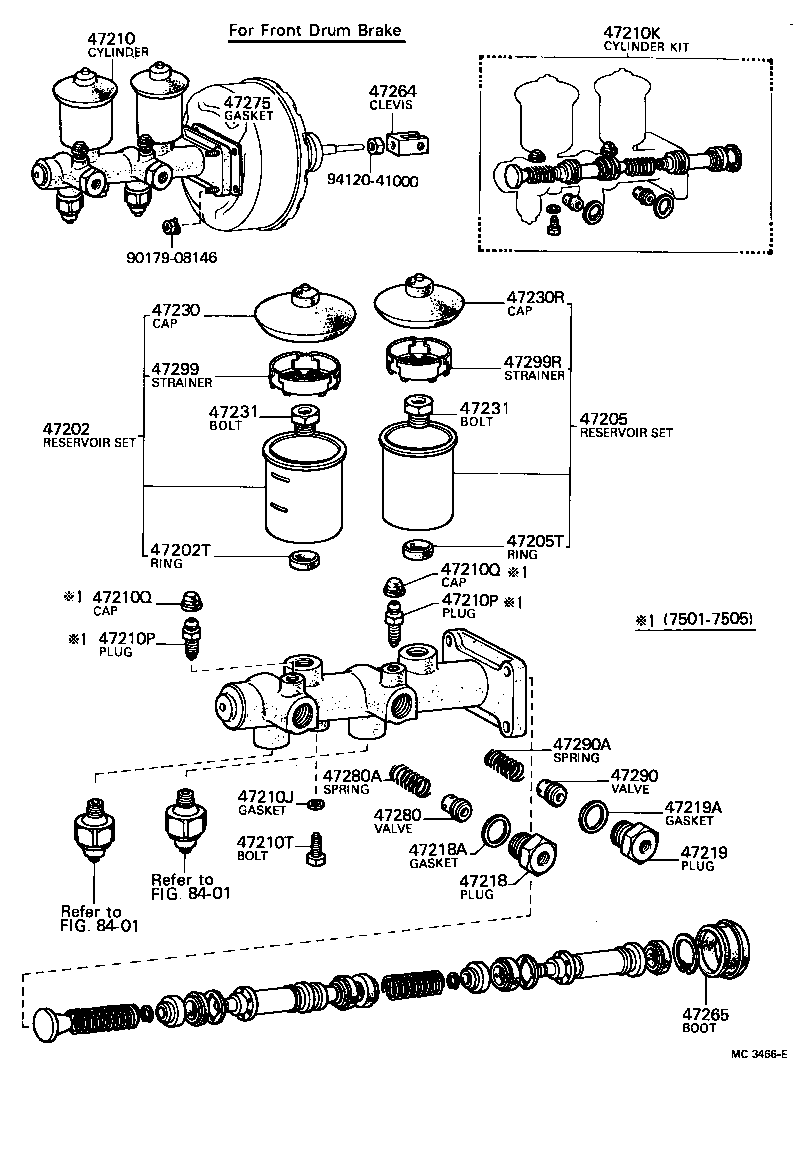

(7501-7904)BJ4#,FJ40,43,55 ; (7904-8007)BJ4#,FJ40,43,55..EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-60010 |
BJ4#,FJ4#,55,HJ45 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47202-20010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47202-60010 |
FJ40,43..RHD;FJ40,43..EUR FOR TANDEM MASTER CYLINDER |
1 | ||
| 47202-60010 |
BJ4#,FJ45,55,HJ45..EUR,GEN FOR TANDEM MASTER CYLINDER |
1 | ||
| 47202-60010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR TANDEM MASTER CYLINDER |
1 | ||
| 47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) | ||||
| 90562-18151 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
1 | ||
| 90562-18151 |
BJ4#,FJ45,55,HJ45..EUR,GEN |
1 | ||
| 90562-18151 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90562-18151 |
FJ40,43..RHD;FJ40,43..EUR |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-60020 |
BJ4#,FJ40,43,55..EUR,GEN |
1 | ||
| 47202-60020 |
BJ4#,FJ40,43,55 |
1 | ||
| 47202-60020 |
BJ4#,FJ55..EUR,GEN |
1 | ||
| 47202-60020 |
FJ40,43..RHD;FJ40,43..EUR |
1 | ||
| 47205T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2) | ||||
| 90562-18151 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90562-18151 |
FJ40,43..RHD;FJ40,43..EUR |
1 | ||
| 90562-18151 |
BJ4#,FJ45,55,HJ45..EUR,GEN |
1 | ||
| 90562-18151 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-60050 |
BJ4#,FJ4#,55,HJ45..EUR,GEN SINGLE MASTER CYLINDER |
1 | ||
| 47201-60031 |
BJ4#,FJ40,43,55..EUR,GEN FOR FRONT DRUM BRAKE |
1 | ||
| 47201-60030 |
BJ4#,FJ40,43,55 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04471-35014 |
BJ4#,FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
1 | ||
| 04493-60020 |
BJ4#,FJ40,43,55 FOR TANDEM M/C,FR.DRUM BRAKE |
1 | ||
| 04471-60010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER) | ||||
| 47547-40010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER) | ||||
| 47547-40010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER) | ||||
| 47548-60010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER) | ||||
| 47548-60010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06011 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90109-06008 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20030 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
1 | ||
| 47230-20030 |
BJ4#,FJ45,55,HJ45..EUR,GEN |
1 | ||
| 47230-12011 |
BJ4#,FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47230-20030 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 47230-20030 |
FJ40,43..RHD;FJ40,43..EUR |
1 | ||
| 47230-12011 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
BJ4#,FJ40,43,55..EUR,GEN |
1 | ||
| 47230-20040 |
FJ40,43..RHD;FJ40,43..EUR |
1 | ||
| 47230-20040 |
BJ4#,FJ40,43,55 |
1 | ||
| 47230-20040 |
BJ4#,FJ55..EUR,GEN |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
2 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-35010 |
BJ4#,FJ4#,55,HJ45 FOR FRONT DRUM BRAKE |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-35011 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 47265-35020 |
BJ4#,FJ40,43,55 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47265-35011 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47265-35030 |
BJ4#,FJ40,43,55 FOR FRONT DRUM BRAKE |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-55010 |
BJ4#,FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47280-25010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47280-35010 |
BJ4#,FJ4#,55,HJ45 FOR TANDEM FRONT DRUM BRAKE |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-35010 |
BJ4#,FJ4#,55,HJ45 FOR FRONT DRUM BRAKE |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22020 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR TANDEM MASTER CYLINDER |
1 | ||
| 47299-22020 |
FJ40,43..RHD;FJ40,43..EUR FOR TANDEM MASTER CYLINDER |
1 | ||
| 47299-22020 |
BJ4#,FJ45,55,HJ45..EUR,GEN FOR TANDEM MASTER CYLINDER |
1 | ||
| 47299-22010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-22010 |
BJ4#,FJ40,43,55..EUR,GEN |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

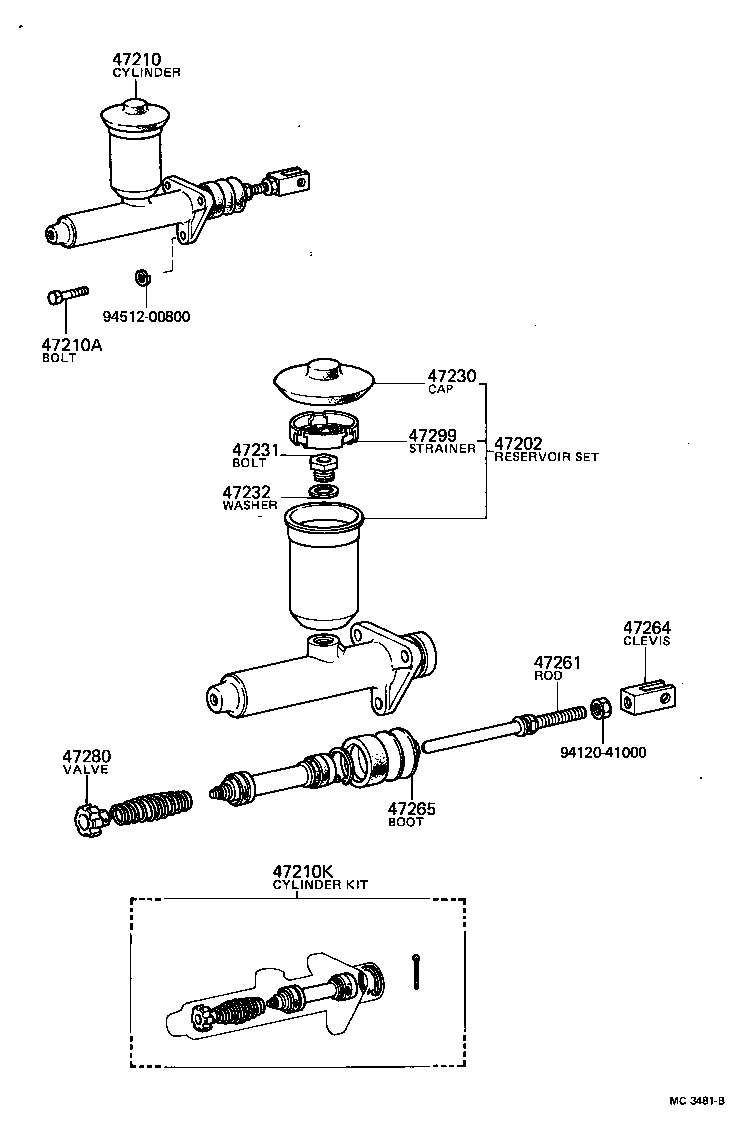

(7501-7608)ARL,GEN ; (7501-7608)EUR..IV ; (7608-7709)BJ40,FJ40..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-60010 |
BJ4#,FJ4#,55,HJ45 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47202-20010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47202-60010 |
FJ40,43..RHD;FJ40,43..EUR FOR TANDEM MASTER CYLINDER |
1 | ||
| 47202-60010 |
BJ4#,FJ45,55,HJ45..EUR,GEN FOR TANDEM MASTER CYLINDER |
1 | ||
| 47202-60010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR TANDEM MASTER CYLINDER |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-60050 |
BJ4#,FJ4#,55,HJ45..EUR,GEN SINGLE MASTER CYLINDER |
1 | ||
| 47201-60031 |
BJ4#,FJ40,43,55..EUR,GEN FOR FRONT DRUM BRAKE |
1 | ||
| 47201-60030 |
BJ4#,FJ40,43,55 |
1 | ||
| 47210A - BOLT OR STUD BOLT(FOR BRAKE MASTER CYLINDER SETTING) | ||||
| 91111-40825 |
BJ4#,FJ4#,55,HJ45 |
3 | ||
| 91111-40825 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
3 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04471-35014 |
BJ4#,FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
1 | ||
| 04493-60020 |
BJ4#,FJ40,43,55 FOR TANDEM M/C,FR.DRUM BRAKE |
1 | ||
| 04471-60010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20030 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
1 | ||
| 47230-20030 |
BJ4#,FJ45,55,HJ45..EUR,GEN |
1 | ||
| 47230-12011 |
BJ4#,FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47230-20030 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 47230-20030 |
FJ40,43..RHD;FJ40,43..EUR |
1 | ||
| 47230-12011 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
2 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 47261-35020 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 47261-35020 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-35010 |
BJ4#,FJ4#,55,HJ45 FOR FRONT DRUM BRAKE |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-35011 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 47265-35020 |
BJ4#,FJ40,43,55 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47265-35011 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47265-35030 |
BJ4#,FJ40,43,55 FOR FRONT DRUM BRAKE |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-55010 |
BJ4#,FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47280-25010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 47280-35010 |
BJ4#,FJ4#,55,HJ45 FOR TANDEM FRONT DRUM BRAKE |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22020 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR TANDEM MASTER CYLINDER |
1 | ||
| 47299-22020 |
FJ40,43..RHD;FJ40,43..EUR FOR TANDEM MASTER CYLINDER |
1 | ||
| 47299-22020 |
BJ4#,FJ45,55,HJ45..EUR,GEN FOR TANDEM MASTER CYLINDER |
1 | ||
| 47299-22010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| Common parts | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
