BJ43R-KCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 2206 2206 2206 22101 22102 22103 22104 22105 22106 22107 22114 22115 22116 22131 22142 22143 22144 22145 22146 22146A 22146A 22147 22147 22148 22149 22155 22156 22157 22161 22161 22173 22174 22174A 22177 22181 22182 22195 22611 2261877020 9009900894 9009900928 9009901451 9009901451 9009918010 9040110006 9161140814 9471277121 9471277121
Part # Description Qty Price
Common parts
22618-77020
90099-00894
90099-00928
90099-01451
90099-18010
90401-10006
91611-40814
94712-77121
Linked diagrams
2206

(7709-8007)B

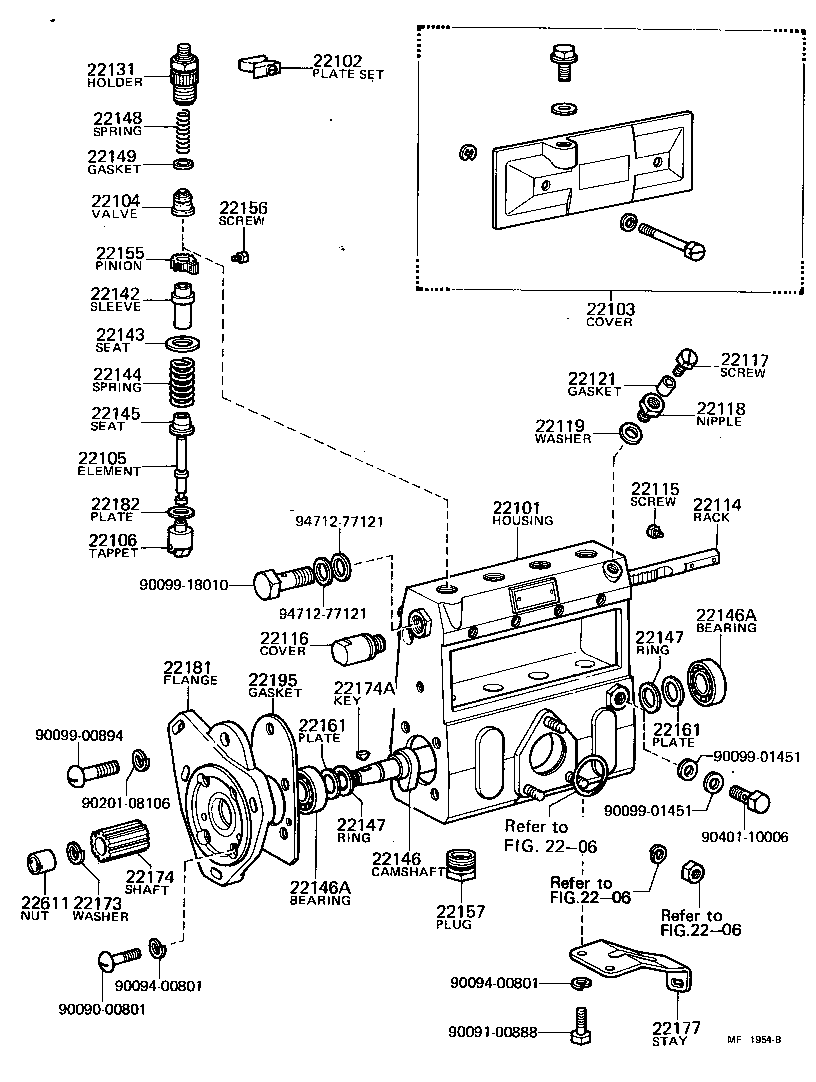

Click highlighted areas on diagram

diagram 2206 2206 2206 22101 22102 22103 22104 22105 22106 22114 22115 22116 22117 22118 22119 22121 22131 22142 22143 22144 22145 22146 22146A 22146A 22147 22147 22148 22149 22155 22156 22157 22161 22161 22173 22174 22174A 22177 22181 22182 22195 22611 9009000801 9009100888 9009400801 9009400801 9009900894 9009901451 9009901451 9009918010 9020108106 9040110006 9471277121 9471277121
Part # Description Qty Price
22101 - HOUSING SUB-ASSY, INJECTION PUMP
22190-56041

B..BJ4#

 1
22102 - PLATE SET, VALVE HOLDER LOCK
22102-77021

B..BJ4#

 3
22103 - COVER SUB-ASSY, INJECTION PUMP
22103-48030

B..BJ4#

 1
22105 - ELEMENT SUB-ASSY, INJECTION PUMP
22105-56040

B..BJ4#

 4
22114 - RACK, CONTROL
22114-48030

B..BJ4#

 1
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

B..BJ4#

 2
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

B..BJ4#

 2
22157 - PLUG, INJECTION PUMP FELT PLATE
22157-48023

B..BJ4#

 6
22177 - STAY, INJECTION PUMP BODY
22177-56041

B..BJ4#

 1
22181 - FLANGE, INJECTION PUMP
22181-56040

B..BJ4#

 1
22182 - PLATE, TAPPET ADJUSTING SHIM
22186-48010

B..BJ4#

T=0.15,T=0.15

 1
22189-48032

B..BJ4#

T=1.00,T=1.0

 1
22189-48033

B..BJ4#

T=1.10,T=1.1

 1
22189-48031

B..BJ4#

T=0.90,T=0.9

 1
22189-48034

B..BJ4#

T=1.20,T=1.2

 1
22189-48036

B..BJ4#

T=1.40,T=1.4

 1
22189-48035

B..BJ4#

T=1.30,T=1.3

 1
22195 - GASKET, BEARING COVER
22195-48030

B..BJ4#

 1
Common parts
90090-00801
90091-00888
90094-00801
90099-00894
90099-01451
90099-18010
90201-08106
90401-10006
94712-77121
Linked diagrams
2206

(7709-8007)H

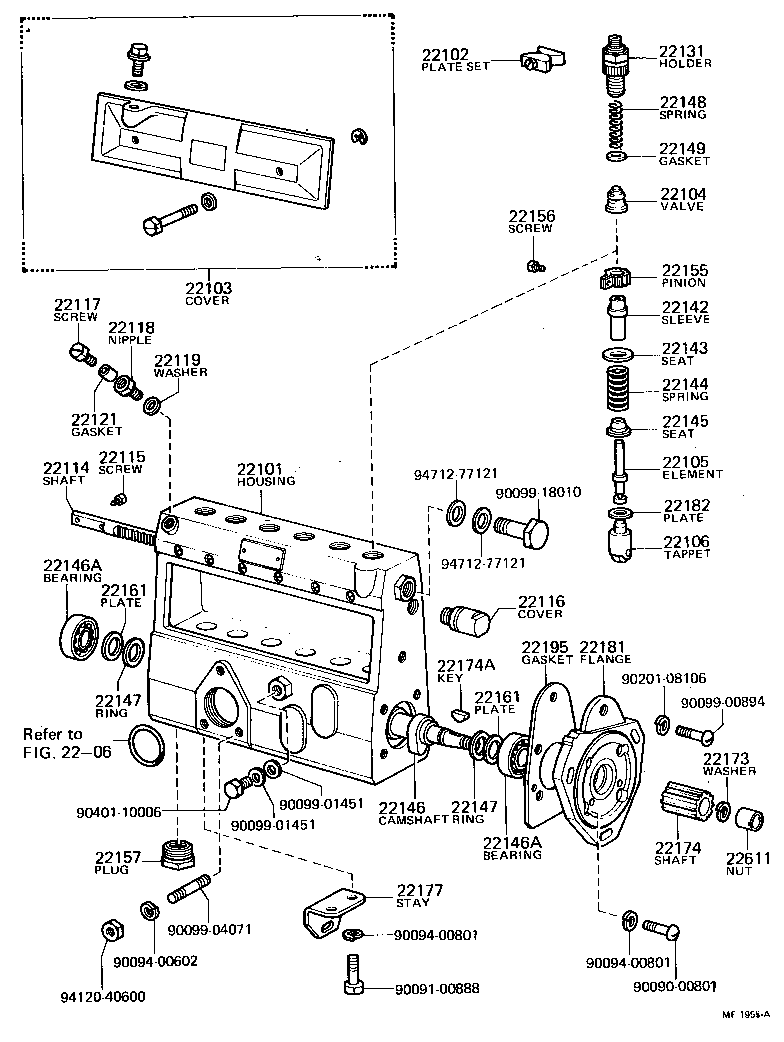

Click highlighted areas on diagram

diagram 2206 22101 22102 22103 22104 22105 22106 22114 22115 22116 22117 22118 22119 22121 22131 22142 22143 22144 22145 22146 22146A 22146A 22147 22147 22148 22149 22155 22156 22157 22161 22161 22173 22174 22174A 22177 22181 22182 22195 22611 9009000801 9009100888 9009400602 9009400801 9009400801 9009900894 9009901451 9009901451 9009904071 9009918010 9020108106 9040110006 9412040600 9471277121 9471277121
Part # Description Qty Price
22101 - HOUSING SUB-ASSY, INJECTION PUMP
22190-56041

B..BJ4#

 1
22102 - PLATE SET, VALVE HOLDER LOCK
22102-77021

B..BJ4#

 3
22103 - COVER SUB-ASSY, INJECTION PUMP
22103-48030

B..BJ4#

 1
22105 - ELEMENT SUB-ASSY, INJECTION PUMP
22105-56040

B..BJ4#

 4
22114 - RACK, CONTROL
22114-48030

B..BJ4#

 1
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

B..BJ4#

 2
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

B..BJ4#

 2
22157 - PLUG, INJECTION PUMP FELT PLATE
22157-48023

B..BJ4#

 6
22177 - STAY, INJECTION PUMP BODY
22177-56041

B..BJ4#

 1
22181 - FLANGE, INJECTION PUMP
22181-56040

B..BJ4#

 1
22182 - PLATE, TAPPET ADJUSTING SHIM
22186-48010

B..BJ4#

T=0.15,T=0.15

 1
22189-48032

B..BJ4#

T=1.00,T=1.0

 1
22189-48033

B..BJ4#

T=1.10,T=1.1

 1
22189-48031

B..BJ4#

T=0.90,T=0.9

 1
22189-48034

B..BJ4#

T=1.20,T=1.2

 1
22189-48036

B..BJ4#

T=1.40,T=1.4

 1
22189-48035

B..BJ4#

T=1.30,T=1.3

 1
22195 - GASKET, BEARING COVER
22195-48030

B..BJ4#

 1
Common parts
90090-00801
90091-00888
90094-00602
90094-00801
90099-00894
90099-01451
90099-04071
90099-18010
90201-08106
90401-10006
94120-40600
94712-77121
Linked diagrams
2206
