BJ43R-KCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

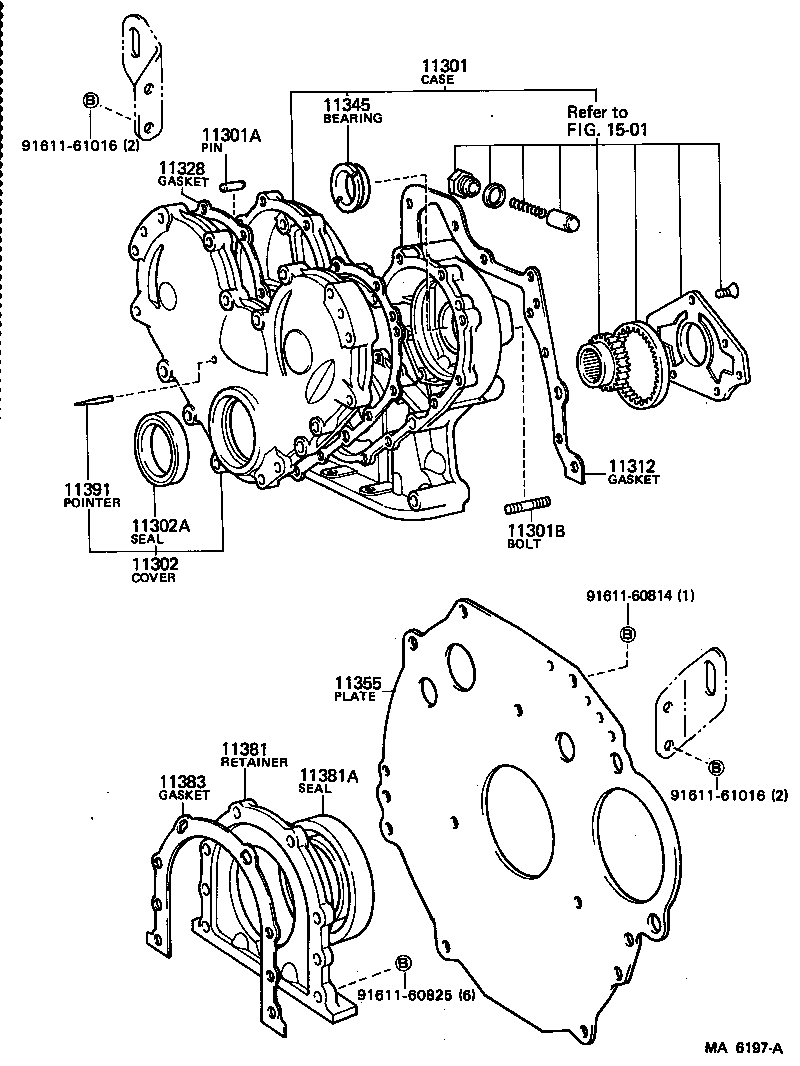

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 11391 1501 9161160814 9161160825 9161161016 9161161016
Part # Description Qty Price
Common parts
91611-60814
91611-60825
91611-61016
Linked diagrams
1501

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 9011908145 9011910073 9011910073 9161160825 9161160835 9161161060
Part # Description Qty Price
Common parts
90119-08145
90119-10073
91611-60825
91611-60835
91611-61060

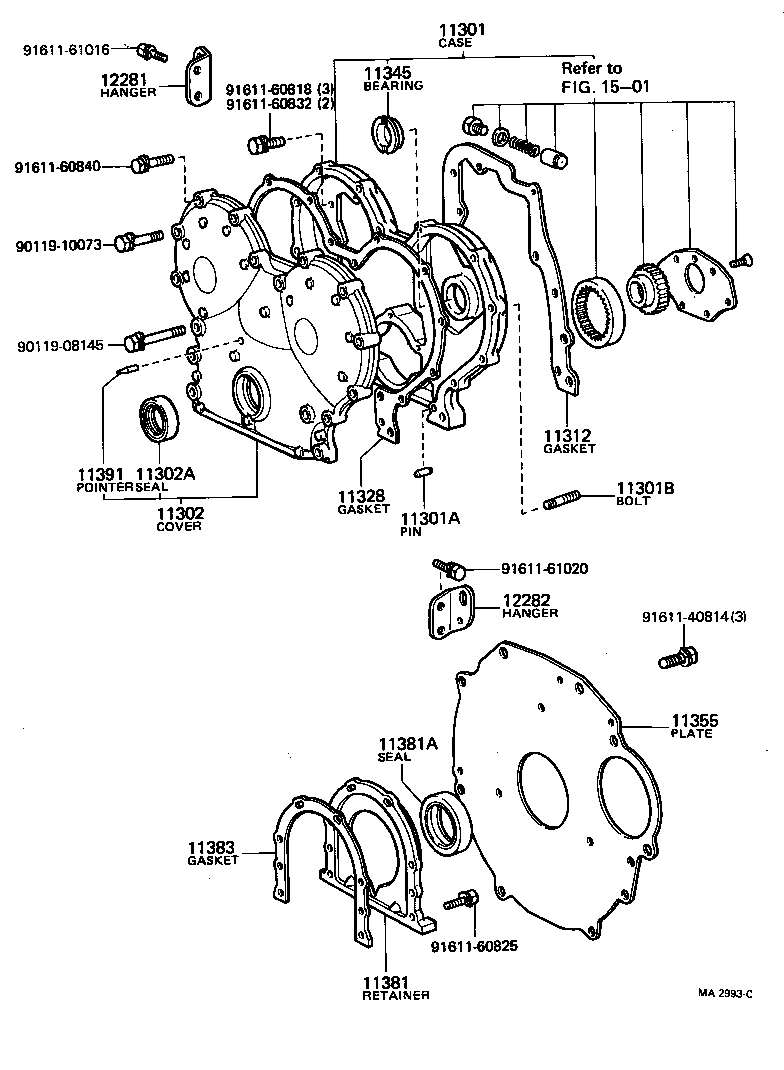

(7709-8007)B

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 11391 12281 12282 1501 9011908145 9011910073 9161140814 9161160818 9161160825 9161160832 9161160840 9161161016 9161161020
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-56020

B..BJ4#

 1
11301-56022

B..BJ4#

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B..BJ4#

L=18,OD=8,L=18,OD=8

 2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-56020

B..BJ4#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50002

B..BJ4#

 1
11312 - GASKET, FRONT END PLATE
11312-56020

B..BJ4#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-56020

B..BJ4#

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

B..BJ4#

 1
11355 - PLATE, REAR END
11355-56040

B..BJ4#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-56020

B..BJ4#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95001

B..BJ4#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56020

B..BJ4#

 1
11391 - POINTER, TIMING
11391-56020

B..BJ4#

 1
12281 - HANGER, ENGINE, NO.1
12281-56020

B..BJ4#

 1
12282 - HANGER, ENGINE, NO.2
12282-56020

B..BJ4#

 1
Common parts
90119-08145
90119-10073
91611-40814
91611-60818
91611-60825
91611-60832
91611-60840
91611-61016
91611-61020
Linked diagrams
1501

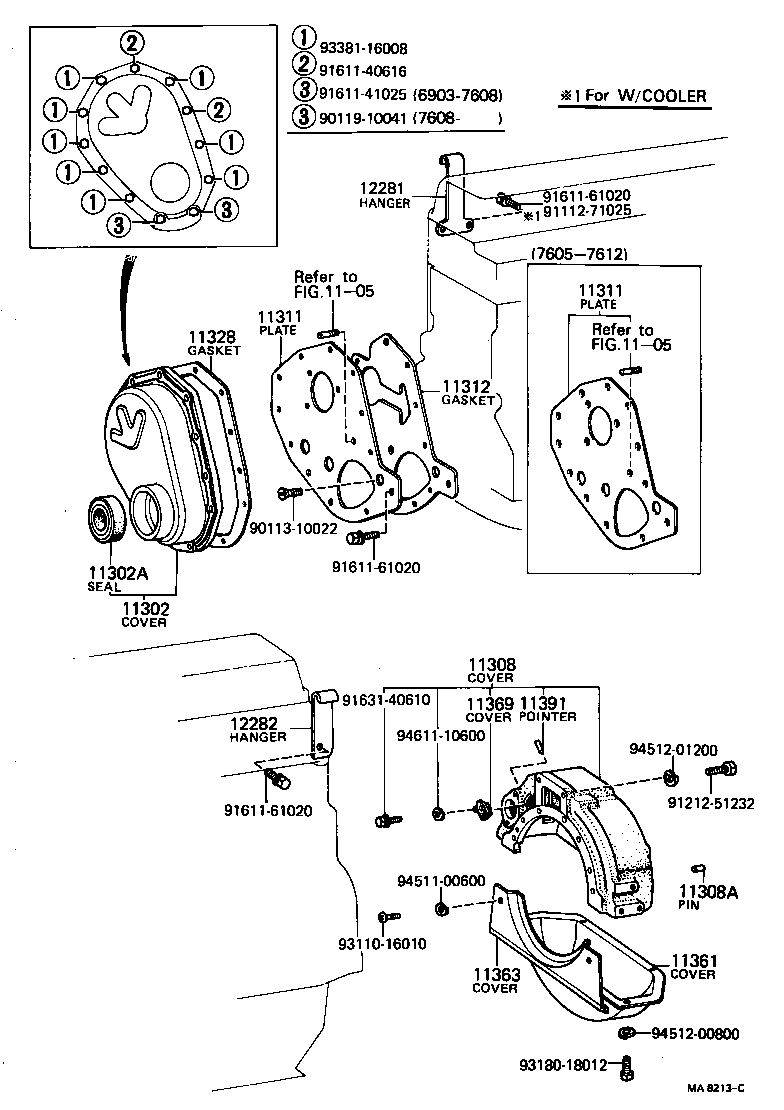

(6903-7605)F,2F ; (7605-8007)2F..3F

Click highlighted areas on diagram

diagram 1105 1105 11302 11302A 11308 11308A 11311 11311 11312 11328 11361 11363 11369 11391 12281 12282 9011310022 9011910041 9111271025 9121251232 9161140616 9161141025 9161161020 9161161020 9161161020 9163140610 9311016010 9318018012 9338116008 9451100600 9451200800 9451201200 9461110600
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-56020

B..BJ4#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50002

B..BJ4#

 1
11312 - GASKET, FRONT END PLATE
11312-56020

B..BJ4#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-56020

B..BJ4#

 1
11391 - POINTER, TIMING
11391-56020

B..BJ4#

 1
12281 - HANGER, ENGINE, NO.1
12281-56020

B..BJ4#

 1
12282 - HANGER, ENGINE, NO.2
12282-56020

B..BJ4#

 1
Common parts
90113-10022
90119-10041
91112-71025
91212-51232
91611-40616
91611-41025
91611-61020
91631-40610
93110-16010
93180-18012
93381-16008
94511-00600
94512-00800
94512-01200
94611-10600
Linked diagrams
1105
