Toyota Land cruiser BJ43 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
EU
LAND CRUISER
BJ43R-KC (1975)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

BJ43R-KC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8506)RHD

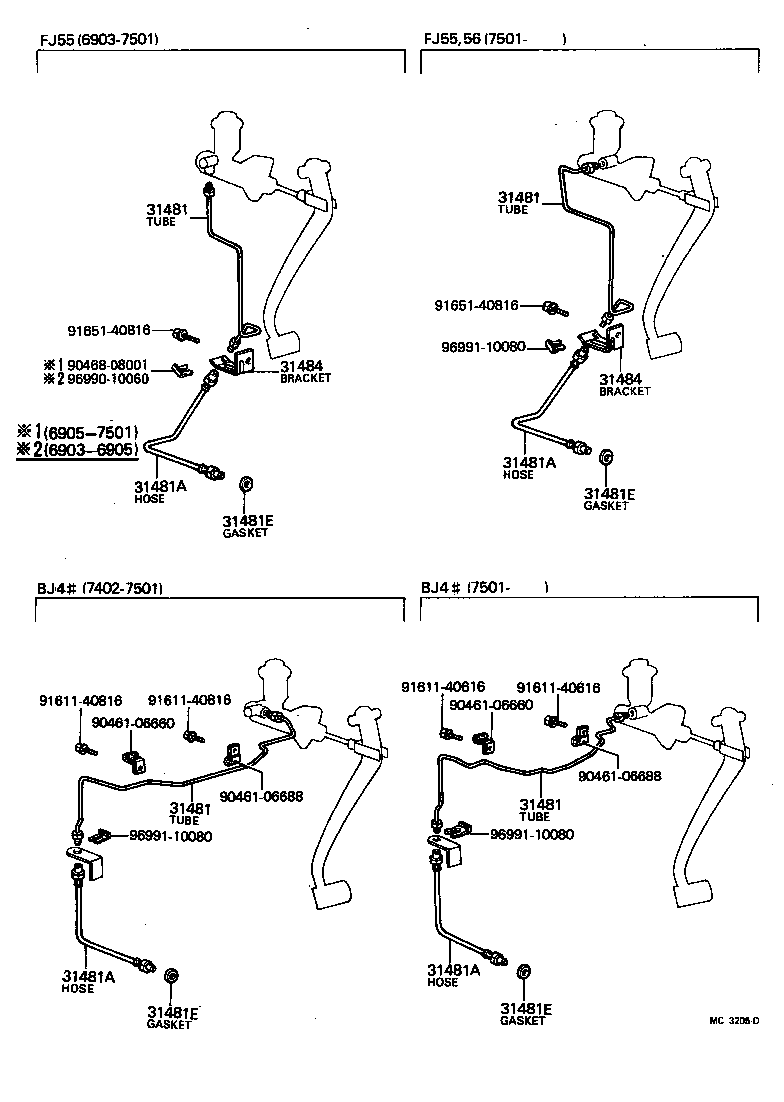

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-06660
90461-06688
91611-40616
96991-10080

(6903-8007)

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60020	BJ4#,FJ4#,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
31301-60061	BJ4#,FJ4#,55,HJ45..RHD	09/1977 - 01/1979	1
31301-60020	BJ4#,FJ4#,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 01/1975	1
31301-60062	BJ4#,FJ4#,55,HJ45..RHD	01/1979 - 07/1980	1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-12023	BJ4#,FJ4#,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 01/1975	1
90506-12023	BJ4#,FJ4#,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10085	BJ4#,FJ4#,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
90101-10085	BJ4#,FJ4#,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 01/1975	1
31321 - PAD, CLUTCH PEDAL
31321-61010	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
31321-36010	BJ4#,FJ4#,55,HJ45	01/1979 - 07/1980	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-10048	BJ4#,FJ4#,55,HJ45	04/1975 - 08/1976	1
90249-10048	FJ55..LHD;BJ4#,FJ4#,HJ45	08/1976 - 07/1980	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-10048	BJ4#,FJ4#,55,HJ45	04/1975 - 08/1976	1
90249-10048	FJ55..LHD;BJ4#,FJ4#,HJ45	08/1976 - 07/1980	1
Common parts
94120-40800
94512-01000
95381-03020

(6903-8007)FJ40,43,45..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60021	FJ40,43,45..RHD FOR SINGLE MASTER CYLINDER	03/1969 - 07/1970	1
31481-60141	BJ4#..RHD FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
31481-60161	BJ4#..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1977	1
31481-60162	BJ4#..RHD	09/1977 - 07/1980	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60021	FJ40,43,45..RHD FOR SINGLE MASTER CYLINDER	03/1969 - 07/1970	1
31481-60141	BJ4#..RHD FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
31481-60161	BJ4#..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1977	1
31481-60162	BJ4#..RHD	09/1977 - 07/1980	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60021	FJ40,43,45..RHD FOR SINGLE MASTER CYLINDER	03/1969 - 07/1970	1
31481-60141	BJ4#..RHD FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
31481-60161	BJ4#..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1977	1
31481-60162	BJ4#..RHD	09/1977 - 07/1980	1
31481A - HOSE, CLUTCH, NO.1
90947-02239	BJ4#,FJ4# L=433	10/1975 - 01/1976	1
90947-02230	BJ4#,FJ4# L=435	01/1976 - 09/1977	1
90947-02230	BJ4#;FJ4#..RHD L=435	09/1977 - 07/1980	1
31481A - HOSE, CLUTCH, NO.1
90947-02239	BJ4#,FJ4# L=433	10/1975 - 01/1976	1
90947-02230	BJ4#,FJ4# L=435	01/1976 - 09/1977	1
90947-02230	BJ4#;FJ4#..RHD L=435	09/1977 - 07/1980	1
31481A - HOSE, CLUTCH, NO.1
90947-02239	BJ4#,FJ4# L=433	10/1975 - 01/1976	1
90947-02230	BJ4#,FJ4# L=435	01/1976 - 09/1977	1
90947-02230	BJ4#;FJ4#..RHD L=435	09/1977 - 07/1980	1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
90430-10074	BJ4#,FJ4#,55,HJ45	02/1975 - 07/1980	1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
90430-10074	BJ4#,FJ4#,55,HJ45	02/1975 - 07/1980	1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
90430-10074	BJ4#,FJ4#,55,HJ45	02/1975 - 07/1980	1
Common parts
90461-06660
90461-06688
90468-08001
91611-40816
96991-10080

(6903-8007)BJ4#,FJ55..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60021	FJ40,43,45..RHD FOR SINGLE MASTER CYLINDER	03/1969 - 07/1970	1
31481-60141	BJ4#..RHD FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
31481-60161	BJ4#..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1977	1
31481-60162	BJ4#..RHD	09/1977 - 07/1980	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60021	FJ40,43,45..RHD FOR SINGLE MASTER CYLINDER	03/1969 - 07/1970	1
31481-60141	BJ4#..RHD FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
31481-60161	BJ4#..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1977	1
31481-60162	BJ4#..RHD	09/1977 - 07/1980	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60021	FJ40,43,45..RHD FOR SINGLE MASTER CYLINDER	03/1969 - 07/1970	1
31481-60141	BJ4#..RHD FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
31481-60161	BJ4#..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1977	1
31481-60162	BJ4#..RHD	09/1977 - 07/1980	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60021	FJ40,43,45..RHD FOR SINGLE MASTER CYLINDER	03/1969 - 07/1970	1
31481-60141	BJ4#..RHD FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
31481-60161	BJ4#..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1977	1
31481-60162	BJ4#..RHD	09/1977 - 07/1980	1
31481A - HOSE, CLUTCH, NO.1
90947-02239	BJ4#,FJ4# L=433	10/1975 - 01/1976	1
90947-02230	BJ4#,FJ4# L=435	01/1976 - 09/1977	1
90947-02230	BJ4#;FJ4#..RHD L=435	09/1977 - 07/1980	1
31481A - HOSE, CLUTCH, NO.1
90947-02239	BJ4#,FJ4# L=433	10/1975 - 01/1976	1
90947-02230	BJ4#,FJ4# L=435	01/1976 - 09/1977	1
90947-02230	BJ4#;FJ4#..RHD L=435	09/1977 - 07/1980	1
31481A - HOSE, CLUTCH, NO.1
90947-02239	BJ4#,FJ4# L=433	10/1975 - 01/1976	1
90947-02230	BJ4#,FJ4# L=435	01/1976 - 09/1977	1
90947-02230	BJ4#;FJ4#..RHD L=435	09/1977 - 07/1980	1
31481A - HOSE, CLUTCH, NO.1
90947-02239	BJ4#,FJ4# L=433	10/1975 - 01/1976	1
90947-02230	BJ4#,FJ4# L=435	01/1976 - 09/1977	1
90947-02230	BJ4#;FJ4#..RHD L=435	09/1977 - 07/1980	1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
90430-10074	BJ4#,FJ4#,55,HJ45	02/1975 - 07/1980	1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
90430-10074	BJ4#,FJ4#,55,HJ45	02/1975 - 07/1980	1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
90430-10074	BJ4#,FJ4#,55,HJ45	02/1975 - 07/1980	1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
90430-10074	BJ4#,FJ4#,55,HJ45	02/1975 - 07/1980	1
Common parts
90461-06660
90461-06688
90468-08001
91611-40616
91611-40816
91651-40816
96990-10060
96991-10080

BJ43R-KC (1975)

(8008-8506)RHD

(6903-8007)

(6903-8007)FJ40,43,45..RHD

(6903-8007)BJ4#,FJ55..RHD
