BJ43R-K (1975)
Toyota Land Cruiser

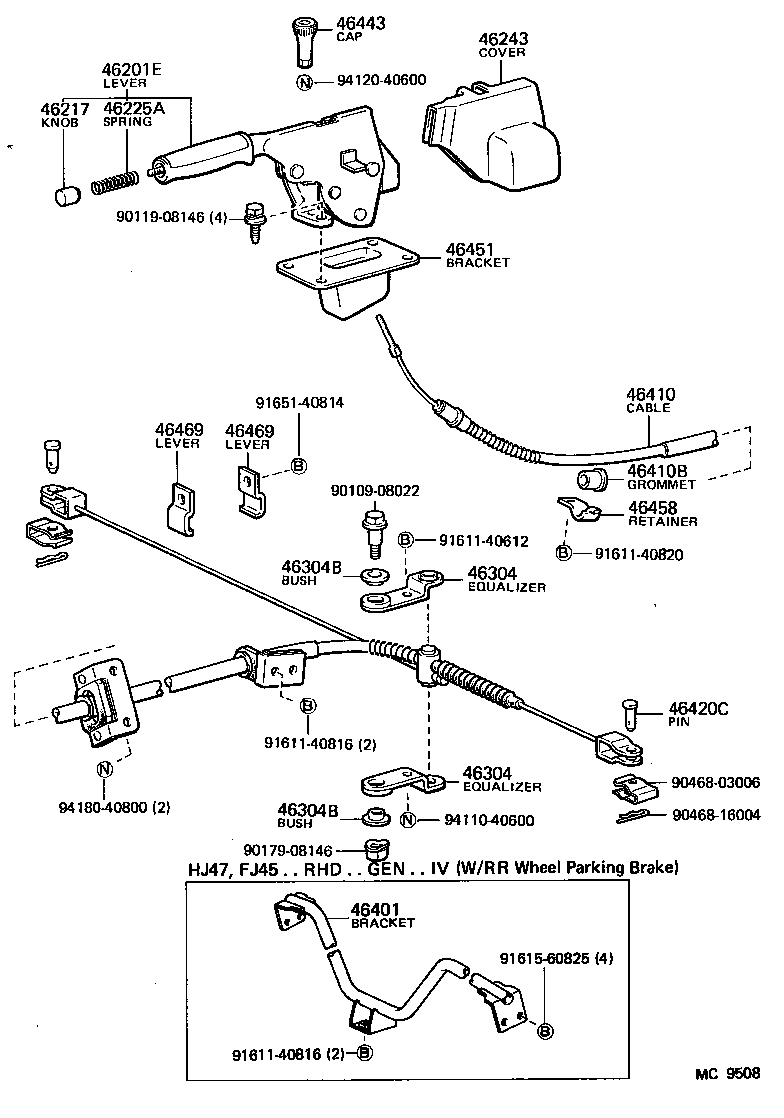

(8008- )BJ40,42,43,46,FJ40,43 ; (8210-8506)FJ45,HJ47..RHD..GEN..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08022 | ||||
| 90119-08146 | ||||
| 90179-08146 | ||||
| 90468-03006 | ||||
| 90468-16004 | ||||
| 91611-40612 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91615-60825 | ||||
| 91651-40814 | ||||
| 94110-40600 | ||||
| 94120-40600 | ||||
| 94180-40800 | ||||
(6903-8007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46520 - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46520-60902 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46520-60901 |
FJ55;BJ4#,FJ40,43,45,HJ45..RHD |
1 | ||
| 46527 - GUIDE, SHOE(FOR PARKING BRAKE) | ||||
| 46527-35010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-60011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-60011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16052 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07006 |
BJ4#,FJ4#,55,HJ45 ID= 7.5 |
1 | ||
| 90213-09005 |
BJ4#,FJ4#,55,HJ45 ID=11.5 |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07006 |
BJ4#,FJ4#,55,HJ45 ID= 7.5 |
1 | ||
| 90213-09005 |
BJ4#,FJ4#,55,HJ45 ID=11.5 |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07006 |
BJ4#,FJ4#,55,HJ45 ID= 7.5 |
1 | ||
| 90213-09005 |
BJ4#,FJ4#,55,HJ45 ID=11.5 |
1 | ||
| 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46551 - PIN, ANCHOR(FOR PARKING BRAKE) | ||||
| 46551-35010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-35010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46611-35010 |
FJ55;BJ4#,FJ40,43,45,HJ45..RHD |
1 | ||
| 46601-36020 |
FJ55;BJ4#,FJ4#,HJ45..RHD |
1 | ||
| 46601-36040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46611-35010 |
FJ55;BJ4#,FJ40,43,45,HJ45..RHD |
1 | ||
| 46601-36020 |
FJ55;BJ4#,FJ4#,HJ45..RHD |
1 | ||
| 46601-36040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-35010 |
FJ55;BJ4#,FJ40,43,45,HJ45..RHD |
1 | ||
| Common parts | ||||
| 90101-08063 | ||||
| 90101-08064 | ||||
| 94110-41400 | ||||
| 94115-41400 | ||||
| 94511-01400 | ||||
| 94512-00800 | ||||

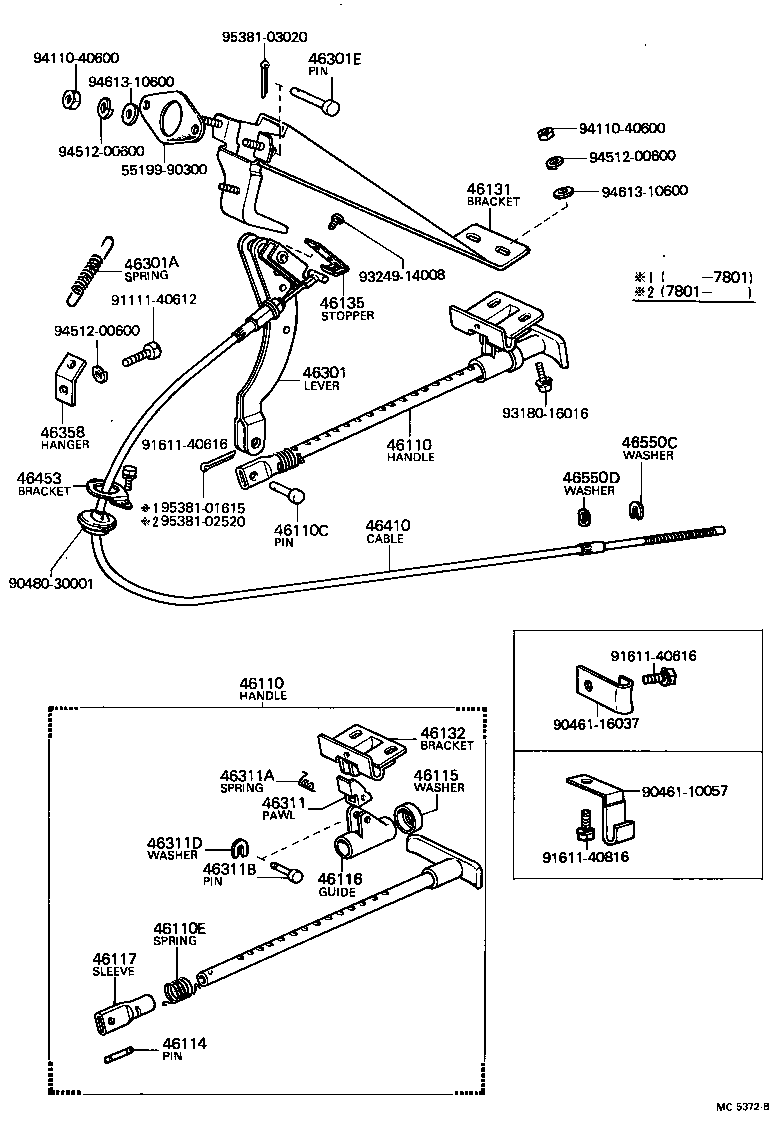

(7709-7901)BJ4#,FJ4#,HJ45..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46120-60011 |
BJ4#,FJ40,43,45,HJ45..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 46120-60011 |
BJ4#,FJ4#,55,HJ45..RHD..(EUR,GEN) FOR SINGLE MASTER CYLINDER |
1 | ||
| 46210-60030 |
BJ4#,FJ4#,HJ45..RHD |
1 | ||
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46120-60011 |
BJ4#,FJ40,43,45,HJ45..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 46120-60011 |
BJ4#,FJ4#,55,HJ45..RHD..(EUR,GEN) FOR SINGLE MASTER CYLINDER |
1 | ||
| 46210-60030 |
BJ4#,FJ4#,HJ45..RHD |
1 | ||
| 46110C - PIN(FOR PARKING BRAKE HANDLE SET) | ||||
| 90240-08094 |
BJ4#,FJ4#,55,HJ45 ID=2.5 |
1 | ||
| 90240-08038 |
BJ4#,FJ4#,55,HJ45 ID=1.6 |
1 | ||
| 46110E - SPRING, TORSION(FOR PARKING BRAKE PLUNGER) | ||||
| 90508-14038 |
BJ4#,FJ40,43,45,55,HJ45..RHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46115 - WASHER, PARKING BRAKE PLUNGER | ||||
| 46115-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46116 - GUIDE, PARKING BRAKE PLUNGER | ||||
| 46116-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30010 |
BJ4#,FJ40,43,45,55,HJ45..RHD |
1 | ||
| 46131 - BRACKET SUB-ASSY, PARKING BRAKE | ||||
| 55107-90300 |
BJ4#,HJ45;FJ4#..RHD |
1 | ||
| 55107-90302 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46132 - BRACKET, PARKING BRAKE PLUNGER, NO.2 | ||||
| 46131-60011 |
BJ4#,FJ4#,HJ45 FOR SINGLE MASTER CYLINDER |
1 | ||
| 46131-60011 |
BJ4#,FJ4#,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46307-60030 |
BJ4#,HJ45;FJ4#..RHD |
1 | ||
| 46301-30010 |
FJ55..RHD;BJ4#,FJ4#,HJ45 |
1 | ||
| 46301-30010 |
BJ4#,HJ45;FJ4#,55..RHD |
1 | ||
| 46307-60022 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-12023 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-12043 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 90240-12043 |
BJ4#,HJ45;FJ4#..RHD |
1 | ||
| 90240-12001 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30020 |
BJ4#,FJ40,43,45,55,HJ45 FOR SINGLE MASTER CYLINDER |
1 | ||
| 46311-30020 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08041 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60010 |
FJ40,43,45..RHD L=1566,FOR 3-SPEED T/M |
1 | ||
| 46410-60013 |
BJ4#,FJ4#,HJ45..RHD |
1 | ||
| 46410-60012 |
BJ4#,FJ4#..RHD |
1 | ||
| 46453 - BRACKET, HOLDER | ||||
| 46453-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07006 |
BJ4#,FJ4#,55,HJ45 ID= 7.5 |
1 | ||
| 90213-09005 |
BJ4#,FJ4#,55,HJ45 ID=11.5 |
1 | ||
| 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| Common parts | ||||
| 55199-90300 | ||||
| 90461-10057 | ||||
| 90461-16037 | ||||
| 90480-30001 | ||||
| 91111-40612 | ||||
| 91611-40616 | ||||
| 91611-40816 | ||||
| 93180-16016 | ||||
| 93249-14008 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 94613-10600 | ||||
| 95381-01615 | ||||
| 95381-02520 | ||||
| 95381-03020 | ||||

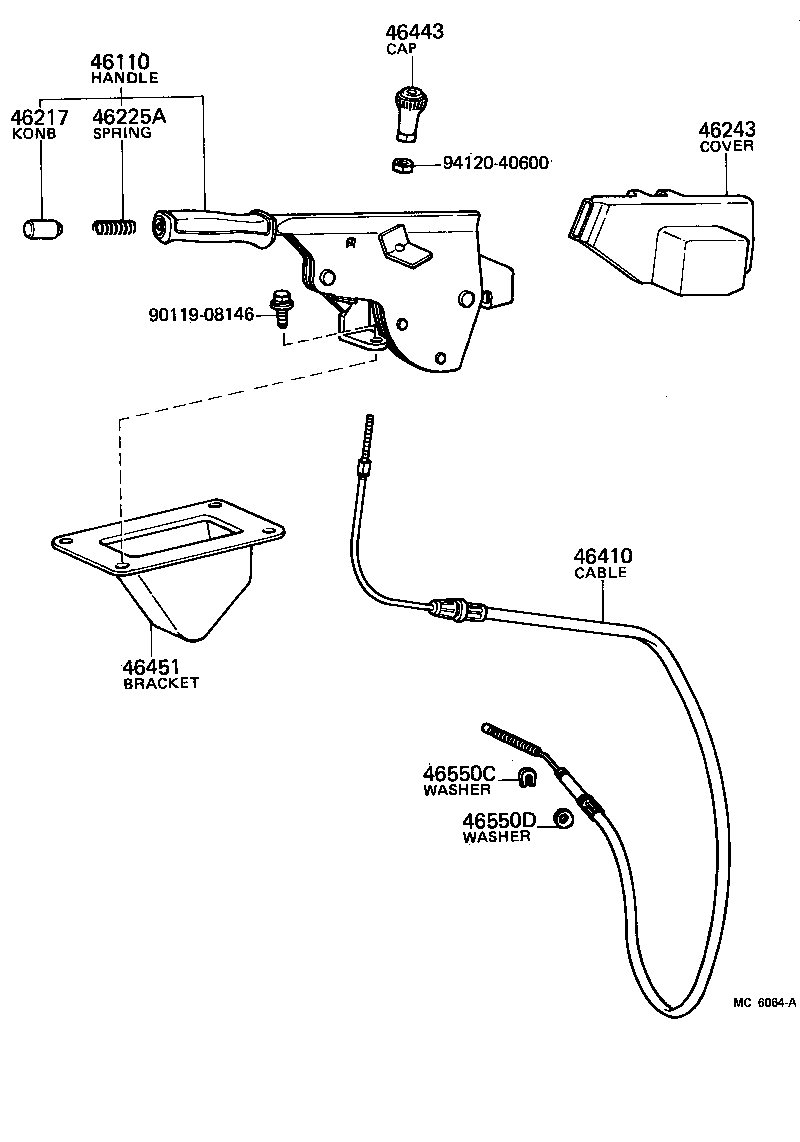

(7901-8007)BJ4#,FJ4#,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46120-60011 |
BJ4#,FJ40,43,45,HJ45..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 46120-60011 |
BJ4#,FJ4#,55,HJ45..RHD..(EUR,GEN) FOR SINGLE MASTER CYLINDER |
1 | ||
| 46210-60030 |
BJ4#,FJ4#,HJ45..RHD |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-10020 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-60020 |
BJ4#,FJ4#,HJ45..RHD |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60010 |
FJ40,43,45..RHD L=1566,FOR 3-SPEED T/M |
1 | ||
| 46410-60013 |
BJ4#,FJ4#,HJ45..RHD |
1 | ||
| 46410-60012 |
BJ4#,FJ4#..RHD |
1 | ||
| 46443 - CAP, CABLE ADJUSTING | ||||
| 46443-12020 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-60020 |
BJ4#,FJ4#,HJ45..RHD |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07006 |
BJ4#,FJ4#,55,HJ45 ID= 7.5 |
1 | ||
| 90213-09005 |
BJ4#,FJ4#,55,HJ45 ID=11.5 |
1 | ||
| 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 94120-40600 | ||||
