BJ43L-KCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7901)BJ4#,FJ4#,HJ45

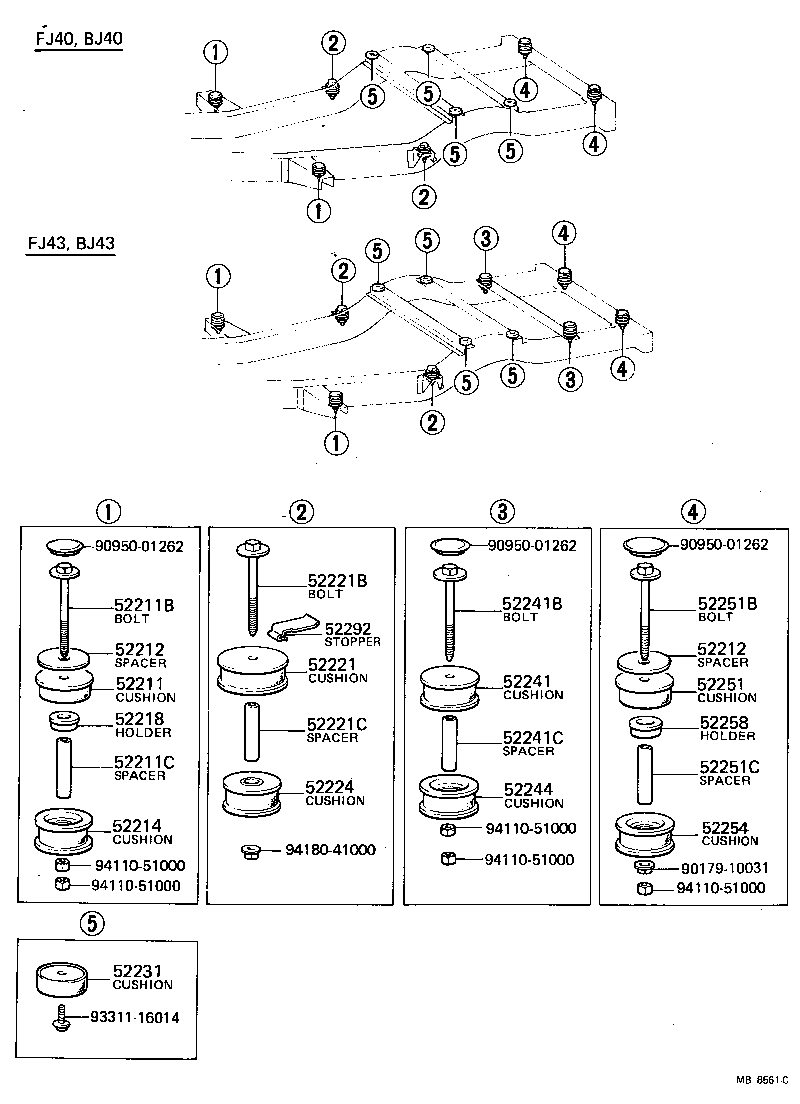

Click highlighted areas on diagram

diagram 52032 52032 52032 52034 52034 52212 52212 52212 52221 52221C 52224 52228 5224160010 5224160010 5752390332 66441 66441 66441A 66442 66442 66443 66443 66444 66445 9010110153 9010110231 9010110389 9011910043 9011910043 9011910058 9011910058 9011910058 9011910174 9020110159 9411041000 9411041000 9412041000 9451201000 9451201000 9453101000 9461211000 9461211000 9461311000
Part # Description Qty Price
52032 - SHIM SUB-ASSY, COWL BODY MOUNTING
52032-90300

BJ4#,FJ4#,HJ45

 2
52032-30010

BJ4#,FJ4#,HJ45

 2
52032 - SHIM SUB-ASSY, COWL BODY MOUNTING
52032-90300

BJ4#,FJ4#,HJ45

 2
52032-30010

BJ4#,FJ4#,HJ45

 2
52032 - SHIM SUB-ASSY, COWL BODY MOUNTING
52032-90300

BJ4#,FJ4#,HJ45

 2
52032-30010

BJ4#,FJ4#,HJ45

 2
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ45

 1
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ45

 1
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ45

 1
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-90300

BJ4#,FJ4#,HJ45

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90560-12009

BJ4#,FJ4#,HJ45

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-90300

BJ4#,FJ4#,HJ45

 2
66441 - SHIM, MOUNTING, NO.1
52033-30010

FJ40,42,43

 2
52033-90301

BJ4#,FJ4#..TP,V

 2
66441 - SHIM, MOUNTING, NO.1
52033-30010

FJ40,42,43

 2
52033-90301

BJ4#,FJ4#..TP,V

 2
66442 - SHIM, MOUNTING, NO.2
52033-90301

BJ4#,FJ4#..TP,V

T=22.8

 2
52033-30010

FJ40,42,43

 2
66442 - SHIM, MOUNTING, NO.2
52033-90301

BJ4#,FJ4#..TP,V

T=22.8

 2
52033-30010

FJ40,42,43

 2
66443 - SHIM, MOUNTING, NO.3
52033-30010

FJ40,42,43

 2
66443 - SHIM, MOUNTING, NO.3
52033-30010

FJ40,42,43

 2
66444 - SHIM, MOUNTING, NO.4
52033-90301

BJ43,FJ43

 2
66445 - SHIM, MOUNTING, REAR
52033-30010

FJ40,42,43

 4
52033-90301

BJ4#,FJ4#

 4
52033-90306

BJ43,FJ43

 4
Common parts
52241-60010
57523-90332
90101-10153
90101-10231
90101-10389
90119-10043
90119-10058
90119-10174
90201-10159
94110-41000
94120-41000
94512-01000
94531-01000
94612-11000
94613-11000

(7901-8007)BJ4#,FJ40,43

Click highlighted areas on diagram

diagram 52211 52211B 52211C 52212 52212 52214 52218 52221 52221B 52221C 52224 52231 52241 52241B 52241C 52244 52251 52251B 52251C 52254 52258 52292 9017910031 9095001262 9095001262 9095001262 9331116014 9411051000 9411051000 9411051000 9411051000 9411051000 9418041000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-90301

BJ4#,FJ4#,HJ45

FOR ADJUSTER

 2
52201-90300

BJ4#,FJ4#,HJ45

 2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90119-10123

BJ4#,FJ4#,HJ45

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
90560-12017

BJ4#,FJ4#,HJ45

FOR ADJUSTER

 2
90560-12009

BJ4#,FJ4#,HJ45

 2
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ45

 1
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ45

 1
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-90300

BJ4#,FJ4#,HJ45

 2
52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1
52228-22010

BJ4#,FJ4#,HJ45

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-90300

BJ4#,FJ4#,HJ45

 2
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90109-10039

BJ4#,FJ4#,HJ45

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90560-12009

BJ4#,FJ4#,HJ45

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-90300

BJ4#,FJ4#,HJ45

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52208-90300

BJ4#,FJ40,43

 4
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52205-90300

BJ43,FJ43,45,HJ45..TP,V

 2
52241B - BOLT(FOR BODY MOUNT NO.4 CUSHION)
90119-10123

BJ43,FJ43,45,HJ45..TP,V

 2
52241C - SPACER(FOR BODY MOUNT NO.4 CUSHION)
90560-12009

BJ43,FJ43,45,HJ45..TP,V

 2
52244 - CUSHION, BODY MOUNT, NO.4 LOWER
52202-90300

BJ43,FJ43,45,HJ45..TP,V

 2
52251 - CUSHION, BODY MOUNT, NO.5 UPPER
52201-90300

BJ4#,FJ4#,HJ45..TP,V

 2
52251B - BOLT(FOR BODY MOUNT NO.5 CUSHION)
90119-10123

BJ4#,FJ4#,HJ45..TP,V

 2
52251C - SPACER(FOR BODY MOUNT NO.5 CUSHION)
90560-12009

BJ4#,FJ4#,HJ45..TP,V

 2
52254 - CUSHION, BODY MOUNT, NO.5 LOWER
52202-90300

BJ4#,FJ4#,HJ45..TP,V

 2
52258 - HOLDER, BODY MOUNT BOLT SPACER, NO.5
52228-22010

BJ4#,FJ4#,55,HJ45..TPC,TPS,VKC,VLS,VTG

 2
52292 - STOPPER, CENTER BODY MOUNTING BOLT
52292-90300

BJ4#,FJ4#,HJ45

RH.

 1
52293-90300

BJ4#,FJ4#,HJ45

LH.

 1
Common parts
90179-10031
90950-01262
93311-16014
94110-51000
94180-41000
